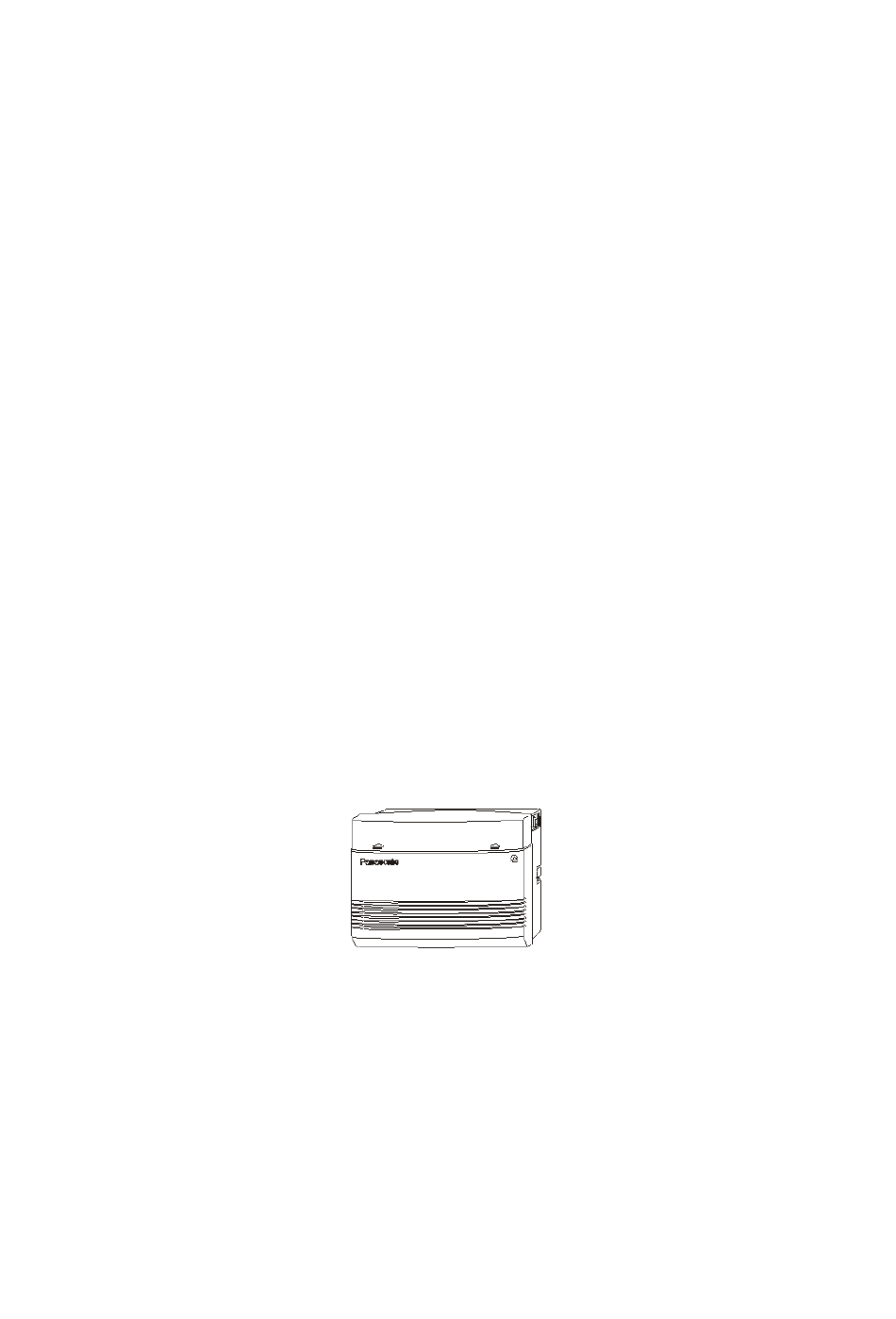

  • Page 1 KX-TA624 Advanced Hybrid Telephone System...

  • Page 2: Introduction

    KX-TA Advanced Hybrid System Introduction Welcome to the Panasonic KXTA624, Advanced Hybrid Telephone System. If you are familiar with our KXT products you will very quickly appreciate how ‘Advanced’ the KXTA system is from its predecessor the KXT7000 Series. The ‘Advanced’...

  • Page 3: Table Of Contents

    KX-TA Advanced Hybrid System Index Introduction.............................2 Index.................................3 System Capacities............................6 System Components..........................7 KX-TA624E Central Control Unit ..................7 KX-TA62474E Expansion Card ..................7 KX-TA62477E Expansion Card ..................7 KX-TA62491E DISA/OGM/Fax Detection Card .............. 7 KX-TA62493E Caller ID Card..................7 KX-TA62460E Doorphone / Door Opener Card .............. 7 KX-T30865E Door-phones ....................
  • Page 4 KX-TA Advanced Hybrid System Terminate hunting ......................14 Extension Lock......................14 External Feature Access ...................14 Flexible Buttons .......................14 Handsfree Answerback ....................14 Handsfree Operation ....................15 Hold..........................15 Exclusive Hold ........................ 15 Intercept Routing......................15 Language Selection ....................15 Limited Call Duration ....................15 Line Access Keys .....................16 Trunk Group (G-CO) Key ....................
  • Page 5 KX-TA Advanced Hybrid System Station Message Detail Recording (SMDR) ............21 System Speed Dialling .....................21 Timed Reminder.......................21 Timed Reminder, Remote (Wake-Up Call)..............21 Time (Day/Night/Lunch) Service................22 Uniform Call Distribution (UCD) ................22 Voice Mail Integration .....................22 Walking Class Of Service ..................22 E&OE Issue 2...

  • Page 6: System Capacities

    KX-TA Advanced Hybrid System System Capacities Minimum Maximum Key-phones Single Line Telephones Exchange Lines Door-phones Door Openers Paging Ports External Music Printer System Variations Lines Extensions Caller ID DISA/OGM/ Door Opener Cards Fax Detect for 4 Doors Central Control Unit (CCU) 0 or 1 0 or 1 0 or 1...

  • Page 7: System Components

    KX-TA Advanced Hybrid System System Components KX-TA624E Central Control Unit The central control unit is initially configured 3 exchange lines and 8 extension ports. The following devices are built in: 1. Music input 2. Paging output 3. RS232C call logging port 4.

  • Page 8: Kx-T30865E Door-Phones

    KX-TA Advanced Hybrid System KX-T30865E Door-phones Up to 4 door-phones may be connected to the KX-TA624 system provided it is fitted with the KX-TA62460E card. The door-phones are proprietary, weather resistant units. There are also four relays for controlling a remote door-lock for each doorphone.

  • Page 9: Features

    KX-TA Advanced Hybrid System Features Absent Message Allows an extension user to set a message which will be displayed on the LCD of the calling extension to show the reason for the called extension’s absence. One of 6 messages can be displayed, the message may be set for any telephone (single line telephone or proprietary telephone).

  • Page 10: Automatic Route Selection (Ars)

    KX-TA Advanced Hybrid System Automatic Route Selection (ARS) The system automatically selects the least expensive of up to five routes based on time and exchange line used. It is not necessary to dial the access code of the least expensive carrier. Busy Extension Signalling When an extension user calls a busy extension, the busy extension will hear a Call Waiting tone to know that a call is waiting.

  • Page 11: Call Pickup

    KX-TA Advanced Hybrid System Call Pickup There are four types of call pickup: Directed Call Pickup Allows an extension user to answer a call ringing at any other extension. Group Call Pickup Allows an extension user to answer a call ringing at another extension, if the call is ringing within the same extension group.

  • Page 12: Data Line Security

    KX-TA Advanced Hybrid System Data Line Security Prevents an extension user from being interrupted by the Call Waiting and Executive Busy Override features. This feature also prevents a ring tone or an alarm tone from being sent when a call is kept holding longer than the allowed time. Data communication devices, such as computers and facsimiles, connected to an extension port can operate without interruptions.

  • Page 13: Dss Console

    KX-TA Advanced Hybrid System DSS Console The Direct Station Selection (DSS) Console provides direct access to extensions, a busy lamp display, as well as 16 PF (Programmable Feature) buttons. Up to 2 consoles can be installed per system. If a feature like One-Touch Dialling is assigned to a DSS button or PF button, accessing the feature can be done easily by pressing the corresponding button.

  • Page 14: Extension Hunting

    KX-TA Advanced Hybrid System Extension Hunting If a called extension is busy, Extension Hunting redirects the incoming call to an idle extension in an extension group in numerical order. Idle extensions are automatically hunted according to programming. The following 2 hunting types are available. Circular hunting The extensions are hunted one time in numerical order.

  • Page 15: Handsfree Operation

    KX-TA Advanced Hybrid System Handsfree Operation Allows a proprietary telephone user to dial and talk to the other party without lifting the handset. Hold Allows an extension user to place an intercom and/or outside call on hold. The held call can be retrieved by the user who held it, or by any other extension (Call Hold Retrieve).

  • Page 16: Line Access Keys

    KX-TA Advanced Hybrid System Line Access Keys The flexible line keys on a Proprietary Telephone may be set to any of the following three functions:. Trunk Group (G-CO) Key Receiving or making outside calls is on an trunk group basis. The trunk group is assigned in program [404].

  • Page 17: One-Touch Dialling

    KX-TA Advanced Hybrid System One-Touch Dialling Allows a proprietary telephone user one-touch access to a telephone number or system feature. This is done by storing an extension number, telephone number or a feature number (up to 24 digits) in a One-Touch Dialling button. One-Touch Dialling buttons can be assigned to flexible buttons on a Proprietary Telephone.

  • Page 18: Outside Calling

    KX-TA Advanced Hybrid System Outside Calling Allows an extension user to make a call to an external party by using one of the following line access methods. Automatic Line Access By dialling 9 an extension user will select an idle exchange line automatically from the dial 9 group.

  • Page 19: Pickup Dialling

    KX-TA Advanced Hybrid System Pickup Dialling Allows a single line telephone user to make an outgoing call by going off-hook, if the user has stored the telephone number (up to 32 digits) beforehand. This feature is also known as “Pick Up Dial”...

  • Page 20: Preferred Line Assignment - Outgoing

    KX-TA Advanced Hybrid System Preferred Line Assignment — Outgoing A proprietary telephone user can select a desired outgoing line preference to make outside calls from the following 3 line preferences. System Programming and Proprietary Telephone Settings are required. Idle Line Preference When the user goes off-hook, they are connected to an idle line.

  • Page 21: Room Monitor

    KX-TA Advanced Hybrid System Room Monitor Allows a proprietary telephone or single line telephone with a MUTE button to monitor a room or the front door through another proprietary telephone or doorphone without them knowing. The access tone will not be sent to the monitored proprietary telephone when monitoring starts.

  • Page 22: Time (Day/Night/Lunch) Service

    KX-TA Advanced Hybrid System Time (Day/Night/Lunch) Service The system supports day, night and lunch operation modes. The system operation for making and receiving calls can be different for each mode. The system operation for call barring can be arranged to prevent unauthorised calls for each mode. Time service can be set automatically or manually by programming.
  • Page 23 KX-TA Advanced Hybrid System Produced by Paul White Panasonic Business Systems UK Ltd. Willoughby Road Bracknell Berks RG12 8FP E&OE Issue 2...
