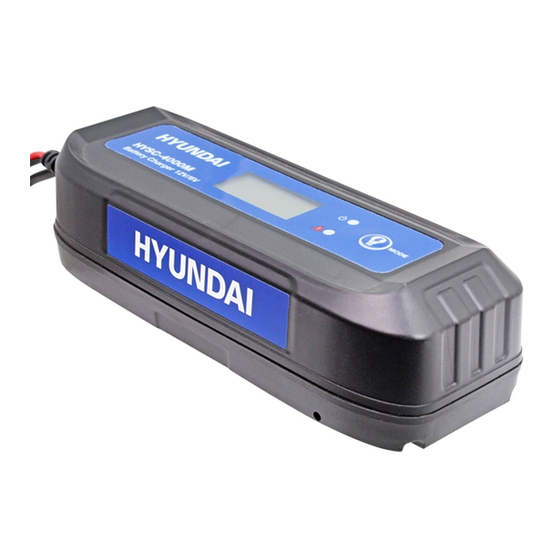

- Page 1 USER MANUAL HYSC-4000M BATTERY CHARGER HYSC-4000M Please read and understand all important safety and operating instructions before using this charger. In addition, please read and follow all battery and vehicle manufacturer’s instructions and cautionary markings.
- Page 2 HYSC-4000M We are still constantly improving this smart battery charger, therefore, some parts of this smart battery charger may be changed in order to achieve the better quality, but the main functions and operations will not be alternated and changed. Your understanding would be greatly appreciated.
-
Page 3: Table Of Contents
HYUNDAI Table of Contents SAFETY CONNECTING TO THE BATTERY ABOUT HYSC-4000M CHARGING MODES CHARGING STEPS BATTERY LEVEL INDICATOR CHARGING TIME... -
Page 4: Safety
HYSC-4000M 1. SAFETY SAFETY PRECAUTIONS FOR WORKING IN THE VICINITY OF A BATTERY 1) Batteries generate explosive gases during normal operation. Use in well-ventilated area. 2) Consider having someone close enough or within the range of your voice to come to your aid when you work near a battery. -
Page 5: Connecting To The Battery
HYUNDAI 7) To reduce the risk of damage to electric plug and cord, pull by the plug rather than the cord when disconnecting charger. 8) To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning. -
Page 6: About Hysc-4000M
HYSC-4000M 3. ABOUT HYSC-4000M 1) The HYSC-4000M is designed for charging all types of 6V lead-acid and 12V lead-acid batteries, including WET (Flooded), MF (Maintenance-Free), EFB (Enhanced Flooded Battery), GEL, AGM (Absorbed Glass Mat) batteries. It is suitable for charging battery capacities from 1.2 to 130 Amp-Hours and maintaining all battery sizes. - Page 7 HYUNDAI 8) LCD Icons: 1) 12V STD Mode 2) 12V AGM Mode 3) COLD Mode 4) 6V STD Mode 5) Battery Level Indicator 6) Reverse Polarity Connection Indicator 7) Faulty Battery Indicator 8) Clamp Indicator (Open-circuit / Dirty battery posts / Dead battery / Output Short Circuit)
-
Page 8: Charging Modes
HYSC-4000M 4. CHARGING MODES HYSC-4000M has ten modes: Standby, 12V STD, 12V COLD, 12V AGM, 12V AGM+COLD, 6V STD, 12V STD Repair, 12V COLD Repair, 12V AGM Repair and 12V AGM+COLD Repair. Do not operate the charger until you confirm the appropriate charge mode for your battery. -
Page 9: Charging Steps
HYUNDAI (flooded) cell batteries. Plus, some batteries and electronics may be sensitive to high charging voltages. To minimize risks, disconnect the battery from the vehicle before using this mode. 5. CHARGING STEPS Step Voltage(V) Current(A) STEP 1: DIAGNOSIS (Check if battery has connected with the charger and also check battery voltage) -
Page 10: Battery Level Indicator
HYSC-4000M 6. BATTERY LEVEL INDICATOR Display Explanation The 20% bar will slowly flash when the battery level is less than 20%. When 20% is reached, the bar will be solid. The 40% bar will slowly flash when the battery level is less than 40%. - Page 11 HYUNDAI Corporation 25, Yulgok-ro 2-gil, Jongno-gu, Seoul 03143 Korea Declare that the product detailed below : BATTERY CHARGER FOR LEAD ACCUMULATOR MODEL : HYSC-4000M Satisfies the requirements of the Council Directives : EMC directive 2014/30/EU Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU...
- Page 12 HYUNDAI Corporation 25, Yulgok-ro 2-gil, Jongno-gu, Seoul 03143, Korea, Post Code : 03143 82 2 390 1114 www.hyundaicorp.com Copyright HYUNDAI Corporation All rights reserved. Made in P.R.C...
