Jet Elite ECB-1422V Operating Instructions And Parts Manual

Horizontal band saw, 14” semi-auto dual-column
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

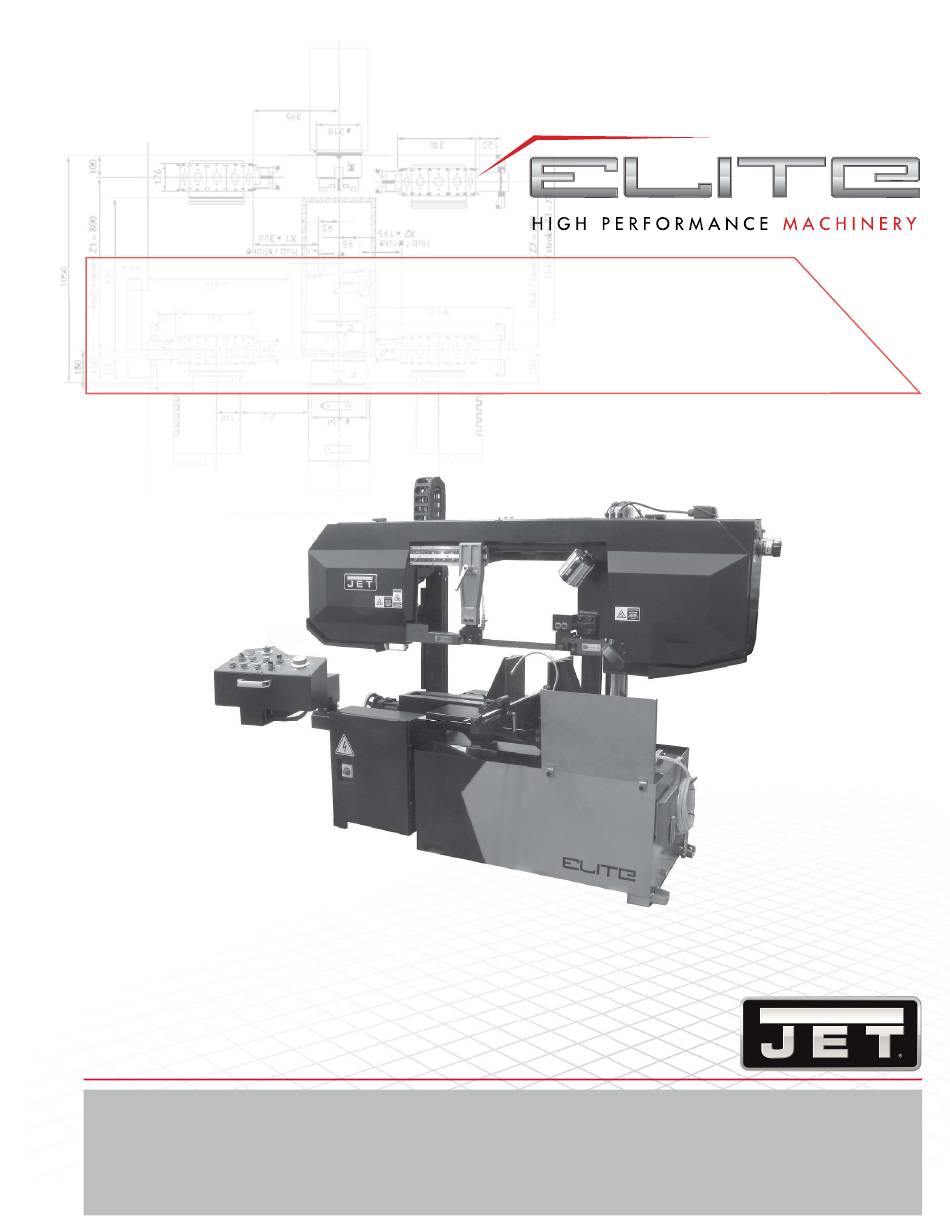

Operating Instructions and Parts Manual
Horizontal Band Saw, 14" Semi-Auto Dual-Column
Model ECB-1422V
JET
®
427 New Sanford Road
LaVergne, Tennessee 37086
www.jettools.com
Ph.: 855-336-4032
This .pdf document is bookmarked
Document No. M-891160
Edition 1 09/2020
Copyright © 2020 JET

Advertisement

Table of Contents
loading

Related Manuals for Jet Elite ECB-1422V

Summary of Contents for Jet Elite ECB-1422V

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal Band Saw, 14” Semi-Auto Dual-Column Model ECB-1422V ® 427 New Sanford Road LaVergne, Tennessee 37086 Document No. M-891160 www.jettools.com Edition 1 09/2020 Ph.: 855-336-4032 Copyright © 2020 JET...
  • Page 2 Technical Service by calling 1-855-336-4032, 8AM to 5PM CST, Monday through Friday. WARRANTY PERIOD The general warranty lasts for the time period specifi ed in the literature included with your product or on the offi cial JET branded website, jettools.com.
  • Page 3 THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. JET sells through distributors only. The specifi cations listed in JET printed materials and on offi cial JET website are given as general information and are not binding. JET reserves the right to eff ect at any time, without prior notice, those alterations to parts, fi...

  • Page 4: Table Of Contents

    2.0 TABLE OF CONTENTS 1.0 WARRANTY AND SERVICE ............................2 2.0 TABLE OF CONTENTS ..............................4 3.0 IMPORTANT SAFETY INSTRUCTIONS ........................5 4.0 INTRODUCTION ................................7 5.0 SPECIFICATIONS ................................8 6.0 UNCRATING AND ASSEMBLY ............................8 7.0 INSTALLATION ................................9 8.0 COOLANT ..................................9 9.0 ELECTRICAL CONNECTIONS ............................9 10.0 CONTROLS................................10 11.0 AUXILIARY COOLANT HOSE ..........................10 12.0 PRIOR TO OPERATION ............................10...

  • Page 5: Important Safety Instructions

    5. Do not use this band saw for other than its intended use. If used for other purposes, JET ®...
  • Page 6 28. Maintain proper adjustment of blade tension, blade guides and thrust bearings. 29. Turn off the machine and disconnect from power before cleaning. Use a brush to remove chips or debris — do not use bare hands. 30. Do not stand on the machine. Serious injury could occur if the machine tips over. 31.

  • Page 7: Introduction

    If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www. jettools.com. Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.

  • Page 8: Specifications

    The specifi cations in this manual were current at time of publication, but because of our policy of continuous improve- ment, JET reserves the right to change specifi cations at any time and without prior notice, without incurring obligations. 6.0 UNCRATING AND ASSEMBLY...

  • Page 9: Installation

    9.0 ELECTRICAL CONNECTIONS 7.0 INSTALLATION For best performance, the band saw should be located on a solid and level concrete foundation. Allow room for servicing and for moving large stock around the band saw Electrical connections must be made by a qualifi ed when deciding upon a location for the machine.
  • Page 10 9.2 Converting to 460 Volt Voltage conversion must be done by a qualifi ed electrican. The Band Saw is prewired for 230 volt. To change to 460 volt operation, proceed as follows. Additional purchases will be required: see electrical box parts list for any part numbers to order.

  • Page 11: Controls

    11.0 AUXILIARY COOLANT HOSE 10.0 CONTROLS The saw is equipped with an auxiliary coolant hose and Refer to Figure 10-1. nozzle. This can be used when a larger fl ood of coolant Power Indicator Light (A) – Illuminated whenever must be directed at the work piece, or when cleaning off machine is connected to power.

  • Page 12: Blade Break-In

    15. Jog the blade “on” and “off ” to be sure the blade is in place and tracking properly. 16. If blade is not tracking properly refer to sect. 13.11. Otherwise blade installation is done. 17. Close all covers, replace all guards, and fasten securely.

  • Page 13: Adjusting Blade Guides

    13.5 CHANGING BLADE SPEED Only adjust speed with power on and blade turning. Failure to comply may cause damage to machine. 1. Raise cutting head approximately six inches above work piece and turn feed rate knob to zero. 2. Turn power on and turn speed adjuster knob (Fig. 13-4) to match appropriate material.

  • Page 14: Adjusting Feed Rate

    13.6 ADJUSTING FEED RATE 13.8 ADJUSTING STOCK ADVANCE STOP Rate of feed is adjusted with control dial (E, Fig. 10-1). The Stock Stop is used mainly for repetitive cuts of the same length. Install the stock stop assembly to the ma- Feed rate is important to band saw performance;...

  • Page 15: Limit Switches For Saw Head

    13.10 LIMIT SWITCHES FOR SAW HEAD The upper limit switch (A, Fig. 13-7) stops the saw head at the height set by the upper stop (B). This should be set to stop the head just above the workpiece, to optimize cycle time.

  • Page 16: User-Maintenance

    14.0 USER-MAINTENANCE 14.3 ADDDITIONAL GREASE/OIL POINTS See Figures 14-2 and 14-3. • Column oil cup - Top off as needed with Mobil DTE® Before doing maintenance on the machine, Oil Heavy Medium, or equivalent. disconnect it from the electrical supply by pulling •...

  • Page 17: Coolant

    To drain coolant use drain plug located on right side of machine base. Follow local regulations when disposing of JET off ers a bio-degradable, concentrated fl ood coolant used machine fl uids. Apply thread sealing tape to the drain (not provided) formulated for band saws, lathes, and plug before re-installing.

  • Page 18: Optional Accessories

    16.0 REPLACEMENT PARTS — 15.0 OPTIONAL ACCESSORIES ECB1422V The following accessories are available for your saw. Con- Replacement parts are listed on the following pages. tact your dealer to order. To order parts or reach our service department, call 1-855-336-4032, Monday through Friday, 8 a.m. to 5 891161 - Bundling Kit for ECB-1422V p.m.
  • Page 19 BASE ASSEMBLY — ECB1422V ECB-1422V...
  • Page 20 PARTS LIST BASE ASSEMBLY — ECB1422V Index No. Part No. Description Size Qty. TS-0209051 Socket Hd Cap Screw 3/8"-16x1"L TS-0720091 Lock Washer 3/8" ECB-1422V-A03 Length Rod Washer TS-0270021 Socket Set Screw 5/16"-18x5/16"L ECB-1422V-A05 Length Rod Right Bracket TS-0209051 Socket Hd Cap Screw 3/8"-16x1"L TS-0720091 Lock Washer...
  • Page 21 Index No. Part No. Description Size Qty. TS-1491061 Hex Cap Screw M10x40L TS-2361101 Lock Washer ECB-1422V-A51 Lift Cylinder TS-154012 M20xP1.5 ECB-1422V-A53 Universal Joint BB2038A/ Pos20 1 TS-1506041 Socket Hd Cap Screw M12x35L ECB-1422V-A55 Rear Vise ECB-1422V-A56 Rear Vise Steel Plate TS-1515041 Socket Head Flat Screw M8x30L...
  • Page 22 Index No. Part No. Description Size Qty. F012105 Roll Pin M8x20L TS-1492051 Hex Cap Screw M12x50L TS-2361121 Lock Washer F012106 Roll Pin M10x20L 10x20L TS-1501081 Socket Hd Cap Screw M4x30L ECB-1422V-A102 Limit Switch TS-2246082 Socket HD Button Screw M6x8L ECB-1422V-A104 Limit Switch Cover ECB-1422V-A105 Limit Switch Contact Plate TS-1504051 Socket Hd Cap Screw...
  • Page 23 Index No. Part No. Description Size Qty. ECB-1422V-A145 Waterjet Joint ECB-1422V-A146 Water Gun, non-Zinc 5-1/2" ECB-1422V-A147 Control Box Support Cover TS-2246082 Socket HD Button Screw M6x8L ECB-1422V-A149 Splash Guard ECB-1422V-A150 Hexalobular Socket Screw M6x8L ECB-1422V-A151 Control Box Support Screw Axis ECB-1422V-A152 Control Box Support Bushing TS-1524051 Socket Set Screw...
  • Page 24 SAW HEAD ASSEMBLY — ECB1422V Horizontal Band Saw...
  • Page 25 PARTS LIST SAW HEAD ASSEMBLY — ECB1422V Index No. Part No. Description Size Qty. F006047 C-Retaining Ring, Ext BB-6304 Bearing BB-6304 ECB-1422V-B03 Adjustable Shaft ECB-1422V-B04 Eccentric Shaft ECB-1422V-B05 Adjusting Bracket TS-154010 Hex Nut ECB-1422V-B07 45° Steel Screw TS-2361121 Lock Washer TS-1492051 Hex Cap Screw M12x50L...
  • Page 26 Index No. Part No. Description Size Qty. TS-2361101 Lock Washer TS-1505041 Socket Hd Cap Screw M10x30L TS-1523011 Socket Set Screw M6x6L TS-1506031 Socket Hd Cap Screw M12x30L 50-1 ECB- Saw Bow Upper Shaft 1422V-B50-1 F012107 Roll Pin 10x30L ECB-1422V-B52 Key, Dbl Rd Hd 14x9x50L ECB-1422V-B53 Speed Reducer...
  • Page 27 Index No. Part No. Description Size Qty. TS-2361101 Lock Washer TS-1540071 Hex Nut ECB-1422V-B95 Bearing Bushing (Short) ECB-1422V-B96 Bearing Bushing (Long) BB-6201 Bearing BB-6201 ECB-1422V-B98 Bearing Shaft (Long) ECB-1422V-B99 Bearing Shaft (Short) TS-1540071 Hex Nut TS-2361101 Lock Washer ECB-1422V-B102 Blade Guide Block (Rear) TS-1504091 Socket Hd Cap Screw M8x45L...
  • Page 28 Index No. Part No. Description Size Qty. ECB-1422V-B142 Holder Plates TS-1550071 Flat Washer TS-2361101 Lock Washer TS-1505041 Socket Hd Cap Screw M10x30 TS-2246162 Socket Hd Button Screw M6x16L ECB-1422V-B147 Work Light 9W/ 24VAC ECB-1422V-B148 Rear Coolant Tray ECB-1422V-B149 Laser Fixed Plate TS-1550031 Flat Washer TS-2361051...
  • Page 29 Index No. Part No. Description Size Qty. BB-6000 Bearing 6000 ECB-1422V-B192 Upper Bracket ECB-1422V-B193 Bearing Shaft ECB-1422V-B194 Blade Guard TS-2246082 Socket Hd Button Screw M6x8L ECB-1422V-B196 Blade 34Wx4880L ECB-1422V-B197 Blade Cover TS-1540041 Hex Nut ECB-1422V-B199 Screw Casing 8x80L TS-1550041 Flat Washer ECB-1422V-B201 Handle SK34 ECB-1422V-B202 Hex Cap Screw...
  • Page 30 ELECTRICAL BOX ASSEMBLY — ECB1422V Horizontal Band Saw...
  • Page 31 PARTS LIST ELECTRICAL BOX ASSEMBLY — ECB1422V Index No. Part No. Description Size Qty. ECB1422V-SB6 Emergency Stop Switch (SB6) ECB1422V-PL Power Lamp (PL) ECB1422V-SA2 Coolant Pump Selectric Switch (SA2) ECB1422V-SB1 Blade Off Push Button Switch (SB1) ECB1422V-SB3 Bow Up Push Button Switch (SB3) ECB1422V-SA4 Main/ Auto Switch (SA4) ECB1422V-E7...
  • Page 32 HYDRAULIC SYSTEM — ECB1422V Horizontal Band Saw...
  • Page 33 PARTS LIST HYDRAULIC SYSTEM — ECB1422V Index No. Part No. Description Size Qty. ECB-1422V-D1 Motor 1HP/4P/230/460V 3Ph ECB-1422V-D2 Oil Pump PVF-12-35-10 ECB-1422V-D3 Oil Pressure Valve DFA-02-3C4-A110V ECB-1422V-D4 Check Valve MPC-02W ECB-1422V-D5 Check Valve MPC-02A ECB-1422V-D6 Bow Down Control Valve FNC-G02-6 ECB-1422V-D7 Blade Tension Control Valve RDH-P02-H...

  • Page 34: Wiring Diagram

    17.0 WIRING DIAGRAM Horizontal Band Saw...
  • Page 35 ECB-1422V...
  • Page 36 NOTES Horizontal Band Saw...
