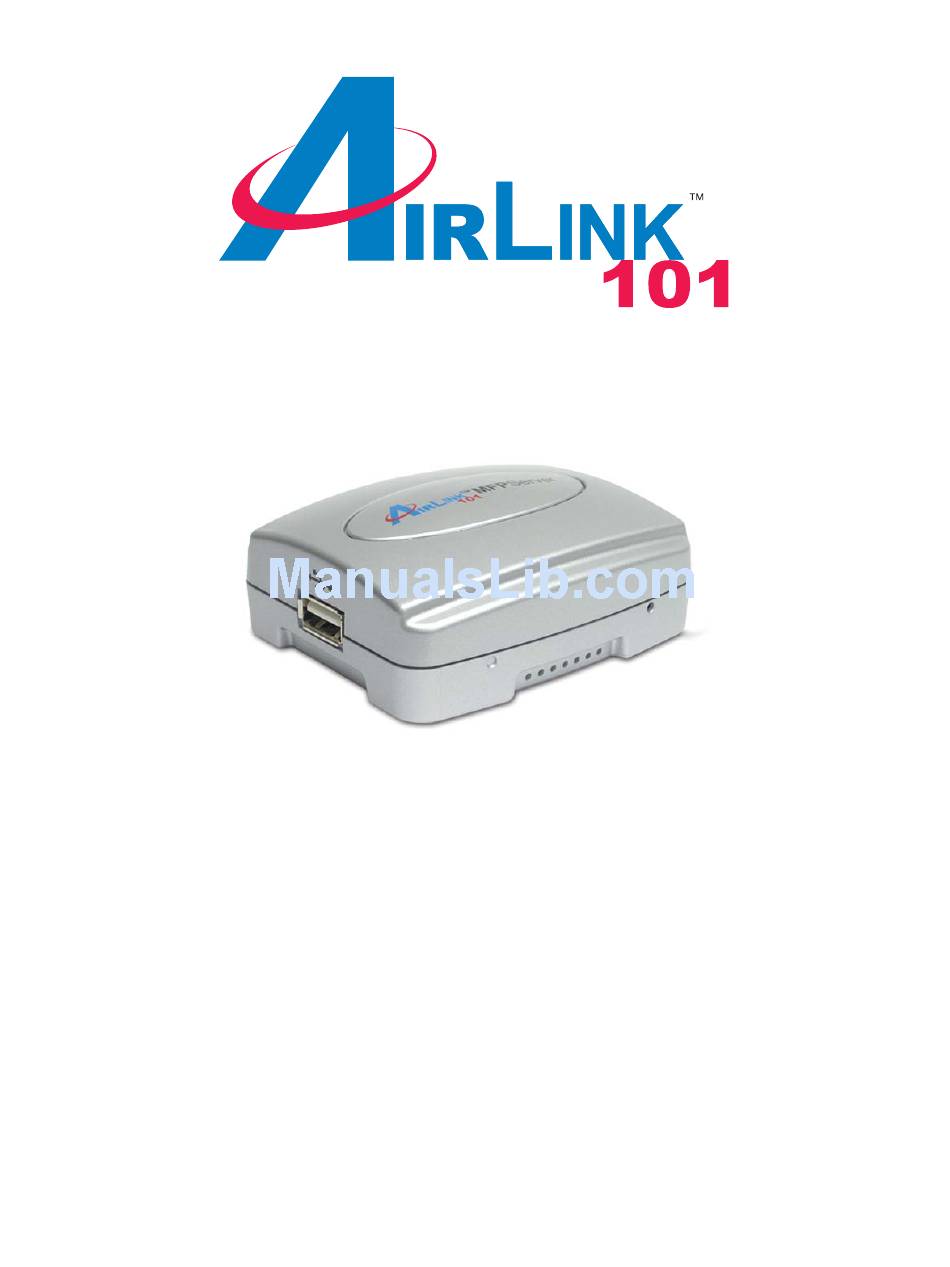

Page 1: Quick Installation Guide
1 Port USB 2.0 Multi-Functional Printer Server Model # APSMFP210 Quick Installation Guide Ver. 1A... -
Page 2: Connecting The Mfp Print Server
Section 1 Connecting the MFP Print Server Warning: Only a USB printer may be connected to the USB port of the Print Server. Connecting any other USB device to the Print Server may damage the Print Server. Note: Before installing the MFP Print Server, make sure you can print, scan, or fax with your multi-func- tional printer directly connected to your computer(s). -
Page 3: Configuring Network Settings
Section 2 Configuring Network Settings Before configuring the Print Server’s network settings, please take note of your computer’s TCP/IP setting. Step 1 Click on Start, Run, and type cmd and click OK. Step 2 At the command prompt, type ipconfig and press Enter. Step 3 Write down the information for the IP Address, Subnet Mask, and Default Gateway. - Page 4 Step 5 Click Next at the welcome screen. Step 6 Select your MFP Print Server in the list and click Next. If you have more than one print server connected to your LAN, you will see multiple ones listed. Step 7 Refer to the information you wrote down at Step 3.
- Page 5 Step 8 In the IP Address field, enter a valid IP address, subnet mask, and default gateway that matches your local area network. For example: If your computer’s IP Address is 192.168.0.100, enter the same three numbers: 192.168.0 in the corresponding fields. Note: You can leave the last IP Address number 254 as is unless another network device (i.e.
- Page 6 Step 9 Click Next to save the settings you have made or click Back to correct the settings. Step 10 Click Finish.
-
Page 7: Installing Mfp Ps Utility
Section 3 Installing MFP PS Utility Step 1 Insert the provided CD and wait for the autorun screen to appear. Step 2 Select Install MFP PS Utility from the menu. Note: If the autorun window does not appear automatically, go to Start, Run, and type D:\PS-Utility\Setup.exe (where D is the letter of your CD drive) and click OK. - Page 8 Step 4 Click Next to accept the default destination folder. Step 5 Click Next to accept the default program folder. Step 6 Click Finish.
- Page 9 Step 7 When the Found New Hardware Wizard pops up automatically, select No, not this time and click Next. Step 8 Select Install the software automatically (recommended) and click Next. Step 9 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click Yes at the Digital Signature Not Found prompt).
- Page 10 Step 10 Click Finish. Step 11 (Optional) If the Found New Hardware Wizard pops up, follow the on-screen instructions to install your printer driver.
- Page 11 Section 4 Using MFP PS Utility Step 1 To run the MFP PS Utility, go to Start > (All) Programs > Airlink101 > Airlink 101 MFP PS Utility. Step 2 Click Unblock if the Windows Security Alert pops up.
- Page 12 Step 3 Make sure the MFP Print Server is detected in the window. Click on the plus sign “+“ (after clicking it, you will see a “-” sign) on the left side of the MFP print server. Step 4 Select your printer and click Connect. Step 5 Click the plus sign “+“...
- Page 13 Step 6 Click OK. Step 7 Close the PS Utility window by clicking the “X” at the upper right corner on the window to keep this program running at the background. If you click Exit, the MFP PS Utility will be shut down. Step 8 Go to Control Panel >...
-
Page 14: Technical Support
Section 5 *Printer server may not support all printers. Go to the Airlink101 website to view the printer compatibility list *Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Specifica- tions are subject to change without notice. All products and trademarks are the property of their respective owners. Copy- right ©2006 Airlink101™...
