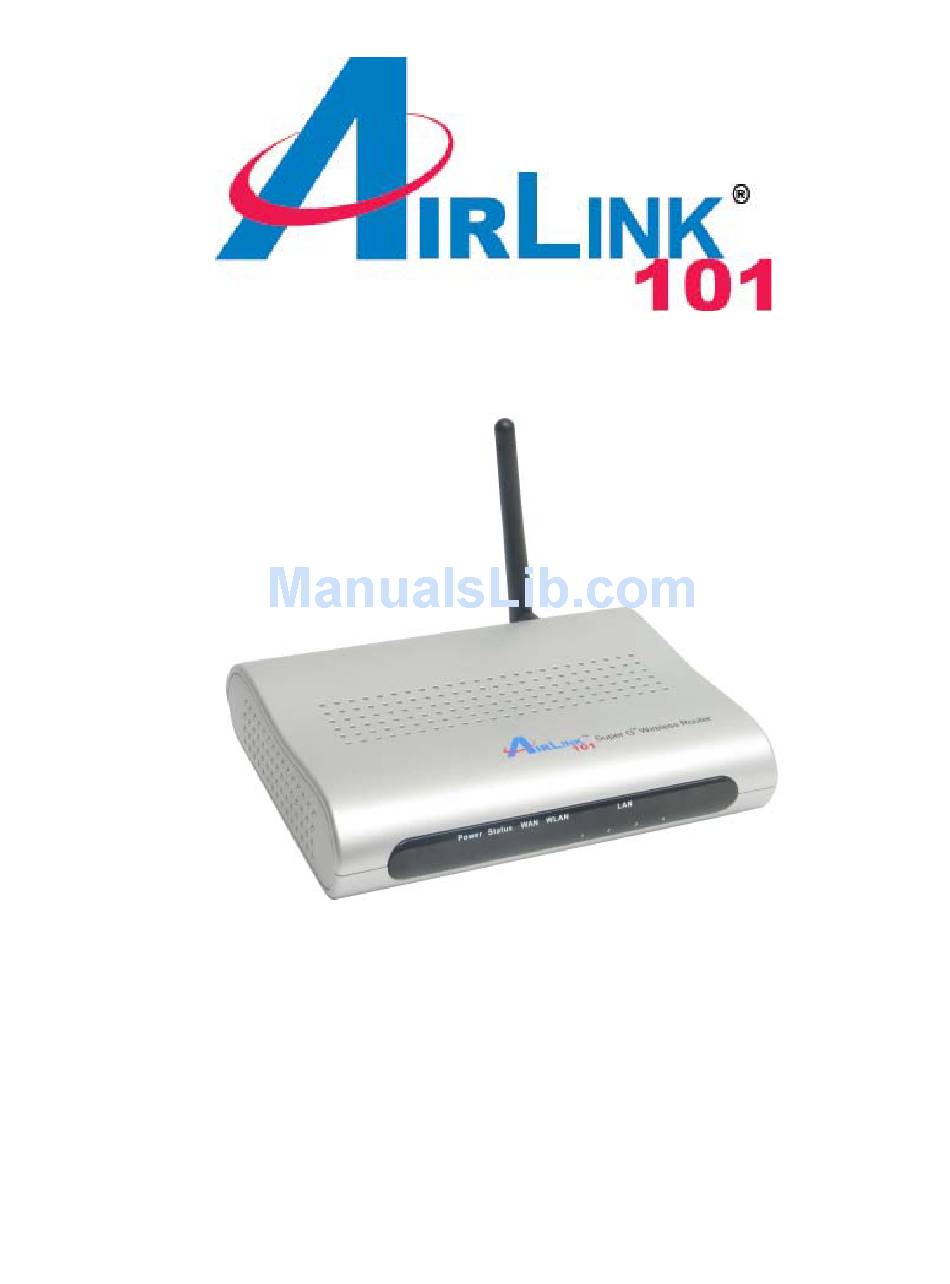

Super G Wireless Broadband Router Model # AR430W Quick Installation Guide Ver. 1A...
Section 1 Section 1 This Quick Installation Guide only provides the basic instructions. For more detailed information, please refer to the User’s Manual in the supplied CD. Connecting the Router Note: Prior to connecting the router, be sure to power off your computer, DSL/Cable modem, and the router.
Section 2 Verifying Connection to the Router Step 1 Go to Start, Run, type command (for Windows 95/98/ME) or cmd (for Windows 2000/XP) and click OK. You will see the command prompt as below. Step 2 Type ping 192.168.1.1 and press Enter. You should get four reply responses back. Step 3 If you get Request timed out, or Destination host unreachable, double-check the...
Step 5 Type ipconfig/renew and press Enter. You should get an IP address of 192.168.1.x (where x is a number between 2 - 254). Proceed to Section 3, Configure the Router. If you don’t get an IP address, reset the router by holding in the reset button at the back of the router for 10 seconds while it is ON and try ipconfig/renew again.
Step 8 After your IP address is released, click Renew. You should get an IP address of 192.168.1.x (where x is a number between 2 - 254). If you don’t get an IP address, reset the router by holding in the reset button at the back of the router for 10 seconds while it is ON and try Renew again.
Step 3 Select the proper region, North America or South America, and click Warning: Incorrectly selecting the current region of operation may result in illegal operation and may cause harmful interference to other system. You can refer to the user manual in the provided CD for more details.
For DSL users, follow the steps below to configure the router. Step 1 Select PPPoE from the drop-down menu. Step 2 Enter your username and password provided by your ISP. Note: Depending on the ISP, you may need to include the domain name with your username. Example: firstname.lastname@example.org...
Step 3 Click Apply and OK to save the setting. Go to Status tab, Internet connection section to verify if you get the valid IP address information. If you have trouble connecting to the Internet, please go through the Troubleshooting section at the end of this installation guide. Section 4 Connecting the Router Wirelessly Below are the default wireless settings of the router.
Section 5 Troubleshooting If you have trouble connecting to the Internet, try the following steps. Step 1 Power off the Cable/DSL modem, router, and computer and wait for Step 2 Turn on the Cable/DSL modem and wait for the lights on the modem to settle down. Step 3 Turn on the router and wait for the lights on the router to settle down.
Section 6 Technical Support *Super G technology (108 Mbps) can only be obtained when using products with Atheros Super G *Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.
