- Page 1 (217) 352-9330 | Click HERE Find the Echelon 74401 at our website:...
- Page 2 ® ORKS PCLTA-20 PCI Interface User’s Guide Version 3 C o r p o r a t i o n 078-0179-01C...
- Page 3 Parts manufactured by vendors other than Echelon and referenced in this document have been described for illustrative purposes only, and may not have been tested by Echelon. It is the responsibility of the customer to determine the suitability of these parts for each application.
- Page 4 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experience radio/TV technician for help. Changes or modifications not expressly approved by Echelon Corporation could void the user’s authority to operate the equipment. Safety Listed Accessory, per UL-1950 c-UL (CSA) Certified, per C22.2 no.
-
Page 6: Table Of Contents
Contents 1 PCLTA-20 Introduction Introduction Audience Content Related Documentation 2 Installing the PCLTA-20 Card PCLTA-20 Card Software Installation PCC-10 Card Software Installation Windows 95/98/Me Software Installation Procedure ® Windows NT 4 and Windows 2000 Software Installation Procedure ® Windows 95/98/Me Software Removal Procedure Windows NT 4 and Windows 2000 Software Removal Procedure Windows 95/98/Me Virtual-Mode DOS Driver Installation Results Windows NT and Windows 2000 Virtual-Mode... - Page 7 Enable PC Card Reset PCLTA-20 Diagnostics Driver Status 3-6 Diagnostic Commands Test Comm Service Restart Reset 4 Electrical and Mechanical Interfaces PCLTA-20 Adapter Board Layout P1 and P2 PCI Bus Connector Network Connector Mechanical Considerations CE Declaration of Conformity Echelon...
-
Page 8: Pclta-20 Introduction
74402), TP/XF-1250 (Model 74403), and TP-RS485 (Model 74404) channels, respectively. The Model 74405 PCLTA-20/SMX interface and the PCLTA-20 Protocol Analyzer support SMX transceivers, and may therefore be used on a wide range of channels, including Echelon’s PCLTA-20 PCI Interface User’s Guide... - Page 9 TP/FT-10 free topology and PL-10, PL-20, and PL-30 power line channels. The PCLTA-20 card can be used as an LNS Fast Network Interface, a standard LNS network interface, or a LonManager API-compatible interface. The L PCLTA-20 Protocol Analyzer provides L ORKS ORKS manufacturers, system integrators, and end-users with a rich set of...
-
Page 10: Introduction
The software provides a software-based control panel and a software driver for Microsoft Windows 95, 98, Me, NT, or 2000 operating systems (the PCLTA-20 Protocol Analyzer requires Windows 95 or 98). Installation software also is available on Echelon’s web site at www.echelon.com/toolbox. The control panel provides a convenient means of setting and modifying installation parameters, as well as displaying error messages. -
Page 11: Audience
Content This manual provides detailed technical specifications on the electrical and mechanical interfaces and operating environment characteristics for the PCLTA-20 card. Related Documentation The following Echelon publications are suggested for additional information: • SMX™ Transceiver Installation Instructions (078-0145-01) ORKS ®... -
Page 12: Installing The Pclta-20 Card
Installing the PCLTA-20 Card This chapter describes the procedures for installing the PCLTA-20 card. PCLTA-20 PCI Interface User’s Guide... -
Page 13: Pclta-20 Card Software Installation
PCLTA-20 Card Software Installation There are three versions of the PCLTA-20 installation software, one for Windows 95/98/Me, one for Windows NT, and one for Windows 2000. Each version installs the files required by the associated Windows operating system to recognize the PCLTA-20 card, as well as the downloadable LNS, protocol analyzer, and MIP images. -
Page 14: Windows 95/98/Me Software Installation Procedure
Windows 95/98/Me Software Installation Procedure To install the PCLTA-20 software on a Windows 95/98/Me PC, follow the instructions below. The PCLTA-20 software cannot be installed from DOS or a DOS shell. 1. Close all open programs. Do not insert the PCLTA-20 card into a PCI slot at this time. -
Page 15: And Windows 2000 Software Installation Procedure
8. If the installation software discovers the SYSTEM.INI entry that loads the ECHLMPA.386 ISA bus driver, it will comment out the entry and display the following message, “SETUP has modified your SYSTEM.INI file by removing the following entry: device=echlmpa.386.” It is not possible to use the ISA-bus protocol analyzer card and the PCLTA-20 card on the same PC. -
Page 16: Windows 95/98/Me Software Removal Procedure
6. When prompted for a destination directory, enter the desired installation directory. By default this directory is c:\lonworks, unless previous L products ORKS have been installed and registered a different path in the Windows Registry. The path may be modified using the Browse button; however, if a directory other than c:\lonworks is chosen, the PCLTA-20 images path will have to be specified to enable use of the PCLTA-20 card. -
Page 17: Windows 95/98/Me Virtual-Mode Dos Driver Installation Results
5. If necessary, edit the CONFIG.NT file to remove any references to the PCLTADOS.SYS driver. Windows 95/98/Me Virtual-Mode DOS Driver Installation Results The Windows 95/98/Me PCLTA-20 card installation software will prompt the installer to automatically add the virtual-mode DOS driver. This driver is small in size, and allows a DOS session under Windows to have access to the PCLTA-20 through the device driver running as a part of Windows. -
Page 18: Pclta-20 Card Hardware Installation
® Transceiver Installation Instructions document 078-0145-01 version D or later if using an Echelon SMX transceiver. The height of the PLM-10, PLM-2X, and PLM-30 Power Line SMX Transceivers is such that two (2) PCI slots must be allocated for a PCLTA-20 equipped with a PLM transceiver, even though the card will be plugged into only one slot. -
Page 19: Installing The Pclta-20 Card Before Software Installation
Installing the PCLTA-20 Card Before Software Installation The following section applies to Windows 95/98/Me only. If the PCLTA-20 card was inserted into the PC prior to PCLTA-20 software installation, the Windows operating system will be unable to associate a device driver with the card. When Windows 95/98/Me starts up, a New Hardware Found window will appear. -
Page 20: Common Resource Problems Under Windows 95/98/Me
Access the hardware conflict troubleshooter through the procedure outlined below: 1. Open the Windows 95/98/Me on-line help by clicking the Windows Start button and selecting Help. 2. In the Help Topics window, choose the Contents tab, or from another Help window, choose the Contents button. -
Page 21: Solving Conflicts Under Windows Nt 4
PCLTA-20 card. This problem can be corrected through the use of device name aliasing. To create a device alias, follow these instructions 1. Open the file named ECHELON.INI, which should reside in the Windows directory. If this file does not exist, then create one with a text editor. -
Page 22: Lonmanager Isa Protocol Analyzer Compatibility
3. On the following line, add the following driver alias: aliasname=devicename where aliasname is the device name accessed by the software, such as “LON1”, and devicename is the device to be used. 4. Add additional aliases, as necessary. The following example creates a device alias that routes all service requests for LON1 to the PCCLON1 PCLTA-20 card. -
Page 23: Automatic Flush Cancel Issues
LonMaker Integration Tool or any other LNS tool does not work. You will notice that when the network is open the tool indicates that it is unable to communicate with the PCLTA-20. This is because the PCLTA-20 card features a downloadable firmware image and the L Plug ‘n Play control panel must be reconfigured to support ORKS... -
Page 24: Configuring And Testing The Pclta-20 Card
Configuring and Testing the PCLTA-20 Card This chapter explains how to configure and test the PCLTA-20 card using the Control Panel application installed in Chapter 2. PCLTA-20 PCI Interface User's Guide... -
Page 25: Pclta-20 Configuration
PCLTA-20 Configuration PCLTA-20 configuration is accomplished by using the L Plug ‘n Play ORKS control panel application. Open the control panel application by selecting the ORKS ® Plug ‘n Play icon in the Windows Control Panel. ORKS Plug ‘n Play logo Figure 3.1 PCLTA-20 Control Panel and Icon The L... -
Page 26: Device Specific Settings
suggested by the error message, produces the diagnosis: “Image file not found.” In this case, return to the control panel application’s main window and manually initialize the PCLTA-20 card. Device Specific Settings The PCLTA-20-specific options consist of five separate controls (figure 3.2). These controls are defined as follows: Figure 3.2 PCLTA-20-specific Controls Device Selected... -
Page 27: Transceiver
• NSIPCLTA, the LNS network interface image (for use with LNS 1 and LNS 2 only) • PCC10L7, the basic network interface application image Transceiver Opens the PCLTA-20 Transceiver dialog (figure 3.3). Choosing this option will retrieve the transceiver configuration of the selected PCLTA-20 card. If there is no PCLTA-20 card currently installed in a PCI-bus slot, a message appears stating that the operating system has removed, or has not loaded, the PCLTA-20 device driver. -
Page 28: Diagnostics
When configuring a custom transceiver or adding custom parameters for a standard transceiver, the Custom Properties Raw Data values must be entered as hexadecimal values separated by dashes. Further explanation of Raw Data values can be found in the LonBuilder User’s Guide. -
Page 29: Enable Pc Card Reset
Enable PC Card Reset This control is not used with the PCLTA-20 card. It is provided for owners of the PCC-10 PC Card ( card) and controls whether the hardware reset line is PCMCIA enabled. The state of this checkbox is irrelevant to the operation of the PCLTA-20 card. -
Page 30: Diagnostic Commands
Priority: the priority application output buffer count, as calculated by the driver based on information retrieved from the PCLTA-20 card’s non-volatile EEPROM. • Loaded Image Size: the size, in bytes, of the currently-loaded PCLTA-20 system image. This may be zero if the PCLTA-20 card is in the initial boot state. •... -
Page 31: Comm
-- Network Interface Node Status -- CRC Errors: [00000] TX Timeouts: [00000] Lost (APP) Messages: [00000] Missed (NET) Messages: [00000] Node State: Unconfigured Most recent error: Reset Cause: External Figure 3.7 Example Network Diagnostics Status Response Comm The Comm button is not available if you are using the PCLI0VNI image. -
Page 32: Service
per second until either the OK or the Quit button is chosen (the Quit button will appear in place of the Comm button). This series of tests confirms that the PCLTA-20 card can be configured and can communicate with a device on the network. The Comm function is intended to eliminate the PCLTA-20 card, the card drivers, the network connection, the hardware of the other device, and the topology configuration from the list of possible problem points or points of failure during network troubleshooting. - Page 33 3-10 Configuring and Testing the PCLTA-20 Card...
-
Page 34: Electrical And Mechanical Interfaces
Electrical and Mechanical Interfaces This chapter describes the hardware interfaces and mechanical layout of the PCLTA-20 card. PLCTA-20 PCI Interface User’s Guide... -

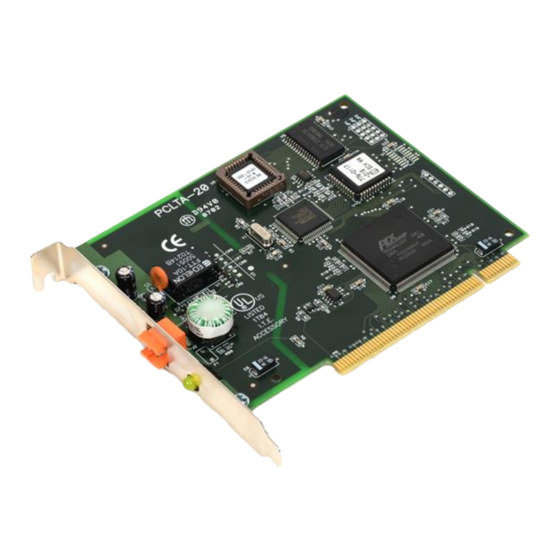

Page 35: Pclta-20 Adapter Board Layout
PCLTA-20 Board Layout Figure 4.1 shows the layout of the PCLTA-20 card Models 74401, 74402, 74403, and 74404. Model 74404 (TP-RS485) includes jumpers that must be configured to set the correct speed on the RS-485 channel (figure 4.2). Figure 4.1 PCLTA-20 Models 74401-74404 Mechanical Layout and Interfaces XID4 XID4 XID3... -
Page 36: P1 And P2 Pci Bus Connector
SMX™ ORKS ® Transceiver Installation Instructions document 078-0145-01 version D or later if using an Echelon SMX transceiver. Figure 4.3 PCLTA-20 SMX Interface and PCLTA-20 Protocol Anlayzer with PLM-22 SMX Transceiver Installed P1 and P2 PCI Bus Connector The pinout of the P1 and P2 connector terminals is the standard pinout for the 32-bit PCI bus used in Windows-compatible PCs. -
Page 37: Mechanical Considerations
accept 12 to 26AWG (1.2mm to 0.45mm) wire. The terminals are connected as follows (with terminal 3 being closest to the service LED): Terminal Connection Shield RS-485 - RS-485 + Use only shielded cabling suitable for an RS-485 channel. The use of unshielded cabling could result in damage to the adapter due to common mode voltage associated with differences in ground potential between different devices. - Page 38 EN 61000-4-3 ENV 50204 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 I, Paul Smith, hereby declare that the equipment specified above conforms to the above Directives and Standards. Place: Amersfoort, The Netherlands Date: Position: Controller, Echelon BV...
