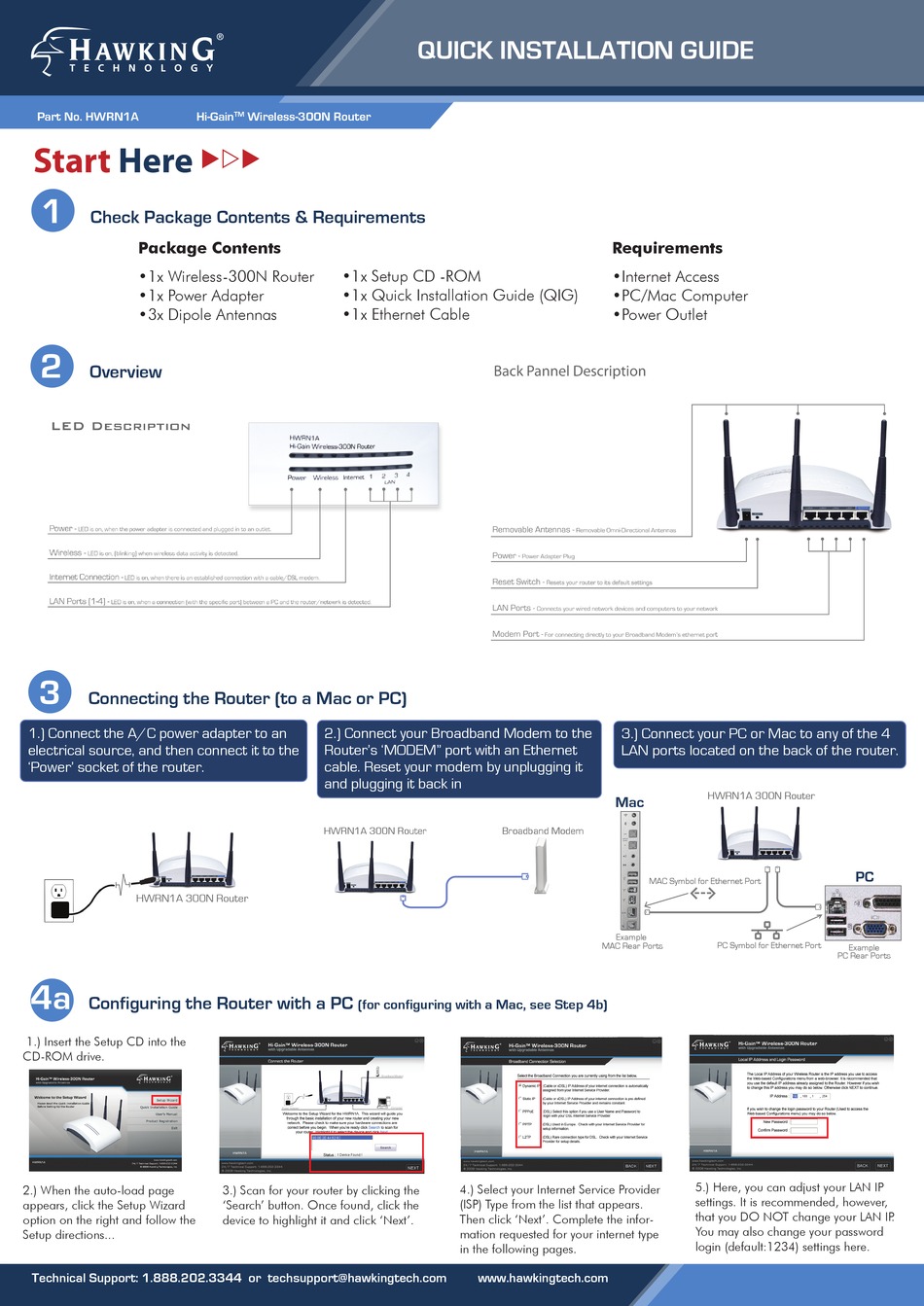

Hawking Hi-Gain HWRN1A Quick Installation Manual

Part No. HWRN1A Hi-Gain
Start Here
1
Check Package Contents & Requirements
Package Contents
•1x Wireless-300N Router
•1x Power Adapter
•3x Dipole Antennas
2
Overview
3
Connecting the Router (to a Mac or PC)
1.) Connect the A/C power adapter to an
electrical source, and then connect it to the
'Power' socket of the router.
HWRN1A 300N Router
4a
Configuring the Router with a PC
1.) Insert the Setup CD into the
CD-ROM drive.
2.) When the auto-load page
appears, click the Setup Wizard
option on the right and follow the
Setup directions...
Technical Support: 1.888.202.3344 or techsupport@hawkingtech.com
TM Wireless-300N Router

•1x Setup CD -ROM
•1x Quick Installation Guide (QIG)
•1x Ethernet Cable
2.) Connect your Broadband Modem to the
Router's 'MODEM" port with an Ethernet
cable. Reset your modem by unplugging it
and plugging it back in
HWRN1A 300N Router
(for configuring with a Mac, see Step 4b)
3.) Scan for your router by clicking the
'Search' button. Once found, click the
device to highlight it and click 'Next'.
QUICK INSTALLATION GUIDE
Broadband Modem
4.) Select your Internet Service Provider
(ISP) Type from the list that appears.
Then click 'Next'. Complete the infor-
mation requested for your internet type
in the following pages.
www.hawkingtech.com
Requirements
•Internet Access
•PC/Mac Computer
•Power Outlet
3.) Connect your PC or Mac to any of the 4
LAN ports located on the back of the router.
HWRN1A 300N Router
Mac
MAC Symbol for Ethernet Port
Example
PC Symbol for Ethernet Port
MAC Rear Ports
5.) Here, you can adjust your LAN IP
settings. It is recommended, however,
that you DO NOT change your LAN IP .
You may also change your password
login (default:1234) settings here.
PC
Example
PC Rear Ports
