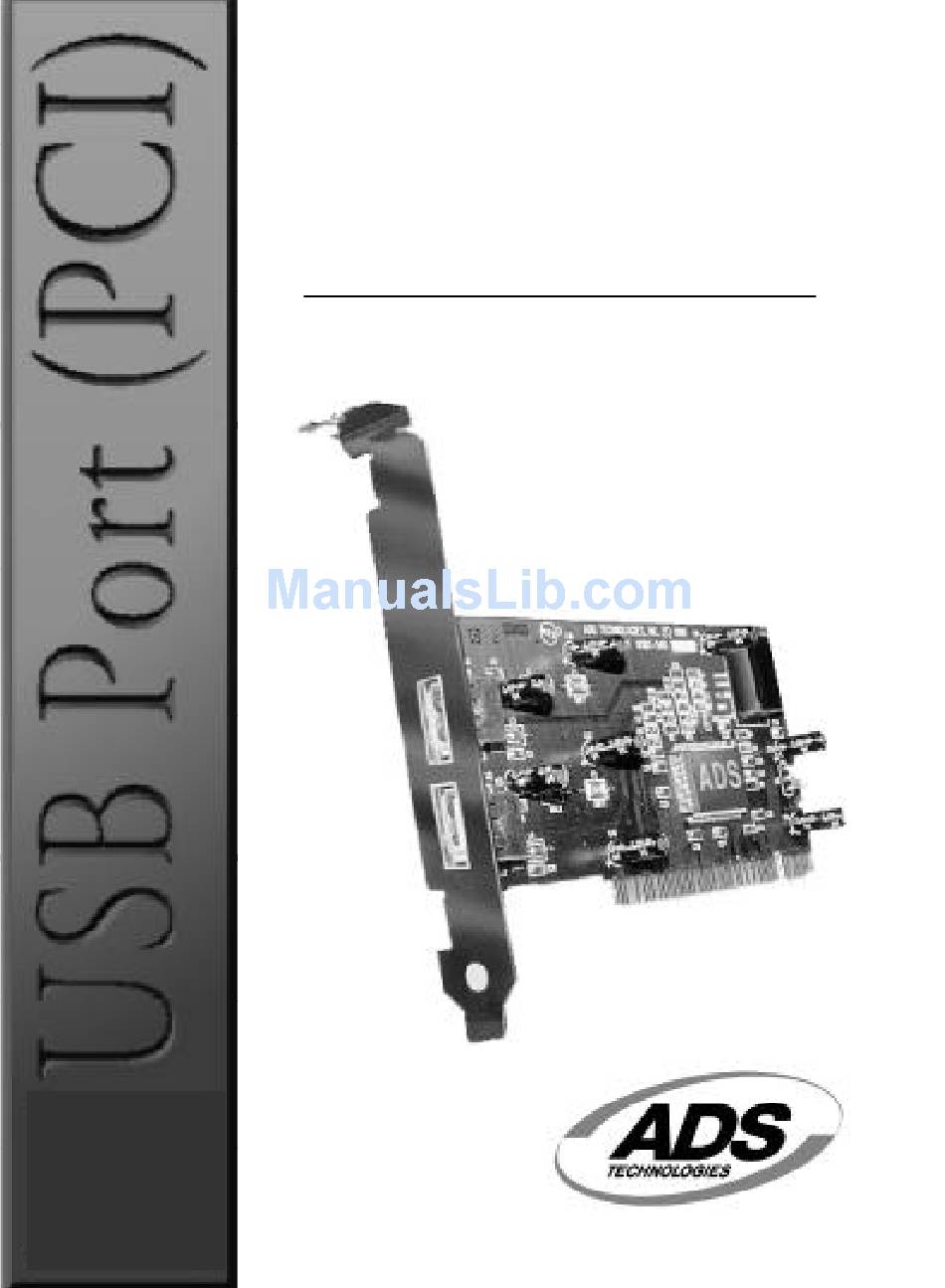

- Page 1 USB Port (PCI) Users Guide...
- Page 2 International Business Machines, Inc. ADS is a registered trademark of ADS Technologies Inc. ADS Technologies (ADS) makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of mer- chantability and fitness for a particular purpose. The information furnished within this written document is for information purposes only and is sub- ject to change without notice.
-
Page 3: Table Of Contents
Table of Contents A Letter from the President of ADS Introduction System Requirements Package Contents USB Port (PCI) Installation Guide Installing the USB Port Installing the Software Drivers for Windows 14 Installing the Extension Software for MAC Using Your USB Port Appendixes Appendix A How to Contact ADS... -
Page 4: A Letter From The President Of Ads
This combination of innovation, affordability, simplicity, and support have made our products award-winners in the press and at conventions, and best-sellers around the world. In closing, I wish to thank you for choosing ADS Technologies, and I hope you enjoy your new multimedia experience. -
Page 5: Introduction
Instantly add USB peripherals to your PC. Never open your computer case again after you have your USB Port (PCI) installed. Say good-bye to confusing cables. The USB Port (Universal Serial Bus) allows you to instantly connect USB devices to your computer. The USB Port will allow you to attach 2 USB devices instantly. You never have to worry about running out of slots in your computer or those confusing IRQ’s again. -
Page 6: Package Contents
Note: If you did not receive one or more of the contents listed above inside the USB Port package, please contact the vendor you purchased it from or contact ADS directly. Package Contents 1. USB Port (PCI) 2. User’s Manual... -
Page 9: Installation Guide
Installation Guide In this section we will explain how to install your USB Port (PCI) into your PC. Next to each step there is a check box for your convenience. After each step has been completed, simply mark the check box and move to the next step. Step 1 Power off the computer, then disconnect the power cord. - Page 10 Step 3 With the power cable disconnected from your computer, touch the metal part of the case to ground yourself. This will discharge any static electricity which can damage your computer. Step 4 Locate an available PCI expansion slot. This will be in the area of your com- puter where other cards that look similar to the USB Port are installed.
- Page 11 Step 6 If necessary, remove the knockout on the back of the PC which corresponds to the PCI slot you have confirmed as your selection. If there is a screw, place it in a safe spot as you will be using it to attach the USB Port. Step 7 Push the USB Port card firmly into the PCI slot.
- Page 12 Step 9 Mount the USB Port in place with a screw. Make sure the screw is firmly tightened so the USB Port does not slide out of its seated position. Step 10 Replace the computers shell and screw it in place. Step 11 Now that your USB Port card is installed and the shell is in place, you can safely connect the power cable and move on to the next page for setting up the...
- Page 13 Installing the Software Drivers Note: For Windows ME/2000, it may self install with out your interven- tion. You can verify if the card is installed properly by checking the Device Manager. The card will appear under the category “Universal Serial Bus Controller”.
-
Page 14: Installing The Extension Software For Mac
Step 3 If the default path to the Windows 98 directory on your CD-ROM is incorrect, you will see a dialog box as shown in the picture below. Simply type in the correct path to your CD-ROM and the word “WIN98” (example d:\win98) drive and left mouse click one time on the button that says “OK.”... -
Page 15: Using Your Usb Port
Using Your USB Port (PCI) Initializing USB Devices When you first connect a USB device to your USB Port, Windows will automatically detect the presence of new hardware. It will request software drivers. The installation of these software drivers are very simi- lar to the driver installation for your USB Port, so you can use the driver installation of this manual as a reference. -
Page 18: Appendix A How To Contact Ads
How To Contact ADS The ADS team has tried their hardest to make the USB Card as trouble free as possible. However we know problems may still arise or you may simply have questions. There are a couple of ways to contact ADS. Sales: Phone Number: Fax Number:... -
Page 19: Service And Warranty
Returns to ADS Technologies, Inc. are for repair or warranty replacement only. If you need to return product to ADS Technologies, Inc. for repair or replacement you must follow these steps: Call our Technical Support department at (562) 926-4338 to obtain a Return Merchandise Authorization (RMA) number. - Page 20 Warranty: This ADS Technologies, Inc. product comes with a One (1) year hard- ware warranty. ADS Technologies, Inc. (ADS) warrants this product against defects in material and workmanship for a period of One (1) year from the date of original purchase from ADS or an authorized ADS dealer.
-
Page 21: Fcc Information
