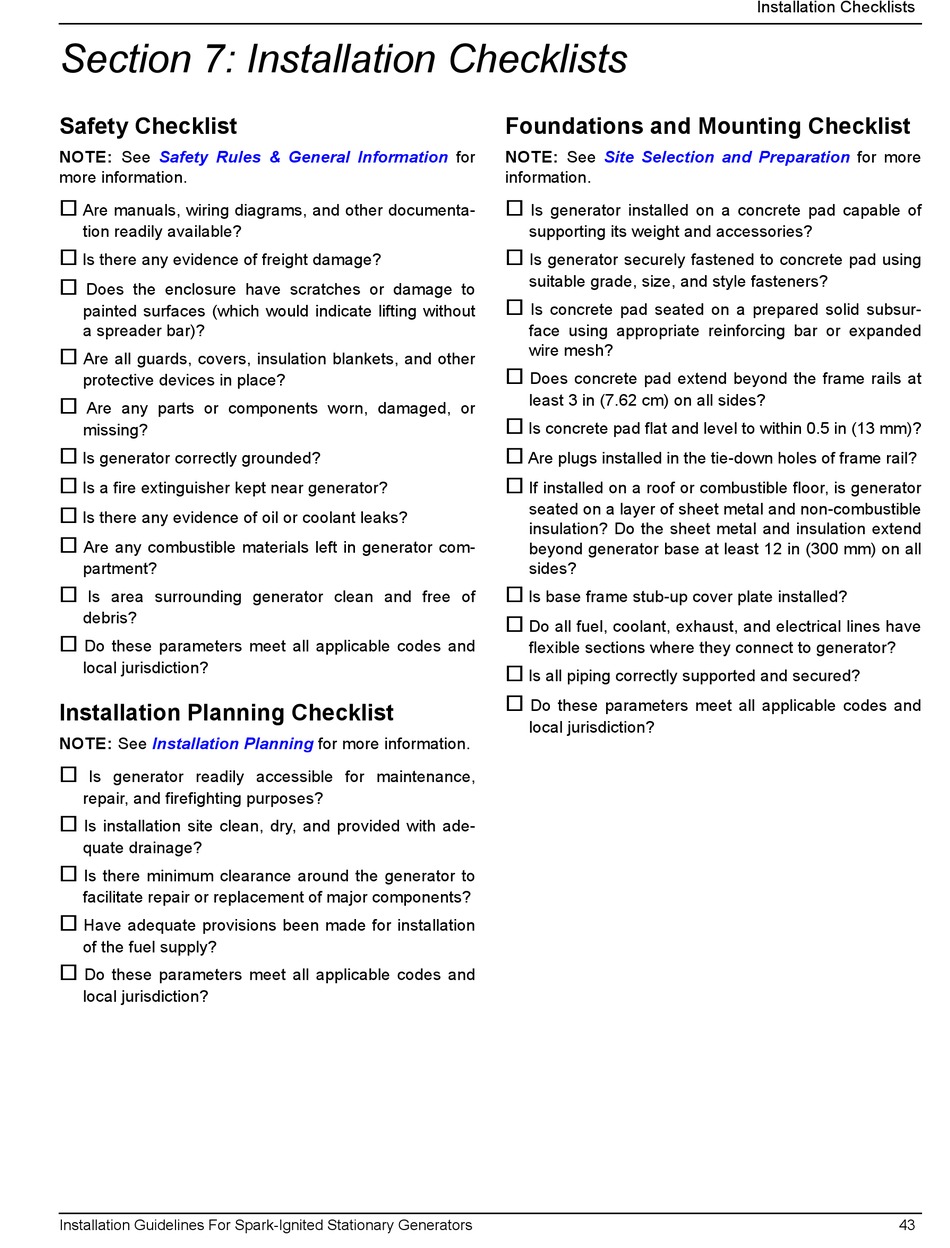

Section 7: Installation Checklists

Safety Checklist

NOTE: See Safety Rules & General Information
more information.

Are manuals, wiring diagrams, and other documenta-
tion readily available?

Is there any evidence of freight damage?

Does the enclosure have scratches or damage to
painted surfaces (which would indicate lifting without
a spreader bar)?

Are all guards, covers, insulation blankets, and other
protective devices in place?

Are any parts or components worn, damaged, or
missing?

Is generator correctly grounded?

Is a fire extinguisher kept near generator?

Is there any evidence of oil or coolant leaks?

Are any combustible materials left in generator com-
partment?

Is area surrounding generator clean and free of
debris?

Do these parameters meet all applicable codes and
local jurisdiction?

Installation Planning Checklist

NOTE: See Installation Planning

Is generator readily accessible for maintenance,
repair, and firefighting purposes?

Is installation site clean, dry, and provided with ade-
quate drainage?

Is there minimum clearance around the generator to
facilitate repair or replacement of major components?

Have adequate provisions been made for installation
of the fuel supply?

Do these parameters meet all applicable codes and
local jurisdiction?
Installation Guidelines For Spark-Ignited Stationary Generators
for
for more information.

Foundations and Mounting Checklist

NOTE: See Site Selection and Preparation
information.

Is generator installed on a concrete pad capable of
supporting its weight and accessories?

Is generator securely fastened to concrete pad using
suitable grade, size, and style fasteners?

Is concrete pad seated on a prepared solid subsur-
face using appropriate reinforcing bar or expanded
wire mesh?

Does concrete pad extend beyond the frame rails at
least 3 in (7.62 cm) on all sides?

Is concrete pad flat and level to within 0.5 in (13 mm)?

Are plugs installed in the tie-down holes of frame rail?

If installed on a roof or combustible floor, is generator
seated on a layer of sheet metal and non-combustible
insulation? Do the sheet metal and insulation extend
beyond generator base at least 12 in (300 mm) on all
sides?

Is base frame stub-up cover plate installed?

Do all fuel, coolant, exhaust, and electrical lines have
flexible sections where they connect to generator?

Is all piping correctly supported and secured?

Do these parameters meet all applicable codes and
local jurisdiction?
