How to connect my jabra wireless headset to aastra desk phone to have remote call control using headset (2 pages)
Summary of Contents for Jabra Link 14201-10
Page 1

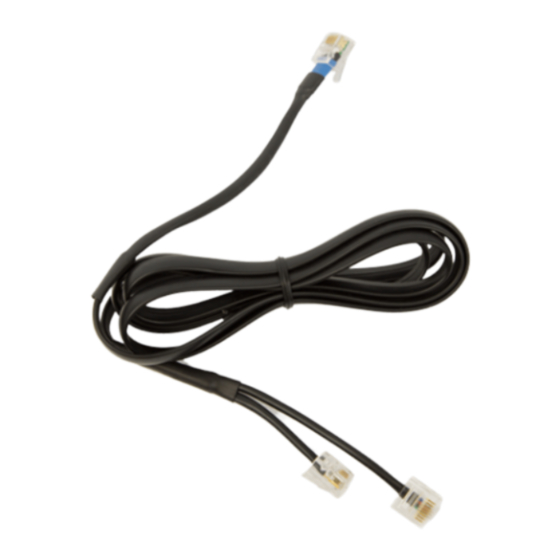

3. Plug the single end of the Aastra DHSG cord (blue) in the RJ45 adapter. 4. Plug the single end of the Jabra Link 14201-10 cable (blue) into the free socket on the RJ45 adapter.
Page 2
07/04/2021 01:15 5. Connect the split end of the DHSG cable to the Jabra device base as follows: a. Plug the RJ10 connector into the socket with the complete “phone” symbol. b. Plug the RJ45 connector into the socket marked “AUX”.
Page 3
07/04/2021 01:15 c. Select Manual. d. Select adapter type DHSG. 7. Set the phone setup switch to position A. 8. We recommend setting the microphone volume to 7 out of 13. https://www.jabra.com/supportpages/jabra-link-14201-10/14201-10/faq/4b3cba38-ca36- Page 3 of 4 4410-8a36-3e1fbff5b658...
Page 4
07/04/2021 01:15 As part of the installation, you can dial into your local Jabra Setup server which will configure the audio path. Follow the instructions shown on the display. If your Jabra setup server is unavailable, contact your local Jabra Support team.
