SonicWall ® TZ670 / TZ570 /
TZ570W / TZ570P
Quick Start Guide
For product information, go to
https://www.sonicwall.com/docs/tz
Regulatory Model Numbers Product Names
APL62-0F7 TZ570 / TZ670
APL62-0F8 TZ570W
APL63-0F9 TZ570P
Copyright © 2020 SonicWall Inc. All rights reserved.
SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in
the U.S.A. and/or other countries. All other trademarks and registered trademarks are
property of their respective owners.
The information in this document is provided in connection with SonicWall Inc. and/or its
affiliates' products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of
SonicWall products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED
IN THE LICENSE AGREEMENT FOR THIS PRODUCT, SONICWALL AND/OR ITS AFFILIATES
ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR
STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
OR NON- INFRINGEMENT. IN NO EVENT SHALL SONICWALL AND/OR ITS AFFILIATES BE
LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL
DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS,
BUSINESS INTERRUPTION OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR
INABILITY TO USE THIS DOCUMENT, EVEN IF SONICWALL AND/OR ITS AFFILIATES HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SonicWall and/or its affiliates
make no representations or warranties with respect to the accuracy or completeness of
the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. SonicWall Inc. and/or its affiliates do
not make any commitment to update the information contained in this document.
For more information, visit https://www.sonicwall.com/legal/.
Legend
WARNING: A WARNING icon indicates a potential for property damage,
personal injury, or death.
CAUTION: A CAUTION icon indicates potential damage to hardware or loss of
data if instructions are not followed.
IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates
supporting information.
To access the Support Portal, go to https://www.sonicwall.com/support.
SonicWall TZ670/TZ570/TZ570W/TZ570P Quick Start Guide
Updated - September 2020
232-005196-51 Rev A

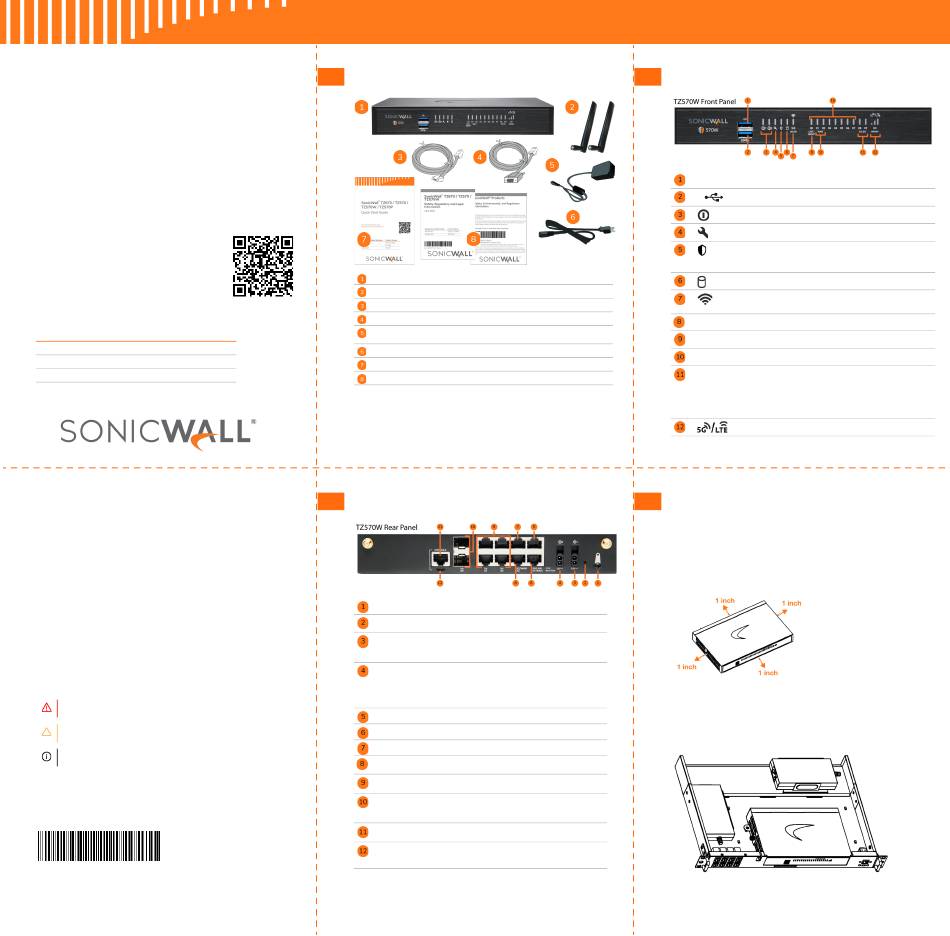

Package Contents
1
TZ Series appliance
Antennas (2) (TZ570W only)
Ethernet cable
Serial console cable (RJ45 to DB9)
TZ670/TZ570/TZ570W: 12VDC/60W Power adapter (1)
TZ570P: 54VDC/180W Power adapter (1)
Power cord
SonicWall TZ670/TZ570/TZ570W/TZ570P Quick Start Guide
Safety, Environmental, and Regulatory Information documents
NOTE: The included power cord is approved for use only in specific countries or regions. Before using a power cord,
verify that it is rated and approved for use in your location. The power cord is for AC mains installation only. Refer to
the TZ670 / TZ570 / TZ570W Safety, Regulatory, and Legal Information or TZ570P Safety, Regulatory, and Legal
Information document for minimum power cord rating and additional safety information.
メモ: 添付の電源コードに関して電気安全を確保するために、弊社製品にご使用いただく電源コードは必
ず製品同梱の電源コードをご使用ください。この電源コードは他の製品では使用できません。
Items missing? Contact SonicWall Technical Support at:
https://www.sonicwall.com/support/contact-support
Back Panel
3
Grounding Screw
SafeMode Button: Press and hold until Test LED starts blinking to set
the TZ into SafeMode
Primary Power Input for:
• TZ670/TZ570/TZ570W: 60W 100~240VAC - 12VDC power adapter
• TZ570P: 180W 100~240VAC - 54VDC power adapter
Redundant Power Input for:
• TZ670/TZ570/TZ570W: 60W 100~240VAC - 12VDC power adapter
• TZ570P: 180W 100~240VAC - 54VDC power adapter
A redundant power adapter can be ordered separately –
(TZ670/TZ570/TZ570W: SKU 02-SSC-3078) (TZ570P: SKU 02-SSC-0614).
X0 LAN RJ45 Port: 1 Gbps
X1 WAN RJ45 Port: 1 Gbps
X2 WAN RJ45 Port: 1 Gbps
X3 RJ45 Port: 1 Gbps
TZ570P: X3 is a PoE port
X4/X5/X6/X7 RJ45 Ports : 1 Gbps
TZ570P: X4/X5/X6/X7 are PoE ports
SFP/SFP+ Ports X8/X9:
• TZ670: 10 / 5 / 2.5 / 1 Gbps
• TZ570/TZ570W/TZ570P: 5 / 2.5 / 1 Gbps
RJ45 Console Port
Micro-USB Console Port
A Micro-USB cable is not provided with the product, but can be
ordered separately (SKU 02-SSC-5173).
SSD Storage Module – The TZ comes with a field-upgradable SSD
Storage Module, accessible via a removable panel on the bottom of
the appliance. To order, refer to the price list for available SKUs.
Front Panel
2
U0 U0 Port: USB 3.0 SuperSpeed (SS) Port for WWAN
USB SS 3.0 Port: For Configuration, Recovery, Re-imaging the TZ
SS
Power LEDs: 1 = Primary, 2 = Redundant
Blue = Powered on, Yellow = Defective adapter
Test LED: Yellow = Initializing,
Blinking Yellow = SafeMode
Security LED: Green = All Security Services Licensed,
Blinking Yellow = Security Services License Expired
Security Services monitored by this LED:
Gateway Anti-Virus, Intrusion Prevention, Anti-Spyware
Storage LED: Solid Green = Extended Storage module present,
Blinking Green = Activity, Yellow = Storage warning
Wireless W0 WLAN LED (TZ570W only):
Solid Green = Wireless radio is active,
Blinking Green = Activity
X0 LAN/MGMT X0 Port LED: Solid Green = 1G link,
Blinking Green = 1G activity
X1 / X2 WAN X1 and X2 Port LEDs: Solid Green = 1G link,
Blinking Green = 1G activity
X0 – X7 RJ45 Port LEDs: Solid Green = 1G link,
Blinking Green = 1G activity
X8 / X9 SFP/SFP+ Port LEDs:
TZ670: Solid Orange = 10G, 5G or 2.5G link,
Blinking Orange = 10G, 5G or 2.5G activity
TZ570/TZ570W/TZ570P: Solid Orange = 5G or 2.5G link,
Blinking Orange = 5G or 2.5G activity
All Models: Solid Green = 1G link,
Blinking Green = 1G activity
U0 WWAN LEDs for USB 5G/LTE:
Green = 5G/LTE signal strength
Mounting Options
4
Flat Surface Option
Place the TZ on a flat surface. Allow unrestricted airflow
around the unit, leaving a minimum of 1 inch (25.44mm)
clearance on all sides.
Rack Mounting Option
SonicWall offers a rack mount tray kit for mounting your
TZ and power adapter(s) in a standard 19-inch rack.
Ordering information:
SKU 02-SSC-3112 SONICWALL TZ670 / TZ570 RACKMOUNT KIT
