SuperStack
plus 2-Port Gigabit (3C16476) User Guide
DUA1647-6AAA01
I
NTRODUCTION
®

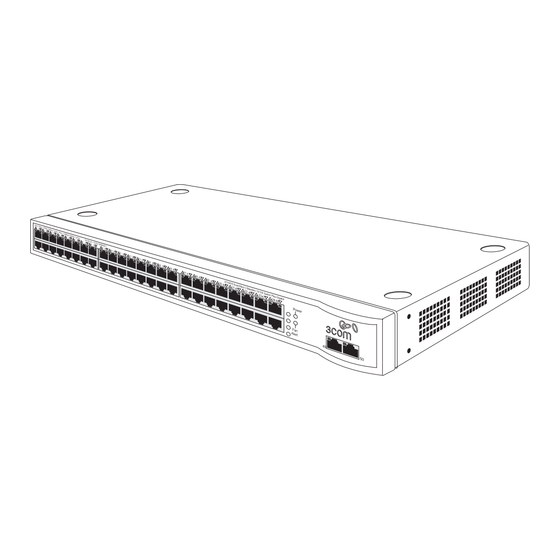

The SuperStack
3 Baseline 10/100 Switch 48-Port
10BASE-T/100BASE-TX plus 2-Port Gigabit is a versatile, easy-to-use
unmanaged switch. It is ideal for users who want the high-speed per-
formance of 10/100 switching with the added functionality of two
Gigabit links, but do not need sophisticated management capabilities.
This Baseline Switch is shipped ready for use; no configuration is nec-
essary.
The Baseline Switch has 48 shielded RJ-45, 10/100 Mbps
auto-negotiating ports and two shielded RJ-45, 10/100/1000BASE-T
ports on the front panel. Each port automatically determines the
speed and duplex mode of the connected equipment and provides a
suitable switched connection. Each port also supports automatic
MDI/MDI-X detection.
The Baseline Switch is suited for office use where it can be free
standing, or rack mounted (in a wiring closet or equipment room).
The Baseline Switch comes with:
One power cord
Four self-adhesive rubber pads
One mounting kit
3 Baseline 10/100 Switch 48-Port 10BASE-T/100BASE-TX
The Baseline Switch provides high performance switched connections
to 10 Mbps and 100 Mbps hubs, servers and workstations that need
a dedicated switched link and two 10/100/1000 BASE-T ports that
can connect to other 10/100/1000 BASE-T ports or servers and
workstations.
This diagram shows a typical configuration:
Baseline Dual Speed Hub
Local server
Baseline Hub
Baseline Switch
10 Mbps link
1
Endstations on shared
100 Mbps connections
Endstations on shared
10 Mbps connections
1000 Mbps connections
to backbone or
server/workstation
Endstations and servers
on switched 10 Mbps and
100 Mbps connections
100Mbps or 1000 Mbps link
Advertisement
Table of Contents
Related Manuals for 3Com Baseline 3C16476
Summary of Contents for 3Com Baseline 3C16476
- Page 1 ® SuperStack 3 Baseline 10/100 Switch 48-Port 10BASE-T/100BASE-TX plus 2-Port Gigabit (3C16476) User Guide DUA1647-6AAA01 NTRODUCTION ® The SuperStack 3 Baseline 10/100 Switch 48-Port 10BASE-T/100BASE-TX plus 2-Port Gigabit is a versatile, easy-to-use unmanaged switch. It is ideal for users who want the high-speed per- formance of 10/100 switching with the added functionality of two Gigabit links, but do not need sophisticated management capabilities.
-
Page 2: Front Panel
(even if the device is operating in full duplex mode). In such a configuration, you may notice some degradation of network performance. 3Com recommends that you use devices that are capable of auto-negotiation (and that you ensure that auto-negotiation is enabled, if it is a configurable option). -
Page 3: Positioning The Switch
Water or moisture cannot enter the case of the unit. Air flow around the unit and through the vents in the side of the case is not restricted (3Com recommends that you provide a min- imum of 25 mm (1 in.) clearance). - Page 4 Power Up Use the following sequence to power up the Baseline Switch: Check the network connections and cables. Connect the power supply cable to the power socket on the rear panel of the unit; refer to 6. Connect the plug to the power supply outlet socket and switch on the power supply at the socket.
- Page 5 AFETY NFORMATION Please read the following safety information carefully before installing the Baseline Switch. WARNING: Installation and removal of the unit must be carried out by qualified personnel only. Installation and removal of the unit must be carried out by qualified personnel only.
-
Page 6: Technical Information
ICHTIGE ICHERHEITSINFORMATIONEN Bitte unbedingt vor dem Einbauen des Baseline Switch Einheit die folgenden Sicherheitsanweisungen durchlesen. VORSICHT: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal erfolgen. Wenn die Baseline Switch Einheit in einer Stapel mit anderen SuperStack 3 Hub Einheiten eingebaut werden soll, muß... -
Page 7: Product Registration
