Front Panel Indicators - 3Com OfficeConnect 3C612 Quick Start Manual

Front Panel
Indicators
Power
Off
Green
Alert
Off
Orange (blinking)
Green (blinking slowly)
Green (blinking rapidly)
Orange
Red
LAN
Off
Green
Green (blinking)
ADSL
Off
Orange (blinking)
Green
Green (blinking)

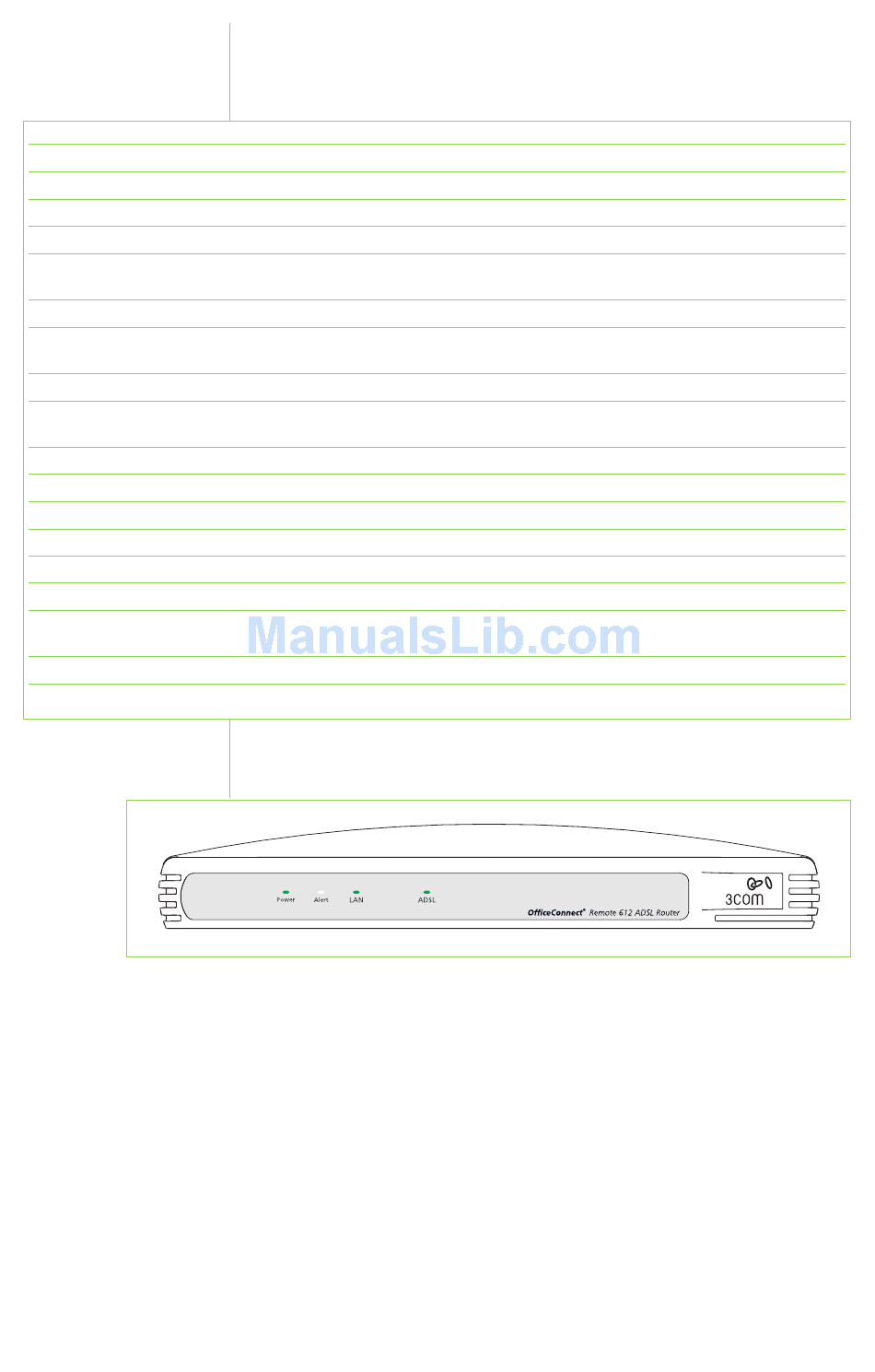

Figure 14
The LED Indicators on the front panel of the OfficeConnect
Remote 612 ADSL Router (Fig. 14) provide the following
information:
Power not being supplied to the unit.
Remains lit as long as power is supplied to the unit.
The Router is operating properly.
During the booting up process, the Router is checking for the download of new
software. This lasts for about 4 seconds.
While the Router is initializing. This lasts for 30 to 40 seconds after booting.
The reset button is being held in and the Router has just been powered on. This lets
you know that the Router has recognized the Reset request. It lasts for about 4 seconds.
An unexpected error has occurred, but it does not affect the operation of the Router.
A non-recoverable error has occurred. If this happens, the Router will automatically
reboot. If the error persists, contact your Internet Service Provider.
No Ethernet signal has been detected.
A PC or Hub is properly connected to the Ethernet port.
A proper connection exists and data is being transmitted.
DSL connection not established.
A connection is being established. The Router is attempting to synchronize with the
DSL service provider's equipment.
DSL connection established.
A proper connection exists and data is being transmitted.
