Kodak Diconix 150 Parallel Manual

OSE

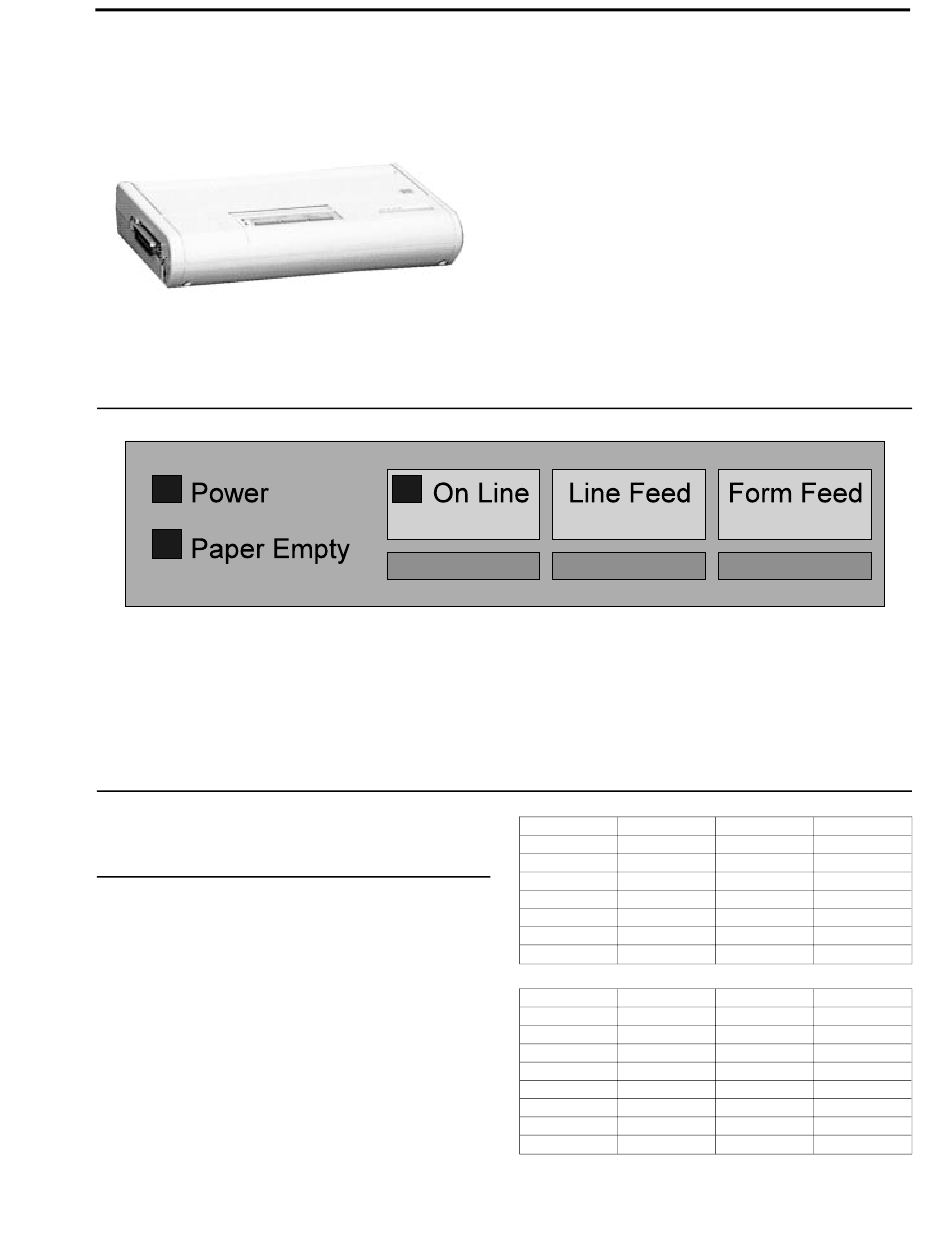

Control Panel
Power light - Red indicates power on. Flashing indicates batteries are
low.
Paper Empty light - Red indicates out of paper. Flashing indicates an
error condition.
On Line light - Green indicates online condition.
On Line key - Toggles the printer between online and offline. Also will
recover some error conditions.
Line Feed key - Offline, press once to move forward one line. Hold to
continue advance. Hold in conjunction with Form Feed key to
Self-test
With paper installed, hold Form Feed key, while turning on printer
power. Press On Line key to pause self-test, press On Line key
again to resume test. Turn the printer power off to terminate the test.
Printer Configuration
The printer may be configured for print mode, using the control panel
keys.
Line Feed key
1. Online, press to select draft print mode.
2. Online, press in conjunction with Form Feed key to select script
font (parallel printer), or condensed font (serial printer).
3. Hold the Line Feed key while turning on printer power for
envelope printing mode.
Form Feed key - Online, press to select NLQ print mode.
DIP Switches
The configuration DIP switches are located under the top cover on
the back side of the carriage opening.
Kodak - Diconix 150 Parallel/150 Serial
Print method . . . . . . . . . . . . . 12-pin drop on demand plain paper
Print speed . . . . . . . . . . . . . . 150 cps draft, 50 cps NLQ
Print width . . . . . . . . . . . . . . . 7.1 inches (177 mm)
Resolution . . . . . . . . . . . . . . . 96 x 80 draft, 96 x 160 NLQ
Fonts . . . . . . . . . . . . . . . . . . . 152 character ASCII italics, bold,
Paper handling . . . . . . . . . . . Single sheet, fan-fold, and pin-feed
Interfaces. . . . . . . . . . . . . . . . CENTRONICS parallel - Diconix 150
Emulations . . . . . . . . . . . . . . Epson and IBM Proprinter (with some
Print head life . . . . . . . . . . . . 500 pages of text
reverse paper movement. Online, press to select draft print mode.
Online, press in conjunction with Form Feed key to select script font
(parallel printer), or condensed font (serial printer). Hold the Line
Feed key while turning on printer power for envelope printing mode.
Form Feed key - Offline, press to advance to top-of-form. Online,
press to select NLQ print mode.
Power switch - Slide to the right to apply power to the printer, left for
off.
Switch
SW1
SW2
SW3
SW4
SW5
SW6
SW10
Character Set Selection
Country
USA *
England
Sweden
Italy
France
Germany
Denmark
Spain
* Indicates default setting
KO-2
thermal inkjet, AC or battery powered
enlarged, proportional, condensed;
50 coded graphics characters; 33
International character sets
continuous forms; 8 1/2 inch wide
paper
Parallel; RS-232C serial - Diconix 150
Serial
exceptions)
Function OFF
CR CR only *
LF CR + LF *
Perf skip No skip *
Page length 11 inch *
Font Draft *
Emulation Epson *
Not used
SW7 SW8
OFF OFF
ON ON
ON OFF
OFF ON
ON OFF
OFF ON
OFF OFF
ON ON
ON
CR + LF
LF only
1 inch skip
12 inch
NLQ
IBM
SW9
OFF
OFF
ON
ON
OFF
OFF
ON
ON
