Whirlpool  WFW9640XW Product Dimensions

PRODUCT MODEL NUMBERS
WFW9640X
Electrical: A 120 volt, 60 Hz., AC only, 15- or 20-amp,
fused electrical supply is required. A time-delay fuse
or circuit breaker is recommended. It is recommended
that a separate circuit serving only this appliance
be provided.
Drain System Options
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter
standpipe of 2" (50 mm). The minimum carry-away
capacity can be no less than 17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (762 mm)
high and no higher than 96" (2.4 m) from the bottom
of the washer.
30" min.
(762 mm)
A
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L)
capacity. The top of the laundry tub must be
at least 30" (762 mm) above the floor.
Floor drain system (view D)
The floor drain system requires a siphon break that
may be purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 28" (710 mm)
from the bottom of the washer. Additional hoses might
be needed.
30" min.
(762 mm)
C
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Front-Loading Automatic Washer

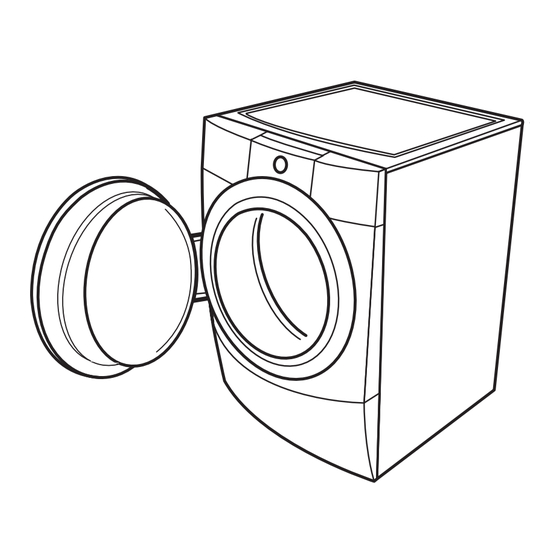

Washer dimensions
For closet installation, with a door, the minimum ventilation openings in the top and bottom of the door are required.
Louvered doors with equivalent air ventilation openings are acceptable.
B
1"
(25 mm)
For cabinet installation, with a door, the minimum ventilation openings in the top are required.
48 in.
(310 cm
28" min.
(710 mm)
D
24 in.
(155 cm
(140 mm)

OVERALL DIMENSIONS

27"
52 1 / "
(686 mm)
2
(1335 mm)
(970 mm)
32 1 / "
2
(820 mm)
34" min. 48 in. *
2
(310 cm )
(864 mm)
2
24 in. *
2
(155 cm )
2
31 / " 4"
1
2
(800 mm) (102 mm)
A. Side view - closet or confined area
B. Closet door with vents
2
*
2
)
3"* (76 mm)
3"* (76 mm)
2
*
1"* (25 mm)
2
)
6"* (152 mm)
76"
(1930 mm)
5½"** 1" 27"
(686 mm) (25 mm)
(25 mm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Custom undercounter installation-washer only
39" min.
(990 mm)
38 / "
1
4
1"
(25 mm)
3"
(76 mm)
3"
(76 mm)
1" 27"
(25 mm) (686 mm)
A. Recessed area
B. Side view - closet or confined area
7"
7"
(178 mm)
(178 mm)
4" 31
(102 mm) (800 mm)
* Required spacing
** For venting out the side, 1" (25 mm) spacing is allowed.
1"
27" 1"
(686 mm) (25 mm)
18" min
(457 mm)
1" 1" 31½" 4"
(25 mm) (25 mm) (800 mm) (102 mm)
9"
(229 mm)
1 / " 1" 27" 1"
2
(25 mm) (686 mm) (25 mm)
Ref. 461970256991
03/2011
