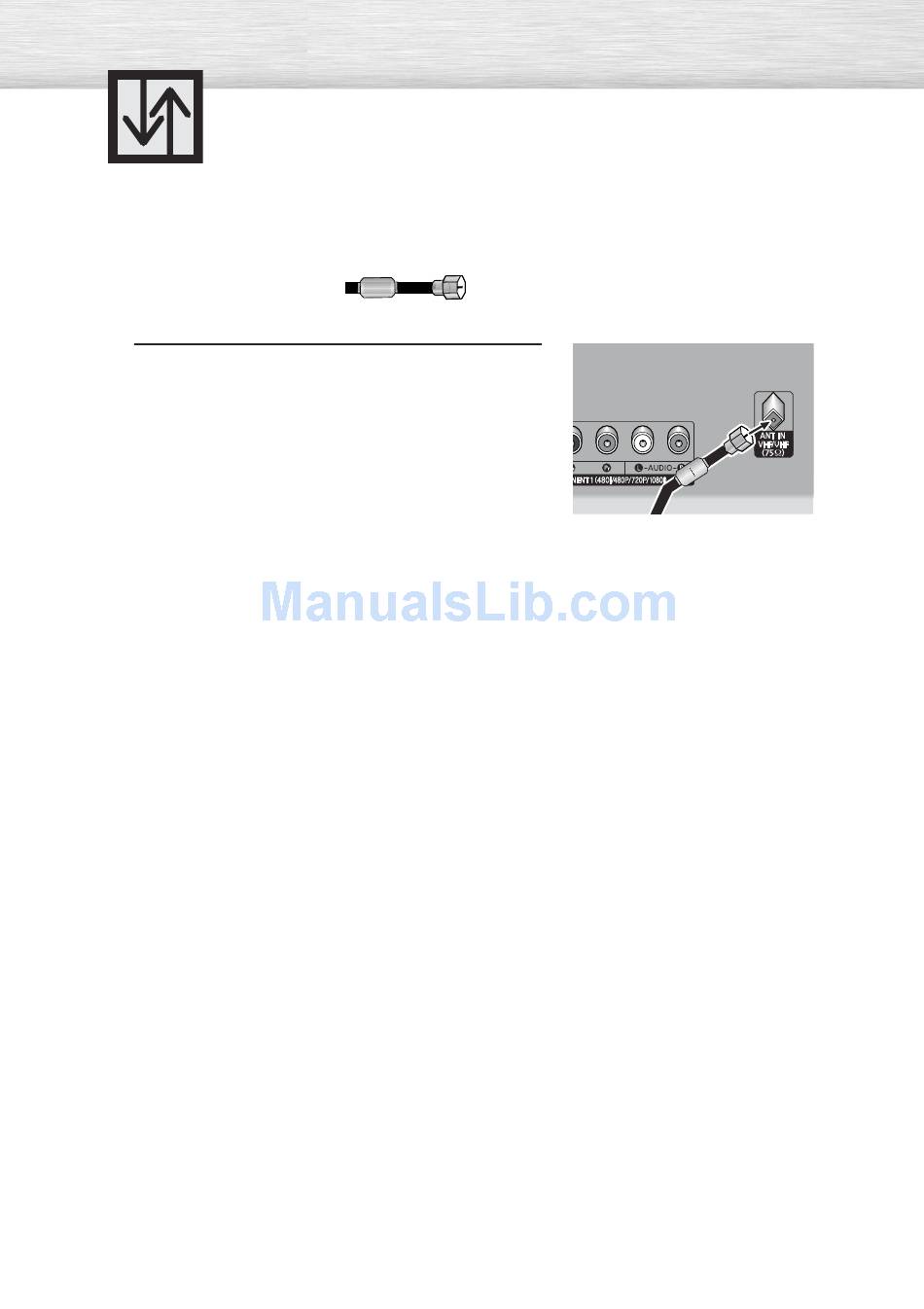

Connecting VHF and UHF Antennas

Antennas with 75-ohm Round Leads
If your antenna looks like this:
Plug the antenna lead into the VHF/UHF terminal
1
on the PDP.
Use the Antenna Cable, an accessory included
in the product package.
it has 75-ohm round leads.

Advertisement

Table of Contents
loading

Related Manuals for Samsung HP-P5031

Summary of Contents for Samsung HP-P5031

  • Page 1: Connecting Vhf And Uhf Antennas

    Connecting VHF and UHF Antennas Antennas with 75-ohm Round Leads If your antenna looks like this: Plug the antenna lead into the VHF/UHF terminal on the PDP. Use the Antenna Cable, an accessory included in the product package. it has 75-ohm round leads.

  • Page 2: Connecting Cable Tv

    Connecting Cable TV You can connect different cable systems to your PDP, including cable without a cable box, and cable with a cable box that descrambles some or all channels. Cable without a Cable Box Plug the incoming cable into the VHF/UHF terminal on the PDP.

  • Page 3: Cable With A Cable Box That Descrambles Some (But Not All) Channels

    Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your Set-Top Box to the cable box's output channel, which is usually channel 3 or 4.)

  • Page 4: Connecting A Vcr To The Video Or S-Video/Audio Jack

    Video Cable How to Connect Connect the Video/Audio cables between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP and VIDEO or S-VIDEO / L - AUDIO - R output jacks on the VCR. (Note: For better video, you can use an S-Video cable.)

  • Page 5: Connecting A Camcorder

    Video Cable Audio Cable How to Connect Connect a Video/Audio cable between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP and the VIDEO or S-VIDEO / AUDIO output jacks on the camcorder. Viewing Tapes 1.

  • Page 6: Connecting A Dvd Player

    1. Turn on your PDP. 2. Press the SOURCE button to select “COMPONENT1” or “COMPONENT2”. 3. Turn on your DVD player, insert a DVD disc and press the Play button. • For an explanation of Component video, see your DVD owner’s instructions.

  • Page 7: Connecting A Dtv Receiver

    Y, P (COMPONENT) or DVI output jacks on the DTV receiver. Connect an Audio cable between the COMPONENT 1, 2 (L/R AUDIO) or DVI (L/R AUDIO) jacks on the PDP and the AUDIO output jacks on the DTV receiver.
