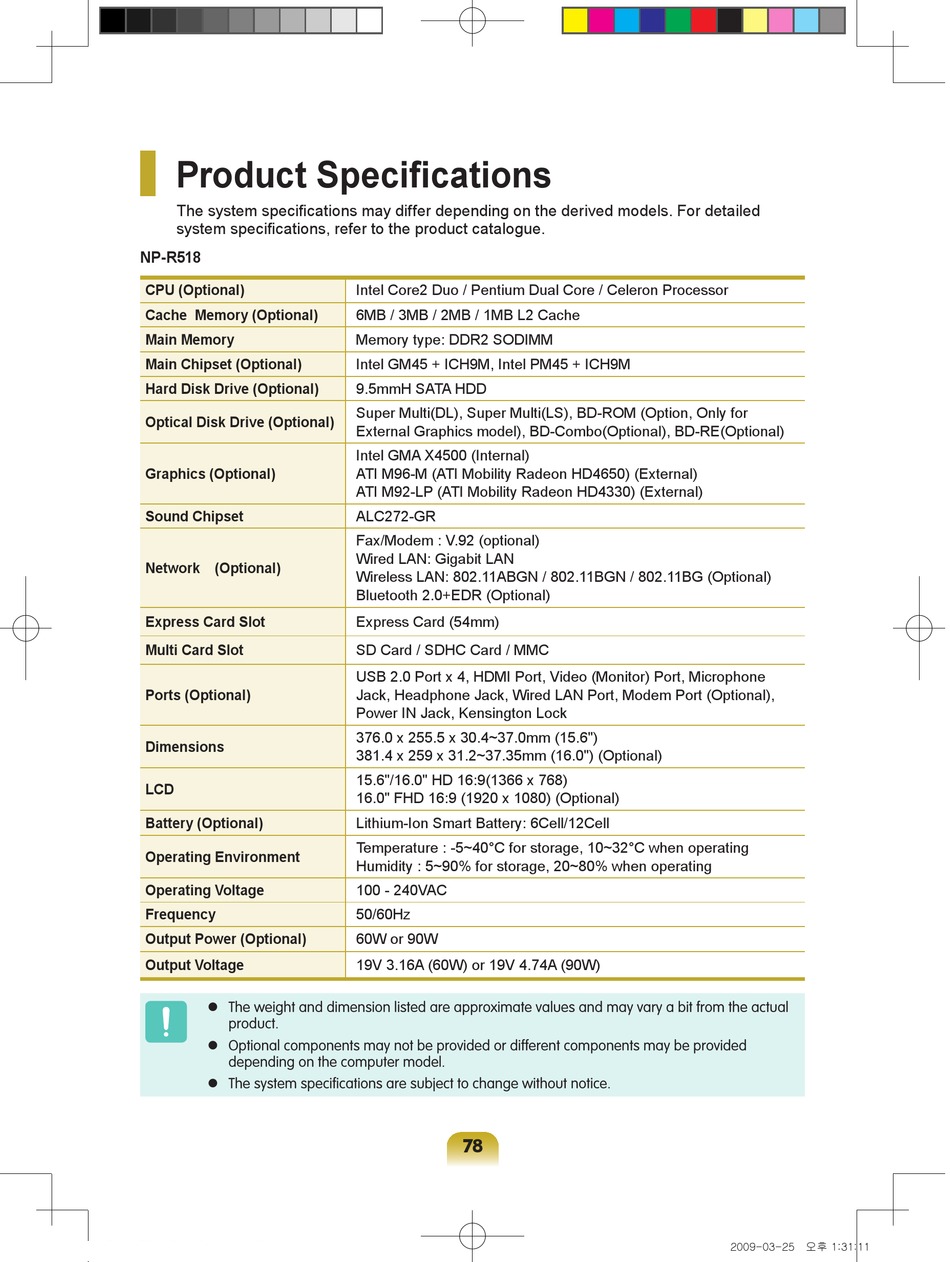

Product Specifications

The system specifications may differ depending on the derived models. For detailed
system specifications, refer to the product catalogue.
NP-R518
CPU (Optional)
Cache Memory (Optional)
Main Memory
Main Chipset (Optional)
Hard Disk Drive (Optional)
Optical Disk Drive (Optional)
Graphics (Optional)
Sound Chipset
Network (Optional)
Express Card Slot
Multi Card Slot
Ports (Optional)
Dimensions
LCD
Battery (Optional)
Operating Environment
Operating Voltage
Frequency
Output Power (Optional)
Output Voltage
 The weight and dimension listed are approximate values and may vary a bit from the actual
product.
 Optional components may not be provided or different components may be provided
depending on the computer model.
 The system specifications are subject to change without notice.
Bonn_R518_Dos_Eng.indb 78
Intel Core2 Duo / Pentium Dual Core / Celeron Processor
6MB / 3MB / 2MB / 1MB L2 Cache
Memory type: DDR2 SODIMM
Intel GM45 + ICH9M, Intel PM45 + ICH9M
9.5mmH SATA HDD
Super Multi(DL), Super Multi(LS), BD-ROM (Option, Only for
External Graphics model), BD-Combo(Optional), BD-RE(Optional)
Intel GMA X4500 (Internal)
ATI M96-M (ATI Mobility Radeon HD4650) (External)
ATI M92-LP (ATI Mobility Radeon HD4330) (External)
ALC272-GR
Fax/Modem : V.92 (optional)
Wired LAN: Gigabit LAN
Wireless LAN: 802.11ABGN / 802.11BGN / 802.11BG (Optional)
Bluetooth 2.0+EDR (Optional)
Express Card (54mm)
SD Card / SDHC Card / MMC
USB 2.0 Port x 4, HDMI Port, Video (Monitor) Port, Microphone
Jack, Headphone Jack, Wired LAN Port, Modem Port (Optional),
Power IN Jack, Kensington Lock
376.0 x 255.5 x 30.4~37.0mm (15.6")
381.4 x 259 x 31.2~37.35mm (16.0") (Optional)
15.6"/16.0" HD 16:9(1366 x 768)
16.0" FHD 16:9 (1920 x 1080) (Optional)
Lithium-Ion Smart Battery: 6Cell/12Cell
Temperature : -5~40°C for storage, 10~32°C when operating
Humidity : 5~90% for storage, 20~80% when operating
100 - 240VAC
50/60Hz
60W or 90W
19V 3.16A (60W) or 19V 4.74A (90W)
