- Page 1 GEMÜ LSC Limit switch box for quarter turn actuators Operating instructions further information webcode: GW-LSC...
- Page 2 All rights including copyrights or industrial property rights are expressly reserved. Keep the document for future reference. © GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG 16.04.2020 GEMÜ LSC 2 / 28 www.gemu-group.com...
-
Page 3: Table Of Contents
(Machinery Directive) ..........17 17 Declaration of conformity according to 2014/30/EU (EMC Directive) ............18 18 EU Declaration of conformity according to 2014/34/ EU (ATEX) ..............19 19 Operating instructions for ATEX position indicators .. 20 3 / 28 www.gemu-group.com GEMÜ LSC... -
Page 4: General Information
Imminent danger! ▶ Non-observance can cause death or severe injury. WARNING Potentially dangerous situation! ▶ Non-observance can cause death or severe injury. CAUTION Potentially dangerous situation! ▶ Non-observance can cause moderate to light injury. GEMÜ LSC 4 / 28 www.gemu-group.com... -
Page 5: Safety Information
13. Maintain the product correctly. 14. Do not carry out any maintenance work and repairs not described in this document without consulting the manufacturer first. In cases of uncertainty: 15. Consult the nearest GEMÜ sales office. www.gemu-group.com 5 / 28 GEMÜ LSC... -
Page 6: Product Description

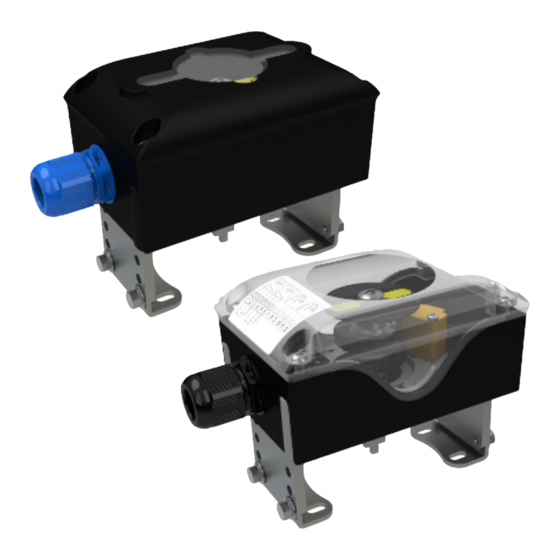

Limit switch boxes are used to feed back and verify the position of valves, whether manual or pneumatically actuated quarter turn actuators. Depending on the version, the limit switch box GEMÜ LSC is equipped with 1 to 4 sensors or microswitches. The shaft of the limit switch box is positively connected to the shaft of the quarter turn actuator and is turned with the rotary move- ment of the quarter turn actuator. -
Page 7: Correct Use
4.2 Product with special function X The product GEMÜ LSC is intended for use in potentially explosive areas of zones 1 and 2 with gases, mists or vapours and zones 21 and 22 with combustible dusts in accordance with EU directive 2014/34/EU (ATEX). -
Page 8: Order Data
3 Accessories Accessories 4 Housing/mounting kit material Plastic housing Plastic mounting kit 5 Electrical connection 3101 M20 cable gland 6 Option Without 7 SIL SIL 1–3 (IEC 61508:2010) 8 / 28 8 / 28 GEMÜ LSC GEMÜ LSC www.gemu-group.com www.gemu-group.com... -
Page 9: Technical Data
II 2D Ex ia IIIC T80°C / T110°C Db Certificate: IECEx IBE 13.0042 Notified body: IBExU, No. 0637 SIL: SIL 1–3 (IEC 61508:2010) 6.3 Mechanical data Installation position: Optional Protection class: IP 67 Switching range: 0° to 90° www.gemu-group.com 9 / 28 GEMÜ LSC... - Page 10 3-wire, make contact, PNP 3-wire, make contact, NPN Supply voltage: Code 305 Code 320 10 - 30 V DC 10 - 36 V DC Current consumption: Code 305 Code 320 Max. 200 mA Max. 200 mA GEMÜ LSC 10 / 28 www.gemu-group.com...
-
Page 11: Dimensions
80 x 30 x 30 130 x 30 x 30 130 x 30 x 50 An additional separate mounting kit must be ordered for installation on manually operated valves. For more information, see ac- cessories. www.gemu-group.com 11 / 28 GEMÜ LSC... -
Page 12: Manufacturer's Information
9.1 Installation on manually operated valves The products with F05 connection in the bottom of the housing can also be installed with our mounting kit "LSC S01 Z" on manually operated valves. It is important that the manual valve has a top flange in accordance with ISO 5211 and a thread bolt hole in the shaft. - Page 13 7. Tighten the cover screws. 9.3 Adjusting the switch/travel range The actuators are set by GEMÜ to a travel range of 0-90°. If another travel range is required for the application, please follow the following steps: 1. Place the actuator in the desired end position 1 and adjust the lower actuator.
-
Page 14: Electrical Connection
9 10 11 12 10.4 2-wire proximity switch, make contact, PNP, switch ordering option, code 207 Optional Optional Coil Coil Coil Coil Bottom Bottom switch switch switch switch 9 10 11 12 9 10 11 12 GEMÜ LSC 14 / 28 www.gemu-group.com... - Page 15 10.6 3-wire proximity switch, make contact, PNP, switch ordering option, code 305 Bottom switch switch Coil Coil 9 10 11 12 10.7 3-wire proximity switch, make contact, NPN, switch ordering option, code 320 Bottom Optional switch switch Coil Coil 9 10 11 12 www.gemu-group.com 15 / 28 GEMÜ LSC...
-
Page 16: Troubleshooting
Returned goods can be processed only when this note is completed. If no return deliv- ery note is included with the product, GEMÜ cannot process credits or repair work but will dispose of the goods at the operator's expense. -
Page 17: Declaration Of Conformity According To 2006/42/Ec (Machinery Directive)
16 Declaration of conformity according to 2006/42/EC (Machinery Directive) Declaration of Incorporation according to the EC Machinery Directive 2006/42/EC, Annex II, 1.B for partly completed machinery GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the following product Make: GEMÜ... -
Page 18: Declaration Of Conformity According To 2014/30/Eu (Emc Directive)
17 Declaration of conformity according to 2014/30/EU (EMC Directive) EU Declaration of Conformity according to 2014/30/EU (EMC Directive) GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the product listed below complies with the safety requirements of the EMC Directive 2014/30/EU. -
Page 19: Eu Declaration Of Conformity According To 2014/34/Eu (Atex)
18 EU Declaration of conformity according to 2014/34/EU (ATEX) 18 EU Declaration of conformity according to 2014/34/EU (ATEX) www.gemu-group.com 19 / 28 GEMÜ LSC... -
Page 20: Operating Instructions For Atex Position Indicators
11. Outdoor use ....................................5 12. Maintenance ....................................5 13. Malfunctions ....................................5 14. Item number ....................................6 EUROTEC Antriebszubehör GmbH | Bildstock 37 | DE-88085 Langenargen | sales@eurotec-shop.com | www.eurotec-shop.com | 05.01.2018 | Page 1 of 6 GEMÜ LSC 20 / 28 www.gemu-group.com... -
Page 21: Device Description
EUROTEC Antriebszubehör GmbH | Bildstock 37 | DE-88085 Langenargen | sales@eurotec-shop.com | www.eurotec-shop.com | 05.01.2018 | Page 2 of 6 www.gemu-group.com 21 / 28 GEMÜ LSC... -
Page 22: Safe Activation
Each sensor inside the switch box housing has it’s own separated intrinsically safe circuit. EUROTEC Antriebszubehör GmbH | Bildstock 37 | DE-88085 Langenargen | sales@eurotec-shop.com | www.eurotec-shop.com | 05.01.2018 | Page 3 of 6 GEMÜ LSC 22 / 28 www.gemu-group.com... -
Page 23: Disassembly
Fig. 4: Loosen nut screw Fig. 5: Fixation of cam 1 Fig. 6: Fixation of cam 2 EUROTEC Antriebszubehör GmbH | Bildstock 37 | DE-88085 Langenargen | sales@eurotec-shop.com | www.eurotec-shop.com | 05.01.2018 | Page 4 of 6 www.gemu-group.com 23 / 28 GEMÜ LSC... -
Page 24: Connecting Magnetic Coils
Rectify any possible errors. EUROTEC Antriebszubehör GmbH | Bildstock 37 | DE-88085 Langenargen | sales@eurotec-shop.com | www.eurotec-shop.com | 05.01.2018 | Page 5 of 6 GEMÜ LSC 24 / 28... -
Page 25: Item Number
If this does not rectify the malfunction, disconnect the housing from the power supply voltage and contact one of the manufacturer’s authorised and trained specialists. 14. Item number EUROTEC Antriebszubehör GmbH | Bildstock 37 | DE-88085 Langenargen | sales@eurotec-shop.com | www.eurotec-shop.com | 05.01.2018 | Page 6 of 6 www.gemu-group.com 25 / 28 GEMÜ LSC... - Page 26 19 Operating instructions for ATEX position indicators GEMÜ LSC 26 / 28 www.gemu-group.com...
- Page 27 27 / 28 GEMÜ LSC www.gemu-group.com...
- Page 28 GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Subject to alteration Fritz-Müller-Straße 6-8, 74653 Ingelfingen-Criesbach, Germany 04.2020 | 88604459 Phone +49 (0)7940 123-0 · info@gemue.de *88604459* www.gemu-group.com...
