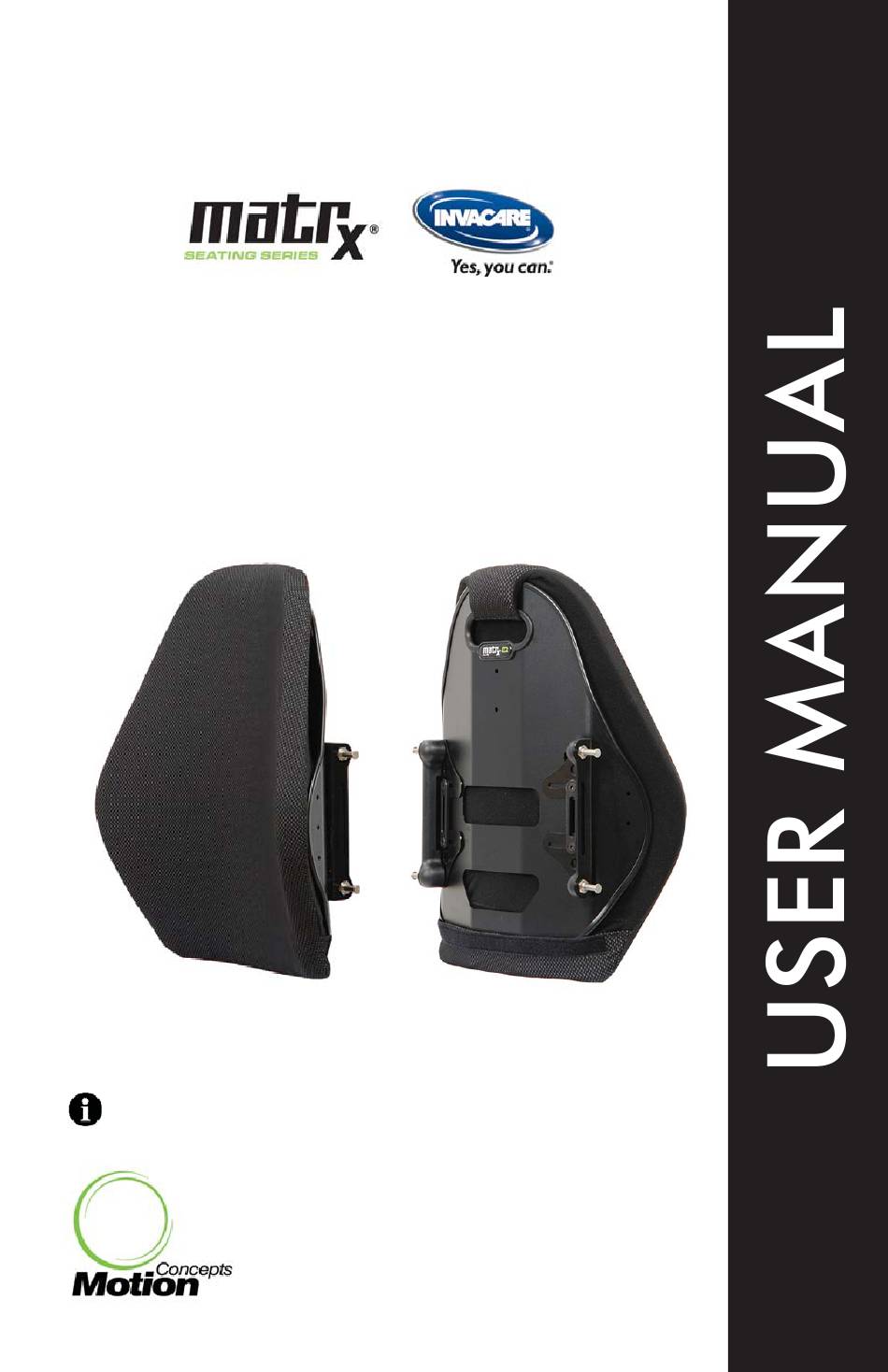

Invacare Matrx
E
LITE
REMOVABLE HARDWARE
DEALER: This manual MUST be given to the user of the product.
USER: Before using this product, read this entire manual and save for
future reference.
I
MPORTANT! The installation instructions contained in this
manual must only be carried out by a qualified service technician.
E2S/E2D B
ACK
TRD0552 Rev B

Advertisement

Table of Contents
loading

Related Manuals for Invacare Matrx ELITE E2S

Summary of Contents for Invacare Matrx ELITE E2S

  • Page 1 Invacare Matrx E2S/E2D B LITE REMOVABLE HARDWARE DEALER: This manual MUST be given to the user of the product. USER: Before using this product, read this entire manual and save for future reference. MPORTANT! The installation instructions contained in this manual must only be carried out by a qualified service technician.

  • Page 2: Warranty

    This warranty is extended only to the original purchaser/user of our products. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare/ Motion Concepts warrants this product to be free from defects in materials and workmanship for two years of use by original purchaser.

  • Page 3: User Warning

    1.1 OVERVIEW SAFETY SYMBOLS: Proper set-up and safe use of your Invacare Matrx Elite E2S/E2D Back depends on your own good judgement and common sense, as well as that of your provider, caregiver and/or health professional. The following symbols are used throughout this user manual to identify warnings, cautions and important notes.

  • Page 4: Safety Information

    2.1 TRANSPORATION WARNINGS! WARNING! Risk of Death, Serious Injury or Damage • Risk of severe injury when transporting the client within a wheelchair fitted ® ® with an Invacare Matrx Elite E2S/E2D back in a motor vehicle. RANSPORTING THE LIENT IN A...

  • Page 5: General Safety And Installation Warnings

    •DO NOT smoke while using this wheelchair WARNING! Risk of Serious Injury ® ® When establishing the mounting position for the Invacare Matrx back, ensure the stability of the wheelchair is not compromised. Adjusting the forward and aft position and/or angle of the backrest will alter the user’s center of gravity within the wheelchair.
  • Page 6 3.0 M E2S/E2D B ATRX LITE NSTALLATION 3.1 FITTING THE E2S/E2D BACK TO THE WHEELCHAIR: PRIOR to installation, verify the diameter of the wheelchair back canes (A) and the width between back canes (B) Contour Hardware fits the following Model # Description Depth back cane diameters:...
  • Page 7 3.2 STANDARD ( HEAVY-DUTY) REMOVABLE HARDWARE: NOTE: If any of the supplied hardware is missing or misplaced, please contact your local Service Provider to obtain the necessary replacements. 3.2.1 M EMOVABLE ARDWARE Standard Mounting Hardware Kit for Back Heights 16” (41cm) or less) 2 - MiniSet Std.
  • Page 8 3.3 CANE CLAMP ORIENTATION The orientation of the Cane Clamps (A) provides approximately 4” (102 of fore/aft adjustment. PRIOR to installing the Cane Clamps, determine the cane clamp orientation that will best meet the needs of the end user. • Standard Orientation (Fig. 1a/2a) = maximized seat depth •...
  • Page 9 1. (If applicable) Remove existing wheelchair back according to the wheelchair manufacturers instructions. 2. Install the MiniSet or EasySet Cane Clamps onto each back cane as follows: • (If necessary) Install the appropriate cane insert onto the back cane (1). •...
  • Page 10 3.5 INSTALLING THE ELITE E2S/E2D BACK WARNING! Risk of Damage or Injury NEVER use loctite/thread-locker on non-metal components/hardware; Non- metal components may degrade and become brittle (break) if contaminated. WARNING! Risk of Serious Injury or Damage When installed, ALWAYS ensure both latch mechanisms on the removable mounting hardware are fully engaged/locked around the upper mounting pins.
  • Page 11 E2 Mounting Bracket Set-Up: Fig. 5a MiniSet Fig. 5b EasySet Preliminary Back Installation: Fig. 6 (EasySet Hardware not shown) - 11 -...
  • Page 12 3.5.2 B EIGHT AND IDTH DJUSTMENT WARNING! Risk of Damage or Injury Improper mounting pin set-up may cause damage to the back pan and/or the mounting plates. Ensure sufficient space is provided between the mounting plate and the heads of the mounting pins (a minimum gap of 1/8” -1/4” (3mm- 6mm) is recommended).
  • Page 13 Back Height and Width Adjustments Minimum Gap 1/8” - 1/4” Fig. 7 (3mm - 6mm MiniSet Cus h io n 4”- 5” (10-13 cm) use hash marks along vertical slots to adjust the mounting brackets symmetrically Fig. 8 Minimum Gap 1/8”...
  • Page 14 3.5.3 B NGLE AND EPTH DJUSTMENTS P L E A S E N O T E Angle and Depth adjustments on the are made simultaneously via the adjustment screw(s) on the left and right cane clamp assemblies. Unless otherwise required, depth and angle adjustments should be made equally/symmetrically on both mounting plates.
  • Page 15 Back Depth Adjustment: (see Fig. 11; Fig. 12) 2. Loosen the depth/angle adjustment screw(s) (A) on each clamp assembly, and adjust the fore/aft position of the Elite E2S/E2D Back (mounting plate) (B) via the depth adjustment slots (1). ANGE OF OUNTING LATE EPTH...

  • Page 16: Care And Maintenance

    3.6 REMOVING THE ELITE E2S/E2D BACK Removing/Disengaging the Elite E2S/E2D Back: (see Fig. 13; Fig. 14) To disengage the upper mounting pins, simultaneously lift upward (1) on both latch mechanisms (A), then pull/push forward (2) on the top of the back support to release the upper mounting pins (C1) from the mounting plates (B).
  • Page 17 CAUTION! Risk of Damage - DO NOT use cleaning agents containing phenols, alcohols, bleaches or other abrasive materials. Otherwise product damage may occur. - 1% Chlorine Solution used on a regular basis can diminish the life of the cover if not rinsed and dried properly. Do not use granules. - All cleaning agents and disinfectants used must be effective, compatible with one another and must protect the materials they are used to clean.
  • Page 18 Support is a pre-fabricated foam insert that provides optional lower back support for improved positioning and comfort. The lumbar support may be installed inside the Matrx Elite E2S/E2D cover when desired (see instructions/images below). To install the Lumbar Support: 1. Open the outer cover at the bottom rear of the back shell (via the hook and loop fastener).
  • Page 19 5.3 ADDITIONAL E2 ACCESSORY OPTIONS (Sold Separately) PRIVACY FLAP (PFLAP) II. BACKBONE (PSIS/SacroLumbar Support) III. POSTURE FLEX (Abdominal Support) QUAD RELEASE (QR) TAB IV. CHEST HARNESS INTERFACE V. EASYFIX LATERALS VI. SWING-AWAY LATERALS III. - 19 -...
  • Page 20 Invacare www.invacare.com Canada One Invacare Way 570 Matheson Blvd. E Unit B Elyria, Ohio USA Mississauga, Ontario 44036-2125 L4Z 4G4 Canada 440-329-6000 800-668-5324 800-333-6900 Motion Concepts www.motionconcepts.com Canada 700 Ensminger Rd. Suite 112 84 Citation Dr., Unit 1-10 Tonawanda, NY 14150...
