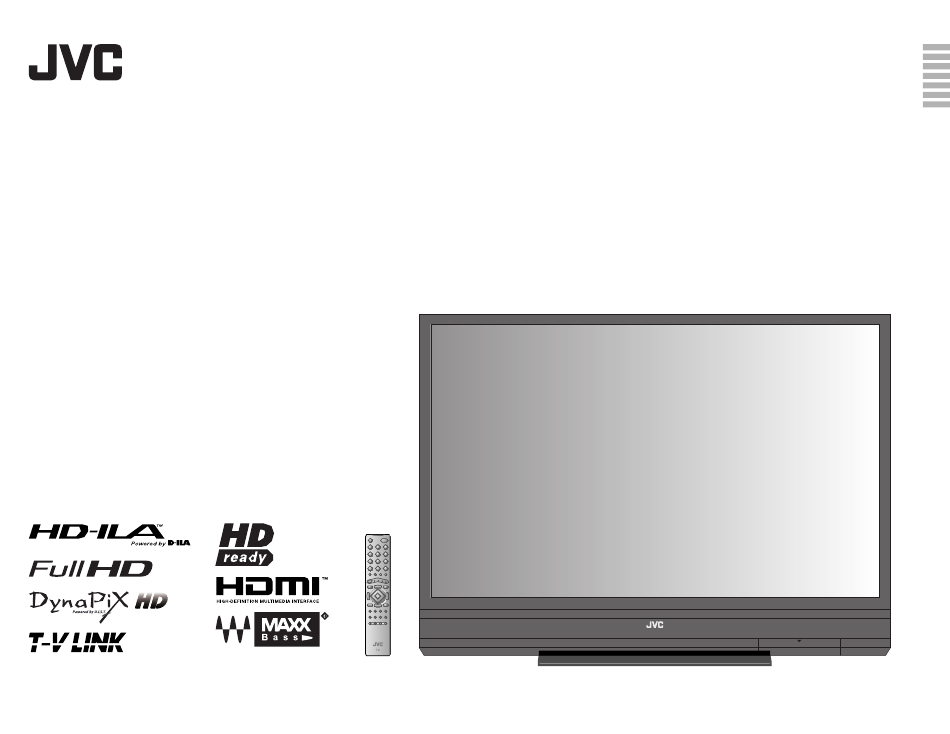

- Page 1 ENGLISH DEUTSCH FRANÇAIS NEDERLANDS CASTELLANO ITALIANO PORTUGUÊS HD-ILA TV HD-65S80DDU HD-58S80DDU INSTRUCTIONS BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS GEBRUIKSAANWIJZING MANUAL DE INSTRUCCIONES ISTRUZIONI INSTRUÇÕES LCT2237-001A-A...
- Page 2 El representante europeo de Victor Company of Japan, Limited es: European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH JVC Technology Centre Europe GmbH Postfach 10 05 52 Postfach 10 05 52...
- Page 3 (Utilisateurs professionnels) This symbol is only Ce symbole n’est If you wish to dispose of this product, please visit our web page www.jvc-europe.com Si vous souhaitez éliminer ce produit, visitez notre page Web www.jvc-europe.com valid in the European to obtain information about the take-back of the product.
- Page 4 Este símbolo sólo es Este símbolo apenas para obtener información acerca de la retirada del producto. Se pretender eliminar este produto, visite a nossa página da web em www.jvc- válido en la Unión é válido na União [Otros países no pertenecientes a la Unión Europea] europe.com para obter informações sobre a devolução do produto.
-
Page 5: Table Of Contents
Expanding the world of beautiful images Contents Enjoy rich multi-media with JVC First things first! Warning ············································ 2 VHF/UHF Precautions ······································ 3 Replacing the lamp ·························· 4 Digital camera Video camera Getting started Names of all the parts ······················ 6 Game console Basic connections ····························... -
Page 6: Warning
Warning Please follow all the guidelines below Do not allow the TV to fall Follow this manual On disposal of the Never place anything on or drop down! regarding setup! the TV! Follow the instructions below to avoid serious Connect only to a 220-240V, 50Hz AC Follow the instruction in injuries. -
Page 7: Precautions
Precautions Please follow all the guidelines below This TV uses a lamp to project the picture on the screen. Misoperations may shorten the lamp life or This TV uses a lamp to project the picture on the screen. Misoperations may shorten the lamp life or When the power is When the power is cause malfunction of the lamp. -
Page 8: Replacing The Lamp
Replacement Lamp Kit! Never replace the lamp before it has fully cooled! This lamp is for use with JVC model This lamp is for use with JVC model The lamp becomes extremely hot while in use, which may cause a burn. After The lamp becomes extremely hot while in use, which may cause a burn. - Page 9 Install the NEW lamp unit Reset the lamp timer Unpack Display the menu bar Never touch the Select “Set Up” glass surface of the lamp! 1 select Oils deposited from the finger may Oils deposited from the finger may Do not drop the lamp! cause a difference in temperature cause a difference in temperature when the lamp heats up to its...
-
Page 10: Names Of All The Parts
TV polarities are correct. To index page Remote control (RM-C1900S) When watching TV (P. 13) When operating a JVC VCR or DVD (P. 17) “AAA/R03” Batteries For confirming the TV works WARNING: Batteries shall not be exposed to excessive... -
Page 11: Basic Connections
Basic connections Please read the user manuals of each device carefully before setup. It is necessary to connect an aerial to watch TV. Connect with other devices “Connecting external devices” (P. 11) Connect the aerial Connect a VCR / DVD recorder AERIAL EXT-2 AERIAL... -
Page 12: Installation
Refer to the instructions supplied for the JVC TV stand for installation. Front pedestal Rear pedestal Remove the pedestal(s) only in the following cases; When attaching the TV to the wall When the instructions supplied for JVC optional goods require you to remove the pedestal(s) -
Page 13: Initial Settings
Auto Program Exit (This will set up cable television channels.) “What is “ACI” (Automatic Channel Installation)?” (P. 22) If the “JVC” logo does not appear or if you wish to make changes later “Language” and “Auto Program” (P. 18) BACK Check what was registered >... -
Page 14: Personal Vcr Dvd Player Computer Editing Channels
Editing channels Edit the channels registered with “Auto Program” in “Initial settings” (P. 9) 1 Begin 2 Select a destination 3 Finish Move a When coming from “Initial settings” (P. 9), skip to ⁄. channel’s >Edit > Edit select CH/CC CH/CC ------ position... -
Page 15: Connecting External Devices
Connecting external devices VCR / DVD / other devices Connect “DVI” devices You can connect many different devices to the rear panel of the TV. (P. 22) : signal direction Please read the user manuals of each device before setting up. (Connecting cables are not supplied for this TV.) “T-V LINK”... -
Page 16: Enjoying Your New Tv
Enjoying your new TV! Watching videos/ PAGE Watching TV DVDs View channel information PAGE Change the aspect ratio PC position adjustment Enjoy “3D Sound” Watch high quality video (S-VIDEO) Register your favourite channels Name connected devices Dub videos PAGE Customising your TV Adjust the picture Picture... -
Page 17: Watching Tv
When turning on the TV, it takes about 1 minute to project the picture to its full brightness. Watching TV When turning off the TV, it takes about 5 seconds to make the screen dark. After that, cooling is performed for about 1 minute. “About the LAMP indicator”... -
Page 18: Viewing Teletext
Viewing teletext This TV can display TV broadcasts and teletext on the same channel in two windows. Hold the current page When watching TV Hold the current page HOLD Release Press “ ” again TEXT Enter a teletext page Display hidden information (answers to quizzes, etc.) Reveal hidden pages... -
Page 19: Watching Videos / Dvds
Operate the connected device and play a video 1 select 1 select Set Up Auto Program Edit/Manual Language Operate JVC recorders and other devices (P. 17) Decoder(EXT-2) Component Auto Select EXT Setting HDMI Setting PC Position Lamp Timer Reset Set Up... -
Page 20: Useful Functions
Useful functions Current programme Display “Features” menu “Customising your TV” (P. 18) Take Features 1 select “Sleep Timer” snapshots of Still picture Sleep Timer Cancel Child Lock the screen Appearance Type A Blue Back Set a time Favourite Setting Press “ ”... -
Page 21: Devices
Some models of JVC devices cannot be operated with this Display the subtitle Press “ ” remote control. JVC DVD recorders and HDD recorders are set to code “C” or Mute Press “ ” “3” by default. Volume Press “... -
Page 22: Sleep Timer" / "Child Lock
Customising your TV Menu Item Adjustments / Configurations Display the menu bar Picture Mode Picture mode (Bright / Standard / Soft) Selected menu’s title Iris Adjust the amount of light projected on the screen (Darker Brighter) Contrast Contrast (Lower Higher) Picture Picture Bright... -
Page 23: Advanced Picture Adjustment
Advanced picture adjustment By default, the TV automatically adjusts itself for the best picture. Auto Super natural-looking Display the menu bar Auto : Function is : When the picture : When : Automatically DigiPure turned off loses sharpness noise appears adjusts outlines Auto... -
Page 24: Troubleshooting
Troubleshooting Problem Actions page Severe noise or Unplug the TV, and wait about 1 hour until the lamp Remote control snow – completely cooled. Then plug the TV in again. (Turning on the stops working TV soon may shorten the lamp life.) Front control buttons Switch “Child Lock”... - Page 25 Troubleshooting (continued) Problem Actions page Problem Actions page Is the “T-V LINK” compatible device connected to “EXT-2”? – Is the SCART cable “Fully Wired”? Adjust the “Bass” and “Treble”. “Feature Not Available” – Is the “T-V LINK” compatible device turned on? Poor sound If receiving a poor signal in “Stereo / t·u”, switch to “Mono”.
-
Page 26: Technical Information
Technical information What is “T-V LINK”? Auto in “Zoom” When “Auto” is selected in Zoom, the aspect ratio will turn to the ratio obtained from the information the TV “T-V LINK” allows the TV to share information easily with a connected “T-V LINK” compatible device. By using T-V LINK : received. -
Page 27: "Ch/Cc" List
“CH/CC” List Specifications To use the INSERT function (P. 10), find the “CH/CC” number corresponding to the TV’s Channel number from this Main unit table. When the Country setting is “France”, select a three-digit CH/CC number. Model HD-65S80DDU HD-58S80DDU Channel Channel Channel Channel... - Page 29 © 2007 Victor Company of Japan, Limited 0307KTH-MW-MU...
