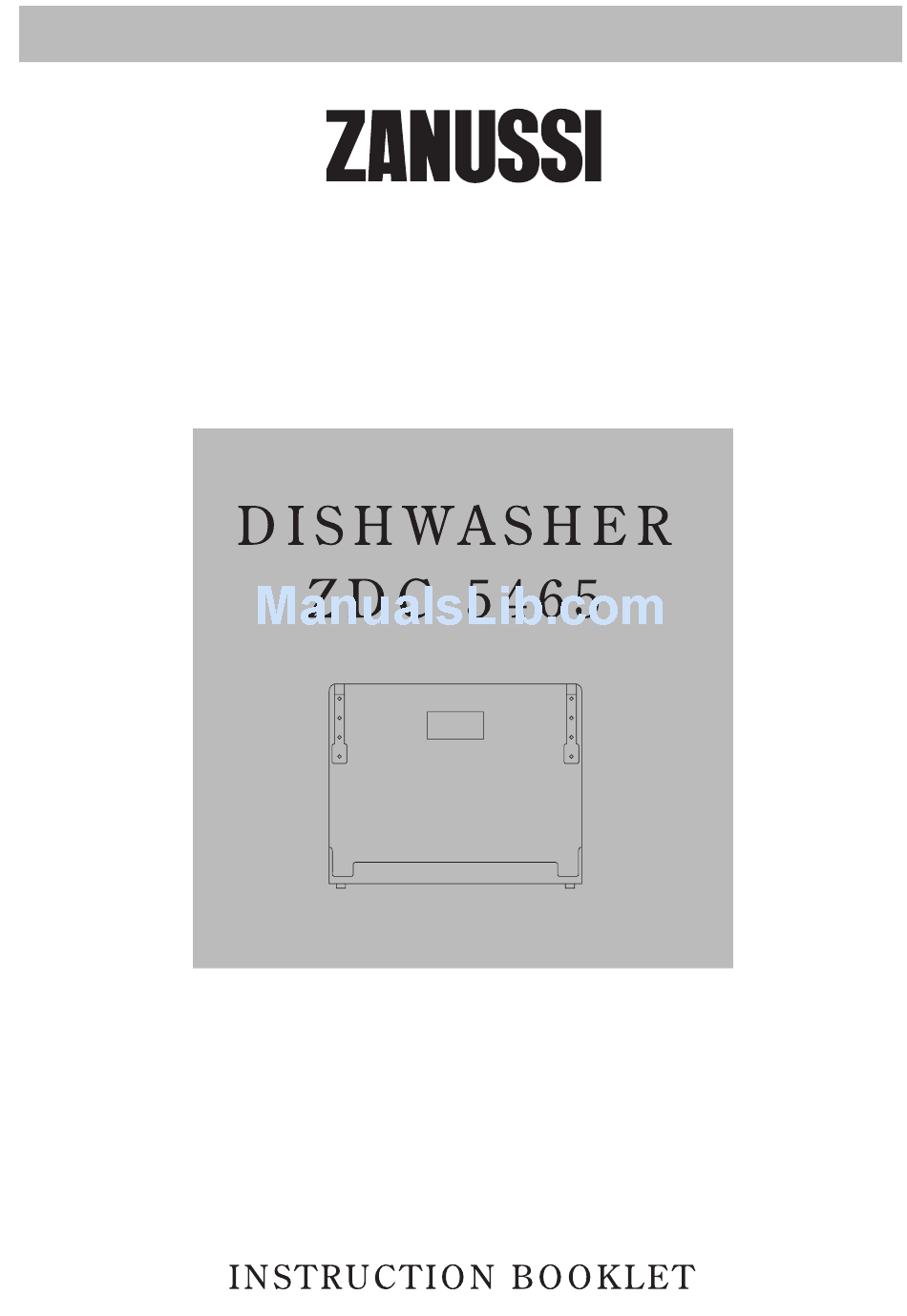

- Page 1 822 61 10-22...
-
Page 2: Table Of Contents
Contents For the user Safety Information Description of the appliance - Spray arm - Coarse filter/microfilter - Fine filter - Detergent dispenser - Rinse aid dispenser - Water softener The control panel Adjusting the water softener - Switching the rinse aid dispenser off Programme chart Using the appliance - Starting the programme... -
Page 3: Safety Information
Safety information Before installing and first using the dishwasher, read this instruction booklet carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the dishwasher are thoroughly familiar with its operation and safety features. Save these instructions and make sure they remain with the dishwasher if it is moved or sold, so that everyone using it through its life can be properly informed on appliance use and safety. -
Page 4: Description Of The Appliance
Description of the appliance - 4 -... -
Page 5: Spray Arm
4. Close the lid and press until it locks again. Do not fill the rinse aid dispenser with liquid detergent. Zanussi recommends the use of Finish dish- washer detergent and Rinse Aid. Water softener (6) This dishwasher is equipped with a water softener for hard water. -
Page 6: The Control Panel
The control panel On/Off button Combination buttons ”A” In addition to selecting a programme, you can press these two buttons to adjust the setting of the water softener, switch off the buzzer and rinse aid dispenser. Indicator lamps: Shows • Wash cycle in progress •... -
Page 7: Adjusting The Water Softener
Adjusting the water softener To prevent limescaling on the dishes and to the interior of the dishwasher, the dishes must be washed with soft water. This dishwasher is equipped with a water softener, where tap- water which is harder than 4 °d (german degree) is softened. Adjust the water softener according to the table below for the water hardness level for your area. -
Page 8: Programme Chart
Programme chart Type of Plates and dishes cooking pots • heavily Type of soiled soil: • dried-on food remnants especially eggwhite and starch Suitable programme: INTENSIVE 70° C Programme Pre-wash cycle: 1) Washing 2 x rinses Final rinse Drying Consumption figures: 2) Washing time with... -
Page 9: Using The Appliance
Using the appliance Starting the programme 1. Scrape or rinse off solid food remnants. 2. Load the dishwasher. (See the basket and loading). 3. Put the correct amount of detergent into the detergent dispenser and close the dispenser lid. 4. Press in the On/Off button. All programme indicator lamps are lit. -
Page 10: Loading And Unloading
Loading and unloading the dishwasher How to load the dishes The illustration shows the dishwasher loaded with six place settings. Your own dishes are not likely to be identical to this load, but if you follow the advice below we are sure you will be pleased with the results. Always place glasses, cups and bowls upside down. -
Page 11: Maintenance And Cleaning
Maintenance and cleaning Cleaning the filters There are two filters, a coarse one and a fine one which should be cleaned after every wash. Lift out these filters which are in the base of the dishwasher and wash under running water. The dishwasher must not be used without the filters. -
Page 12: Something Not Working
Something Not Working Before calling out an engineer, please check through the details below because some faults can be rectified easily without the need to call out an engineer. If an engineer is called to resolve a problem listed below or to repair a fault caused by incorrect installation or mis-use a charge will be made, even if the appliance is under guarantee. -
Page 13: Service
Faste water outlet: Customer Care Department For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.zanussi.co.uk... -
Page 14: Guarantee Conditions
Standard guarantee conditions We, Zanussi, undertake that if within 24 months from the date of the purchase this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 15: Technical Specifications
Installation instructions Any electrical work required to install this appliance, should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance, should be carried out by a qualified plumber or competent person. Technical specifications Capacity: Dimensions:... -
Page 16: Unpacking
Unpacking Damages If the dishwasher has been damaged during transport, you should immediately notify the company responsible for delivering it. If you discover any damage, faults or that anything is missing, you should notify your retailer immediately. Never leave packaging material in a place where children may play with it. -
Page 17: Installation
Installation Position The machine is designed to be built into a cup-board. It is vital to ensure that the machine is positioned on a horizontal level in order for it to function correctly and so that the door can be closed properly. Make sure that the shelf for the dishwasher is properly secured inside the cupboard. -
Page 18: Preparing The Outer Door
Installation Preparing the outer door Screw the guide rods and hinges on the door into place using the predrilled holes. Mounting plate Before installing the dishwasher and adjusting the door onto the cupboard, put the mounting plate into its correct position on the shelf. -
Page 19: Fitting The Outer Door
Installation Fitting the outer door 1. Unscrew the screws on the mounting plate. Lift the plate off together with the door. 2. Lay the machine down on its back. Check that none of the hoses are trapped. Insert the guide rods into the plastic door guides. -
Page 20: Mounting The Dishwasher
Installation Mounting the dishwasher 1. Put the dishwasher into the cupboard and screw the mounting plate into position from underneath with 2 screws, with the washers between. 2. Put the spacers provided at the sides of the machine and screw the machine into place in the cupboard. -
Page 21: Water Inlet
Installation Water inlet The dishwasher is equipped with safety features which are to prevent the water from going back to the fresh water system. These features are ac- cording to current water technical safety regulations. The dishwasher should be permanently plumbed into a separate cold water supply. -
Page 22: Water Drainage
Installation Water drainage To protect the dishwasher against water damage it is equipped with a water safety system. In the event of a fault the drain-pump starts automatically and the remaining water inside the dishwasher is pumped out. The water safety system also works when the dishwasher is switched off. -
Page 23: Power Supply
Installation Power supply The dishwasher is supplied with a lead and electrical plug for connection to a 230 V, 13 A earthed wall socket. Before any work is carried out on the dishwasher, it must be isolated from the electric mains supply, for example by removing the plug from the wall socket. - Page 24 © Electrolux plc 2003...
