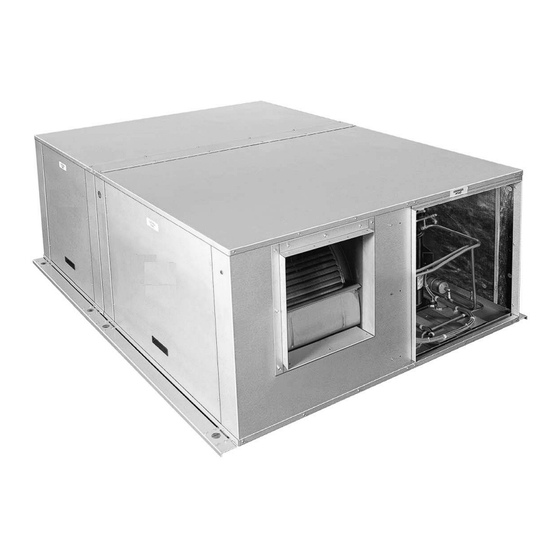

York SINGLE PACKAGE AIR CONDITIONING CU060 Technical Manual

Single package air conditioning water cooled 5-25 tons vertical
Hide thumbs Also See for SINGLE PACKAGE AIR CONDITIONING CU060:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
036-21217-001-B-1203
MODELS: CU060 - 300 5-25 TONS
®
VERTICAL
SINGLE PACKAGE AIR
CONDITIONING
WATER COOLED
MODELS: CH060 - 5-10 TONS
HORIZONTAL
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Advertisement

Table of Contents
loading

Related Manuals for York SINGLE PACKAGE AIR CONDITIONING CU060

Summary of Contents for York SINGLE PACKAGE AIR CONDITIONING CU060

  • Page 1 036-21217-001-B-1203 MODELS: CU060 - 300 5-25 TONS ® VERTICAL SINGLE PACKAGE AIR CONDITIONING WATER COOLED MODELS: CH060 - 5-10 TONS HORIZONTAL FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE...

  • Page 2: Table Of Contents

    DESCRIPTION ........3 APPLICATION FLEXIBILITY ..... . . 3 CABINET .

  • Page 3: Description

    036-21217-001-B-1203 DESCRIPTION These units are completely assembled, piped, wired, charged and tested at the factory and are shipped ready for immediate installation. Only the power supply wiring, the thermostat wir- ing, the condenser water piping, the condensate drain piping and the ductwork are required to complete the installation. Units include a one-year limited warranty on all replacement parts and a five-year limited warranty on each compressor.

  • Page 4: General Data - Ch060-120 5-10 Ton Horizontal Models

    TABLE 1: GENERAL DATA - CH060-120 5-10 TON HORIZONTAL MODELS Model Nominal Cooling(Ton) Cooling Performance Gross Cooling Capacity(Btuh) Design CFM Compressor-Type Number Used Evaporator Coil-Type Face Area(sq ft) Rows/FPI Condenser-Type Number Used/Tons Capacity Nominal Water flow rate (gpm) Condenser Water Connections Evaporator Fan-Type Number Used Diameter x Width (in)

  • Page 5: General Data Cu 5-20 Ton Vertical Models

    036-21217-001-B-1203 TABLE 2: GENERAL DATA CU 5-20 TON VERTICAL MODELS Model Nominal Cooling(Ton) Cooling Performance Gross Cooling Capacity(Btuh) Design CFM Compressor-Type Number Used Evaporator Coil-Type Face Area(sq ft) Rows/FPI Condenser-Type Number Used/Tons Capacity Nominal Water flow rate (gpm) Unit Water Connection Size Evaporator Fan-Type Number Used Diameter x Width (in)
  • Page 6 TABLE 3: GENERAL DATA CU 300 25 TON VERTICAL MODELS Model Nominal Cooling(Ton) Cooling Performance Gross Cooling Capacity(Btuh) Design CFM Compressor-Type Number Used Evaporator Coil-Type Face Area(sq ft) Rows/FPI Condenser-Type Number Used/Tons Capacity Nominal Water flow rate (gpm) Unit Water Connection Size Evaporator Fan-Type Number Used Diameter x Width (in)
  • Page 7 036-21217-001-B-1203 Unitary Products Group...
  • Page 8 036-21217-001-B-1203 Unitary Products Group...

  • Page 9: Waterside Pressure Drop - Cu Models

    036-21217-001-B-1203 TABLE 7: WATERSIDE PRESSURE DROP - CU MODELS Unitary Products Group...

  • Page 10: Water Pressure Drop Data - Ch Models

    036-21217-001-B-1203 TABLE 8: WATER PRESSURE DROP DATA - CH MODELS Unitary Products Group...

  • Page 11: Cooling Performance Data - Ch 5-10 Ton Horizontal Models

    036-21217-001-B-1203 TABLE 9: COOLING PERFORMANCE DATA - CH 5-10 TON HORIZONTAL MODELS CH060 5 TON 2000 CFM 65∞ F 75∞ F 63.2 48.3 2.88 59.7 62∞ F 80∞ F 63.2 59.5 2.88 59.7 85∞ F 66.6 66.6 2.92 62.8 75∞ F 67.4 38.6 2.93...

  • Page 12: Cooling Performance Data - Cu 5-20 Ton Vertical Models

    TABLE 10: COOLING PERFORMANCE DATA - CU 5-20 TON VERTICAL MODELS CU060 5 TON 2000 CFM 65∞ F 75∞ F 62.1 48.9 2.87 58.3 62∞ F 80∞ F 62.1 58.2 2.87 58.3 85∞ F 65.4 65.4 2.91 61.5 75∞ F 66.4 38.1 2.93...

  • Page 13: Cooling Performance Data - Cu 300 25 Ton Vertical Models

    036-21217-001-B-1203 TABLE 11: COOLING PERFORMANCE DATA - CU 300 25 TON VERTICAL MODELS CU300 25 TON 10000 CFM 65∞ F 75∞ F 308.9 227.9 22.17 289.6 217.8 25.74 266.8 206.5 30.41 314.6 234.0 21.29 295.4 220.9 24.67 273.2 213.3 29.09 62∞...

  • Page 14: Model

    TABLE 14: STANDARD MOTORS CH 5-10 TON MODELS MODEL VOLTAGE CU060 208-230/3/60 460/3/60 575/3/60 CU096 208-230/3/60 460/3/60 575/3/60 CU120 208-230/3/60 460/3/60 575/3/60 CU180 208-230/3/60 460/3/60 575/3/60 CU240 208-230/3/60 460/3/60 575/3/60 NOTE: Single Phase CH060 located in 1-5 ton data. TABLE 15: STANDARD MOTORS CU 5-20 TON MODELS MODEL VOLTAGE CU060...

  • Page 15: Dimensional Data - Ch 5 Ton Horizontal

    036-21217-001-B-1203 FIGURE 1 - DIMENSIONAL DATA - CH 5 TON HORIZONTAL MODEL FIGURE 2 - DIMENSIONAL DATA - CH 8 & 10 TON HORIZONTAL MODELS Unitary Products Group...

  • Page 16: Physical Configuration Data - Ch 8 & 10 Ton

    Economizer Coil Filter Frame FIGURE 3 - PHYSICAL CONFIGURATION DATA - CH 8 & 10 TON WATER SIDE ECONOMIZER Water Out Electrical Connections 036-21217-001-B-1203 Water 2-3/4 Side View 6-1/2 Condensate Unitary Products Group...

  • Page 17: Dimensional Data - Cu 5, 8, And 10 Ton

    036-21217-001-B-1203 CONDENSATE WATER OUT DRAIN COMPRESSOR/CONDENSER WATER IN FIGURE 4 - DIMENSIONAL DATA - CU 5, 8, AND 10 TON VERTICAL MODELS TABLE 17: DIMENSIONAL DATA - CU 5, 8, AND 10 TON VERTICAL MODELS CU060 26.00 72.00 CU096 29.00 82.00 CU120 29.00...

  • Page 18: Dimensional Data - Cu 15 Ton Vertical

    16.50" 12.25" CONDENSATE WATER OUT DRAIN WATER IN 4.00" FIGURE 5 - DIMENSIONAL DATA - CU 15 TON VERTICAL MODEL 20.50" 12.25" 2.63" 15.88 26.00" RETURN 85.00" OPTIONAL R/A 30.00" GRILLE 24.00" COMPRESSOR/CONDENSER ACCESS 0.63" 68.00" 76.00" 036-21217-001-B-1203 SUPPLY FAN MOTOR ACCESS FILTER ACCESS COIL...

  • Page 19: Dimensional Data - Cu 20 Ton Vertical

    036-21217-001-B-1203 FIGURE 6 - DIMENSIONAL DATA - CU 20 TON VERTICAL MODEL Unitary Products Group...

  • Page 20: Dimensional Data - Cu 25 Ton Vertical

    036-21217-001-B-1203 FIGURE 7 - DIMENSIONAL DATA - CU 25 TON VERTICAL MODEL Unitary Products Group...

  • Page 21: Supply Air/Return Air Configuration

    036-21217-001-B-1203 SUPPLY AIR/RETURN AIR CONFIGURATION All models are field convertible for multiple supply return con- figurations. The 5 through 15 ton models feature a removable upper fan module that can be rotated 180∞ for top rear dis- FIGURE 8 - SUPPLY AIR/RETURN AIR CONFIGURATION Unitary Products Group charge applications.

  • Page 22: Hot Water & Steam Heating Coils Dimensional Data

    Hot Water and Steam Heating Coil Dimensions (Inches) Unit Model Plenum Dimensions (Inches) Side Grill 5 Ton 16x12 (2x) 8/10 Ton 20x16 (2x) FIGURE 9 - HOT WATER & STEAM HEATING COILS DIMENSIONAL DATA Inlet (MPT Outlet (MPT) CU060 37.50 5.50 CU096 59.50...

  • Page 23: Hot Water & Steam Heating Coils Performance Data

    036-21217-001-B-1203 Steam Coil Performance @ 2 PSIG Entering Air Dry Bulb Temperature Unit Model 1800 126.6 CU060 2000 147.1 2200 153.6 138.9 3000 258.3 233.4 CU096 3200 266.6 3400 274.5 248.1 3600 282.1 CU120 4000 296.3 267.9 4400 309.5 279.8 5400 425.8 384.9...
  • Page 24 036-21217-001-B-1203 FIGURE 11 - TYPICAL WATER-SIDE ECONOMIZER PHYSICAL CONFIGURATION Unitary Products Group...

  • Page 25: Water-Side Economizer Piping Schematic

    036-21217-001-B-1203 FIGURE 12 - WATER-SIDE ECONOMIZER PIPING SCHEMATIC Unitary Products Group...

  • Page 26: Water-Side Economizer Control - 15-20 Ton Vertical (208-230 V/3Ph/60Hz)

    036-21217-001-B-1203 FIGURE 13 - WATER-SIDE ECONOMIZER CONTROL - 15-20 TON VERTICAL (208-230 V/3PH/60HZ) Unitary Products Group...
  • Page 27 036-21217-001-B-1203 Unitary Products Group...
  • Page 28 Subject to change without notice. Printed in U.S.A. Copyright © by Unitary Products Group 2004. All rights reserved. Unitary Products Group Supersedes: 036-21217-001-A-0503 5005 York Drive 036-21217-001-B-1203 Norman 73069...
