RB1660, RB1672, RB1684, RB2672, RB2684, & RB2696
33131
Table of Contents

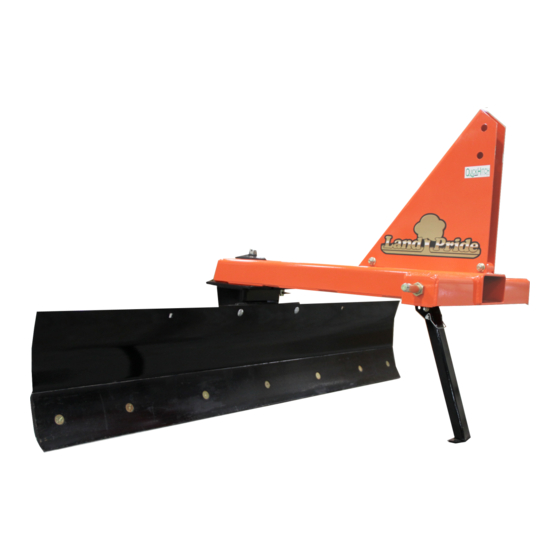

RB16 Series Shown
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
301-375M
Operator's Manual
Printed 9/28/18
Advertisement
Table of Contents
Related Manuals for Land Pride RB16 Series
Summary of Contents for Land Pride RB16 Series
- Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 9/28/18...
-
Page 2: Machine Identification
Machine Identification Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new manual. If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were originally ordered, the weights and measurements are no longer accurate for your machine. - Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
- Page 4 Parts Manual for this equipment. for Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture.
-
Page 5: Important Safety Information
Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident. -
Page 6: Tire Safety
Lower implement to the ground and Replace parts on this implement implement. follow all shutdown procedures with genuine Land Pride parts only. Attach the chain to the tractor before leaving the operator’s seat to Do not alter this implement in a way drawbar support or other specified perform maintenance. - Page 7 Use Seat Belt and ROPS signals are recommended Keep Riders Off whenever driving on public roads. Machinery Land Pride recommends the use of a CAB or roll-over-protective- Never carry riders on tractor or structures (ROPS) and seat belt implement.
-
Page 8: Safety Labels
Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com. -
Page 9: Using This Manual
Pride dealer has trained personnel, repair parts, and equipment needed to service the implement. The RB16 Series come with a 14" high rolled moldboard in 60", 72", and 84" widths for attaching to tractors in the Serial Number 20 to 40 hp range. -
Page 10: Tractor Requirements
(#18) and 7/8"-14 hex nuts (#17). Draw RB16 Series ..... 20 to 40 hp hex nuts up snug. Do not tighten until next step. - Page 11 Table of Contents Section 1: Assembly & Set-up RB26 Series Rear Blade Assembly 5. Install drive pivot cap (#7), and pivot cap (#5) over blade pivot shaft (#6). Refer to Figure 1-2: 6. Secure pivot cap (#5) with 3/4"-10 x 1 1/2" GR5 hex flange cap screw (#11).
-
Page 12: Point Hook-Up
Make sure the blade does not make contact with tractor tires. NOTE: Land Pride’s Quick Hitch can be attached to 3. Continue to cycle hydraulic cylinder back and forth the tractor to provide quick and easy 3-point hook- until it has been purged of air. - Page 13 Table of Contents Section 1: Assembly & Set-up Check Clearances Make certain blade offset is adjusted to the field setting before checking blade clearances. Refer to “Blade Offsetting” on page 14 for offset instructions. 2. With Rear Blade hitched to a tractor, raise blade off the ground and angle blade as far as possible towards the right rear tractor tire.
- Page 14 (#7) with clevis pin (#2) and hairpin correct torque. cotters (#1). Customer to supply Quick Disconnect Couplings (#17). 33346 RB16 Series Hydraulic Blade Angling Accessory Figure 2-1 RB1660, RB1672, RB1684, RB2672, RB2684, & RB2696 Rear Blades 301-375M 9/28/18...
- Page 15 Table of Contents Section 2: Accessory Equipment Set-Up RB26 Series Hydraulic Angling Kit 4. Remove hairpin cotter (#14) and hitch pin (#13). Remove locknuts (#11) and bolts (#8). Store removed Refer to Figure 2-1: hardware with drive pivot cap (#7). The Hydraulic Angling Kit can be easily attached to the 5.
- Page 16 Table of Contents Section 2: Accessory Equipment Set-Up RB16 & RB26 Skid Shoes Kit Bundle (Pair of skid shoes) 301-330ASKID SHOE ASSEMBLY Refer to Figure 2-3: The skid shoes can be attached to both ends of the moldboard to help keep the cutting blade from damaging the surface being bladed.
- Page 17 Table of Contents Section 3: Adjustments Section 3: Adjustments Blade Adjustments Blade Pitch There are 5 adjustments that can be made to the blade. Refer to Figure 3-3 on page 14: They are blade pitch, angling, reversing, tilting, and Blade pitch can be adjusted by lengthening or shortening offsetting.
- Page 18 Refer to Figure 3-5: A “RB16 or RB26 Series Hydraulic Angling Kit” must be installed to angle blade hydraulically. See “RB16 Series Hydraulic Angling Kit” on page 10. See “RB26 Series Hydraulic Angling Kit” on page 11. 33362 Mover tractor control lever forward to retract hydraulic Hydraulic Blade Angling cylinder and rearward to extend hydraulic cylinder.
- Page 19 Table of Contents Section 3: Adjustments Note: The removed and stored drive pivot cap (#6) is shown as an alternate method for securing the moldboard to the mainframe while manually rotating the blade 180 33363 Blade Reversing With Hydraulics Attached Figure 3-6 Hydraulic Blade Reversing 6.
-
Page 20: Operating Checklist
Table of Contents Section 4: Operating Procedures Section 4: Operating Procedures Always secure equipment with solid, non-concrete supports • Operating Checklist before working under it. Never go under equipment supported Hazard control and accident prevention are dependent by concrete blocks or hydraulics. Concrete can break, upon the awareness, concern, prudence, and proper hydraulic lines can burst, and/or hydraulic controls can be training involved in the operation, transport,... - Page 21 5. Inspect Hydraulic hoses for wear, damage and hydraulic leaks. See “Avoid High Pressure Fluids Hazard” on page 3 Replace damaged and worn hoses with genuine Land Pride parts. 9/28/18 RB1660, RB1672, RB1684, RB2672, RB2684, & RB2696 Rear Blades 301-375M...
- Page 22 Table of Contents Section 4: Operating Procedures Transporting Rear Blade Functions IMPORTANT: The warranty shall not apply to DANGER damage caused by misuse, abuse, or contact with To avoid serious injury or death: obstructions. Always keep a safe distance from obstructions. The implement can extend beyond tractor tires and makes a wide swinging NOTE: Place grade stakes if you intend to develop pattern when turning.
- Page 23 Once you have familiarized yourself with the Operator’s Blade operator and consistently achieve the desired Manual, completed operations checklist, and properly results you expect with your Land Pride RB16 Series or attached your Land Pride Rear Blade to your tractor, you RB26 Series Rear Blade.
-
Page 24: Long Term Storage
Land Pride parts. Do not alter the blade in a way which 2. Inspect for loose, damaged, or worn parts and will adversely effect its performance. -
Page 25: Lubrication Points
Table of Contents Section 5: Maintenance & Lubrication Lubrication Points Lubrication Multi-purpose Multi-purpose Multi-purpose Intervals in hours at which spray lube grease lube oil lube lubrication is required Legend Seasonally Moldboard and Blade Grease moldboard and blade when storing for an extended period of time. -
Page 26: Section 6: Specifications & Capacities
(1.52 m, 1.83 m, 2.13 m, & 2.44 m) working widths working widths Hydraulic Angling RB16 Series - - 38 1/2" (0.98 m) RB26 Series - - 43 1/2" (1.10 m) RB16 - 18 1/4" (46.4 cm) RB26 - 22 1/4" (56.5 cm) RB1660 - - - - - - - - - - - 59 1/2"... -
Page 27: Section 7: Features And Benefits
RB26 working widths (72", 84", 96") 20-40 hp rating for RB16 Series RB16 Series fits a wide variety of small tractors between 20 & 40 hp. 25 - 60 hp for RB26 Series RB26 Series fits a wide variety of small tractors between 25 & 60 hp. -
Page 28: Section 8: Troubleshooting
Manually remove the last several inches of product away. Ground is too hard. Loosen soil with a Land Pride Scarifier. Apply water to the surface or wait for a rain. Blade does not penetrate soil Blade cutting edge is too dull. -
Page 29: Torque Values Chart For Common Bolt Sizes
Table of Contents Section 9: Torque Values Chart Section 9: Torque Values Chart Torque Values Chart for Common Bolt Sizes Bolt Head Identification Bolt Head Identification 10.9 Bolt Size Bolt Size (inches) Grade 2 Grade 5 Grade 8 (Metric) Class 5.8 Class 8.8 Class 10.9 in-tpi... - Page 30 Table of Contents Section 9: Torque Values Chart RB1660, RB1672, RB1684, RB2672, RB2684, & RB2696 Rear Blades 301-375M 9/28/18...
-
Page 31: Warranty
This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship. - Page 32 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
