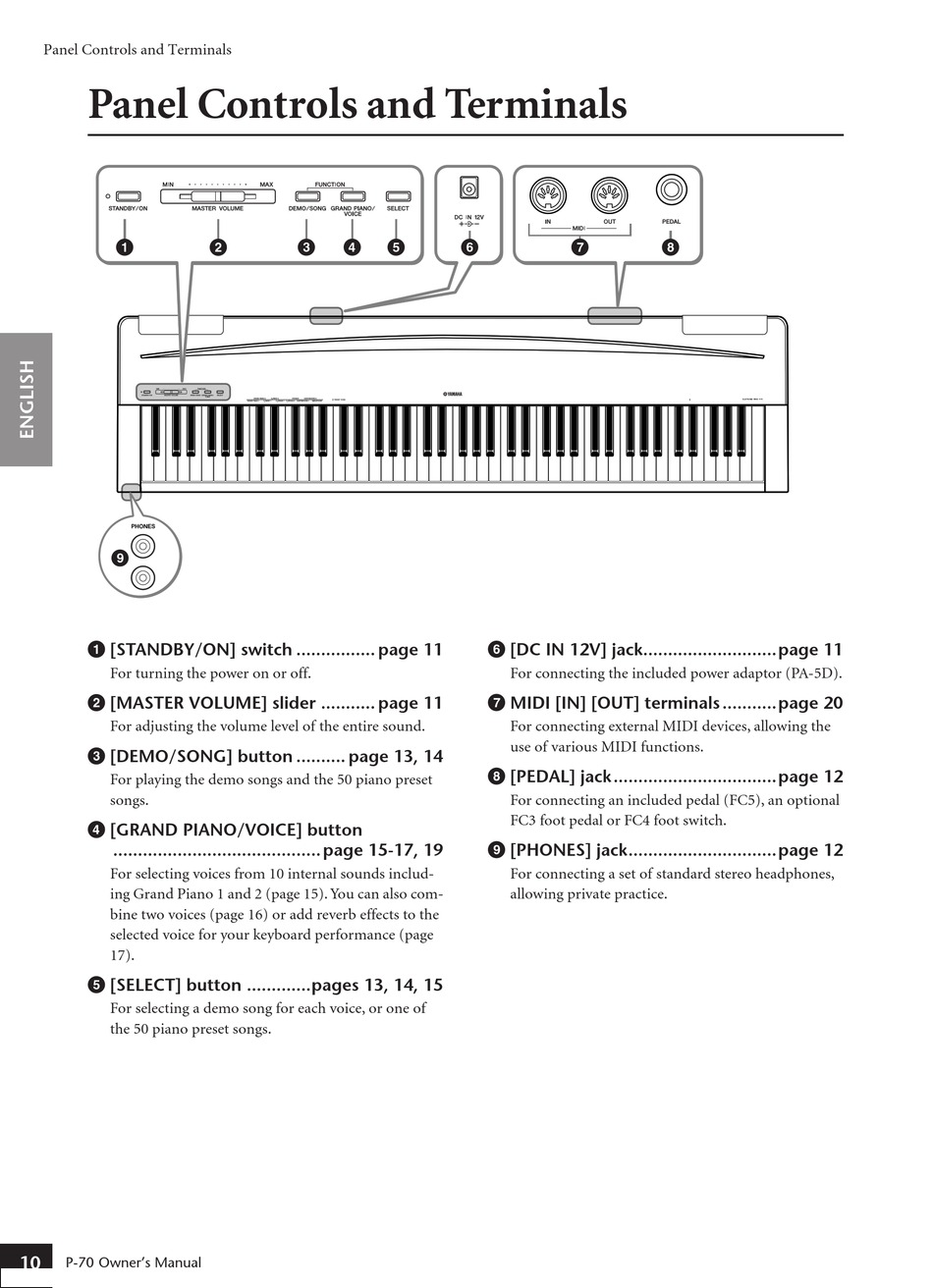

Panel Controls and Terminals

Panel Controls and Terminals
1
9
1 [STANDBY/ON] switch ................ page 11
For turning the power on or off.
2 [MASTER VOLUME] slider ........... page 11
For adjusting the volume level of the entire sound.
3 [DEMO/SONG] button .......... page 13, 14
For playing the demo songs and the 50 piano preset
songs.
4 [GRAND PIANO/VOICE] button
.......................................... page 15-17, 19
For selecting voices from 10 internal sounds includ-
ing Grand Piano 1 and 2 (page 15). You can also com-
bine two voices (page 16) or add reverb effects to the
selected voice for your keyboard performance (page
17).
5 [SELECT] button .............pages 13, 14, 15
For selecting a demo song for each voice, or one of
the 50 piano preset songs.
10
P-70 Owner's Manual
2 3 4 5 6
6 [DC IN 12V] jack...........................page 11
For connecting the included power adaptor (PA-5D).
7 MIDI [IN] [OUT] terminals ...........page 20
For connecting external MIDI devices, allowing the
use of various MIDI functions.
8 [PEDAL] jack .................................page 12
For connecting an included pedal (FC5), an optional
FC3 foot pedal or FC4 foot switch.
9 [PHONES] jack..............................page 12
For connecting a set of standard stereo headphones,
allowing private practice.
7 8
