Grizzly G0661 Owner's Manual

10" contractor table saw w/riving knife
Hide thumbs Also See for G0661:
Table of Contents

Advertisement

Quick Links

Download this manual
We recently made the following changes to this machine:
•
Changed motor
aside from the parts and wiring contained in this update, all other content in the owner's manual applies to
this machine. For your own safety, you MUst read and understand this update and the applicable owner's
manual. since this update supersedes some content from the owner's manual, keep it with the
owner's manual for future reference!
If you have any further questions about this manual update or the changes made to the machine, contact
our Technical Support at (570) 546-9663 or email techsupport@grizzly.com.

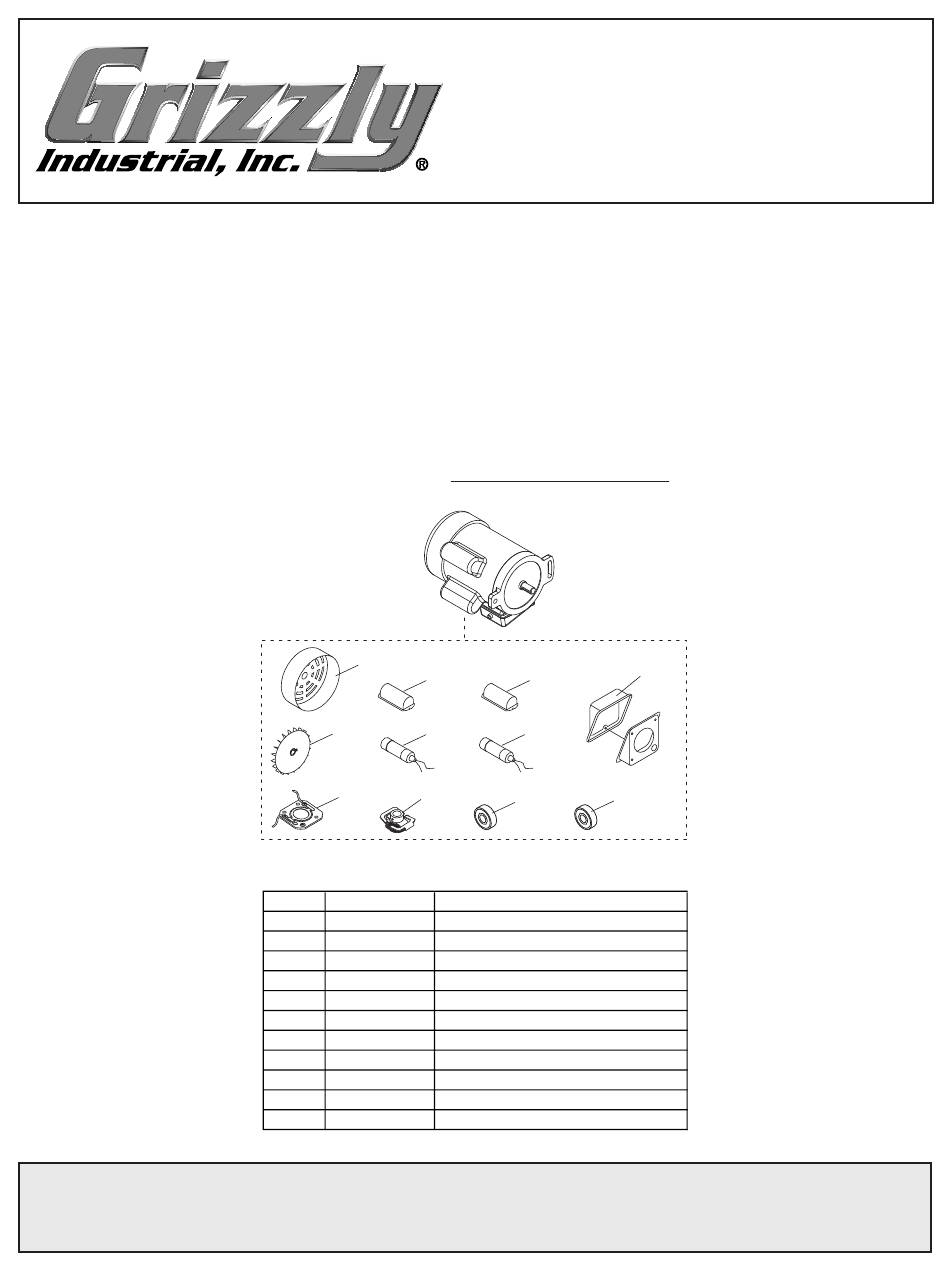

new motor parts
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
82V2
82V2-1
82V2-3
82V2-2
82V2-4
82V2-8
82V2-9
REF
PART #
82V2
P0661082V2
82V2-1
P0661082V2-1
82V2-2
P0661082V2-2
82V2-3
P0661082V2-3
82V2-4
P0661082V2-4
82V2-5
P0661082V2-5
82V2-6
P0661082V2-6
82V2-7
P0661082V2-7
82V2-8
P0661082V2-8
82V2-9
P0661082V2-9
82V2-10 P0661082V2-10 FRONT MOTOR BEARING
82V2-11 P0661082V2-11 REAR MOTOR BEARING
Copyright © JUNE, 2011 By grizzly iNdUstrial, iNC.
#Bl14250 priNtEd iN taiwaN
model g0661
***IMPORTANT UPDATE***
applies to models mfg. since 5/11
and owner's manual July, 2010
82V2-7
82V2-5
82V2-6
82V2-10
82V2-11
DESCRIPTION
MOTOR 2HP V2.05.11
FAN COVER
MOTOR FAN
S CAPACITOR COVER
S CAPACITOR 200M 125V 1.5 X 2.75
R CAPACITOR COVER
R CAPACITOR 35M 300V 1.5 X 2.75
JUNCTION BOX
CONTACT PLATE
CENTRIFUGAL SWITCH
