- Page 1 Apex II Installation Manual Model: 50608 Matte Silver Fan weight ±0.9 kg (2 lb): 8.2 kg (18.1 lb) ©2019 Hunter Fan Co. PG3798 r112219...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference.
- Page 3 Here is what comes in your box: 1886 Hunter Pro Tip: We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Do not discard the hardware bags or mix parts from different bags.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Installing the Downrod Follow below if you are using the downrod Hunter Pro Tip: that came pre-assembled in your box. Need to install a longer or shorter down- The ground wire attached to the rod? Check out the guide at the end of this downrod is approximately 8 inches. -
Page 7: Wiring The Fan
Here is how to connect the wires: Push the bare metal ends of the wires together and slide a wire The Apex II ceiling fan is designed to be operated by nut over them. Then, twist the wire nut clockwise until tight. -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Lightly attach the blade arms to the motor with screws found in the hardware bag, then securely tighten after both screws are attached. -
Page 9: Assembling The Light Kit
1886 Assembling the LIght Kit 1 of 1 Assembly Screw Align the keyhole slots in the top of the light kit Feed the 9-pin plug connector coming assembly with the partially installed screws. from the bottom of the motor housing Wrap the keyhole slots around the screws and Remove a pre-installed assembly through the center hole in the light kit... -
Page 10: Preparing The Remote

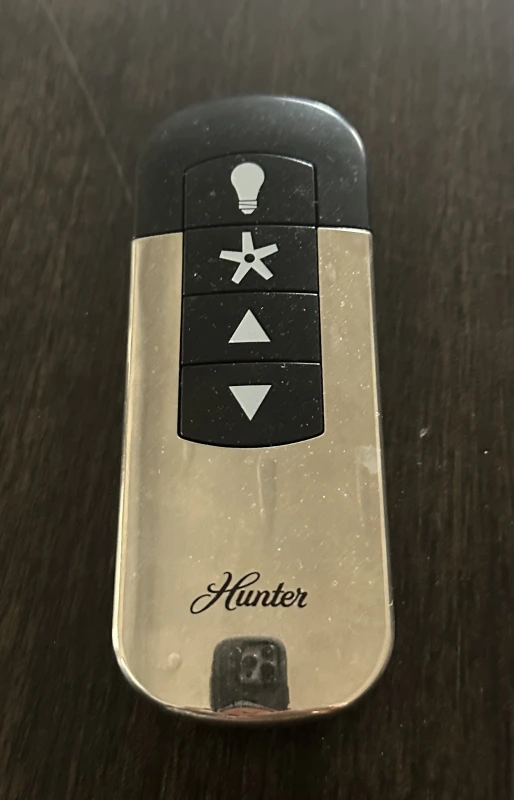

1886 Preparing the Remote For your convenience, a remote function card The remote transmitter is already is packed in with your remote. paired to the receiver and ready to use. Dimming mode is off by default. Note: If you need to pair your remote, To access the battery compartment, turn fan power off and back on at the remove the the battery door to the... -
Page 11: Troubleshooting
• Check to see if any of the blades are cracked. If so, replace all of the blades. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes. - Page 12 Monday - Friday 8am - 6pm CST. Saturday 11am - 4pm CST (English or Español) provide maintenance to the fan, or acts of God (e.g. flood). Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
