Battery Supply & Connections
1.) Connecting to Power Source:
It is an AC charger only. Please insert the AC power cord to the wall
socket (100-240V) directly to power it on.
2.) Connecting the Battery:
Important!!! Before connecting a battery, it is absolutely essential
to check one last time that you have set the parameters correctly. If
the settings are incorrect, the battery may be damaged and could
even burst into fl ames or explode. To avoid short circuits between
the banana plugs, always connect the charge leads to the charger
fi rst and only then to the battery. Reverse the sequence when
disconnecting the pack.
3.) Balance Socket:
The balance wire attached to the battery must be connected to the
charger, with the black wire aligned with the negative marking. Take
care to maintain correct polarity. (See wiring diagram below)

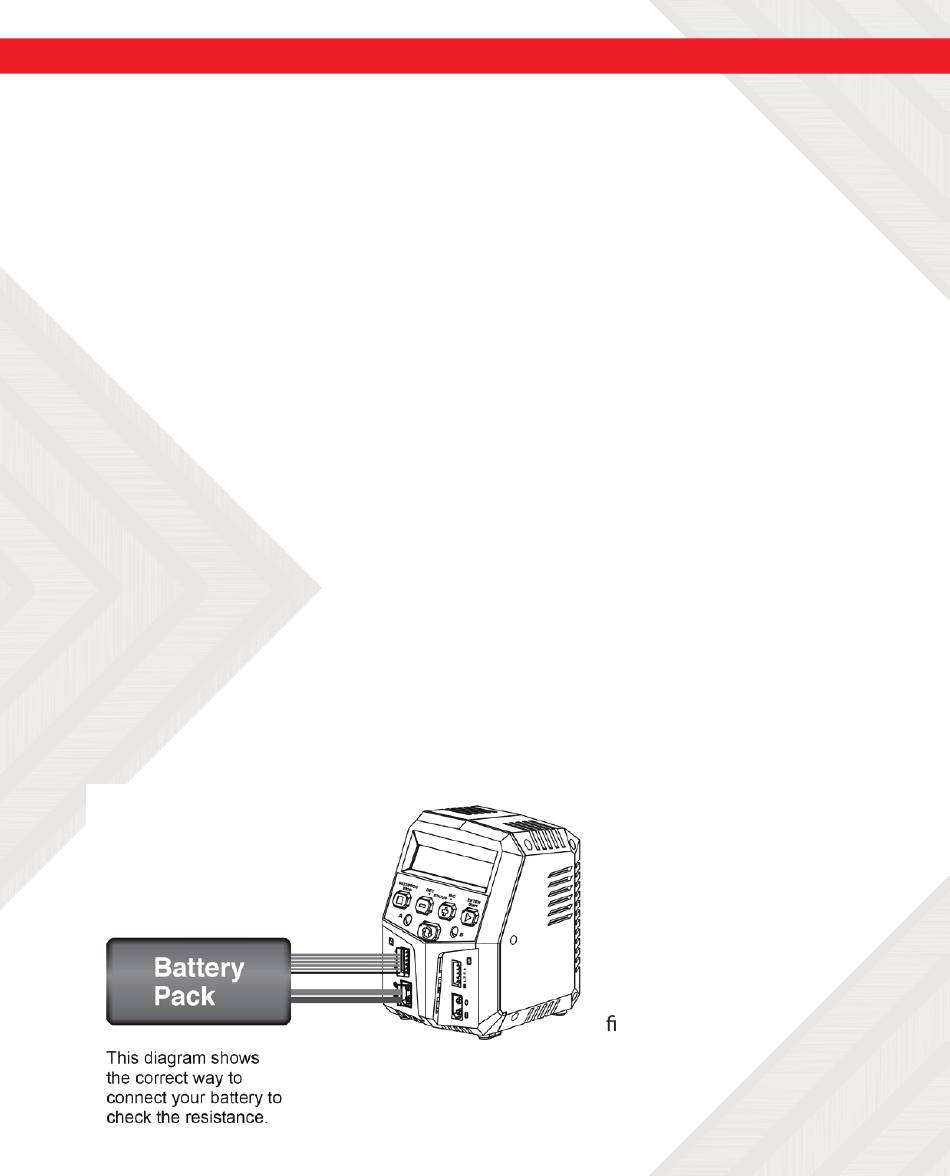

This diagram shows the correct way to connect your battery to the
Hitec RDX2 Mini when charging in the balance charge program
mode.
14
WARNING:
Failure to connect as shown
in this diagram will damage
your charger. To avoid a short
circuit between the charge
lead, always connect the
charge cable to the charger
rst, then connect the battery.
Reverse the sequence when
disconnecting.
