Models:
NOTE: NOT INTENDED FOR FIREPLACE
INSERT. PRIMARILY A DECORATIVE AND
NOT A HEATING APPLIANCE.
DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.

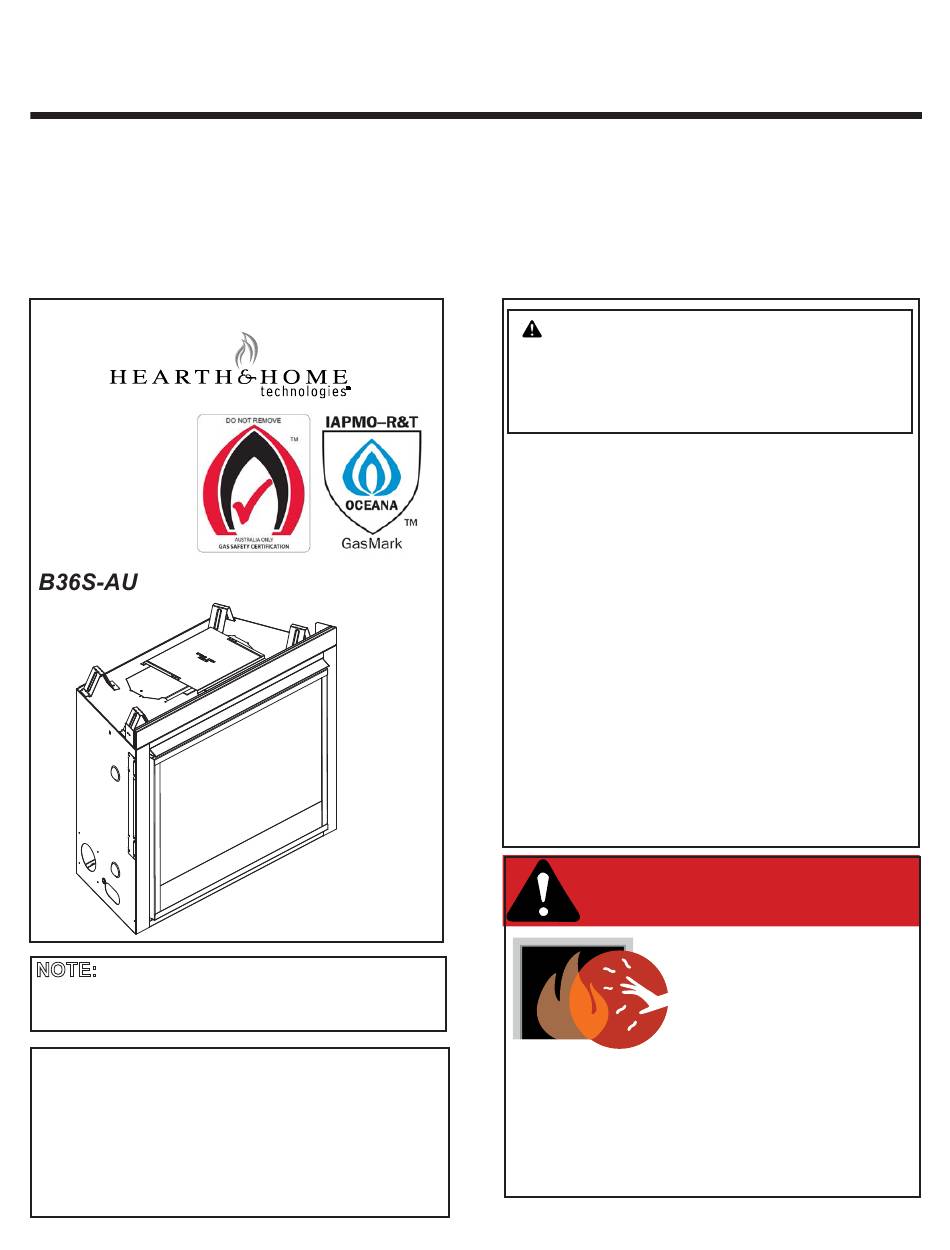

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
Installation Manual
Installation and Appliance Setup
Ref No GMK10598
AS/NZS 5263.1.8
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading

Summary of Contents for Hearth and Home Technologies B36S-AU

  • Page 1 DO NOT SPRAY AEROSOLS IN THE VICINITY OF the protection of children and other at-risk THIS APPLIANCE WHILE IT IS IN OPERATION. individuals. DO NOT MODIFY THIS APPLIANCE. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 2: Table Of Contents

    B. Securing and Leveling the Appliance ....35  = Contains updated information. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 3: Installation Standard Work Checklist

    Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective action needed _____________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________ (Builder / Gen. Contractor/) (Installer) (Date)  = Contains updated information. 2563-980 10/19 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 4: Product Specific And Important Safety Information

    If the provided assembly is removed, it is recommended that a new gas shut-off be installed inside the envelope of the appliance before the gas valve. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 5: High Altitude Installations

    G. Electrical Codes All electrical safety testing has been done following the IEC/EN 60335-2-102 standard. Local codes apply. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 6: Getting Started

    Non-corrosive leak check solution 1/2 - 3/4 in. (13 - 19 mm) length, #6 or #8 Self-drilling screws Caulking material (300 ºF (149 ºC) minimum continuous exposure rating) Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 7: Inspect Appliance And Components

    • Improper positioning of the gas logs or the glass door. • Installation and/or use of any component part not approved by Hearth & Home Technologies. Any such action may cause a fire hazard. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 8: Framing And Clearances

    GAS LINE ACCESS Location Inches Millimeters Location Inches Millimeters 16-5/16 31-1/8 27-3/16 25-3/4 18-1/16 12-7/8 34-5/16 15-7/8 6-5/8 6-7/8 2-3/8 2-3/16 36-7/16 1-1/16 8-13/16 23-3/8 Figure 3.1 Appliance Dimensions Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 9 Decorative barrier front must be ordered at time of fireplace purchase. If decorative barrier front is not present, contact dealer. Note: See Section 10 for mantel and finishing requirements. 28-7/8 25-1/8 2-5/8 1-5/8 27-1/8 28-3-/4 SRV2496-021 Figure 3.2 Decorative Front Dimensions Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 10: Appliance Location And Clearances To Combustibles

    E Min. F Min. 59-1/2 62-1/4 16-1/4 48-1/2 68-3/4 15-1/16 7-1/2 7-1/8 See Section 10.B for B36S-AU Alcove Installation 1067 1511 1117 1581 1232 1746 Figure 3.3 Appliance Locations Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 11 16-1/4 B36S-AU * Adjust framing dimensions for interior sheathing (such as sheetrock) C** Add 12 inches for rear venting with one 90º elbow. Figure 3.5 Clearances to Combustibles Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 12: Constructing The Appliance Chase

    If the appliance is being installed on a cement surface, a layer of plywood may be placed underneath to prevent con- ducting cold up into the room. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 13: Termination Location And Vent Information

    56.3°-59.0° ............2 290 59.0°-60.3° ............2 440 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 4.1 Minimum Height From Roof To Lowest Discharge Opening Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 14: Chimney Diagram

    500 mm of the opening and discharging in the direction of the opening. 4. Clearance from a flue terminal to a LP cylinder shall be a minimum of 1 meter. MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES Figure 4.3 Minimum Clearances for Termination Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 15: Approved Pipe

    4-1/4 DVP12 8-1/2 DVP24 DVP36 25-1/2 DVP48 1219 DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108 DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216 Figure 4.4 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 16: Vent Diagrams

    Inches Millimeters 16-1/4 11-1/4 Figure 4.5 Vertical and Horizontal Offset for DVP and SLP Elbows 1/4 in. max. (6 mm) Figure 4.6 Vent Cap - Generic Appliance Shown Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 17: Measuring Standards

    Measure Horizontal and Vertical Termination (OUTSIDE MOUNTING SURFACE) Clearance to Trapezoid Portion of Cap Figure 4.7 Measure to Outside Mounting Surface Figure 4.8. Measure to Top of Last Section of Pipe Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 18 • Installation of the elbow heat shield is required when the clearance to combustible material above the first vent elbow is 6 in. (152 mm) or less. See Section 5.A and 5.B. Figure 4.10 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 19 WARNING** Fire Risk. • When using SLP-HRC-SS termination cap on top vented fireplaces, a one foot minimum vertical vent section is required before installing first elbow. Figure 4.11 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 20 WARNING** Fire Risk. • When using SLP-HRC-SS termination cap on top vented fireplaces, a one foot minimum vertical vent section is required before installing first elbow. Figure 4.12 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 21 15-60 ft. (4.6-18.3 m), an exhaust re- strictor may be needed. The exhaust restrictor can be Figure 4.14 located in the appliance manual bag. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 22 *No specific restrictions on this value EXCEPT V + H CANNOT exceed 40 ft. (12.2 m). MAX. = 40 ft. (12.2 m) MAX. = 40 ft. (12.2 m) Figure 4.15 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 23 MAX. =14 ft. (4.3 m) *No specific restrictions on this value EXCEPT V + H CANNOT exceed 40 ft. (12.2 m). MAX. = 40 ft. (12.2 m) INSTALLED HORIZONTALLY Figure 4.16 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 24 4 ft. 1.2 m 4 ft. 1.2 m 4 ft. 1.2 m 3-1/2 ft. 1.1 m Maximum= 40 ft. (12.2 m) Note: Use SLP Series components only. Figure 4.17 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 25 = 24 in. Max. (610 mm) Note: Use DVP Series components only. Figure 4.18 = 9 in. (229 mm) Maximum One 45º Elbow Note: Use DVP Series components only. Figure 4.19 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 26 6 ft. 1.8 m 13-1/2 ft. 4.1 m MAX. = 7-1/2 ft. (2.3 m) MAX. = 13-1/2 ft. (4.1 m) MAX. = 40 ft. (12.2 m) Figure 4.21 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 27 6-1/2 ft. 2.0 m 3 ft. 914 mm H MAX. = 6-1/2 ft. (2 m) V + H+ H MAX. = 40 ft. (12.2 m) INSTALLED HORIZONTALLY Figure 4.23 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 28 MAX. = 40 ft. (12.2 m) *No specific restrictions on this value EXCEPT V + H CANNOT exceed 40 ft. (12.2 m). Note: Use DVP Series components only. Figure 4.24 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 29 = 32 ft. (9.75 m) Maximum *No specific restrictions on this value EXCEPT cannot exceed 32 ft. (9.75 m) Maximum = 8 ft. (2.44 m) Maximum INSTALLED HORIZONTALLY Figure 4.25 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 30: Vent Clearances And Framing

    Bottom: 1/2 in. (13 mm) Sides: 1 in. (25 mm) HEAT SHIELD Figure 5.1 Horizontal Venting Clearances To Combustible Materials - Generic Appliance Shown 90º ELBOW Figure 5.3 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 31: Wall Penetration Framing/Firestops

    Whenever a non-combustible wall is penetrated, the wall shield firestop is only required on one side and no heat shield is necessary. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 32: Ceiling Firestop/Floor Penetration Framing

    INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 5.6 Installing the Attic Shield Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 33: Appliance Preparation

    Figure 6.2 For top vent, remove the two screws holding the top heat shield in place. Figure 6.5 Remove the seal cap. NOTICE: Once the seal cap has been removed it CANNOT be reattached. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 34 NOTICE: Once the seal cap has been removed it CANNOT Note: Once the seal cap has been removed, it cannot be be reattached. reattached. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 35: Securing And Leveling The Appliance

    Use two self- tapping screws to secure gasket to outer wrap. NAILING TABS (BOTH SIDES) PLACE LEVEL ON THESE SURFACES Figure 6.14 Proper Positioning, Leveling And Securing Of An Appliance Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 36: Venting And Chimneys

    • Only outer pipes need to be sealed. All unit collar, pipe, slip section, elbow and cap outer flues shall be sealed in this manner, unless otherwise stated. Figure 7.3 Figure 7.2 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 37 Use care when remov- ing termination cap from slip pipe. If slip section seals are broken during removal of the termination cap, vent could leak. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 38: Assemble Slip Sections

    • Continue adding pipe as necessary following instructions in “Assembling Pipe Sections.” NOTICE: If slip section is too long, the inner and outer flues of the slip section can be cut to the desired length. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 39: Secure The Vent Sections

    Figure 7.10 Rotate Seams for Disassembly connection point to appliance. 120º Figure 7.11 Align and Disassemble Vent Sections Figure 7.8 Securing Vertical Pipe Sections 120º Figure 7.9 Securing Horizontal Pipe Sections Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 40: Vertical Termination Requirements

    • Tighten nut and make sure the collar is tight against the pipe section. • Seal around the top of the storm collar. See Figure 7.14. Figure 7.12 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 41: Horizontal Termination Requirements

    • Rest the small leg on the extended heat shield on top of the pipe section to properly space it from the pipe section. Figure 7.14 Important Notice: Heat shields may not be field constructed. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 42 SLP-TRAP1 can adjust 1-5/8 in. (3-1/8 to 4-3/4) 41 mm (79 mm to 121 mm) SLP-TRAP2 can adjust 4 in. (5-1/4 to 9-1/4) 102 mm ( 133 mm to 124 mm) Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 43: Electrical Information

    Wiring for optional Hearth & Home Technologies approved accessories should be done now to avoid reconstruction. Follow instructions that come with those accessories. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 44: Wiring Requirements

    CONTROL MODULE 6 VDC POWER ADAPTER GAS VALVE JUNCTION CORD WIRE HARNESS RED WIRE BLACK WIRE GREEN WIRE BATTERY PACK ORANGE WIRE Figure 8.1 IntelliFire™ Plus Wiring Diagram Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 45: Gas Information

    Reduce input rate 4% for each 1000 ft. (305 m) above pressure testing gas line at test pressures 2000 ft. (610 m). equal to or less than 1/2 psig. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 46: Air Shutter Setting

    NOTICE: Flames should not appear orange or stretch to the top refractory. If flames are dark orange with dark, smoky tips, provide more primary air to the burner by opening the air shutter accordingly. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 47: Finishing

    Ensure finishing materials used for all surfaces (floor, walls, mantels, etc.) will withstand temperatures up to 190 °F (88 °C) . Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 48 See Dimension B on Appliance Dimension Diagram (Figure 3.1). Note: Clearance from opening to perpendicular wall. Figure 10.4 Wall Projection (acceptable on one side of opening) NON-COMBUSTIBLE ZONE Figure 10.6 Non-Combustible Zone Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 49: Decorative Barrier Front Finishing

    Figure 10.7 Firescreen Decorative Barrier Front Flush Mounting Firescreen Front: 20 mm of non-com- bustible finishing material may be used to create a flush mounted front. See Figure 10.7. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 50: Appliance Setup

    Remove the splatter guard before lighting the appliance. B. Clean the Appliance Clean/vacuum any sawdust that may have accumulated inside the firebox or underneath in the control cavity. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 51: Install The Log Assembly

    Log #3 SRV2355-703 (LOGS-3732 and LOGS-DV4236): Locate the bottom hole on Log #3 with the shoulder screw on the right front side of the base pan. See Figure 5. Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 52 Log #6 SRV2391-711 (LOGS-DV4236): Place the right end of Log #6 on the base pan and the left end onto Logs #1 and #3, so that one limb is touching each log as shown in Figure 8. 2355-910H Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 53: Ember And Lava Rock Placement

    3 to 5 applications. Delayed ignition may occur. NO EMBERS IN SHADED AREA LAVA ROCK Figure 11.1 Placement of Embers EMBERS Figure 11.3 Figure 11.2 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 54: Fixed Glass Assembly

    See Figure 11.5. on the glass frame. LATCHES (BOTH BOTTOM AND TOP) GLASS ASSEMBLY Figure 11.4 Fixed Glass Assembly Figure 11.5 Install Decorative Front and Hood Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 55: Reference Materials

    (508 MM) 6 in. (152 mm) 14 IN. (356 MM) 12 IN. (305 MM) DVP-WS (Wall Shield Firestop) DVP-RDS ROOF DECK INSULATION SHIELD Figure 12.1 DVP Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 56 (305 mm) Trap1 Length 79 mm 117 mm DVP-TRAP 5-3/8 in. 9-3/8 in. Horizontal Termination Cap Trap2 137 mm 238 mm DVP-TRAP2 DVP-TRAP1 Figure 12.2 DVP Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 57 13-7/8 in. 9-1/2 in. (352 mm) (241 mm) 26 in. 660 mm 14 in. (356 mm) DVP-HSM-B DRC-RADIUS Extended Heat Shield Cap Shield Figure 12.3 DVP Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 58 High Performance Cap (356 mm) 3/8 in. (10 mm) 1 in. (25 mm) 7-3/4 to 10-3/8 in. (197 to 264 mm) DVP-FBHT FireBrickTermination Cap Figure 12.4 DVP Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 59 8-1/8 in. 13 in. (206 mm) (330 mm) 15 in. (381 mm) SLP-HRC-SS Horizontal Termination Cap Figure 12.6 SLP Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 60 8-11/16 in. 1-1/2 in. 5-1/2 in. 12 in. 220 mm 38 mm 305 mm 146 mm SLP-WS SLP-FS Wall Shield Firestop Ceiling Firestop Figure 12.7 SLP Series Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 61 20 IN. Wall Thimble-Black (508 mm) 12-5/8 IN. (321 mm) 12-5/8 IN. 10-5/8 IN. (321 mm) (270 mm) SLP-RDS ROOF DECK INSULATION SHIELD Figure 12.8 SLP Series Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 62 121 mm 1 in. (25 mm) 7-3/4 to 10-3/8 in. (197 to 264 mm) SLK-SNKD DVP-FBHT Snorkel Horizontal Termination Cap Termination Cap Figure 12.9 SLP Series Vent Components Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
  • Page 63: Accessories

    Please contact your Hearth & Home Technologies dealer with any questions or concerns. For the location of your nearest Hearth & Home Technologies dealer, please visit www.hearthnhome.com. Printed in U.S.A. - Copyright 2019 Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19...
