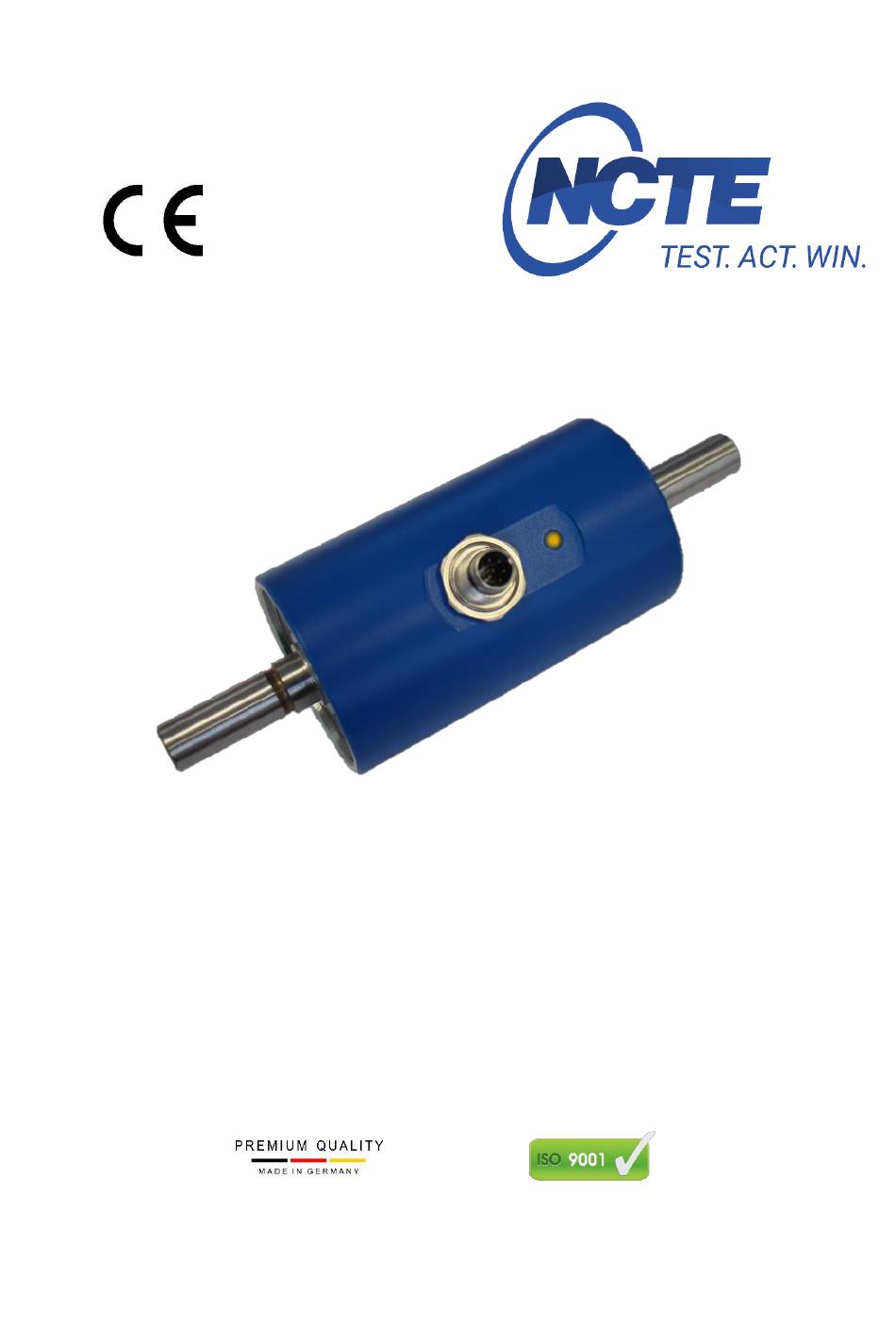

- Page 1 Instruction manual and data sheet Torque Sensor Series 2300 Version 20/01 – State September 2020...
- Page 2 Copyright © NCTE AG® Torque Sensor Series 2300 Instruction Manual and Data Sheet. This instruction manual is property of NCTE AG®, D-82041 Oberhaching Unauthorized duplication, even in part, is not permitted. State: September 2020...
-
Page 3: Table Of Contents
Instruction manual General ..............................5 Customer service address ........................5 Warranty ............................5 Scope of delivery ..........................5 Declaration of conformity ......................... 6 Safety ................................. 7 Intended use ............................7 Duration of use ..........................7 Structural change..........................7 Training of the operating personnel ....................7 Transport and handling ........................ - Page 4 Data sheet Key Facts ..............................10 Torque ranges ............................10 Load characteristics ..........................10 Technical characteristics .......................... 11 EMV Emission data ..........................12 Dimensions .............................. 12 Wiring diagram ............................13 Sensor wiring ............................13 Angle sensor ............................14 10 Order options ............................14 11 Accessories ..............................
-
Page 5: Instruction Manual
All information without guarantee subject to technical changes. For further questions we are of course also available after the purchase at any time. Please use our contact address. 1.1 Customer service address NCTE AG Raiffeisenalle 3 D-82041 Oberhaching Phone: +49 (0)89 665 619 0 Email: sales@ncte.de... -
Page 6: Declaration Of Conformity
_______________________________________________________________________________________ 1.4 Declaration of conformity The manufacturer NCTE AG Raiffeisenalle 3 D-82041 Oberhaching hereby declares that the following product Product designation: Torque sensor series 2300 Trade designation: Series 2300 Model names: 2300-1 2300-2.5 2300-5 2300-10 2300-20 2300-50 2300-100 conforms to the requirements of the EMC Directive 2014/30/EU – including its amendments in force at the time of this declaration. -
Page 7: Safety
_______________________________________________________________________________________ Safety Please note the enclosed sheet on the warning notes. 2.1 Intended use The sensors of the series 2300 are designed exclusively for measuring torque and/or speed. The respective load range can be taken from the data sheet and must not be exceeded. Proper use also includes compliance with the commissioning, assembly, operating, ambient and maintenance conditions specified by the manufacturer. -
Page 8: Torque Sensor Series 2300
The sensor can be secured against rotation by means of the flat surface (optional sensor holder). The cable length must not exceed 5m. Using a cable other than the one supplied by NCTE or an identical cable with a different cable length may impair the function of the sensor system. -
Page 9: Operation During Regular Mode
Check the wiring, connectors and shaft: Every 12 months Repairs and recalibrations can only be carried out by NCTE AG personnel. 3.10 Disposal The device must be returned to NCTE AG, Raiffeisenallee 3, D-82041 Oberhaching for disposal. _______________________________________________________________________________________ Page 9 of 16... -
Page 10: Data Sheet
Ø 15 mm Note: In case of overload, the sensor leads to an offset in measurement. In such case, the sensor needs to be recalibrated at NCTE AG. The sensor should be operated only within the specified nominal torque range. Load characteristics... -
Page 11: Technical Characteristics
Technical characteristics Accuracy class Description Unit Value Linearity deviation incl. hysteresis < ±0.5 Rotational Signal Uniformity (RSU) < ±0.5 Repeatability < ±0.05 Output signal general Unit Value Cut-off frequency, -3dB point, Bessel 1000 characteristic Analog signal V | mA 0 … 10 4 …... -
Page 12: Emv Emission Data
EMV Emission data EMV immunity and emitted interference (DIN EN IEC 61000-6-2 / DIN EN IEC 61000-6-4 / DIN EN 61326-1) Examination Test specification Admission Evaluation criteria Discharge of static ± 4 kV Contact IEC 61000-4-2 electricity (ESD) discharge passed Electromagnetic HF- 80 - 1000 MHz;... -
Page 13: Wiring Diagram
Dimensions Series 2300 Shaft size Ø 8 mm Ø 9 mm Ø 15 mm Nominal torque [Nm] 2.5 - 5 - 10 - 20 50 - 100 27.5 27.5 15g6 Dimensions keystone [mm] Keystone Keystone Round shaft Width Depth Length Height Length Amount... -
Page 14: Angle Sensor
Without angle sensor Angle sensor 360 CPR Analog output Voltage output 0-10V Current output 4-20mA Digital output (optional) USB incl. NCTE Software and 2.8 m cable CAN-Bus Shaft ends Round shaft with keystone Protection class according to EN 60529 IP50... -
Page 15: Accessories
2300 – D15 KB4K/80-55-15-D2 2300 – D15 KB4K/200-60-15-D2 You can obtain further or additional accessories and special requests in a personal discussion with your contact person for series products by calling +49 (0)89 66 56 19 30 or by e-mail: sales@ncte.de. - Page 16 Your experts for magnetostrictive sensors...
