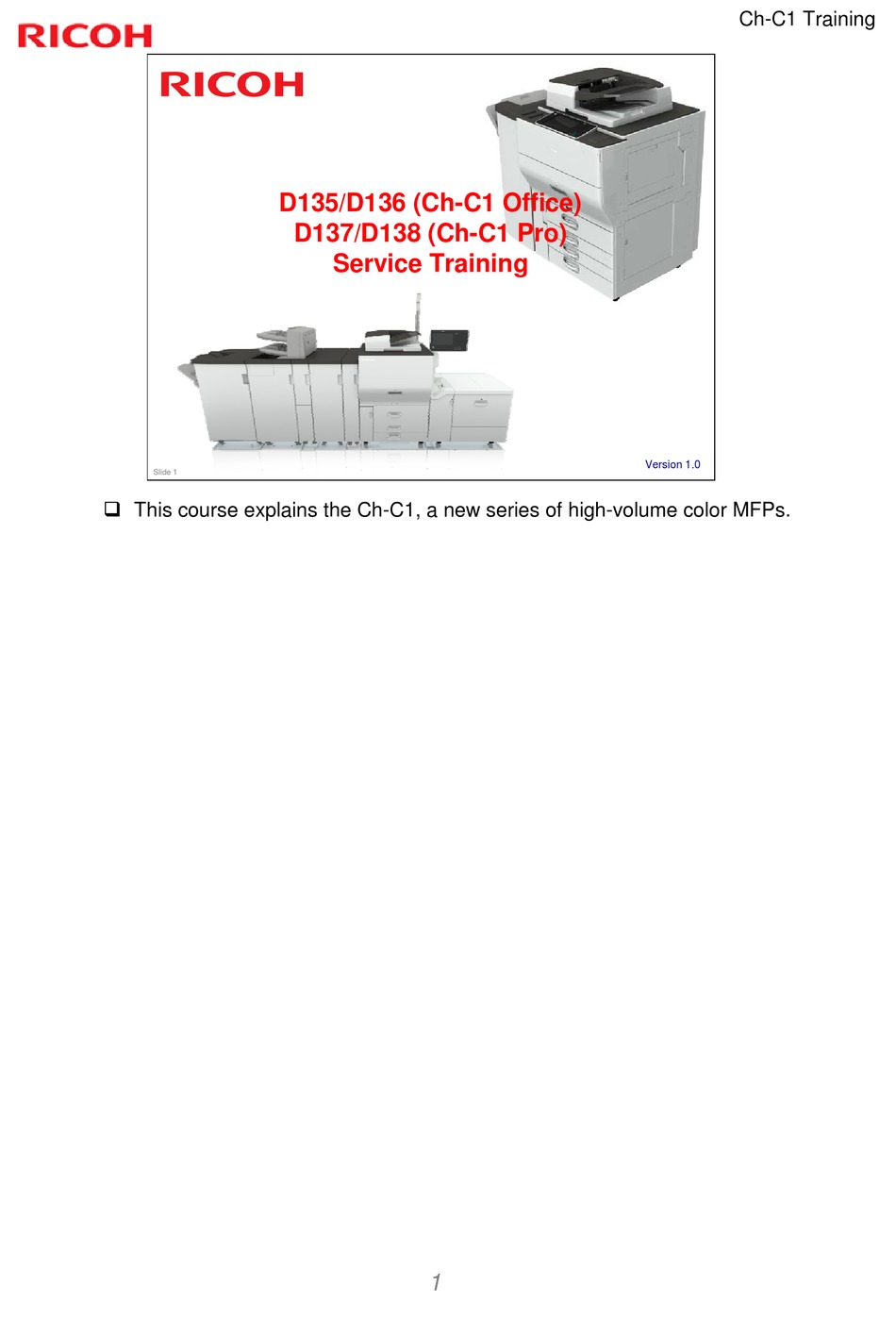

Page 1 Ch-C1 Training D135/D136 (Ch-C1 Office) D137/D138 (Ch-C1 Pro) Service Training Version 1.0 Slide 1  This course explains the Ch-C1, a new series of high-volume color MFPs.
Page 2: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training Product Overview Slide 2 This section provides an overview of the machine, and the options that can be installed.
Page 3 Ch-C1 Training What Models are there in the Series?  Ch-C1a SP (D135): MP C6502SP  High-end office color model  65 ppm (black-and-white, color)  HDD: 187.5 GB x 2, RAM: 2.5 GB  Ch-C1b SP (D136): MP C8002SP ...
Page 4: Product Concept
Ch-C1 Training Product Concept C1 Office C1 Pro C1 Office C1 Pro CRD/In-Plant, PFP (but more cost conscious with relation to the Target Market Office High-End User, CRD Taurus, and with less strict Target Market requirements for paper registration), Digital Printer Brochure, Business card, Book, Office document, Presentation, Manuals...
Page 5 Ch-C1 Training Appearance – Pro Version (Basic System)  In the Pro version:  There is a status light pole  The operation panel is separated from the main unit.  Each paper tray has an indicator to show if the tray is currently active, so that the customer will not open a tray while it is feeding ...
Page 6 Ch-C1 Training Appearance – Pro Version (Full System - 1) Cover Buffer Pass Decurler Interposer Unit Unit Folder Finisher  This shows the following configuration:  Mainframe + 13”x19.2” LCT + Decurler Unit + Buffer Pass Unit + Two-tray Cover Interposer + Multi-folding Unit + 3,000-sheet Finisher Slide 6 No additional notes...
Page 7 Ch-C1 Training Appearance – Pro Version (Full System - 2) Cover Buffer Pass Interposer Unit Folder Finisher  This shows the following configuration:  Mainframe + 13”x19.2” LCT + Buffer Pass Unit + Multi- folding Unit + One-tray Cover Interposer + 2,000-sheet Booklet Finisher Slide 7 No additional notes...
Page 8 Ch-C1 Training Appearance – Office Version (Basic System)  In the Office version:  There is no status light pole  The operation panel is part of the main unit.  No tray indicators  This picture shows the following configuration: ...
Page 9 Ch-C1 Training Appearance – Office Version (Full System)  This shows the following configuration:  Mainframe + 13”x19.2” LCT + Two-tray Cover Interposer + Multi-folding Unit + 3,000-sheet Finisher Slide 9 No additional notes...
Page 10 Ch-C1 Training Mainframe Layout Unit Operation Panel Toner Supply Unit Scanner Laser Unit PCDU Image Transfer Belt Unit ITB Cleaning Unit Paper Transfer Roller Unit Paper Transport Belt Unit Fusing Unit Drawer Unit Waste Toner Bottle Bypass Feed Paper Feed Tray Vertical Transport Registration Unit Paper Exit Unit...
Page 11 Ch-C1 Training Similar Models for Each Unit Unit Similar Model Office Unique Unique Operational Panel Unique Unique Toner Supply Unit Unique Unique Scanner V-C3 Unique Unique Laser Unit Taurus-C1 Common PCDU Taurus-C1 Common Image Transfer Belt Unit V-C3 Common ITB Cleaning Unit V-C3 Common Paper Transfer Roller Unit...
Page 12: Operation Panel
Ch-C1 Training Operation Panel Pro Version  Both versions have a 9- inch color touch panel. Office Version Slide 12 No additional notes...
Page 13 Ch-C1 Training Operation Panel - Details Brand Patch Home Screen (Customizable) Programmable Shortcut Icons Function Keys Home Key Paper Setting (Customizable) Status Key Slide 13  This shows the Pro version.  Home Key: Press to display the Home Screen. ...
Page 14 (Option) Network Interface-1 Network Interface-2 (1000/100/10-Base T) (100/10-Base T) - Fiery Printer - RICOH GW Printer - Fiery Scan - RICOH GW Scan - Fiery Utility - Web Image Monitor -@Remote (Std MIB only) - @Remote - SDK Application Slide 14 ...
Page 15 Ch-C1 Training Fiery Controller Basics  CH-C1 Pro supports GW printing as a standard application, and two types of Fiery controller are provided as options (Fiery is not standard).  Color Controller E-22B (EFI Light Controller): Used for both Office and Pro versions ...
Page 16 Ch-C1 Training Options  The Pro and Office versions can use the same options, except for the following:  Mailbox: Office version only  Decurler: Pro version only  Buffer pass unit: Pro version only  Color Controller E-42B (EFI Server Controller): Pro version only »...
Page 17: Possible Configurations
Ch-C1 Training Possible Configurations Output Tray Office Only A3/DLT LCT Office Main Unit Booklet Finisher Mailbox (2,000 sheets) Pro Only Cover Feeder. Buffer Finisher Decurl Multi Pass (3,000 sheets) Unit Folding Unit A4/LT LCT B4/LG Unit Main Unit Pro Only Plockmatic Bookletmaker Finisher...
Page 18 Ch-C1 Training Options: Paper Feed Also used with these Similar to: Note models: D709: LCIT RT4020 V-C2, MT-C5 D745: 8.5" x 14" Paper Size V-C2, MT-C5 For LCIT4020 Tray Type M2 D710: LCIT RT4030 New model, but similar to V-C3, Taurus-C1, Katana-C2 D749: A3/11"x17"...
Page 19 Ch-C1 Training Options: Finishing Also used with these Similar to: Note models: D711: Cover Interposer Tray V-C3 One tray CI4010 D712: Cover Interposer Tray V-C3, Taurus-C1, Two trays CI4020 Katana-C2 D703: Finisher SR4090 D704: Booklet Finisher SR4100 D705: Output Jogger Unit For D703/D704 Type M2 D707 has a built-in...
Page 20 Ch-C1 Training Options: Fax Also used with these Similar to: Note models: D718: Fax Option Type Office version only D718: G3 Interface Unit Office version only Type M2 G578: Memory Unit Type In use with many Office version only B 32MB models D719: Fax Connection Office version only...
Page 21 Ch-C1 Training Options: Controller Also used with these models: Similar to: Note D719: PostScript3 Unit Type M2 D719: IPDS Unit Type M2 D166: OCR Unit Type M2 This is a new type of device B869: Unicode Font In use with many models Package D641: SD Card for Fonts In use with many models...
Page 22 Ch-C1 Training Options: Other Also used with these Similar to: Note new models: D377: Data Overwrite In use with many Office version only Security Unit Type H models For CC certification B498: Card Reader In use with many Bracket Type 1075 models A674: Key Counter In use with many...
Page 23 Ch-C1 Training Notes on the Options (1)  A4/LT Large Capacity Tray  The tray capacity is 4,000 sheets for A4/LT (80gsm).  The available paper weight is 52.3 - 216.0gsm  A3/DLT (13” x 19.2”) Large Capacity Tray  The tray capacity is 2,000 sheets. ...
Page 24 Ch-C1 Training Notes on the Options (2)  3,000-sheet finisher and 2,000-sheet booklet finisher: These are new models  Basic specs:  Up to 13” x 19.2”  52.3 - 300.0gsm for the shift tray  Stack capability of 3,000 sheets for the shift tray (A4/LT 80gsm) »...
Page 25 Ch-C1 Training Notes on the Options (3)  The 2,000-sheet booklet finisher has a new function to give a flat fold to the spine of the booklet. The spine is pressed so that the output is flat and stacking capability is improved.
Page 26 Ch-C1 Training Notes on the Options (4)  Common options for the 3,000-sheet finisher and 2,000-sheet booklet finisher  Jogger Unit » The jogger unit is an option for this model. However, it is highly recommended to install it on all finishers in the field to keep the required stacking quality in the production printing market.
Page 27 Ch-C1 Training Notes on the Options (4)  3000-sheet finisher with 100-sheet stapler  Basic specs  Up to 13” x 19.2”  52.3 - 300.0gsm for the shift tray  Stack capability of 3,000 sheets for the shift tray (A4/LT 80gsm) ...
Page 28: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training Specifications Slide 28 This section lists the main specifications of these machines. For full details, see the service manual.
Page 29: Comparison With Existing Models
Ch-C1 Training Comparison with Existing Models Office Version - 1  Print speed  Black-and-white: » V-C3a: 65 cpm, V-C3b: 75 cpm » Ch-C1a: 65 cpm, Ch-C1b: 80 cpm  Full color: » V-C3a: 60 cpm, V-C3b: 70 cpm » Ch-C1a: 65 cpm, Ch-C1b: 80 cpm ...
Page 30 Ch-C1 Training Comparison with Existing Models Office Version - 2  Warm-up time  V-C3: <70 s (NA), <60 s (Others)  Ch-C1: <60 s  Recovery from sleep mode: Same as above  Recovery from low power mode:  V-C3: <35 s (NA), <30 s (Others) ...
Page 31 Ch-C1 Training Comparison with Existing Models Office Version - 3  Maximum paper size  V-C3: 305 x 458 mm (12 x 18”)  Ch-C1: 330.2 x 488 mm (13 x 19.2”); duplex and finishers can also use 13 x 19.2” paper ...
Page 32 Ch-C1 Training Comparison with Existing Models Office Version - 4  Memory  Ch-C1: 2.5 GB  V-C3: 2 GB  Hard disk  Ch-C1: 375 GB (187.5 GB x 2)  V-C3: 320 GB (160 GB x 2) Slide 32 No additional notes...
Page 33 Ch-C1 Training Comparison with Existing Models Pro Version - 1  Print speed  Black-and-white: » Taurus-C1: 65 cpm, V-C3b: 75 cpm » Ch-C1a: 65 cpm, Ch-C1b: 80 cpm  Full color: » Taurus-C1: 65 cpm, V-C3b: 75 cpm » Ch-C1a: 65 cpm, Ch-C1b: 80 cpm ...
Page 34 Ch-C1 Training Comparison with Existing Models Pro Version - 2  Warm-up time  Taurus-C1, Ch-C1: <300 s  Scan and copy resolution  Taurus-C1, Ch-C1: 600 dpi  Print resolution  Taurus-C1, Ch-C1: 1200 x 4800 dpi (VCSEL) Slide 34 No additional notes...
Page 35 Ch-C1 Training Comparison with Existing Models Pro Version - 3  Maximum paper size  Taurus-C1, Ch-C1: 330.2 x 488 mm (13 x 19.2”)  In the Ch-C1, duplex and finishers can also use 13 x 19.2” paper.  Paper weight (gsm) ...
Page 36 Ch-C1 Training Comparison with Existing Models Pro Version - 4  Memory  Ch-C1: 2.5 GB  Taurus-C1: 2 GB  Hard disk  Ch-C1: 375 GB (187.5 GB x 2)  Taurus-C1: 320 GB Slide 36 No additional notes...
Page 37 Ch-C1 Training Print Speed vs Paper Weight  Printing is slower for heavier paper.  The Pro models are faster at the higher paper weights than the Office C1 Pro a models. C1 Office a  However, the Taurus prints faster at the higher paper weights than the Ch-C1 Pro.
Page 38 Ch-C1 Training Accuracy of Front/Rear Side Registration  In the Taurus series, a shift roller mechanism can move the paper from side to side before it gets to the transfer belt.  However, in the Ch-C1, the shift roller mechanism is in the duplex feed path. This means that side-to-side registration can only be adjusted for the second side of the paper.
Page 39 Ch-C1 Training Reliability Targets  Ch-C1 Pro  Average Color Ratio: 70%  APV: 20K (Ch-C1a), 30K (Ch-C1b)  Max PV: 150K  Life: 9,000k or 5 years  CH-C1 Office  Average Color Ratio: 35%  APV: 20K (Ch-C1a), 30K (Ch-C1b) ...
Page 40 Ch-C1 Training TCRU and ORU  TCRU/ORU are supported for the Pro version only. Replace the following parts at the indicated intervals.  Drum Cleaning Unit: 300K  Charge Roller Unit: 300K  Belt Cleaning Unit: 300K  PTR: 600K ...
Page 41: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training New and Improved Technology Slide 41  This section briefly explains changes to the technology.
Page 42: New Features
New Features - 1  Developed Image Quality Items Description CH-C1 CH-C1 Office The CH-C1 series uses new chemical toner in order to enhance image quality and meet the Chemical demand for higher image quality in production Toner printing. VCSEL...
Page 43 Ch-C1 Training New Features - 2  Improvements for Banding Issues Description CH-C1 CH-C1 Items Office CH-C1 has a new OPC drive technology called PPG- Drive. The combination of PPG-Drive and highly Drive precise drive control can keep OPC rotation stable. CVEC CVEC is a technology to keep ITB speed variation stable and reduce color inconsistency.
Page 44 Ch-C1 Training New Features - 3  Improvement for the Scratch Mark Issue Items Description CH-C1 CH-C1 Office Fusing Belt CH-C1 Pro has a new fusing belt smoothing roller to counter the scratch mark issue. This Smoothing roller gives pressure and rubs against the Roller belt surface to smoothen the rough parts caused by the paper edges.
Page 45 Ch-C1 Training New Features - 4  Printing Quality of Textured Paper Items Description CH-C1 CH-C1 Office AC transfer In order to improve printing quality on textured media, CH-C1 Pro uses AC transfer. This can increase toner transfer to the media by generating better adherence between toner and ITB.
Page 46 Description CH-C1 CH-C1 Office Easy Jam The front cover of the CH-C1 series is like a drawer and operators can directly access the inner unit. Paper Same as the Aries and Taurus, the CH-C1 Pro also has a Paper Library to offer...
Page 47 Ch-C1 Training New Chemical Toner Overview  This new toner allows the following improvements:  Improved color reproduction  Lower toner pile height  Energy saving due to low melting point Slide 47 No additional notes...
Page 48 Ch-C1 Training New Chemical Toner Improved Color Reproduction Ch-C1 series Previous Models  The color gamut for the CH-C1 series is about 10% larger than for previous models of this type. Slide 48 No additional notes...
Page 49 10% less than on plain paper. This prevents excessively glossy output on coated paper and produces suitable glossiness for each paper type.  The toner pile height for the CH-C1 series will be lower than current products, and roughness on printed paper will decrease.
Page 50 Ch-C1 Training New Chemical Toner Energy Saving  The melting point of this toner is about 20 degrees lower than for the Aries and Taurus. Slide 50 No additional notes...
Page 51 Ch-C1 Training VCSEL Laser Technology Overview  The Taurus uses this system also. However, the Taurus has one VCSEL unit for each color and the Ch-C1 only has two VCSEL units.  One VCSEL unit handles K and C, and the other handles Y and M.
Page 52 Ch-C1 Training VCSEL Laser Technology Magnification Correction  In duplex mode, some paper may shrink or enlarge after it goes through the fusing unit, and this change in paper size may result in inaccurate registration between the front and back pages. VCSEL can correct for this. ...
Page 53 Ch-C1 Training VCSEL Laser Technology Bow Skew Correction Main Scan Direction Correction  The two-dimensional VCSEL array of laser diodes allows precise control of image reproduction.  If the MUSIC sensors detect that lines across the image are bent as shown above, the machine can adjust the image signals that are sent to each of the 40 lasers.
Page 54 Ch-C1 Training VCSEL Laser Technology Optical Waveform Correction Without Correction With Correction  VCSEL technology ensures that a constant current is applied to the laser diode.  The effects of this are clear when printing thin diagonal lines. Slide 54 No additional notes...
Page 55 Ch-C1 Training Improved Process Control DEMS  One of the reasons for banding is variations in the distance between the drum and the development roller.  When the gap between development roller and OPC drum changes, inconsistencies in color will occur due to changes in the amount of toner adhering to the latent image ...
Page 56 Ch-C1 Training Improved Process Control Active Toner Supply Control  The Pro version has this feature, similar to the Taurus.  This technology analyzes the data file being printed, and information from the TD sensor. Then, the precise amount of toner is supplied to the development unit at the required time, in order to keep the toner density in the development consistent.
Page 57 Ch-C1 Training Improved Process Control Mechanical Improvements  Small Gap between Drum and Development Roller  In both Pro and Office models, the gap between the drum and development roller is greatly reduced compared with the Taurus.  This means that the gap between the two components is more stable, which means that banding is reduced.
Page 58 Ch-C1 Training Changes to the ITB CH-C1 Taurus/V-C3 Toner High resistance layer  In the Taurus and V-C3, the paper transfer roller (PTR) has a resistive layer on the surface. In the Ch-C1 (Pro and Office), this layer has been moved to the ITB.
Page 59 Ch-C1 Training Changes to the Fusing Unit Fusing Belt Smoothing Roller - 1  When continuously feeding paper with rough edges, the surface of the fusing belt may become damaged. This damage may cause scratches on the following prints, especially if the paper is wider than the paper that had the rough edges.
Page 60 Ch-C1 Training Changes to the Fusing Unit Fusing Belt Smoothing Roller - 2  The fusing belt smoothing roller presses and rubs against the belt surface to smoothen the rough part caused by the paper edges.  With this technology, customers don’t need to use several fusing units for different types of paper.
Page 61 Ch-C1 Training Changes to the Fusing Unit Improved Cleaning Web  The Ch-C1 Pro has the same cleaning web as the Taurus.  In addition, there is a web separation mechanism.  The pressure roller rotates in reverse to move jammed paper back if a paper jam occurs in the fusing unit.
Page 62 Ch-C1 Training Changes to the Fusing Unit Roller Diameter  In both the Pro and Office versions, the diameters of the fusing and pressure rollers are reduced to 50 mm, to improve separation of paper from the fusing roller (especially for thin paper).
Page 63 Ch-C1 Training Support for Textured Media AC Transfer Current Indentation in the Paper  In the Ch-C1 Pro, AC is used for the transfer current. This transfers more toner to textured media and ensures that it adheres better to this type of media. ...
Page 64 Ch-C1 Training Support for Textured Media Elastic Fusing Belt  In the Ch-C1 Pro, the fusing belt has a thicker elastic layer to reach the toner on the indented regions of textured media. Fusing Roller Current Fusing Belt New Elastic Fusing Belt Base Material Fusing Belt Base Material...
Page 65 Ch-C1 Training Support for Coated Media Hot Rollers  In the office environment, most applications are printed on plain paper. But customers in the production printing market use more coated paper.  To meet these requirements, CH-C1 Pro uses a solid hot roller (same as the Taurus-C1).
Page 66 Ch-C1 Training Support for Envelopes Reduced Nip Width  When an envelope goes through the fusing unit, wrinkles may appear due to the thickness of the envelope.  In the CH-C1 Pro, the fusing nip width and pressure is automatically reduced when printing on envelopes in order to reduce wrinkles.
Page 67 Ch-C1 Training Paper Thickness Detection  If the wrong paper weight setting is used, there may be a jam, insufficient fusing, or even damage to the machine.  Both the Office and Pro versions have a paper thickness detector. If the paper being fed does not match the selected paper type (within a certain tolerance), paper feed is stopped.
Page 68 Ch-C1 Training Fewer Paper Jams Heating Roller Heating Roller Roller Roller Reverse Point Reverse Point Ch-C1 V-C3  The reverse feed path has fewer bends in it compared to the V-C3. Jams should be reduced by 25% because of this. Slide 68 No additional notes...
Page 69 Ch-C1 Training Easy Jam Removal (1)  The main print engine is built into one drawer.  To remove a jam from inside the machine, pull out this drawer. Slide 69 No additional notes...
Page 70 Ch-C1 Training Easy Jam Removal (2)  LEDs on the outer covers show which drawer to open.  Then, LEDs at the various jam removal locations show the users how to remove the jammed paper.  The LCD also shows animations on how to remove the jammed paper.
Page 71 Ch-C1 Training Easy Jam Removal (3) LED Locations LEDs that indicate Jam location LEDs that indicate which trays are feeding now LEDs that indicate which switches should be pushed to remove jammed paper Bypass door Drawer unit Near Exit Unit Right switch Purge Door Left switch...
Page 72: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training New and Improved Features Slide 72  This section briefly explains new features that have been added to the GW+ controller for this series.
Page 73 Ch-C1 Training Java VM Feature  Java VM was provided as an option on an SD card until now, but from 12A models such as Ch- C1, this function is mounted on the controller board (NAND flash memory) as standard. Slide 73 ...
Page 74 Ch-C1 Training Updating the Java VM feature 12S and earlier models 12A and later models (From Ch-C1) Website Website Firmware Download Center Firmware Download Center 1.Download the Java VM up-date tool 1.Download the Java VM up-date tool Option SD card Normal SD card (Not Optional SD card) Java 2.Save the up-date tool of Java VM to the SD card...
Page 75 Ch-C1 Training Re-install this feature if you replace the controller board  When replacing a controller board, you need to confirm which ESA applications are installed, and re-install them.  To check, print out the list of optional features installed in this machine with SP5-990-024 (SDK/J Summary) or SP5-990-025 (SDK/J Application Info.) ...
Page 76 Ch-C1 Training Embedded OCR (Searchable PDF) Copy & Paste Search Scanning  This function lets users add transparent text information on scanned documents.  Searchable PDF is composed of two layers; Image-Layer and Text Layer.  User can search specific words by using electronic search functions. ...
Page 77 Ch-C1 Training OCR Unit: Reinstall if you change the HDD or NVRAM  When you install the OCR Unit, the searchable PDF function is saved on the HDD and the SD card ID is saved in NVRAM.  Therefore, you need to re-install the OCR Unit Type M2 after replacing the HDD or NVRAM.
Page 78 Ch-C1 Training Distributed Scan Management (DSM) Active Directory Client a User A Windows Server 2008R2 Windows Client b Authentication Format ：200 dpi Color To： User C Format ：200 dpi Color Client c Scanning Management Server  DSM is supported as a standard function of WindowsServer2008R2 or later.
Page 79 Ch-C1 Training SMC via @Remote xx company. Ltd Pull SMC data via @Remote Visit with appropriate parts Service Call  SMC data can be retrieved through @Remote. Service reps don’t have to visit the customer to get SMC data.  Before service reps visit the user, they will be able to check the machine’s status.
Page 80: Power On/Off Timer
Ch-C1 Training Power On/Off Timer Working Consumption Ready Power On Power Off Sleep mode Power Off Sleep Time Working hours Power Off Night 8:00 24:00  The previous On/Off timer only supports shifting to sleep mode at the specified time. But in this model, the machine can also automatically turn power on/off at the specified time.
Page 81 Ch-C1 Training Improvements to the Paper Library New Main Menu Screen  There is enough room to display longer paper names and tray information.  When registering a paper type for cover sheets, operators can easily do this by switching to another tab (outlined in red in the above diagram). ...
Page 82 Custom Paper settings can be printed (only one paper type at a time).  The paper name/size/weight menu is more visible. Slide 82  If you want to edit a profile from the paper library supplied by Ricoh, you have to import it into your custom paper library first.
Page 83 Ch-C1 Training Improvements to the Paper Library Tray Paper Setting Screen Make manual settings for the Displays the paper in a tray, settings for and make a new the selected profile paper type Change the settings for a Select a paper custom paper type from the menu of custom...
Page 84 Ch-C1 Training Improvements to the Paper Library Allocating Paper to a Tray  The operation has been simplified.  Press a tray [1] to allocate a paper type to the tray.  Select a custom paper type [2] and press OK. Press Manual [3] and make settings [4] for the paper in the tray...
Page 85 Ch-C1 Training Improvements to the Paper Library Managing the Custom Paper Library  The operation has been simplified.  To manage the custom paper library, press Custom Paper [1].  Select a custom paper [2], and adjust the settings [3]. ...
Page 86: Pop-Up Windows
Ch-C1 Training Improvements to the Paper Library Pop-up Windows  This window appears during the following operations.  Change custom paper settings (Cancel / Overwrite / New Program)  Import from Paper Library to Custom Paper (No / Yes)  Delete a custom paper (No / Yes) ...
Page 87 Ch-C1 Training Improvements to the Paper Library Multiple Selection of Paper Types  It is possible to select more than two paper types at the same time when importing from the library, or deleting customer paper types. Slide 87 No additional notes...
Page 88 Ch-C1 Training Improvements to the Paper Library Procedure for Customers to Back-up and Restore Custom Paper Settings on an SD Card 1. Insert the SD card into the SD slot on the operation panel. 2. From [User Tools], select [Adjustment Settings for Skilled Operators].
Page 89 Ch-C1 Training Improvements to the Paper Library Procedure for Customers to Back-up and Restore Custom Paper Settings on an SD Card 4. Select [0703: Backup / Restore Custom Paper Data]. 5. Select either [Back Up Saved Paper Library] or [Back Up Custom Paper Settings] or [Restore Custom Paper...
Page 90 Ch-C1 Training Improvements to the Paper Library Printing a List of Custom Paper Settings - 1  In the Edit Custom Paper screen, touch ‘Print the Settings’.  Select the paper type that you are interested in. The settings for this paper will be printed after you finish this procedure (go to the next slide).
Page 91 Ch-C1 Training Improvements to the Paper Library Printing a List of Custom Paper Settings - 2  Touch ‘Print’.  Then press the Start key on the operation panel. Slide 91 No additional notes...
Page 92: Capturing The Debug Logs
Ch-C1 Training Capturing the Debug Logs - 1  Debug logs for the controller, engine, and operation panel can be transferred to an SD card in the SD slot on the operation panel.  These logs can help solve problems caused by the software.
Page 93 Ch-C1 Training Capturing the Debug Logs - 2  Insert the SD card into the slot on the side of the operation panel.  D137/D138: Slot [A]  D135/D136: Slot [B]  Set the start date of the log with SP5-857-101 ...
Page 94 Ch-C1 Training Capturing the Debug Logs - 3  The debug logs are saved with the following file names and paths.  Controller debug log (GW debug log): /LogTrace/machine number/watching/ yyyymmdd_hhmmss_unique identification number.gz  Engine debug log: /LogTrace/machine number/engine/ yyyymmdd_hhmmss.gz ...
Page 95: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training Installation Main Machine Slide 95 The following slides just show the important points about installation. For full details, see the procedures in the service manual. Follow the steps carefully. Observe all notes and cautions in the procedures.
Page 96 Ch-C1 Training Overview  Unpack the machine  The carton contains some parts that must be kept for removal and replacement procedures. Do not discard these parts. » Cradles for supporting the PCDUs when out of the machine. » Funnel for installing new developer. ...
Page 97 Ch-C1 Training Installing the ITB Separation Lever - 1  When unpacking the machines (D137/D138 and D135/D136), the ITB separation lever is not yet attached to the correct location. During machine installation, you must install the lever.  To find the lever [B], open the drawer unit [A]. ...
Page 98 Ch-C1 Training Installing the ITB Separation Lever - 2  Attach the ITB separation lever [A] horizontally from the right side of the machine.  Turn the ITB separation lever [A] clockwise until it is vertical. Slide 98 No additional notes...
Page 99 Ch-C1 Training Service Pockets  There is one service pocket.  For the Funnel (for filling the developer) and the PCU Cradle; the tool for turning the development roller/drum can also go in here.  Attach it to the left side of the machine. ...
Page 100 Ch-C1 Training Storing the Supply Port Caps for the Developer TCRU/ORU Not TCRU/ORU  When a TCRU/ORU user removes the PCDU from the machine, they must use the caps (x 4) to prevent developer spill. When installing the machine, attach the caps [A] to the machine as shown above.
Page 101 Ch-C1 Training Storing the Factory SP Sheet  On a newly delivered machine, the factory SP sheet is on the exposure glass.  Open the tandem tray [A], and remove the paper cassette decal [B]. Fold the factory SP sheet and store it inside (see the red dotted-line box in the right-hand photo).
Page 102 Ch-C1 Training SD Card Storage Location  Keep the original SD cards in the tandem tray, as shown below. Remove this cover SD card holder is attached in this space Slide 102 No additional notes...
Page 103: Install The Toner Cartridges
Ch-C1 Training Install the Toner Cartridges  Be careful when setting the toner cartridges because the toner cartridges have different shapes, and the cartridge may be damaged if you try to force a cartridge into the wrong place.  The position of the toner cartridges is Y, M, C, K from the left.
Page 104 Ch-C1 Training Initialize DEMS  SP3-040-001  We will learn about DEMS when we study the PCDU.  With DEMS, the machine must know the home position of the drum and development roller, and how far they have rotated from home position. ...
Page 105 Ch-C1 Training After Installing the Machine and All Options  After you have finished installing the machine, back up the NVRAM to an SD card. Also, do this after every service visit. Slide 105 No additional notes...
Page 106: Moving The Machine
Ch-C1 Training Moving the Machine - 1  Turn off the main power switch, and then unplug the power cable from the main machine.  Close all the doors and trays that are openable and closable.  Do not put a load on the ADF ...
Page 107 Ch-C1 Training Moving the Machine - 2 D137/D138  When pushing the machine, push the upper side of the machine in the areas marked with red rectangles in the diagrams.  If you move the machine D135/D136 over an uneven surface, insert your hands under the machine at the places marked with red...
Page 108 Ch-C1 Training Moving the Machine - 3 D137/D138  Do not push or lift the locations marked with red rectangles. You may damage the machine. D135/D136 Slide 108 No additional notes...
Page 109: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training Installation Peripherals Slide 109 The following slides just show the important points about installation. For full details, see the procedures in the service manual. Follow the steps carefully. Observe all notes and cautions in the procedures.
Page 110 Ch-C1 Training Mylars, Docking  For all peripherals, follow the instructions in the service manual concerning the installation of mylars, entrance guides, and docking brackets.  These procedures may depend on which are the upstream and downstream units. Slide 110 No additional notes...
Page 111 Ch-C1 Training D703/D704 Finishers Optional Jogger and Punch Units  Install these units before you attach the finisher to the machine.  If you don’t, then you have to disconnect the finisher again. Slide 111 No additional notes...
Page 112 Ch-C1 Training D703 and D704 Finishers Shift Auxiliary Tray, Proof Auxiliary Tray  The user must install these trays if they will make z-folded copies. Slide 112  The trailing edges of excessively curled or Z-folded paper can activate the tray full sensors before the tray is actually full.
Page 113 Ch-C1 Training D703 and D704 Finishers Proof Support Tray  The user should install the proof support tray [A] on the proof tray when the trailing edges of paper are excessively curled. Slide 113 No additional notes...
Page 114 Ch-C1 Training D707 Finisher  No Finisher Adapter is required. Everything else is the same as installation of the B830 finisher on the V-C3.  This finisher has a built-in jogger unit.  The procedure for docking the finisher is different if the cover interposer has been installed.
Page 115 Ch-C1 Training Decurler - 1  The decurl unit is top heavy and has an extremely narrow base. It can fall over easily. Work carefully to avoid knocking it over.  Do not set this unit upright until you are ready to install it and dock it to the side of the main machine.
Page 116 Ch-C1 Training Decurler - 2  Note that the mylar attachment and docking procedures depend on which unit will be installed downstream from the decurler unit. Slide 116 No additional notes...
Page 117: Buffer Pass Unit
Ch-C1 Training Buffer Pass Unit - 1  The unit is top heavy and unstable. Use caution when you pull out the buffer pass unit drawer until this unit has been docked to the main machine.  The power cord that comes with the buffer pass unit is for use with this unit only.
Page 118 Ch-C1 Training Buffer Pass Unit - 2  Docking to the upstream unit (main machine or decurler): Do not use the entrance guide that is shipped with the main machine. Use the two docking brackets [A] and [B] that are supplied with the buffer pass unit. ...
Page 119: Multi-Folding Unit
Ch-C1 Training Multi-folding Unit Use this one  Use the long paper guide, not the short one. Slide 119 No additional notes...
Page 120 Ch-C1 Training Multi-folding Unit  Docking procedures differ depending on the upstream and downstream peripherals.  Also, if the upstream unit is the Cover Interposer Tray CI4020 (D712), some parts must be removed so that the tray unit of the Cover Interposer Tray will fit on top of the Multi Folding Unit.
Page 121 Ch-C1 Training Multi-folding Unit  After you install this unit, do the following:  Make sure that the unit is level and at the correct height.  Check for skew and side-to-side registration errors. Slide 121 No additional notes...
Page 122 Ch-C1 Training Multi-folding Unit Proof Tray Auxiliary Plate  Set the plate [A] in the center aligned with the diagonal groove.  The back should be flat against the end fence.  When the plate is not being used, open the front door and store the plate at [B] inside the inner cover.
Page 123 Ch-C1 Training Important Note about the Two-tray Cover Interposer  Always remove the tray unit from the transport unit at the following times:  Before you disconnect either the cover interposer tray or the next peripheral device to the left ...
Page 124 Ch-C1 Training Installing the Two-tray Cover Interposer  First, dock the transport unit of the cover interposer to the copier.  Important: Do not put the tray unit on the top of the cover interposer at this time.  Then, install the next device to the left of the cover interposer.
Page 125 Ch-C1 Training Mailbox  Move the mailbox carefully. It is easy to damage the corner leaf plate [B]. Slide 125 No additional notes...
Page 126 Ch-C1 Training D709 LCT Attaching the LCT to the Machine Rail Rail  The LCT will be attached to a rail that is attached to the right side of the LCT.  The screw holes for attaching the rail are vertical slots 4mm in length.
Page 127 Ch-C1 Training D709 LCT Default Position Adjusting the Rail Move feet here if Move feet here if the rail is too low the rail is too high  If the rail cannot be adjusted to the correct height, you have to change the position of the rubber feet to move the level of the rail up or down.
Page 128 Ch-C1 Training D709 or D710 LCT Adjust the Side-to-side Registration  After installing the LCT, adjust the side-to-side registration.  Use the Trimming Area Pattern (SP2-109-003, No. 14) to print the test pattern.  Go to SP1-003-007 (Side-to-Side Reg: LCT). ...
Page 129 Ch-C1 Training 8 1/2" x 14" Paper Size Tray Type M2 (D745)  If you install the 8 1/2" x 14" Paper Size Tray Type M2 (D745) in the D709 LCT, do the following:  Set SP 5-959-003 to "5" for B4 SEF or "6" for 8.5" x 14"...
Page 130: Service Training
Ch-C1 Training D135/D136/D137/D138 Service Training Installation Peripherals: Skew and Side-to-side Registration for Finishers Slide 130 No additional notes...
Page 131 Ch-C1 Training Introduction  The paper feed path is extremely long when all the finishing options are installed.  In such a long path, the cumulative effect of paper skew and deviation in side-to-side registration may require adjustment.  The adjustments are the same as previous machines, such as the Taurus.
Page 132: Outline Of The Procedure
Ch-C1 Training Outline of the Procedure  After installation of each peripheral device, do some test prints and check for the presence of skew, and check that side-to-side registration is correct.  When you detect a problem with skew or side-to-side registration, do the adjustment on the joint bracket attached to the peripheral unit upstream of the unit where the problem occurred.
Page 133: Where Skew And Side-To-Side Registration Are Measured
Ch-C1 Training Where Skew and Side-to-Side Registration Are Measured Rear Front  Use the two scales at the output slot of each peripheral to measure the skew and errors in side-to-side registration, as shown above.  Important! There are two scales. The one at the rear is for DLT paper (LT LEF for the ring binder), and the one at the front is for A3 paper (A4 LEF for the ring binder).
Page 134 Ch-C1 Training Adjustment Bracket  To adjust skew, we can insert spacers under one end of the bracket.  To adjust registration, we can move the bracket from side to side. Slide 134 No additional notes...
Page 135 Ch-C1 Training When Registration Should Be Adjusted Registration shift LE/TE LE/TE is less than 2 mm: Do not adjust Registration shift LE/TE LE/TE is more than 2 mm: Adjust the machine Registration shift LE/TE LE/TE is more than 2 mm: Adjust the machine ...
Page 136: Adjusting The Registration
Ch-C1 Training Adjusting the Registration Scale  Loosen the screws.  Remove the ‘cross- shaped’ bracket, turn it Adjustment by 90 degrees, then Bracket tighten the screw to secure this bracket.  Move the adjustment bracket by the same amount as the registration shift.
Page 137 Ch-C1 Training When Skew Should Be Adjusted - 1  Look at the scale when the leading edge comes by and when the trailing edge comes by.  Check where the side edge of the paper is on the scale. ...
Page 138 Ch-C1 Training When Skew Should Be Adjusted - 2  In these examples, skew is present. The machine must be adjusted.  The red diagram on the right shows the type of skew.  The diagram in the middle shows how this type of skew appears on the A3 scale.
Page 139 Ch-C1 Training Adjusting the Skew Spacer Adjustment Bracket Spacer  Insert spacers below the adjustment bracket.  The service manual shows you where to find the spacers inside the machine. Slide 139  If the trailing edge skews towards the rear, insert the spacer at the rear side of the machine.
Page 140 Ch-C1 Training Side-to-side Registration at the Entrance of the Two-tray Cover Interposer  Adjust the screw at the side of the tray  Turn clockwise: The tray moves to the front  Turn anti-clockwise: The tray moves to the rear Adjust this ...
Page 141 Ch-C1 Training D135/D136/D137/D138 Service Training Maintenance Slide 141 No additional notes...
Page 142: Parts Replacement Schedule
Ch-C1 Training Overview Parts Replacement Schedule (1) Yield Replaced parts Time Needed 300K Drum cleaning unit components Pro:34.5min Fusing unit smoothing unit (Pro version only) Office:30.5min 300K Fusing Cleaning Web components Pro:20 min (Pro version only) Office:0 min 600K Developer, development filters Pro:102.5min Paper transfer roller, discharge plate Office:102.5 min...
Page 143 Ch-C1 Training Overview Parts Replacement Schedule (2) Yield Replaced parts Time Needed 120k originals ADF rollers/belt 8 minutes 60k sheets Cover interposer 8 minutes rollers/belt 300k sheets A3 LCIT rollers 8 minutes 1000k sheets A4 LCIT rollers 8 minutes Slide 143 No additional notes...
Page 144 Ch-C1 Training Procedure Before Removing Old PM Parts 1. Enter the SP mode. 2. Output the SMC logging data with SP5-990-004. 3. Push the PM parts counter reset button in the PM Parts Display before you turn the power off. ...
Page 145 Ch-C1 Training Procedure Resetting the PM Counters  Press [Clear] for the parts that you will replace.  If you do not do this, the initialization (counter reset, process control, etc) will not be done after you turn the power on again after installing the new parts.
Page 146 Ch-C1 Training Procedure After Installing New PM Parts 1. Turn on the main power switch.  Then, the machine will reset the PM counters automatically and some initialization will also be done automatically. 2. Check the Initial Adjustment SP Lists and if it is necessary to run an SP manually after replacing the part, execute the SP.
Page 147: Finishing The Job
Ch-C1 Training Procedure Finishing the Job 1. Clean the exposure glasses (for DF and book scanning). Check the PM table to see if any other cleaning is scheduled at this time.  For details on all cleaning procedures, see the section in the service manual titled ‘Cleaning’...
Page 148: Counter Reset
Ch-C1 Training Counter Reset  Reset the PM counter in the PM counter display.  If you reset the PM counter and reboot the machine, the machine starts the adjustments automatically (Process control, MUSIC etc)  Note: The counter does not reset until you reboot the machine.
Page 149 Ch-C1 Training New Functions in the PM Counter Display  New features on the PM counter display allow you to see the following:  Estimated usage rate / Remaining days (with relation to PM yield)  Commissioning Status Report Slide 149 No additional notes...
Page 150 Ch-C1 Training Page Counter and Running Distance Slide 150 No additional notes...
Page 151 Ch-C1 Training Page Counter and Running Distance  PM parts yield is based on the page counter (K) when the customer prints using the target conditions.  Ch-C1 Pro: 70% color ratio, 26 P/J  Ch-C1 Office: 30% color ratio, 5 P/J ...
Page 152 Ch-C1 Training Estimated Value Display  [A]: Number buttons. Pressing a number button opens a submenu.  [B]: Descriptions. The # mark denotes a “unit” (not individual items).  [C]: Displays the estimated usage rate (0~100%)  [D]: Displays the estimated remaining days (255~0 days) ...
Page 153 Ch-C1 Training Estimated Usage Rate Display  Displays the larger of these two values: Page counter (SP7-954-xxx), and running distance (SP7-942-xxx).  Note that parts such as rollers are displayed using the page counter value since running distance is not measured. Estimated usage rate % by page counter = A/B*100 A: Current page counter value (SP7-621-xxx) B: Standard page end value (SP7-623-xxx)
Page 154 Ch-C1 Training Estimated Remaining Days Display  Displays the smaller of these two values: Page counter (SP7-951-XXX), and running distance (SP7-952-XXX).  Note that parts such as rollers are displayed using the page counter value since running distance is not measured. Remaining days by page counter (SP7-951-XXX) = (A –...
Page 155 Ch-C1 Training Commissioning Status Report  You can print the Status Report to check the machine status. 1. SP7403-001~010 SC History 2. SP7507-001~010 Printer Engine Jam History 3. SP7508-001~010 Original Jam History 4. SP7910-001, 002 ROM No 5. SP7911-001, 002 Firmware version 6.
Page 156 Ch-C1 Training D135/D136/D137/D138 Service Training Drawer Unit Slide 156 This section describes the drawer unit, and explains the differences from the V-C3 series.
Page 157 Ch-C1 Training What is the drawer unit? Drawer Unit  The drawer unit is the frame of the main print engine. The following units are inside the drawer: Duplex feed path / Relay unit / Purge unit / Registration unit / Fusing unit Belt cleaning unit / Paper transport belt unit / Paper exit unit Slide 157 No additional notes...
Page 158 Ch-C1 Training Improvements from the V-C3 Series - 1  Easier access to the machine’s interior because of the following changes  The front door is deleted.  Automatic pressure release mechanism for the paper transfer roller is added.  V-C3 Series: ...
Page 159 Ch-C1 Training Improvements from the V-C3 Series - 2 Jam detection LEDs added to improve jam indication  2 LEDs have been added outside the drawer unit.  4 LEDs have been added inside the drawer unit. Slide 159  The mainframe, A4/LT LCT, 13”x19.2” LCT, and Finisher/Booklet Finisher with 65-sheet stapler have these LEDs.
Page 160 Ch-C1 Training Improvements from the V-C3 Series - 3  Automatic lock mechanism added to reduce paper tearing when clearing a jam.  V-C3 Series:  The drawer unit does not have an automatic lock mechanism, so when paper is stuck between two units, one that is inside the drawer unit and one that is outside, jammed paper tears when the user opens the drawer unit to clear a jam.
Page 161 Ch-C1 Training Drawer Unit Front Cover Seen Seen from the from the Rear Front Flapper Drawer Grip Sensor Handle Drawer Connector  The drawer unit can be pulled out by inserting a hand in the flapper and gripping the handle. ...
Page 162 Ch-C1 Training Drawer Lock Components - 1 Front Rear Drawer Lock Motor Actuator Drawer Lock Shaft Drawer Lock Sensor  The drawer lock motor rotates the drawer lock shaft.  The drawer lock shaft locks / releases the drawer unit. ...
Page 163 Ch-C1 Training Drawer Lock Components - 2 Drawer Lock Shaft Drawer Lock Motor Drawer Set Sensor Actuator Actuator Drawer Lock Sensor Slide 163 No additional notes...
Page 164 Ch-C1 Training Set Sensor The machine monitors the following components to detect whether the drawer unit is set. •Drawer set sensor •Drawer interlock switch Set Sensor Actuator •Fusing drawer connector Detects when the drawer unit is set •Heating roller push switch Slide 164 No additional notes...
Page 165 Ch-C1 Training Lock Release Mechanism - 1 At the start of releasing the lock:  If a hand is inserted in the handle, go to step 2.  In the following cases, go to step 3. » If a jam is detected, and the jam LED blinks.
Page 166 Ch-C1 Training Lock Release Mechanism - 2 The lock shaft rotates  The diagram shows the mechanism as viewed from the rear.  From the locked state, the shaft turns 250 degrees counterclockwise (as seen from the rear). This takes about 1.5 seconds.
Page 167 Ch-C1 Training Lock Release Mechanism - 3 Locked Unlocked The lock is not positioned The lock is positioned in Guide Drawer Lock in the gap in the guide the gap in the guide Slide 167 No additional notes...
Page 168: Lock Mechanism
Ch-C1 Training Lock Mechanism - 1 The drawer is pushed in. The set sensor detects the drawer  The sensor detects the actuator 5mm before the drawer is completely closed. The lock motor turns on  The lock motor turns on. ...
Page 169 Ch-C1 Training Lock Mechanism - 2 The lock shaft rotates  The diagram shows the mechanism as viewed from the rear.  From the released state, the shaft turns 110 degrees counterclockwise (as seen from the rear). This takes about 0.7 seconds. Lock is detected ...
Page 170 Ch-C1 Training When is the Drawer Locked?  When the user slides the drawer into the machine, the machine locks the drawer automatically. Slide 170 No additional notes...
Page 171 Ch-C1 Training When can the Drawer be Opened? Overview  The drawer unit has three states:  Cannot be pulled out  Can be pulled out 2 seconds after you put your hand into the flapper  Can be pulled out immediately Slide 171 No additional notes...
Page 172 Ch-C1 Training When can the Drawer be Opened? Cannot be Pulled Out  During output (for all applications, including printing a fax at night)  During automatic adjustments such as warming up, process control, MUSIC, operating the web cleaning unit, toner recovery ...
Page 173 Ch-C1 Training When can the Drawer be Opened? Can be Pulled Out After 2 Seconds  When the user grabs the handle, the machine starts to unlock the drawer. But the mechanism takes 2 seconds to unlock. So be sure to wait for 2 seconds after you grab hold of the flapper.
Page 174 Ch-C1 Training When can the Drawer be Opened? Can be Pulled Out Immediately  At any other condition than mentioned on the previous two slides.  Note that if the drawer is locked and cannot be opened, you can force it to unlock with SP1-040- 001.
Page 175 Ch-C1 Training Curled Cord Front Rear Curled cord guide Curled Cord  The curled cord supplies power to the drawer unit.  It stretches when the drawer is pulled out.  The curled cord guide holds the curled cord when the cord stretches.
Page 176 Ch-C1 Training Curled Cord Location A) Curled cord guide B) Curled cord Slide 176 No additional notes...
Page 177 Ch-C1 Training Pulling the Drawer Unit Out in a Cold Area  In a low-temperature environment (below 15°C), the tension of the curled cord may be reduced.  So, do not pull the drawer unit out for a long time, or the curled cord will be deformed and will not curl up again when you try to slide the drawer unit back in.
Page 178 Ch-C1 Training Pulling Out the Drawer to Remove Parts  To remove some parts, it is necessary to pull the drawer out fully.  To do this, pull the drawer unit out half way, then press the release levers (one on the left side and one on the right side, shown by the red arrows) and pull the drawer unit [A] out fully.
Page 179 Ch-C1 Training If You Cannot Open the Drawer  If the drawer unit lock/release mechanism fails, you will not be able to open the drawer.  Follow the procedure ‘If the Drawer is Locked’ in the service manual.  Replacement and Adjustment > Drawer Unit > Drawer Unit Cover >...
Page 180 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Machine Overview Slide 180 No additional notes...
Page 181: Machine Layout
Ch-C1 Training Machine Layout Slide 181 1. ADF 2. Scanner Unit 3. Laser Unit 4. PCDU 5. Bypass Unit 6. ITB Unit 7. Belt Cleaning Unit 8. Relay Transport 9. PTR Unit 10. PTB Unit 11. Fusing Unit 12. Exit Transport 13.
Page 182: Paper Path
Ch-C1 Training Paper Path Slide 182 1. ADF Transport 2. Bypass Transport 3. LCIT Transport 4. Duplex Transport 5. Paper Tray Feed...
Page 183: Drive Layout
Ch-C1 Training Drive Layout Rear View Slide 183 1.Scanner Carriage Motor 2. Exit Motor (ADF) 3. Transport Motor (ADF) 4. Tray Lift Motor (ADF) 5. Feed Motor (ADF) 6. Entrance Motor (ADF) 7. Pick-up Lift Motor (ADF) 8. Relay Motor (ADF) 9.
Page 184 Ch-C1 Training Drive Layout Front View Slide 184 1. Toner Supply Unit (1): Cartridge Drive Motor (2): Toner Supply Transport Coil Motor 2. PTR Lift Motor 3. Registration Motor 4. Duplex Exit Motor 5. Sensor Shift Motor 6. Drawer Lock Motor 7.
Page 185 Ch-C1 Training Changes made from predecessor/similar models: Electrical components Change made from predecessor model Office Reason/Purpose (V-C3) Performance of CPU on the BCU To shorten lengths of board improved (HORUS); BCU and harnesses while freeing IOB boards reduced in size and up space inside the separated electronics box...
Page 186: Important Notes
Ch-C1 Training Important Notes  With previous models, when the DC power was turned off, the supply of power from the AC control board to machine internal systems was stopped.  With this model, even after the main switch/DC power has been turned off, a voltage of 5V still flows through the machine;...
Page 187 Ch-C1 Training Main PCBs  BCU (Base-engine & Control Unit): Controls the engine  IPU (Image Processing Unit): Controls the image process  Controller Board: Controls machine systems such as:  Printer / Scanner Control  Memory Control (including HDD) ...
Page 188: Pcb Layout
Ch-C1 Training PCB Layout Inside the Machine  When opening or closing the “saloon” style double doors of the electrical component box, make sure that the FFC cables are not pinched or otherwise damaged in any way. Slide 188 1. Combined High-Voltage Power Supply Board (Charge / Development), KC: front side, MC: rear side 2.
Page 189 Ch-C1 Training PCB Layout ITB Unit TRDB High Voltage Power Pack: T1/T2 AC Transfer Power Pack (D137/D138 only) Slide 189 No additional notes...
Page 190: Drawer Unit
Ch-C1 Training PCB Layout Drawer Unit High Voltage Power Pack: D FDB-D (D137/D138 only) Slide 190 No additional notes...
Page 191 Ch-C1 Training PCB Layout Sub Hopper Unit Slide 191 No additional notes...
Page 192 Ch-C1 Training PCB Layout Scanner Slide 192 No additional notes...
Page 193 Ch-C1 Training Caution Before Removing Components  Even if you turn the power switch off, +5V is still supplied. So do the following before you start work. Push the power switch [A] on the left side of the machine. Take out the power cord Wait 3 minutes (this is the time required if you will remove the rear cover and access the interior of the machine, to take out the controller board for example).
Page 194 Ch-C1 Training After Replacing Components  There is a section in the service manual called Adjustment after Replacement.  This section shows which SPs to adjust after you replace a part.  If you replace a component, see this section, as well as the procedure in the Replacement and Adjustment section, to make sure that you know what SPs to adjust after replacing a part.
Page 195 Ch-C1 Training Starting the Machine Again  To start the machine, press the main power switch.  If you press the main power switch between the beginning and the end of a shutdown, the machine will not start. Slide 195 No additional notes...
Page 196: Forced Shutdown
Ch-C1 Training Forced Shutdown  In case normal shutdown does not complete for some reason, the machine has a forced shutdown function.  To make a forced shutdown, press and hold the main power switch for 6 seconds.  In general, do not use the forced shutdown. Forced shutdown may damage the hard disk and memory, and can cause damage to the machine.
Page 197: Controller Board
Ch-C1 Training Controller Board  There are two types of controller boards, one for D138/D136 and one for D137/D135.  Because there are different part numbers on these two controller boards, when replacing, check the parts catalog to make sure that you install the correct type.
Page 198 Ch-C1 Training Controller Board (1)  There are two NVRAMs ([A] and [B]) on the controller board. The two NVRAMs are one set. NVRAM [A] is labeled "2M-1", and NVRAM [B] is labeled "2M-2".  When replacing the controller board, remove the NVRAMs from the old controller board.
Page 199 Ch-C1 Training Controller Board (2)  When replacing the controller board, first, check which ESA applications have been installed (such as the OCR Unit). After replacing the controller board, re-install the ESA applications by following the installation instructions for each application. ...
Page 200: Bcu Board
Ch-C1 Training BCU Board  Remove the NVRAM [A] from the old BCU and install it on the new BCU.  Enter SP5-811-004 and input the serial number. After that turn the main power switch off and on.  When installing a new NVRAM, SC195 occurs. In this case, select SP5-811-001 and input the machine code.
Page 201: Ac Drive Board
Ch-C1 Training AC Drive Board  In the D135, it is necessary to remove a connector or harness from the old board and install it on the new board.  The exact procedure depends on the region.  See the procedure in the service manual for details.
Page 202 Ch-C1 Training Hard Disk  Never remove an HDD unit from the work site without the consent of the client.  The HDD contains two separate hard disks (160 Gigabytes each x2 = 320 Gigabytes).  The two disks are always replaced together as a unit.
Page 203 Ch-C1 Training Airflow, filters - 1  Airflow Cooling system for electrical components Slide 203 No additional notes...
Page 204 Ch-C1 Training Airflow, filters - 2  Airflow IH cooling Major changes made from predecessor (Office) model: ・IH coil cooling system ・・・・・・・・・・① ・Pressure roller cooling system ・・・・・・・・② IH coil Toner Pressure roller transportation Pressure cooling fan coil roller Slide 204 No additional notes...
Page 205 Ch-C1 Training Airflow, filters - 3 Dust Filter: Development: Exhaust: Ozone filter: Large (D1366955) Large (D1366935) Note: This is not a PM part. Odor Filter: Small (D1366956) Dust Filter: Development: Exhaust: Small (D1366936)  To be increased from 1 to 4pcs Ozone Filter: Small (D1366938) Odor Filter: Large (D1366953) Slide 205...
Page 206 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Slide 206 No additional notes...
Page 207 Ch-C1 Training Overview Feed Belt and Separation Roller Pick-up Roller ADF Exposure Glass  FRR (feed and reverse roller) feed method  Single-pass duplex scanning: CCD for the front side (via ADF exposure glass), CIS for the rear side  The CCD is inside the scanner unit, below the ADF. Slide 207 1.
Page 208 Ch-C1 Training Main Specifications  Supported Original Sizes:  Simplex: A3, A4, A5, B4, B5, B6, DLT, LG, LT, HLT, Banner Paper (~1260mm), 40-128 g/m  Duplex: A3, A4, A5, B4, B5, DLT, LG, LT, HLT, 52-128 g/m  Original Capacity: 220 sheets (81.4 g/m ), Stack height: 25 mm or less.
Page 209 Ch-C1 Training Differences from V-C3 Motors  Stepper motors changed to DC motors (Energy Star compliance)  Also, using DC motors to supply main drive ensures drive components are continuously in synch  Motors were added to the paper feed drive, to increase productivity.
Page 210 Ch-C1 Training Differences from V-C3 Sensors  A4/LT LEF sensor added to improve productivity.  DF open/close interlock switch added to satisfy safety standards  If the existing sensor were completely replaced with an interlock switch, there would be an Energy Star compliance issue (the machine would not recover from Energy Saver mode if the DF cover were opened while the paper feed cover is open, and this does not comply with Energy Star.
Page 211 Ch-C1 Training Differences from V-C3 Others  The ADF exposure glass for the Office model is a new non-contact type (explained later).  The attachment position for the platen cover is different from other models. Use the correct procedure to position the platen cover when replacing the DF (also explained later).
Page 212 Ch-C1 Training Drive A: Relay Motor B: Entrance Motor C: Feed Motor D: Pick-up Roller Lift Motor E: Tray Lift Motor F: Exit Motor G: Transport Motor Slide 212 No additional notes...
Page 213: Pick-Up And Feed
Ch-C1 Training Pick-up Roller Pick-up and Feed Lift Motor Pick-up Roller HP Sensor  Pick-up roller lift motor: Drops the pick-up roller onto the stack of originals  Feed motor: Rotates the pick-up roller  Details:  Just after the original set sensor detects an original, the pick-up roller lift motor switches on, to drop the pick-up roller onto the original stack, and the HP sensor turns off.
Page 214: Bottom Plate Lift
Ch-C1 Training Bottom Plate Lift Bottom Plate Bottom Plate Lift Sensor Lift Motor Lever  The bottom plate lift motor lifts the bottom plate at the following times:  Just after the original set sensor detects an original  When some originals have been fed, and the top of the stack needs lifting Slide 214 ...
Page 215: Original Separation
Ch-C1 Training Original Separation Feed Belt Entrance Roller Pick-up Roller Separation Roller  FRR with feed belt  Simplified feed path (no inverter mechanism) Slide 215  This mechanism prevents feeding more than one sheet at a time.
Page 216: Skew Correction
Ch-C1 Training Skew Correction Skew Correction Sensor Entrance Roller Interval Sensor Pre-scanning Roller  First skew correction location: Skew correction sensor/entrance roller  Second skew correction location: Interval sensor/pre-scanning roller Slide 216  Skew correction is done at the two circled locations. ...
Page 217: Original Size Detection
Ch-C1 Training Original Size Detection  Five original width sensors, and four original length sensors.  The original width sensors detect the width of the original just when the leading edge of the original passes the interval sensor Slide 217 ...
Page 218: Original Feed
Ch-C1 Training Original Feed (1) Entrance Feed Motor Feed Belt Roller Pick-up Roller  When the machine signals the ADF to start feeding, the feed motor drives the pick-up roller, the paper feed belt, and the separation roller, and these rollers feed the original.
Page 219 Ch-C1 Training Original Feed (2) Relay Entrance Entrance Motor Motor Roller  After skew correction at the entrance roller, the entrance roller and the relay motor feed the original towards the exposure glass. Slide 219 No additional notes...
Page 220 Ch-C1 Training Original Feed (3) Interval Sensor Pre-scanning Roller Transport Motor  When the interval sensor detects the original, the transport motor starts the pre-scanning roller and the white roller in order to pass the original through the scanning area. Slide 220 No additional notes...
Page 221 Ch-C1 Training Original Feed (4) Exit Roller Exit Transport Exit Motor Sensor Motor  When the exit sensor detects the original, the exit motor drives the exit roller to send paper out to the exit tray. Slide 221 No additional notes...
Page 222 Ch-C1 Training Duplex Scanning (Single-pass) To the  A CCD (inside the scanner unit, below the ADF) scans the front side, and a CIS (inside the ADF) scans the rear side.  This means that for two-sided scanning, the original feeds though the scanner one time only.
Page 223 Ch-C1 Training ADF Exposure Glass: Pro vs Office - 1 Sheet Office Version Pro Version (No contact) (Contact)  Users of Office models are more likely to use originals that have sticky substances on the surface, which cause streaks on the exposure glass.
Page 224 Ch-C1 Training ADF Exposure Glass: Pro vs Office - 2 Guide (Transparent) Guide (Black) Flat Not Flat (Gap Sheet; Black) Office Version Pro Version (No contact) (Contact) Slide 224 No additional notes...
Page 225 Ch-C1 Training ADF Exposure Glass Replacement (Office version)  If you have to replace the glass, replace the gap sheet also. Slide 225 No additional notes...
Page 226 Ch-C1 Training Dust Detection – Overview  This function checks the ADF exposure glass for dust that can cause black lines in copies.  The dust check is done before the first original is scanned.  This is done only once at the beginning of a job. The check is not done for originals added during a long scanning job.
Page 227 Ch-C1 Training Dust Detection - SP 4020  SP 4020 001: Enable/disable (default – disabled)  SP 4020 002: Sensitivity adjustment  SP 4020 003: Adjusts image processing parameters to remove thin vertical lines caused by dust  A speck of dust on the ADF exposure glass causes a thin vertical line on the scanned image.
Page 228 Ch-C1 Training Dust Detection – Action Taken  When dust detection determines that dust exists, the scan point shifts in order to avoid the dust.  There are three scanning points.  a: Home position  b: The first time that dust is detected, the scanner moves here. ...
Page 229: Jam Detection
Ch-C1 Training Jam Detection Skew Correction Sensor Separation Sensor Interval Sensor Exit Sensor Registration Sensor  The five sensors shown above detect jams in the ADF. Slide 229 No additional notes...
Page 230 Ch-C1 Training Cautions When Putting the ADF Back  Use the following procedure to position the platen cover when replacing the DF.  This is because the platen cover is shipped out attached in the position used for all other models. 1.
Page 231 Ch-C1 Training ADF Replacement  If you replace the entire ADF unit, do the following adjustments as explained in the service manual.  CIS RGB Adjustment (SP4-712/713/714)  ADF Adjustment Side-to-Side Registration (SP6-006- 001/002)  ADF Adjustment L-Edge Regist (1-Pass) (SP6-006- 010/011) ...
Page 232 Ch-C1 Training CIS Adjustment Values  A sheet of paper comes with the new ADF unit. After CIS GB Adjustment installing a new ADF, input the numbers on this sheet into the following SPs. CIS　GB　Adj,　Value  CIS GB Adj Value: R (SP4- 712-001) ...
Page 233 Ch-C1 Training CIS Replacement  To prevent scratches on the CIS glass, open the white cover [A] before you remove the CIS unit. Slide 233 No additional notes...
Page 234 Ch-C1 Training Removing the Pick-up Bracket Pick-up Bracket If you insert the lever into the pick- up bracket with too much force, the lever may be broken in the area Lever shown by the red circle. Remove the fter Pick-up Bracket a you release the boss from the lever Slide 234 No additional notes...
Page 235 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Scanner Slide 235 No additional notes...
Page 236 Ch-C1 Training Overview Scanner Motor LED Array Anti-condensation Heater  The book-mode scanner uses a CCD (on the SBU board).  CCD resolution: 600 dpi  Light comes from an LED array.  After being reflected from the original, light from the LED array passes to the CCD through the following route: ...
Page 237 Ch-C1 Training Comparison with Previous/Similar Models: Scanner Different points from previous model(V-C3) Office Reason for change  Exposure lamp change Energy saving  Xenon lamp -> LED Cost reduction  Original size detection method change Cost reduction Main scan direction: APS sensor -> Pre scan by Sub scan direction: APS sensor (as before) ...
Page 238 Ch-C1 Training Comparison with Previous/Similar Models: Scanner Exhaust fan is deleted Original size detection method change Lens block Open/Close Sensor Scanner heater Exhaust Deleted APS Sensor (Sub) APS Sensor (Main) Deleted Slide 238 No additional notes...
Page 239 Ch-C1 Training Light Source for Scanning Light Guide LED Array Reflector Plate  An LED array gives better light at start-up than a xenon lamp. Slide 239 Shading Adjustment  The white plate for shading adjustment is attached to the back of the scale. Just after the power switch is turned on, the machine performs shading adjustment;...
Page 240 Ch-C1 Training Drive Scanner HP Sensor Carriage Carriage Scanner Motor  The scanner motor drives the scanner through scanner wires.  The scanner HP sensor helps to make sure that the positioning of the 1 carriage (with the LED array) is accurate. Slide 240 No additional notes...
Page 241 Ch-C1 Training Original Size Detection (Book Mode) Platen Open/Closed Sensor Original Length Sensors  In this mode, original size is detected using two length sensors and the CCD.  Size detection is done when the platen open/closed sensor detects that the cover has just been closed. ...
Page 242 Ch-C1 Training Original Size Detection (Book Mode)  This diagram shows the locations of the two length sensors (L1, L2).  It also shows the locations where the CCD checks for width (S1, S2, S3). Slide 242  For width direction, if the value detected by the CCD at any of the three detection locations (S1, S2, or S3) is 18 or more, the machine detects that an original has been placed.
Page 243: Anti-Condensation Heater
Ch-C1 Training Anti-condensation Heater  This optional heater can be installed if condensation occurs on the optics, which can cause image quality problems.  This is more likely to occur at low temperatures. Slide 243 No additional notes...
Page 244: Replacement And Adjustment
Ch-C1 Training Replacement and Adjustment  The procedures for the Pro version are slightly different from the Office version.  The procedures in the service manual are based on the Pro version, and the differences for the Office version are mentioned. ...
Page 245 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Laser Unit Slide 245 No additional notes...
Page 246 Ch-C1 Training Overview  There are two laser units.  Left: Y and M  Right: C and K  These two units are not interchangeable. Slide 246 No additional notes...
Page 247 Ch-C1 Training CK and YM Laser Units CK Laser Unit YM Laser Unit  CK Laser Unit  Bar code label [A]: White characters on black background  Bottom center [B]: No pentagonal protrusion  YM Laser Unit  Bar code label [A]: Black characters on white background ...
Page 248 Ch-C1 Training Overview From LD to Polygon Mirror  The polygon mirror is a four-sided mirror. There is one for each color.  A prism divides the beams into two paths after the beams are emitted. So one LD unit provides laser beams for two colors. Slide 248 1.
Page 249 Ch-C1 Training Overview From Polygon Mirror to Drum  Each LD unit contains two polygon mirrors. Slide 249 1. 1st Mirror (Y) 2. Scan Lens L1 (Y) 3. Scan Lens L2 (Y) 4. Polygon Mirror 5. Laser Synchronization Detector (Y) [Rear edge] 6.
Page 250 Ch-C1 Training LD Unit Components (VCSEL Technology)  This machine uses a new technology called VCSEL.  Each VCSEL LD unit has 40 beams in a two-dimensional array.  VCSEL allows magnification correction and fine adjustment of image position.  VCSEL also keeps the strength of the laser beams constant by optical waveform correction.
Page 251 Ch-C1 Training Comparison with Taurus - 1 Taurus  In the Taurus, there is one VCSEL array for each color  In the Ch-C1, there are only two VCSELs in the machine.  One VCSEL handles two colors.  Each laser unit has two VCSEL Prism polygon mirrors as we...
Page 252 Ch-C1 Training Comparison with Taurus - 2  In the Taurus, each color has a Taurus separate VCSEL unit, but each polygon mirror handles two colors.  Beams arriving at one side of the mirror are sent to one PCU, and the beams arriving at the other side of the mirror are sent to another PCU.
Page 253 Ch-C1 Training Two Paths to the Polygon Mirrors VCSEL Polygon Prism Mirrors  This is a schematic of the path of the laser beams from the VCSEL to the polygon mirrors. Slide 253 No additional notes...
Page 254 Ch-C1 Training Safety Switch Locations 1. Toner Supply Cover Safety Switch 2. Toner Supply Unit Safety Switch (Pro version only) 3. Main Drawer / Bypass Cover Safety Switch 4. Vertical Transport Cover Safety Switch Slide 254 Why does Pro have an extra safety switch? ...
Page 255 Ch-C1 Training Safety Switch Locations Slide 255 No additional notes...
Page 256: Skew Correction
Ch-C1 Training Skew Correction Motors  There are two motors in each laser unit (one for each color).  The motors independently adjust the 2nd lens for each color. This adjusts image writing in the main scan direction.  There is no motor for black, because the K patterns are used as the reference point for MUSIC adjustments for the other three colors.
Page 257: Image Position Correction
Ch-C1 Training Image Position Correction  To prevent color registration errors, the TM/ID machine makes a pattern Sensor on the ITB and reads it with the TM/ID sensor.  This sensor is near the ITB drive roller. Slide 257  This process is also known as MUSIC.
Page 258 Ch-C1 Training Image Position Correction When is it Done?  Just after the main power switch is turned on, or after recovery from energy saving mode.  This lasts 24 to 34 seconds  Process Control + Image Position Correction are done as a set ...
Page 259: Temperature Monitoring
Ch-C1 Training Temperature Monitoring Thermistors  The laser unit thermistors monitor the temperature of the laser unit constantly. Using these sensors, the machine adjusts the image location in response to changes in internal temperature.  A fan at the back of each unit cools the laser optics. Slide 259 No additional notes...
Page 260 Ch-C1 Training Shutter Shutter HP Sensor Shutter Shutter Motor  There is a shutter in the LD unit for C and K.  In B/W mode, the shutter motor shuts stray light for K out from the drum station for C. ...
Page 261 Ch-C1 Training Laser Unit Replacement Cautions  This laser unit emits 80 laser beams produced by a Class III LD with a wavelength of 772 to 792 nm and intensity of 1.4 mW (40 beams). Direct exposure to the eyes could cause permanent blindness.
Page 262 Ch-C1 Training Laser Unit Replacement Before Removing  Reset the motors for skew adjustment to the zero point with the following SPs:.  SP2-104-002: set to "0"  SP2-104-003: set to "0"  SP2-104-004: set to "0"  If you do not do the above adjustment, MUSIC may not work.
Page 263 Ch-C1 Training Laser Unit Replacement How to Distinguish Between CK and YM Laser Units CK Laser YM Laser Unit Unit  CK Laser Unit  Bar code label [A]: White characters on black background  Bottom center [B]: No screws ...
Page 264: Remove Protective Materials
Ch-C1 Training Laser Unit Replacement Remove Protective Materials  Remove the polygon cover [A].  Turn over the polygon cover [A], remove the protective materials [B] and the red tag [C].  Re-attach the cover. Slide 264 No additional notes...
Page 265 Ch-C1 Training Laser Unit Replacement After Installing a New Unit  Execute the following SPs to download the correction values from the new laser unit.  SP2-108-1: Image Parameter-K/C Writing Unit  SP2-108-2: Image Parameter-Y/M Writing Unit  During the download of the correction values, you can turn off the power, or open the door.
Page 266 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Photoconductor and Development Unit (PCDU) Slide 266 No additional notes...
Page 267 Ch-C1 Training Development Charge Roller Overview Unit Unit Drum Cleaning Unit  The PCU contains the drum, the development unit, the cleaning unit, and the charge roller unit.  Each PCU can be drawn out of the machine individually.  To access the PCUs, open the drawer unit, and take off the toner supply unit assembly.
Page 268 Ch-C1 Training PCDU Layout Slide 268 1. Heat Sink 2. Doctor Blade 3. Entrance Seal 4. Temperature / Humidity Sensor (K only) 5. Potential Sensor 6. Charge Roller 7. Charge Roller Cleaning Roller 8. Lubricant Blade 9. Lubricant Bar 10. Lubricant Brush Roller 11.
Page 269 Ch-C1 Training Changes made from predecessor/similar models: Drum Change made from predecessor model Office Reason/Purpose (V-C3)  New lubrication brush changed to sponge Improves application of lubricant roller  New lubricant To prevent toner slipping past the cleaning blade.  Lubricant end detection/alert system To prevent damage to the PCU ...
Page 270 Ch-C1 Training Comparison with Previous/Similar Models: Development Office Different points from previous model (V-C3) Reason for change  Material of development roller is changed. Countermeasure for image density dark (50mm from leading edge)  Developer initialization is executed To simplify the developer automatically.
Page 271 Ch-C1 Training Comparison with Previous/Similar Models: Development Office Different points from previous model (V-C3) Reason for change  Intake air duct [8] is added. To prevent the toner from dropping on the catcher [7].  Cooling mechanism [1] is added. To prevent rise in temperature.
Page 272 Ch-C1 Training Comparison with Previous/Similar Models: Development Office Different points from previous model (V-C3) Reason for change  Development unit and side plate are PG is narrowed from combined [A]. 0.3mm to 0.225mm to improve banding issues. Slide 272 No additional notes...
Page 273 Ch-C1 Training Comparison with Previous/Similar Models: Development Office Different points from previous model (V-C3) Reason for change  Mechanical foolproof on V-C3 is Color identification decals (for all colors) [A] deleted for cost reduction. are supplied with the development unit. When installing a new development unit, the appropriate decal must be attached to the entrance of the development unit.
Page 274 Ch-C1 Training Charge and Quenching Charge Roller Potential Sensor Quenching Lamp  The charge roller gives each drum a uniform charge.  Before the drum is cleaned, the quenching lamp (LED lamp) removes remaining charge from the drum. Slide 274 No additional notes...
Page 275: Charge Roller
Ch-C1 Training Charge Roller  The charge roller applies Charge Roller charge to the drum. Cleaning Roller  The charge roller is separated slightly from the drum surface and rotates in the opposite direction to the drum.  The drum motor drives the charge roller, through a gear on the end of the drum and another gear on...
Page 276: Drum Drive
Ch-C1 Training Drum Drive  Each drum has its own motor.  The development unit and cleaning unit have separate motors. Slide 276  The drum motor also drives the charge roller, through a gear on the end of the drum and another gear on the charge roller shaft, similar to V-C3.
Page 277 Ch-C1 Training Drum Motor Encoder  Two sensors monitor the encoder wheel on each drum drive shaft.  Data from these sensors is fed back to the drum motor, to control the motor speed. Slide 277  This diagram shows the Office version. The Pro version has another sensor for drum HP detection, as we shall see later.
Page 278 Ch-C1 Training PPG (Precision Planetary Gear) Drive  Both the Office and Pro models use this new OPC drive technology for the drum motor, which makes drum rotation more stable.  The FF/FB (feed-forward/feed-back) control in this type of motor can keep the same accuracy as the Taurus but at a lower cost.
Page 279 Ch-C1 Training Sensors Set Sensor Potential Sensor Temperature and Humidity Sensor  There is only one temperature/humidity sensor, and it is by the black PCU. Slide 279 No additional notes...
Page 280: Drum Cleaning Unit
Ch-C1 Training Drum Cleaning Unit  A counter blade method is Lubricant adopted for the lubricant Blade blade and the cleaning blade.  The lubricant roller rotates in the same direction as the drum  The lubricant blade evenly spreads the lubricant. ...
Page 281 Ch-C1 Training Drum Cleaning Drive  The drum cleaning motor drives the lubricant brush and the toner collection coils. Slide 281 No additional notes...
Page 282 Ch-C1 Training DEMS (Development Electric-field Modulation System)  Small eccentricities in the rotation of the drum, charge roller, and development roller cause variations in charge on the drum, and this causes uneven image density.  To correct for this, the machine monitors the image density as the drum, charge roller, and development roller rotate.
Page 283 Ch-C1 Training DEMS Drum HP Sensor Actuator Sensor  This diagram shows the drum HP sensor mechanism for DEMS. Slide 283 No additional notes...
Page 284 Ch-C1 Training DEMS Development Roller HP Sensor Actuator Sensor  This diagram shows the development roller HP sensor mechanism for DEMS. Slide 284 No additional notes...
Page 285 Ch-C1 Training Initialize DEMS after Removing Parts  After replacing some of the parts in this machine with new ones, DEMS must be initialized with SP3-040-001 to SP3- 040-005 (DEMS: Execute).  For a list of these parts, see the section of the service manual called Initial Adjustment SP Lists.
Page 286 Ch-C1 Training New Drum Lubricant ◆ Previous lubricant system ◆ New lubricant system The lubricant’s Improvements in the function performance/effectiveness of the lubricant allow the drops due to environmental blade to remain stable despite factors and/or the amount of environmental or other toner on the OPC surface, changes, which minimizes causing the angle of the...
Page 287: Lubricant Bar Replacement
Ch-C1 Training Lubricant Bar Replacement  The lubricant bar has a PM replacement interval of 300k. At this time, the lubricant bar and roller should both be replaced.  If the machine continues to be used without drum lubrication, the drum will begin to wear out. So, the following back-up measures are implemented in case a technician cannot replace the lubricant at the required time.
Page 288 Ch-C1 Training Lubricant Near-end Detection Overview  At each end of the lubricant bar, there is a near-end detection mechanism.  If either sensor is triggered, near-end is detected.  Then, at a certain amount of drum rotation, end is detected, and the machine stops.
Page 289: Operation
Ch-C1 Training Lubricant Near-end Detection Operation - 1  As lubricant [A] is consumed gradually, the tab [B] in the lubricant holder shifts in the direction “C”.  When lubricant decreases to a certain amount, the tab [B] touches the feeler [D]. Slide 289 No additional notes...
Page 290 Ch-C1 Training Lubricant Near-end Detection Operation - 2  When the tab touches the feeler in the previous slide, the feeler [E] is pushed down [F] and this rotates [G].  The feeler [E] pushes Normal State electrode plate [H] upwards until it touches electrode plate [I].
Page 291: Development Unit
Ch-C1 Training Development Unit  The toner in the cartridge contains 30% of developer by weight. This means that fresh developer is supplied with toner, preventing the developer from all wearing out at the same time.  Development bias comes from the development power pack. Slide 291 1.
Page 292 Ch-C1 Training Mixing Developer Collection Coil Development Roller Mixing Coils TD Sensor  Three mixing coils mix freshly supplied toner from the cartridge with the toner already in the unit, and feed it to the development roller.  If too much developer is supplied, the excess amount of developer is removed with the developer collection coil.
Page 293 Ch-C1 Training Development Unit Drive  The development motor drives the development roller and the coils.  Each color has a separate motor. Slide 293 No additional notes...
Page 294 Ch-C1 Training TD Sensor TD Sensor  Here is the TD sensor.  The toner/carrier mixture circulates past it as shown above. Slide 294 No additional notes...
Page 295 Ch-C1 Training Developer Collection Coil Developer Collection Coil Lever  If a lot of toner is supplied from the cartridge, it is possible that the amount of developer in the unit will become too much.  The developer collection coil removes this excess developer and sends it to the waste toner bottle.
Page 296: Dust Collection
Ch-C1 Training Dust Collection Spill Duct Toner Catcher  The spill duct and toner catcher prevent toner scattering and developer leaks.  The spill duct has holes that take scattered toner in with a fan.  The toner catcher under the spill duct receives scattered toner that cannot be taken in by the duct.
Page 297 Ch-C1 Training Cooling (1) Exhaust Fans  A blower fan at the front of each PCU blows air in through the development unit and out through the exhaust fans at the rear.  In addition to cooling, this system helps to prevent toner from dropping onto the paper.
Page 298 Ch-C1 Training Cooling (2) Heat Sink Air pulled out by exhaust fan at the rear Air from blower fan at the front Air pulled out by blower fan at the rear  In addition, a heat sink helps heat to leave the development unit.
Page 299 Ch-C1 Training Replacement and Adjustment Toner Supply Unit Front Cover  Behind this cover [A] are the toner supply units. All four can be removed as one unit.  Behind the toner supply units, you will find the PCDUs. To access the PCDUs, you have to remove the toner supply unit assembly.
Page 300 Ch-C1 Training Replacement and Adjustment Accessing the PCDUs - 1  First, remove the toner supply unit assembly, as mentioned earlier.  Then, turn the transfer belt release lever counterclockwise and remove the six screws that hold the faceplate.  Then, take off the two handles that are taped to the upper left corner.
Page 301 Ch-C1 Training Replacement and Adjustment Accessing the PCDUs - 2  Use the handles to pull out the faceplate little by little at the four locations shown.  Pull out little by little uniformly.  Then grab the two handles built into the faceplate at left and right, and pull the faceplate out.
Page 302: Replacement And Adjustment
Ch-C1 Training Replacement and Adjustment Safety Switch for the Face Plate  This switch is installed in the Pro version only.  TCRU customers may remove the face plate by themselves.  If the TCRU customer forgets to attach the face plate, 24V power will be shut down and the development unit and drum cleaning motors stop...
Page 303 Ch-C1 Training Replacement and Adjustment Removing a PCDU - 1  Unlock the lever [A] and pull out the PCDU [B] from the machine. Slide 303 No additional notes...
Page 304 Ch-C1 Training Replacement and Adjustment Removing a PCDU - 2  Put the PCDU [A] on the cradle [B].  The cradles are included in the machine’s accessories. Slide 304 No additional notes...
Page 305 Ch-C1 Training Replacement and Adjustment Installing a PCDU - 1  When installing the PCDU, ensure that the locking lever is fit in the hole of the machine frame.  [A]: The locking lever is properly fit in the hole in the machine frame.
Page 306 Ch-C1 Training Replacement and Adjustment Installing a PCDU - 2  After installing the faceplate, check the status of the locking levers again by looking through the holes.  The lever should be straight [A], and not at an angle [B]. ...
Page 307 Ch-C1 Training Replacement and Adjustment Installing a PCDU - 3  D137/D138: After you take the PCDU out of the machine and put it back, or replace it with a new one, carry out SP3-040-001 to SP3-040-005 (DEMS: Execute). Slide 307 No additional notes...
Page 308 Ch-C1 Training Replacement and Adjustment Charge Roller  After removing the charge roller unit, place it on a clean, flat surface with the roller facing up.  D137/D138: After you take this part out of the machine and put it back, or replace it with a new one, carry out SP3-040- 001 to SP3-040-005 (DEMS: Execute).
Page 309 Ch-C1 Training Replacement and Adjustment Removing a Drum  To remove the drum [A], move it to the front side (to the left as shown above), then pull it out from the rear side (the right side as shown above). Slide 309 No additional notes...
Page 310 Ch-C1 Training Replacement and Adjustment Installing a Drum - 1  When replacing, apply lubricant powder (D0159501; zinc stearate) evenly with a brush. Slide 310 No additional notes...
Page 311 Ch-C1 Training Replacement and Adjustment Installing a Drum - 2  Lay the protective sheet (black) [B] that had been wrapped around the new OPC drum on the development unit [A].  Attach the new OPC drum [A] and remove the protective sheet (black) [B] from the bottom.
Page 312: Drum Cleaning Unit
Ch-C1 Training Replacement and Adjustment Drum Cleaning Unit - 1  After removing the cleaning unit, lubricant and toner streaks [B] remain on the surface of the OPC drum [A]. This will cause stains on the charge roller. Therefore, rotate the OPC drum in the direction of the arrow [C] before you install the new drum cleaning unit.
Page 313 Ch-C1 Training Replacement and Adjustment Drum Cleaning Unit - 2  After replacing the cleaning unit, attach the special tools [A] to the OPC drum (these are shipped with the cleaning unit). With the flange [C], rotate 1-2 times in the direction of the arrow [D]. ...
Page 314 Ch-C1 Training Replacement and Adjustment Drum Cleaning Unit Components - 1  When installing a new lubricant bar, a new lubrication roller must also be installed.  Replace the cleaning blade, lubrication blade and side seals as a set.  Upper diagram: After attaching the side seals (x 2 each) on the cleaning unit and the lubrication unit, apply lubricant powder...
Page 315 Ch-C1 Training Replacement and Adjustment Drum Cleaning Unit Components - 2  Do not replace the drum cleaning unit or the drum cleaning blade at the same time as the following parts.  ITB  ITB Cleaning Unit  ITB Cleaning Blade ...
Page 316 Ch-C1 Training Replacement and Adjustment Removing the Development Unit - 1  The development unit and face plates (front [A], rear [B]) are integrated, so do not remove these screws. Slide 316 No additional notes...
Page 317 Ch-C1 Training Replacement and Adjustment Removing the Development Unit - 2  When carrying the developing unit, do not hold the frame [A]. The frame may become bent or broken if load is applied to it.  D137/D138: After you take this part out of the machine and put it back, or replace it with a new one, carry out SP3-040-001 to SP3- 040-005 (DEMS: Execute).
Page 318 Ch-C1 Training Replacement and Adjustment Cleaning the Development Unit  Do the following cleaning at 300k. 1. Remove the development unit. 2. Wipe off the toner at the toner receptacle [A] with a dry cloth. 3. Clean off the toner adhering to the development unit with a dry cloth Slide 318 No additional notes...
Page 319 Ch-C1 Training Installing New Developer Introduction  It is not necessary to install developer when installing the machine, because this is done in the factory.  However, developer must be replaced at 600 k intervals.  Also, developer must be installed after you install a new development unit or PCDU.
Page 320: Removing Old Developer
Ch-C1 Training Installing New Developer Removing Old Developer  Before you install developer in an existing development unit, you must dump all the old developer.  See the procedure in the service manual called ‘Emptying the Development Unit’. A special tool is needed; it is the same as in the Taurus.
Page 321 Ch-C1 Training Installing New Developer Procedure - 1  Turn the power off and remove the toner supply unit.  Enter SP mode (SP3-024-00x).  Insert the funnel [A] into the open port [B] of the PCDU.  The funnel comes with the accessories packed with the main machine.
Page 322 Ch-C1 Training Installing New Developer Procedure - 2  Make sure that the tab [A] is inserted securely into the slot at the back side of the supply port [B] of the development unit. Slide 322 No additional notes...
Page 323 Ch-C1 Training Installing New Developer Procedure - 3  Shake the developer bag 5 or 6 times.  Press [EXECUTE] in SP3-024-00x. Tap the funnel while the machine installs the new developer [A].  Execution time for filling developer is 60 seconds as the default. ...
Page 324 Ch-C1 Training Installing New Developer Procedure - 4  After the filling completion message is displayed, enter SP3-025-1.  You will see a 4-digit number: 1111.  Reading from left to right, each number is a result code for the Y, M, C, K developer execution with SP3-024-00.
Page 325 Ch-C1 Training Installing New Developer Procedure - 5  Remove the funnel and turn off the main power switch.  Attach the toner supply unit and turn on the main power switch.  After turning on the main power switch, initialization for the TD sensor and process control automatically starts.
Page 326: Drum Motor
Ch-C1 Training Replacement and Adjustment Drum Motor - 1  Remove the 4 screws shown in the photo on the top.  Do not touch the four screws shown in the photo on the bottom. These were adjusted in the factory with a special tool.
Page 327 Ch-C1 Training Replacement and Adjustment Drum Motor - 2  Removing or assembling the drum shaft and motor:  The joint between the drum shaft [A] and the motor [B] must be kept horizontal so that excessive load is not put on the drum shaft.
Page 328 Ch-C1 Training Replacement and Adjustment Drum Motor - 3  In the Pro version, there is a HP sensor and actuator mechanism on the drum motor. If you forget the actuator, the machine does not work  SC421-01 (K), SC421-02 (C), SC421-03 (M), SC421-04 (Y) occurs.
Page 329: Development Motor
Ch-C1 Training Replacement and Adjustment Development Motor  Remove the 4 screws shown in the photo on the top.  Do not touch the screws shown in the photo on the bottom. These were adjusted in the factory with a special tool. If you adjust these, development unit drive will be inaccurate.
Page 330 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Process Control Slide 330 No additional notes...
Page 331 Ch-C1 Training Overview  This machine does the following process control procedures  Potential control  Toner supply control  To perform process control correctly, the machine requires initializing at the following times:  Installation  Development unit replacement  Developer replacement ...
Page 332: Process Control
Ch-C1 Training Process Control Components used in Process Control Slide 332 No additional notes...
Page 333 Ch-C1 Training Overview 1. Development Roller 2. Potential Sensor 3. Charge Roller 4. Drum 5. ID Sensor 6. TD Sensor Slide 333 No additional notes...
Page 334: Drum Potential Sensor
Ch-C1 Training Drum Potential Sensor Potential  Potential sensors Sensor measure electrical potential on the surface of the drum.  Each drum has one to the upper left of the drum unit (viewed from the front of the machine).  The space between the drum surface and the potential sensor is 3mm.
Page 335 Ch-C1 Training Drum Potential Sensor Potential Sensor Board  The potential sensors are all connected to the potential sensor board at the rear of the machine. Slide 335 No additional notes...
Page 336 Ch-C1 Training ID and MUSIC Sensors  Three sensors above the ITB are used for the MUSIC process.  The one in the center is also used as the ID sensor. Slide 336 No additional notes...
Page 337: Temperature/Humidity Sensor
Ch-C1 Training Temperature/Humidity Sensor Temperature/Humidity Sensor  There is only one sensor, and it is near the K drum.  Output from this sensor affects developer agitation time, development gamma determination, and AC current adjustment (drum charge). Slide 337 No additional notes...
Page 338 Ch-C1 Training TD Sensor  There is a TD sensor at the base of each development unit.  It is not in contact with the developer.  It contains a chip to store information on toner supply control. Slide 338 No additional notes...
Page 339 Ch-C1 Training Process Control Initialization Slide 339 No additional notes...
Page 340 Ch-C1 Training Overview  To perform process control correctly, the machine requires initializing at the following times:  Installation (done automatically when power is switched on for the first time)  Development unit replacement  Developer replacement  Drum replacement ...
Page 341 Ch-C1 Training At Developer Replacement  When the drawer is closed after new developer has been installed successfully (SP3-024-001), TD sensor initial setting starts automatically, followed by the adjustments for image quality (AC current adjustment, transfer current adjustment, potential control, MUSIC) ...
Page 342 Ch-C1 Training Other SP Codes to Use - 1  After replacing certain components, you may be asked to do one or more of these SP codes. Touch [EXECUTE] to run the SP.  See the replacement procedures in the service manual for full details.
Page 343 Ch-C1 Training Other SP Codes to Use - 2  Initiate Cleaning (SP3032-1 to 6: Cleaning Setup – Execute ALL, COL, KCMY)  This writes a coverage pattern on the drum with the ITB retracted, so that the pattern is cleaned off by the drum cleaning unit.
Page 344 Ch-C1 Training Other SP Codes to Use - 3  Image Quality Adjustment (SP3011-1 to 5: Manual ProCon Execute)  These SP codes execute one or more phases of image quality adjustment.  SP3011-1: Manual ProCon: Exe - Normal ProCon ...
Page 345 Ch-C1 Training Process Control Potential Control Slide 345 No additional notes...
Page 346 Ch-C1 Training Process ID Sensor  The machine writes gradation patterns in each color on the ITB, and they are read by the ID sensor. Slide 346 No additional notes...
Page 347 Ch-C1 Training Timing - 1  Potential control is done at the following times:  Power on  Power on from energy saving mode  Print Job Start » If any of the following conditions is met after the last print job ended: –...
Page 348 Ch-C1 Training Timing - 2  Job End  Page counter for BW (SP3529-6) exceeds the interval setting for BW (SP3534-2)  Page counter for FC (SP3529-7) exceeds the interval setting for FC (SP3534-12)  Front Cover Open  If any of these conditions occur since the end of the last job (just before power OFF) »...
Page 349 Ch-C1 Training To Check the Results of Process Control  SP3012-001  An eight-digit code is displayed. Slide 349 No additional notes...
Page 350 Ch-C1 Training Process Control Toner Supply Control Slide 350 No additional notes...
Page 351: Two Modes
Ch-C1 Training Two Modes  Fixed Supply: Do not use this unless there is a problem with the machine.  DANC Supply (with Vtref Correction): This is the normal operating mode. Slide 351  DANC Supply = Divided image Active Noise Control...
Page 352: Toner Supply Control
Ch-C1 Training Toner Supply Control  If toner supply is calculated based on the amount of toner used in covered areas only, errors can increase, especially when changes occur in ambient temperature and drum characteristics.  This makes it difficult to control toner supply only with pixel counts to maintain constant image density.
Page 353 Ch-C1 Training ID Sensor Patterns Between Pages  This shows the patterns that are made on the ITB between pages for toner supply control. Slide 353 No additional notes...
Page 354 Ch-C1 Training Process  Vt: TD sensor output at the present time.  Vtref: Target output of the TD sensor.  The machine always tries to adjust the toner WT% in the developer to bring Vt closer to Vtref.  If Vt < Vtref, toner supply will be decreased ...
Page 355 Ch-C1 Training Toner Density Targets  Plain paper  Bk: 0.378 mg/cm  Color: 0.433 mg/cm  Glossy paper  Bk: 0.378 mg/cm  Color: 0.389 mg/cm Slide 355 No additional notes...
Page 356 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Toner Supply Slide 356 No additional notes...
Page 357 Details of the Change Previous/Similar models  Improved system of screw The CH-C1 series adopts an improved system of coils, no toner pump coils to prevent toner from clogging up the toner supply path. This is especially important because Ch-C1 toner has low melting point...
Page 358 Ch-C1 Training Comparison with Previous/Similar Models Comparison with Details of the Change Previous/Similar models  New Cartridge CH-C1 uses a box-shaped cartridge. CH-C1 Pro CH-C1 Office Slide 358 No additional notes...
Page 359 Ch-C1 Training Toner Cartridge Yield and Amount Black Color Conditions Yield Amount Yield Amount Color Ratio V-C3 43.2 21.6 5%,5P/J Ch-C1 45.0 1218 29.0 5%,5P/J Office Ch-C1 Pro 36.5 1244 32.2 1244 8.75%,26P/J Taurus-C1 48.5 2234 48.5 2234 8.75%,25P/J Slide 359 No additional notes...
Page 360 Ch-C1 Training Overview ID Chip Toner Cartridge Interlock Switch Toner Cartridge Drive Motor Toner Sub Hopper Sub Hopper Toner End Drive Motor Sensor  The layout of the K cartridge in CH-C1 Office is different from those for C. M, and Y. ...
Page 361 Ch-C1 Training Differences between the Office and Pro Appearance Number of Agitators for K Office Office Slide 361 No additional notes...
Page 362: Toner Cartridge Drive
Ch-C1 Training Toner Cartridge Drive  When the cartridge is Toner Cartridge inserted, two shutters open. These shutters close when the cartridge is removed. Agitator  The toner cartridge drive motor drives the agitators and coils inside the toner cartridge. Two Shutters Toner Cartridge...
Page 363: Double Shutter
Ch-C1 Training Double Shutter (1)  This diagram shows the two shutters inside the cartridge, and the mechanism inside the machine that opens them  The smaller one (pink in the diagram) opens first. Slide 363 No additional notes...
Page 364 Ch-C1 Training Double Shutter (2)  This is a top view of the cartridge being inserted. Slide 364 No additional notes...
Page 365 Ch-C1 Training Sub-hopper Drive  The sub hopper drive motor drives the four toner transport coils in the Sub Hopper sub hopper. Drive Motor  The larger (upstream) coils agitate toner and the smaller (downstream) coils transport toner to the lower part of the sub hopper.
Page 366 Ch-C1 Training Toner Supply Path From Toner Cartridge to Sub Hopper  The coils feed toner from Agitator Agitator the cartridge down into the sub hopper.  If the toner end sensor (in the sub hopper) detects a toner shortage in the sub hopper, the toner cartridge supplies toner to the sub hopper.
Page 367 Ch-C1 Training Toner Supply Path From Sub Hopper to Development Unit  When the toner density sensor in the development unit indicates that more toner is needed, the sub hopper sends toner to the development development unit. unit  The large coils agitate the toner that arrives from the toner cartridge and send it through a small port to the...
Page 368 Ch-C1 Training Toner Near-end and Toner End Status Toner Description Cartridge Hopper Sufficient Full Sufficient toner exists in the toner cartridge. The amount is estimated from the pixel count of jobs Toner executed during the cartridge life. Toner Full When the amount of toner estimated from the pixel count drops to a certain value (SP3110-011 ~ 014), Pre near-end (Default)
Page 369 Ch-C1 Training ID Chip  Each cartridge contains an ID chip.  The machine uses this chip to detect whether a cartridge is present. It also contains information on how much toner is stored, and this value is used to detect toner pre- near-end.
Page 370 Ch-C1 Training Replacement and Adjustment Toner Supply Unit Front Cover  Behind this cover [A] are the toner supply units. All four can be removed as one unit. Slide 370 No additional notes...
Page 371 Ch-C1 Training Replacement and Adjustment Removing the Toner Supply Unit Handle Handle  When removing the toner supply unit [A], unscrew the screws that attach it to the sliding rails, then lift it out using the handles on the left and right. Slide 371 No additional notes...
Page 372 Ch-C1 Training Replacement and Adjustment Installing the Toner Supply Unit  When attaching the toner supply unit to the machine, fit the hooks of the toner supply unit into the holes in the slide rails. Slide 372 No additional notes...
Page 373 Ch-C1 Training Replacement and Adjustment Cleaning the Toner Supply Unit  Remove the toner cartridge [A].  Clean the toner supply unit [B] with a damp cloth that has been wrung out.  Clean the sponge seal [C] of the supply port with a dry cloth. ...
Page 374 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Paper Feed Slide 374 No additional notes...
Page 375 Ch-C1 Training Overview  Three trays. The top one is a tandem tray Slide 375 No additional notes...
Page 376: Main Units
Ch-C1 Training Main Units  A: Registration  B: Bypass Tray  C: Relay Transport  D: Paper Feed  E: Duplex Feed Slide 376 No additional notes...
Page 377 Ch-C1 Training Feed Paths  Red: Standard Trays  Green: Bypass  Pink: LCT  Blue: Duplex Slide 377 No additional notes...
Page 378 Ch-C1 Training Comparison with Previous/Similar Models Trays Different points from previous model (V-C3) Office Reason  Tray LEDs are added. Easier Jam Removal (All)  Tray Lock mechanism is deleted and Tray Pull- Skew accuracy improvement in units are added. (2.3) Pull-in Lever Unit Dampe...
Page 379 Ch-C1 Training Comparison with Previous/Similar Models Vertical Transport Different points from previous model (V-C3) Pro Office Reason  Vertical Transport Cover can be opened with a Easier to remove lever. jammed paper LED is added. [1].[2] Lever Slide 379 No additional notes...
Page 380 Ch-C1 Training Comparison with Previous/Similar Models Registration Office Different points from previous model (V-C3) Reason  Paper Thickness Paper Thickness Sensor is added. Detection Accuracy Improvement Paper Thickness Sensors are changed. Photo Interrupter Sensor -> lever encoder sensor This machine How far the thickness have two paper lever moves is detected...
Page 381 Ch-C1 Training Comparison with Previous/Similar Models Bypass Feed Different points from previous model (V-C3) Office Reason  Easier to remove Bypass Tray can be opened with a lever. jammed paper LED is added.  To prevent detection of Paper length sensors are added. the wrong paper size ...
Page 382: Paper Feed
Ch-C1 Training Paper Feed Common Mechanisms Slide 382 No additional notes...
Page 383: Feed And Separation
Ch-C1 Training Feed and Separation  A standard feed and reverse roller mechanism is used. Slide 383 No additional notes...
Page 384 Ch-C1 Training Feed Station Drive Feed Motor  Two motors drive the rollers at each feed station. Slide 384 No additional notes...
Page 385 Ch-C1 Training Setting the Tray  When a tray is placed in the machine, the rear of the tray pushes a lever and the pick-up roller is released. Slide 385 No additional notes...
Page 386: Pick-Up Roller Mechanism
Ch-C1 Training Pick-up Roller Mechanism  The pick-up solenoid controls the up/down motion of the pick-up roller.  Solenoid off: Roller is down, to pick up a sheet of paper  Solenoid on: Roller is up at the standby posiiton Slide 386 No additional notes...
Page 387 Ch-C1 Training Reverse Roller Contact  The reverse roller moves down, away from the feed roller when the tray is pulled out, and contacts it when the tray is put back in. Slide 387 No additional notes...
Page 388: Anti-Condensation Heaters
Ch-C1 Training Anti-condensation Heaters  These optional heaters [A] can be installed under the 1 and 3 trays.  To use the heater, just connect the harness (the heater works automatically when the harness is connected).  When shipped from the factory, the heater harnesses are not connected.
Page 389 Ch-C1 Training Paper Feed Tandem Tray Slide 389 No additional notes...
Page 390 Ch-C1 Training Tandem Tray Overview  Tray 1 is a tandem tray.  It can be converted to a standard paper tray with the optional A3/DLT kit.  The tandem feed tray cannot detect the paper size. By adjusting the side and back fences and SP mode (5959-001), you can choose the size of paper (Default: A4).
Page 391: Tandem Tray
Ch-C1 Training Tandem Tray Lift Motor Tray Lift Lower Limit Sensor Damper  The lift motor moves the tray bottom plate up/down.  If the tray is removed, the pin disengages and the tray falls under its own weight, but a damper slows the fall of the tray. ...
Page 392 Ch-C1 Training Tandem Tray Remaining Paper Detection  Three sensors detect the amount of remaining paper.  The sensors are activated at 70%, 40%, and 10% remaining.  If no sensors are activated, the machine indicates 100% Slide 392 No additional notes...
Page 393 Ch-C1 Training Tandem Tray When One Stack is All Used - 1  When paper runs out in the right side of the tray, the following occurs:  Side fence solenoid: Opens the side fence  Side fence sensor: Detects when the side fence is open ...
Page 394 Ch-C1 Training Tandem Tray When One Stack is All Used - 2 Left Tray Home Position Paper Sensor Sensor Rear Fence Drive Motor Return Position Sensor  If the left tray paper sensor detects paper but the right tray paper sensor does not, the stack in the left tray must be moved to the right.
Page 395 Ch-C1 Training Tandem Tray When One Stack is All Used - 3  When the rear fence starts to push the stack, the lock solenoid turns on and the latch hooks onto the rear part of the left tray.  After the stack is moved and the rear fence is back in the home position, the lock solenoid turns off and the latch is released.
Page 396 Ch-C1 Training Tandem Tray Right Tray Lock Joint Lever  When the bottom plate of the right tray lifts from its lowest position, the joint lever falls under its own weight and the right tray is locked.  When the bottom plate is in the lowest position, the lock lever of the left tray latches onto the joint lever and both of the trays can be withdrawn at once.
Page 397 Ch-C1 Training Paper Feed Trays 2 and 3 Slide 397 No additional notes...
Page 398 Ch-C1 Training Tray Lift - 1  The lift motor lifts the bottom plate through an arm and a lever.  When the tray is pulled out, the bottom plate falls under its own weight.  The machine uses the angle rotated by the lift motor to detect the amount of remaining paper.
Page 399 Ch-C1 Training Tray Lift - 2 Pick-up Roller Lift Sensor  When the tray is put back in the machine, the bottom plate lifts and the pick-up roller is lifted by the paper in the tray.  When the actuator turns the lift sensor off, the lift motor stops. ...
Page 400 Ch-C1 Training Tray Lift Motor Structure  This shows how the machine measures the DC Motor angle rotated by the lift motor to detect the amount of remaining paper. Remaining Paper Volume Detector Slide 400 No additional notes...
Page 401: Paper End Detection
Ch-C1 Training Paper End Detection  When the last sheet of paper in the tray feeds out, the feeler falls through the hole in the bottom plate, and the sensor detects paper end. Slide 401 No additional notes...
Page 402: Paper Size Detection
Ch-C1 Training Paper Size Detection Tray Set Sensor Size Sensor  The actuator is attached to the side and end fences.  The tray set sensor is separate from the size sensor. Slide 402 No additional notes...
Page 403 Ch-C1 Training Tray Pull-in Pull-in Lever Unit Damper Release Lever  When a tray is placed in the machine, the pull-in lever unit grabs a pin at the rear of the tray, and the tray is pulled in.  There is a damper, so the tray is not pulled in sharply. ...
Page 404 Ch-C1 Training Paper Feed Vertical Transport Slide 404 No additional notes...
Page 405 Ch-C1 Training Overview  Each station has a set of vertical transport rollers.  The set below the tandem tray is not used. Vertical Transport Rollers Slide 405  The set below the tandem tray: In the Japan domestic model, the tandem tray is smaller, and one extra paper tray is installed, so there are 4 feed stations.
Page 406 Ch-C1 Training Vertical Transport Cover  This cover can be opened for easy jam removal. Slide 406 No additional notes...
Page 407 Ch-C1 Training Drive  Each set of vertical transport rollers has its own motor. Slide 407 No additional notes...
Page 408 Ch-C1 Training Paper Feed Bypass Feed Slide 408 The Office version and Pro version are different.
Page 409 Ch-C1 Training Overview – Office Version  This bypass tray can hold up to 100 sheets. Slide 409 No additional notes...
Page 410 Ch-C1 Training Overview – Pro Version  This bypass tray can hold up to 100 sheets.  There is a motor to lift the bottom plate.  The paper end sensor is in a different location.  Other differences will be explained on the way through. Slide 410 No additional notes...
Page 411 Ch-C1 Training Opening and Closing the Bypass Tray  Push the lever down to open the tray. Slide 411  This diagram shows the Pro version. The Office version uses a similar mechanism.
Page 412 Ch-C1 Training Bypass Tray Drive Motor Bypass Tray Relay Motor  Two motors drive the rollers in the bypass feed mechanism. Slide 412 No additional notes...
Page 413 Ch-C1 Training Feed and Separation Solenoid Stopper  An FRR method is used.  The pick-up roller is lifted and lowered using a solenoid. At the same time, a stopper is lifted and lowered.  When the stopper is down, paper cannot be inserted between the feed and reverse rollers.
Page 414 Ch-C1 Training Paper End Detection Office Version  When the last sheet of paper is fed, a feeler drops and the sensor is activated. Slide 414 No additional notes...
Page 415 Ch-C1 Training Paper End Detection Pro Version  A reflective photosensor built into the bottom plate detects when the last sheet has been fed. Slide 415 No additional notes...
Page 416 Ch-C1 Training Paper Size Detection  In both versions, the mechanism is the same.  Width detection: The rack and pinion mechanism connected to the side guides is used to operate a paper width sensor.  Length detection: A feeler and photointerrupter system detects when paper of a certain length or more is placed on the bypass tray.
Page 417 Ch-C1 Training Tray Lift (Pro version only) Lift Sensor Bottom Plate Motor Bottom Plate HP Sensor  The bottom plate motor lifts and lowers the bottom plate through gears and a lever.  When the bottom plate is lifted, the top of the stack lifts the pick- up roller, and the actuator blocks the lift sensor.
Page 418 Ch-C1 Training Paper Feed Registration Area Slide 418 No additional notes...
Page 419 Ch-C1 Training Registration and Relay Rollers Registration  The upper relay roller Roller feeds paper from the optional LCT into the registration area.  The lower relay roller feeds paper from the Upper Relay standard trays and the Roller bypass tray. Lower Relay Roller Slide 419...
Page 420 Ch-C1 Training Drive Registration Motor  The registration motor and the relay motor drive the rollers in the registration area of the machine.  There is no registration clutch.  Having an independent motor for the registration roller reduces jitter. Relay Motor Slide 420 No additional notes...
Page 421 Ch-C1 Training Registration  To match the leading edge of the image and the paper, the registration roller stops at a specified time and then starts again at the correct time to put the image on the paper in the correct position.
Page 422 Ch-C1 Training Skew Correction  Skew correction is done by the registration unit in the same way as the V-C3 series.  Paper that passes up through the relay unit bumps into the registration rollers.  At this time, slackness is made in the paper, which lets the leading edge of paper sit parallel to the registration rollers.
Page 423 Ch-C1 Training Paper Thickness Detection Sensor Locations  There are two sensors.  One detects paper coming up from the standard paper trays and the bypass tray.  The other detects paper coming in from the optional LCT. Slide 423 No additional notes...
Page 424 Ch-C1 Training Paper Thickness Detection Operation Examples Actuator Sensor  On the left, normal paper is being fed through the sensor.  On the right, thick paper is being fed through the sensor.  The thickness of the paper affects the angle of the actuator that is attached to the relay roller.
Page 425 Ch-C1 Training Paper Thickness Detection Inside the Sensor Actuator Encoder  There is an encoder inside the sensor.  The sensor uses this encoder to measure the angle of the actuator.  The machine uses this angle to calculate the thickness of the paper.
Page 426 Ch-C1 Training Paper Thickness Detection Sensor Tolerance  For each paper weight Setting Acceptable range Thin Thin – Middle thick setting that is applied to a Plain 1 Thin – Thick 1 tray, there is a range of paper Plain 2 Thin –...
Page 427 Ch-C1 Training Paper Thickness Detection Double-feed Detection  The machine compares the thickness of the current sheet with the previous sheet.  If the difference between the two is over a certain threshold (SP1304-001 to 016), double feed is detected, feed stops, and code J099 is displayed. ...
Page 428 Ch-C1 Training Paper Thickness Detection Sensor Reset  The readings from the sensors are reset at the following times, so that a job can start without preconceptions of expected paper size:  Power on, or when recovering from energy saving mode (readings are reset for all trays) ...
Page 429 Ch-C1 Training Paper Thickness Detection Errors may Occur with these Paper Types  Paper thickness and double-feed detection are not totally reliable with these types of paper:  Colored Paper  Punched Paper  Backed Paper  A stack of paper with mixed types Slide 429 No additional notes...
Page 430 Ch-C1 Training Paper Thickness Detection SP Modes  Paper thickness and double feed detection can be switched on/off for each feed station with SP mode.  SP1302-001 to 006 » 001 - 004: Trays 1 – 4 – Tray 4 is used in Japan only »...
Page 431 Ch-C1 Training Paper Dust Removal  Dust carried in by each sheet of paper adheres to the registration roller [B].  A mylar sheet [A] removes this dust from the roller. Slide 431 No additional notes...
Page 432 Ch-C1 Training Jam Removal Lever  To make jam removal easier, the lever [D] can be moved to separate the registration rollers. Slide 432 A) Registration Sensor B) Registration Roller (idle) C) Registration Motor D) Lever for Separating Registration Rollers E) Registration Roller (drive roller)
Page 433: Adjusting Registration
Ch-C1 Training Adjusting Registration  Adjustments for the paper trays should be done BEFORE adjusting registration on the Fiery controller or on the ADF/scanner. Slide 433 No additional notes...
Page 434 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Image Transfer Belt Unit Slide 434 No additional notes...
Page 435 Ch-C1 Training Overview Slide 435 1. ITB Driven Roller 2. Image Transfer Roller (Y) 3. Image Transfer Roller (M) 4. Tension Roller 5. Image Transfer Roller (C) 6. Image Transfer Roller (K) 7. ID Sensor 8. ITB Drive Roller 9. DC Transfer Power Pack 10.
Page 436 Ch-C1 Training Comparison with Previous/Similar Models: ITB Unit Different points from previous model (V-C3) Office Reason for change  Image Transfer Belt Drive Motor [C] and To monitor the speed encoder sensor [D] are added to the ITB of each roller with an drive roller.
Page 437 Ch-C1 Training Comparison with Previous/Similar Models: ITB Unit Different points from previous model (V-C3) Office Reason for change  PTR lift motor [A] is relocated from drawer Shock jitter cancel is unit to ITB unit. adopted. Slide 437 No additional notes...
Page 438 Ch-C1 Training Comparison with Previous/Similar Models: ITB Unit Different points from previous model (V-C3) Office Reason for change  Belt HP sensor [A] is newly added. HP sensor detects the home position mark on the ITB to correct the effects of variations in thickness.
Page 439 Ch-C1 Training Comparison with Previous/Similar Models: ITB Unit Different points from previous model(V-C3) Office Reason for change  AC transfer power pack [A] is added. To improve the image quality on textured V-C3: With rough surface paper, toner paper. particles cannot be transferred to the indentations, resulting in poor image ...
Page 440 Ch-C1 Training Comparison with Previous/Similar Models: ITB Unit Different points from previous model (V-C3) Office Reason for change  Belt tension mechanism [4] is relocated to For TCRU belt cleaning unit from ITB unit. Slide 440 No additional notes...
Page 441 Ch-C1 Training Comparison with Previous/Similar Models: ITB Unit Different points from previous model(V-C3) Office Reason for change  Anti-condensation heater is relocated To dehumidify the from drawer unit to ITB unit. OPC drum. Slide 441 No additional notes...
Page 442: Itb Drive
Ch-C1 Training ITB Drive Encoder Sensor ITB Drive Motor ITB Drive Roller  The ITB drive motor drives the belt. An encoder sensor monitors the speed of the ITB drive roller. Slide 442 No additional notes...
Page 443 Ch-C1 Training Power Supply (Office Version) Image Transfer Rollers ITB Bias Roller  In the Office version, a DC power pack supplies power to the image transfer rollers and the ITB bias roller. Slide 443 No additional notes...
Page 444 Ch-C1 Training Power Supply (Pro Version) ITB Bias Roller  In the Pro version, the ITB bias roller also receives AC. Slide 444 No additional notes...
Page 445 Ch-C1 Training AC Transfer Current - 1 Indentation in the Paper  AC pulls part of the toner to the paper.  Then, when the polarity reverses, the toner moves back. However, when this toner contacts the toner that still remains on the belt, it affects how strongly it is adhered to the belt.
Page 446 Ch-C1 Training AC Transfer Current - 2  AC transfer current turns on in the following conditions:  Copy Mode » A tray is used that contains a type of paper that is registered in the paper library as requiring AC. ...
Page 447 Ch-C1 Training ITB Contact Mechanism Image Transfer Lift Motor  The image transfer lift motor lifts the ITB into contact with the color drums for color printing.  The ITB always contacts the K drum.  The default position of the belt is away from the color drums. This is the position used for black-and-white printing.
Page 448: Itb Speed Control
Ch-C1 Training ITB Speed Control Encoder Sensor ITB Drive Motor Encoder Sensor ITB HP Sensor ITB Driven Roller  The encoder sensor attached to the ITB drive motor shaft monitors the rotation speed of the ITB drive motor.  Another encoder sensor attached to the ITB driven roller shaft monitors the rotation of that roller.
Page 449 Ch-C1 Training CVEC Feedback Control  CVEC (Compensation function of belt speed Variation of Encoder roller Cycle) is a new type of feedback control for the ITB.  In the old system, an encoder monitors the speed of the driven roller. But errors in speed detection could occur because of eccentricities in the encoder or vibrations of the roller shaft.
Page 450: Temperature Control
Ch-C1 Training Temperature Control  The sensor shown here is used to control the paper transfer bias and the discharge plate bias. Slide 450 No additional notes...
Page 451 Ch-C1 Training ITB Cleaning Unit Overview ITB Cleaning Unit Set Sensor ITB Cleaning Unit  The ITB cleaning unit is below the ITB. It removes paper dust and toner remaining after transfer and sends these to the Used toner bottle. Slide 451 No additional notes...
Page 452 Ch-C1 Training Changes made from predecessor/similar models: ITB cleaning unit Change made from predecessor model Office Reason (V-C3) Basic structure is the same (cleaning brush, cleaning blade, application brush, application blade, lubricant) Belt cleaning unit can now be attached/removed without having to remove toner supply unit or ITB unit (though the inner cover must be removed);...
Page 453: Itb Cleaning
Ch-C1 Training ITB Cleaning ITB Lubricant Blade ITB Cleaning Blade ITB Lubricant Roller Cleaning Brush Used Toner Roller Collection Coil  The cleaning brush roller removes paper dust and then the ITB cleaning blade removes toner.  Paper dust and used toner are transferred to the used toner bottle by the toner collection coil.
Page 454 Ch-C1 Training ITB Cleaning Unit Drive PTR Drive Motor ITB Lubricant Roller Cleaning Brush Used Toner Roller Collection Coil  The cleaning brush roller, the ITB lubricant roller, and the Used toner collection coil are driven by the PTR drive motor through gears.
Page 455 Ch-C1 Training Cleaning Unit Detection ITB Cleaning Unit Set Sensor  When the lever is up, the tip of the lever enters the ITB cleaning unit set sensor.  The lever is shown by a red dotted line in this diagram. ...
Page 456: Replacement And Adjustment
Ch-C1 Training Replacement and Adjustment ITB Unit - 1  Make sure that the image transfer rollers do not contact the transfer belt when you remove the ITB unit.  You can check it with the lever shown above. The lever indicates either “HP”...
Page 457 Ch-C1 Training Replacement and Adjustment ITB Unit - 2  When you remove or install the ITB unit, be sure not to let the transfer belt touch the drawer unit.  Be sure to place the ITB unit on a flat surface. ...
Page 458 Ch-C1 Training Replacement and Adjustment  The number printed on the belt goes at the rear of the machine.  Make sure there is no slack in the belt. Slide 458 No additional notes...
Page 459 Ch-C1 Training Replacement and Adjustment ITB Cleaning Unit  The ITB cleaning blade, ITB lubricant brush and ITB lubricant bar must be replaced together as a set. Slide 459 No additional notes...
Page 460: Replacement Procedures
Ch-C1 Training Replacement Procedures  After the ITB unit, ITB, ITB cleaning unit, cleaning blade in the ITB cleaning unit, lubricant blade in the ITB cleaning unit, or lubricant bar is replaced, the following must be done. This is forced belt lubrication. 1.
Page 461 Ch-C1 Training Cleaning the ITB Unit  Rollers: Every 900k prints, wipe with a dry cloth  ID sensors: Every 600k prints, wipe with a damp cloth Slide 461 No additional notes...
Page 462 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Paper Transfer Roller Unit Slide 462 No additional notes...
Page 463 Ch-C1 Training Comparison with Previous/Similar Models: PTR Unit Different points from previous model (V-C3) Pro Office Reason  PTR Pressure Release Mechanism is changed to For easier access to the be automated. inside of the machine. V-C3: PTR pressure is released manually with a lever. Ch-C1: PTR pressure is released automatically by a motor Slide 463...
Page 464 Ch-C1 Training Comparison with Previous/Similar Models : PTR Unit For Shock Jitter Different points from previous model (V-C3) Pro Office Reason  PTR Lift Mechanism is added. To reduce shock jitter V-C3: When paper enters the nip between the ITB and the PTR, shock will occur, especially for thicker paper.
Page 465 Ch-C1 Training Comparison with Previous/Similar Models : PTR Unit Different points from previous model (V-C3) Pro Office Reason  Cleaning mechanism is changed to bias cleaning. Reduce the number of PM parts. V-C3: The PTR has a cleaning mechanism Ch-C1: The PTR does not have a cleaning mechanism. Reverse bias is applied to the PTR to send the waste toner to the ITB, then it is removed by ITB cleaning.
Page 466 Ch-C1 Training Overview  The charge on the ITB bias roller pushes the toner from the ITB onto the paper.  The paper transfer roller rotates when the ITB bias roller rotates. However, there is a drive motor for the PTR. Slide 466 1.
Page 467: Power Supply
Ch-C1 Training Power Supply ITB Bias Roller Discharge Plate  The ITB bias roller receives DC in the Office version, and both AC and DC in the Pro version.  The discharge plate receives AC and DC in both versions. Slide 467 No additional notes...
Page 468 Ch-C1 Training PTR Drive PTR Drive Motor Encoder  The PTR drive motor rotates the paper transfer roller.  An encoder monitors the roller rotation and feeds back the data to the motor.  The PTR drive motor also drives the paper transport belt and the ITB cleaning unit.
Page 469 Ch-C1 Training ITB Bias Roller Lift Mechanism - 1 PTR Lift Sensor PTR Lift Motor Actuator  When the PTR lift motor rotates, cams on each end of the PTR shaft rotate, and the ITB bias roller moves up or down. ...
Page 470 Ch-C1 Training ITB Bias Roller Lift Mechanism - 2  The PTR lift motor [A] rotates CW (clockwise) [1] or CCW (counter clockwise) [2] in order to rotate the bias roller cam [B] that determines whether the PTR contacts the ITB or not: ...
Page 471 Ch-C1 Training ITB Bias Roller Lift Mechanism Timing  While printing:  Contact, even during the interval between sheets.  Other states:  Process Control: Separated  MUSIC: Separated  Forced Toner Consumption: Separated  Lubrication Mode: Separated  ITB Bias Roller Cleaning: Contact Slide 471 No additional notes...
Page 472 Ch-C1 Training Shock Jitter Cancel Mode  When paper enters the nip between the ITB and the PTR, shock will occur, especially for thicker paper. This can cause jitter on the printout.  To cancel this shock jitter, the ITB bias roller contacts the PTR after the leading edge arrives at the nip, and moves away before the trailing edge passes the nip.
Page 473 Ch-C1 Training PTR Pressure Release Drawer Lock Motor  When you push the lock in the drawer unit handle to pull out the drawer, the PTR moves down completely away from the ITB. Then, the drawer unit can be pulled out. ...
Page 474 Ch-C1 Training Cleaning  Toner remaining on the PTR is sent back to the ITB, by reversing the polarity of the PTR while it is in contact with the ITB.  It is done at the start of each job, or when recovering from a paper jam or SC condition.
Page 475 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Paper Transport Belt Unit Slide 475  This belt transfers the paper (with loosely attached toner) from the image transfer area to the fusing unit.
Page 476 Ch-C1 Training Overview Paper Transfer Fusing Unit Roller Paper Transport Belt (PTB) Unit  This belt transfers the paper (with loosely attached toner) from the image transfer area to the fusing unit. Slide 476 No additional notes...
Page 477 Ch-C1 Training Changes made from predecessor/similar models: Paper Transport Belt Unit Change made from predecessor model Office Reason/Purpose (V-C3) Basic structural layout same (PTB + suction fan is same; PTB by itself is a common part with the predecessor) New mechanism that allows PTB Entrance to fusing unit unit to be moved out of way to is relatively narrow...
Page 478 Ch-C1 Training Drive PTR Drive Motor PTB Sensor PTB Fan  The PTR drive motor drives the transport belt through gears and the transport belt drive roller.  The PTB fan draws air in and exhausts it below through holes in the transport belt, in order to hold paper on the transport belt.
Page 479 Ch-C1 Training Jam Removal Lever Lever Sensor  The lever lowers the belt so that jams can be removed more easily.  Raise the lever to lower the belt.  The PTB set sensor detects when the belt is at the operating position.
Page 480 Ch-C1 Training Replacement Paper Transport Belt Unit  To remove this unit, you have to remove the fusing unit first. Slide 480 No additional notes...
Page 481 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Fusing Unit Slide 481 No additional notes...
Page 482 Ch-C1 Training Comparison with Previous/Similar Models CH-C1 CH-C1 Comparison with Reason for Changing Office Previous/Similar models  Smaller diameter of the To improve separation from the roller for Hot Roller (φ54→φ52) thin paper  Different material for the Each material is decided in response to the Hot Roller for Pro and target users for Pro and Office versions Office...
Page 483 Ch-C1 Training Comparison with Previous/Similar Models CH-C1 CH-C1 Comparison with Reason for Changing Office Previous/Similar models  Fusing Pressure Control for To prevent paper wrinkles when using Envelopes envelopes.  Separation mechanism for When a small paper size is used and a the Cleaning Web paper jam occurs, this mechanism prevents wrapping of the web when the...
Page 484 Ch-C1 Training Overview  A fusing belt and an IH coil are used in this machine.  The components highlighted blue (web cleaning unit, fusing belt smoothing roller, and others) in the above diagram are only used in the Pro version. ...
Page 485 Ch-C1 Training Fusing Belt Structure Fusing Belt Pro Version Roller Office Version Substrate Elastic Layer Paper Pressure Roller  The elastic layer of the fusing belt is thickened in the Pro version in order to let the belt enter indentations in the paper that existing belts cannot be inserted into.
Page 486: Hot Roller
Ch-C1 Training Hot Roller V-C3 CH-C1 Office CH-C1 Pro Taurus-C1 Diagram Roller Silicone foam Silicone solid Silicone solid Material Roller 50 mm diameter 52 mm diameter 52 mm diameter 54 mm diameter diameter Comparison Durability of Hot Separation for thin with Roller is improved by paper is improved...
Page 487 Ch-C1 Training Print Speed vs Paper Weight  The Pro models are faster at the higher paper weights than the Office models C1 Pro a because of C1 Office a differences in the fusing system.  The Pro models supports max print speed up to 150gsm.
Page 488 Ch-C1 Training Induction Heater (IH) IH Coil  The IH coil is wrapped around the heating roller. Slide 488 No additional notes...
Page 489 Ch-C1 Training IH Operation IH Coil Magnetic Flux Eddy Currents  When high frequency current runs through the coil, a magnetic flux occurs.  At this time, eddy currents occur in the copper-coated layer of the heating roller, and as a result of Joule heating, the heating roller temperature rises.
Page 490 Ch-C1 Training Fusing Belt Drive Detection  The heating roller rotation sensor monitors the rotation of the heating roller, and this is fed back to the fusing motor to prevent overheating on any part of the fusing belt. Slide 490 No additional notes...
Page 491 Ch-C1 Training Fusing Temperature Control – Heat Sources IH Coil Hot Roller Fusing Lamp Heating Roller Pressure Roller  There are 2 heat sources.  A 600W IH coil around the heating roller heats the fusing belt.  The pressure roller contains a fusing lamp. This heats the pressure roller during warm-up and at the start of a job, and keeps the machine warmed up while in waiting mode.
Page 492 Ch-C1 Training Fusing Temperature Control - Diagram  This graph shows how temperature changes in the fusing unit.  Target temperatures can be adjusted with SP mode for various paper types. Slide 492 1. Start-up, Restart-up: The machine detects that all covers (doors) are closed and then starts the fusing warming-up.
Page 493 Ch-C1 Training Overheat Prevention - Hot Roller NC Sensor Hot Roller  The NC sensor detects the temperature of the hot roller.  If the NC sensor detects more than 250 degrees: SC577. Slide 493 No additional notes...
Page 494 Ch-C1 Training Overheat Prevention - Heating Roller Thermopile Heating Roller  The thermopile detects the temperature of the heating roller.  If the thermopile detects more than 240 degrees: SC543.  If the thermopile detects more than 250 degrees: SC544. Slide 494 No additional notes...
Page 495 Ch-C1 Training Overheat Prevention - Fusing Belt Fusing Belt Fusing Belt Thermistor  The thermistor detects the temperature of the fusing belt.  If the thermistor detects more than 250 degrees: SC563.  If the thermistor detects more than 260 degrees: SC564. Slide 495 No additional notes...
Page 496 Ch-C1 Training Overheat Prevention - Pressure Roller Pressure Roller Thermopile  The thermopile detects the temperature of the pressure roller.  If the thermopile detects more than 220 degrees: SC553.  If the thermopile detects more than 250 degrees: SC554. Slide 496 No additional notes...
Page 497 Ch-C1 Training Overheat Prevention - Thermostats Heating Roller Thermostat Pressure Roller Thermostat  The thermostats are safety devices to prevent overheating.  If a thermostat cuts the power, it is possible that the IH coil, the fusing belt, or the fusing unit rollers may be damaged. ...
Page 498 Ch-C1 Training Drive  The fusing motor drives the hot roller, pressure roller, and fusing belt.  When the pressure roller separates from the hot roller, the pressure roller does not rotate. Slide 498 No additional notes...
Page 499 Ch-C1 Training Fusing Pressure Control - 1 Fusing Release Motor Pressure Roller Pressure Cam (Rear) Fusing Pressure Sensor (Rear) Fusing Pressure Pressure Cam Sensor (Front) (Front)  The fusing release motor does the following:  Releases fusing pressure when no job is in progress. ...
Page 500 Ch-C1 Training Fusing Pressure Control - 2 Rear Front Sensor Sensor  Note the different shapes of the sensor actuators at the front and the rear.  Front: Three slits, to fix the three different cam angles for the three different fusing pressures ...
Page 501: Possible Settings
Ch-C1 Training Fusing Pressure Control - 3 Possible Settings Default Comment Status Nip Width Position 0 Released Position 1 Lightest 2 mm Used when reversing the fusing drive pressure mechanism to clear a jam Pressure at this setting is not adjustable Position 2 Envelope 5 mm...
Page 502 Ch-C1 Training Fusing Pressure Control - 4 SP Mode Adjustment for Envelope Printing  If this setting is wrong, it could lead to insufficient fusing or cause the envelopes to wrinkle.  To correct insufficient fusing, increase the value in the following SP by 5ms and check the result. ...
Page 503 Ch-C1 Training Jam Detection Paper Remaining Sensor Fusing Exit Sensor  The fusing exit sensor [A] detects jams by monitoring the ejected paper.  The pressure roller rotates in reverse to move jammed paper back if a jam occurs.  At this time, the web unit will separate from the pressure roller to prevent the cleaning web from rolling up on the roller.
Page 504 Ch-C1 Training Paper Remaining Sensor Replacement  Do the following after you replace the paper remaining sensor:  Make sure that there is no paper in the sensor’s optical path  Close the Drawer Unit and the Right Cover.  Make sure that the value stored in SP1-134-002 is between 200 and 400.
Page 505 Ch-C1 Training Pro Version Web Cleaning Unit (1) Only Web Take-up Fusing Cleaning Roller Web Motor Pressure Roller  The cleaning web contacts the pressure roller and wipes off toner and paper dust on the roller’s surface, and from the fusing belt. ...
Page 506 Ch-C1 Training Pro Version Web Cleaning Unit (2) Only Web Take-up Roller Feeler Web End Sensor  When the cleaning web consumption reaches the setting in SP1902-004, the operation panel shows “Web Near-End”. The default is 81%.  The life of the web unit is about 450k prints. So, there are about 85.5k prints between web near-end and web end.
Page 507 Ch-C1 Training Pro Version Web Cleaning Unit (3) Only  When small size paper jams, the pressure roller drives in reverse so that the machine can detect the remaining paper.  Then the remaining paper moves to an area where it can be removed easily.
Page 508 Ch-C1 Training Pro Version Web Cleaning Unit (4) Only Cleaning Web Contact Motor Cleaning Web Web Unit Set Contact Sensor Sensor  The web unit set sensor detects when the web unit is put in the machine.  The cleaning web contact motor rotates two cams that push the web unit up against the pressure roller.
Page 509 Ch-C1 Training Pro Version Fusing Belt Smoothing (1) Only  The edges of small paper sizes can cause rough streaks on the fusing belt. Rough Streaks on Belt (Before using Smoothing Roller) After using Smoothing Roller Slide 509 No additional notes...
Page 510 Ch-C1 Training Pro Version Fusing Belt Smoothing (2) Only Smoothing Roller  The smoothing roller is a countermeasure against damage to the belt caused by the edges of small sizes of thick paper.  The smoothing roller polishes the surface of the fusing belt in order to remove roughness caused by paper edges and to prevent glossy streaks on prints.
Page 511 Ch-C1 Training Pro Version Fusing Belt Smoothing Drive Only Smoothing Smoothing Roller Drive Roller Contact Motor Motor Smoothing Roller Contact Sensor Actuator  The drive motor rotates the smoothing roller.  The contact motor moves the smoothing roller into contact and away from the fusing belt through a cam.
Page 512 Ch-C1 Training When is Smoothing Done?  Smoothing is not done automatically.  It must be executed manually by the user with Special Operator Adjustment (0210-01).  Also possible with SP 1133-110.  When you execute this function more than three times in a row but no improvement appears, replace the fusing belt.
Page 513 Ch-C1 Training Cooling (1) Heat  Cool air is drawn in Sink through the heat sink and down the cooling pipes into the fusing unit. Cooling  Two fans cool the IH Pipes coil unit. IH Coil Unit Slide 513 No additional notes...
Page 514 Ch-C1 Training Pro Version Cooling (2) Only  This additional cooling (for the pressure roller) is for the Pro version only.  This system is the same as the Taurus cooling system. Slide 514 No additional notes...
Page 515 Ch-C1 Training Set Switch Cooling (3) Paper Cooling Pipe Roller  The paper cooling pipe roller cools the paper after it leaves the fusing unit.  It rotates at the same time as the fusing unit.  A liquid inside the cooling pipe vaporizes when it is heated by the paper. The vapor moves towards the fins at the end of the pipe, where a fan cools it down.
Page 516: Removing The Fusing Unit
Ch-C1 Training Removing the Fusing Unit  You need to pull out the drawer unit to the maximum position.  You need to raise the lever of the left inner guide plate. Slide 516 No additional notes...
Page 517 Ch-C1 Training PM Parts Replacement  Heating Roller and Fusing Lamp and Fusing Belt  Pay attention to the direction of these two brackets when you re-assemble the machine. Slide 517 No additional notes...
Page 518 Ch-C1 Training PM Parts Replacement  Pressure Roller  When you install the pressure roller, pay attention to position relation between the bracket and the frame. Slide 518 No additional notes...
Page 519 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Duplex/Inverter, Purge Tray Slide 519 No additional notes...
Page 520 Ch-C1 Training Overview  In this diagram, the mechanisms are shown by the following colors:  Black: Inverter  Blue: Duplex  Red: Purge tray Slide 520 No additional notes...
Page 521 Ch-C1 Training Paper Path  Red: Inversion before feed-out (face-down)  Blue: Duplex  Green: Purge Slide 521 No additional notes...
Page 522 Ch-C1 Training Comparison with Previous/Similar Models  Side-to-side registration for duplex is done in one of the following ways, depending on the model. Jogger fence  Top diagram: Jogger fence (V- Shift rollers  Middle diagram: Shift rollers (This machine, Office and Pro versions) ...
Page 523 Ch-C1 Training Comparison with Previous/Similar Models Purge Tray Different points from previous model (V-C3) Office Reason  Purge Tray is added. Easier to remove jams Jam removal switches are added. Press the red switch to send paper to the exit tray. Press the blue switch to send it to the purge tray.
Page 524: Drive Components
Ch-C1 Training Drive Components  The rollers driven by the fusing motor depend on which way it is rotating.  Red: Drives the fusing unit  Blue: Changes direction to drive the inverter rollers Slide 524 1. Inverter Exit Motor 2.
Page 525 Ch-C1 Training Exit Roller Straight-through Feed  To feed the paper straight Paper Cooling Pipe out, the inverter entrance junction gate moves out of the way, driven by a motor.  Inverter Entrance Junction Gate Motor: Turns counter-clockwise (CCW)  With straight-through feed, the output is face up.
Page 526 Ch-C1 Training Inversion: Entry to Inverter Inverter Entrance Motor Exit Inverter Motor  Inversion feeds the paper out face-down.  The inverter junction entrance gate moves up, and the inverter rollers feed the paper down.  The inverter entrance junction gate motor turns clockwise (CW) to lift the gate.
Page 527 Ch-C1 Training Inversion: Exit from the Machine Exit Motor Inverter Exit Sensor Exit Inverter Motor  When the inverter exit sensor detects the trailing edge, the inverter entrance motor stops, and the exit inverter motor changes direction and feeds the paper back up. ...
Page 528 Ch-C1 Training Feed into the Duplex Path Duplex Inverter Sensor Duplex Inverter Duplex Inverter Solenoid Duplex Motor Transport Motor  After the duplex inverter sensor detects the leading edge, the duplex inverter solenoid turns on so that the paper can enter the duplex area. ...
Page 529 Ch-C1 Training Duplex Path: Drive Components Roller Shift Motor 1 Roller Shift Motor 2 Sensor Shift Motor Duplex Exit Motor Duplex Transport Motor Duplex Inverter Motor Duplex Inverter Solenoid Slide 529 No additional notes...
Page 530 Ch-C1 Training Interleaving  The number of sheets that can be fed through the machine at the same time depends on paper length.  139.7 mm to 220 mm: 3  221 mm to 487.7 mm: 2 Slide 530  The image transfer order for the 3-sheet interleaving pattern is as follows; ...
Page 531 Ch-C1 Training Three Types of Duplex Registration  Side-to-side registration for duplex is done in one of the following ways, depending on the model. Jogger fence  Top diagram: Jogger fence (V- Shift rollers  Middle diagram: Shift rollers (This machine) ...
Page 532 Ch-C1 Training Shift Rollers: Edge Detection Edge Sensor Unit Edge Sensor Sensor Shift Motor  After the leading edge of the paper reaches the edge sensor unit, the sensor shift motor moves the edge sensor unit across until the edge sensor detects the edge of the paper.
Page 533 Ch-C1 Training Duplex Transport Shift Rollers: Drive Rollers Edge Sensor Unit Duplex Exit Roller Roller Shift Roller Shift Motor 1 Motor 2  Based on the edge sensor reading, the roller shift motors move the paper across to the correct position by moving the duplex transport and exit rollers.
Page 534 Ch-C1 Training Purge Tray  If the user opens the cover on the lower left side of the machine, there are two switches. These are used to manually send jammed paper to either the purge tray or the exit tray. ...
Page 535 Ch-C1 Training Feed into the Purge Tray  To send paper to the purge tray, the following things happen:  Paper Exit Motor ON (CCW)  Inverter Entrance Motor ON (CW)  Paper Exit Inverter Motor ON (CW, RT)  Fusing Motor ON (CW) »...
Page 536 Ch-C1 Training Ch-C1 Training Detailed Section Descriptions Used Toner Collection Slide 536 No additional notes...
Page 537 Ch-C1 Training Comparison with Previous/Similar Models: Used Toner Collection Different points from previous model Office Reason for change (Taurus-C1)  Waste Toner Bottle (WTB) cannot be There is no request replaced during machine operation. from the field WTB can be replaced during machine operation on Taurus-C1.
Page 538 Ch-C1 Training Comparison with Previous/Similar Models: Used Toner Collection Waste toner bottle full sensor is deleted. Full sensor deleted WTB set sensor Taurus-C1 WTB Near-Full sensor Venus-C3 deleted Slide 538 No additional notes...
Page 539: Overall Layout
Ch-C1 Training Overall Layout Used Toner from Drum Used Toner from Dev Unit Used Toner from ITB Used Toner Bottle Slide 539 No additional notes...
Page 540 Ch-C1 Training Drive (Toner Collection Coils) Used Toner Collection Motor Used Toner Transport Lock Sensor Slide 540  SC488: Coil is clogged, motor cannot turn...
Page 541 Ch-C1 Training Drive (Used Toner Bottle) Used Toner Bottle Motor  The used toner bottle motor drives the coils in the Used toner bottle, to distribute the material in the bottle evenly. Slide 541 No additional notes...
Page 542 Ch-C1 Training Used Toner Bottle Clogged  If torque increases due to clogged coils, the torque limiter slips and the lock sensor detects the problem.  SC486 Used Toner Bottle Lock Sensor Slide 542 No additional notes...
Page 543 Ch-C1 Training Used Toner Bottle Sensors  The set switch detects Used Toner Bottle whether the bottle is Set Switch installed.  A magnetic catch holds the bottle in place.  When the bottle is almost full, the toner pushes the actuator into the near-full sensor.
Page 544 Ch-C1 Training Removing the Used Toner Bottle  To prevent the waste toner from spilling from the rear side [A], do not tilt the bottle in the rear direction. Slide 544 No additional notes...
Page 545: Optional Peripherals
Ch-C1 Training OPTIONAL PERIPHERALS Optional Finishers (D703/D704) Slide 545 No additional notes...
Page 546 Ch-C1 Training Overview Slide 546 No additional notes...
Page 547 Ch-C1 Training What are the D703 and D704 Finishers?  3000-sheet Finisher D703  This finisher has two trays: a proof tray on top of the finisher and the upper (shift) tray.  This finisher does corner stapling only. It does not have a lower tray for stapled and folded booklets.
Page 548: General Layout
Ch-C1 Training Proof Tray General Layout Punch Unit Shift Tray Corner Stapler Booklet Folder Pre-stack Area Booklet Stapler Booklet Tray Slide 548 No additional notes...
Page 549: Paper Paths
Ch-C1 Training Paper Paths Red: Straight through Orange: Proof tray Green: Pre-stacking Purple: Corner stapling Magenta: Booklet stapling Slide 549 The pre-stacking area is also part of the path down to the booklet finisher.
Page 550: Proof Tray
Ch-C1 Training Proof Tray Slide 550 No additional notes...
Page 551 Ch-C1 Training Proof Tray Exit – Drive Components Proof Tray Exit Motor Proof Tray Junction Gate Solenoid Transport Motor Entrance Motor Slide 551 No additional notes...
Page 552 Ch-C1 Training Proof Tray Exit – Sensors Proof Tray Full Sensor Proof Tray Exit Sensor Entrance Sensor Transport Sensor Slide 552 No additional notes...
Page 553: Shift Tray
Ch-C1 Training Shift Tray Slide 553 No additional notes...
Page 554 Ch-C1 Training Shift Tray Exit – Drive Components Shift Motor Entrance Motor Shift Tray Exit Motor Relay Motor Transport Motor Slide 554 No additional notes...
Page 555 Ch-C1 Training Shift Roller Mechanism Shift Motor Shift Roller HP Sensor Shift Roller  This mechanism separates the outputs in the shift tray so that the user can easily see each individual copy.  The shift motor moves the shift roller from side to side. Slide 555 No additional notes...
Page 556 Ch-C1 Training Pre-stacking Upper Exit Corner Stapling - 1 Guide Relay Roller  The upper exit guide lifts.  Paper is fed from the finisher entrance to the relay roller. Slide 556 No additional notes...
Page 557 Ch-C1 Training Pre-stacking Corner Stapling - 2 Pre-stack Junction Gate Relay Roller Pre-stacking Roller  The pre-stack junction gate moves down, and the relay roller rotates in reverse.  The pre-stacking roller starts to rotate and the paper goes into the pre-stacking area. Slide 557 No additional notes...
Page 558 Ch-C1 Training Pre-stacking Shift Corner Stapling - 3 Roller Pre-stack Junction Gate Relay Roller Pre-stacking Roller  The pre-stacking and relay rollers both stop.  The pre-stack junction gate lifts.  The shift roller (opposite the relay roller) also lifts away from the paper path, so that two sheets will be able to pass through.
Page 559 Ch-C1 Training Pre-stacking Shift Corner Stapling - 4 Roller Relay Roller Pre-stacking Roller  The second sheet is fed into the finisher.  After it reaches the relay roller, the shift roller drops again.  The pre-stacking roller and relay roller change direction to feed the two sheets out together.
Page 560 Ch-C1 Training Pre-stacking Upper Exit Booklet Stapling - 1 Guide Relay Roller  The upper exit guide lifts.  Paper is fed from the finisher entrance to the relay roller. Slide 560  This is the same as corner stapling.
Page 561 Ch-C1 Training Pre-stacking Booklet Stapling - 2 Pre-stack Junction Gate Relay Roller Pre-stacking Roller  The pre-stack junction gate moves down, and the relay roller rotates in reverse.  The pre-stacking roller starts to rotate and the paper goes into the pre-stacking area. Slide 561 ...
Page 562 Ch-C1 Training Pre-stacking Shift Booklet Stapling - 3 Roller Pre-stack Junction Gate Relay Roller Pre-stacking Roller  The pre-stacking and relay rollers both stop.  The pre-stack junction gate lifts.  The shift roller (opposite the relay roller) also lifts away from the paper path, so that two sheets will be able to pass through.
Page 563 Ch-C1 Training Pre-stacking Shift Booklet Stapling - 4 Roller Relay Pre-stacking Roller Roller  The second sheet is fed into the finisher.  After it reaches the relay roller, the shift roller drops again.  The pre-stacking roller and relay roller change direction to feed the two sheets out together.
Page 564 Ch-C1 Training Pre-stacking Booklet Stapling - 5 Pre-stack Junction Gate Relay Roller Pre-stacking Roller  The pre-stack junction gate moves down again.  The pre-stacking roller and relay roller change direction to feed the two sheets into the pre-stacking area. ...
Page 565 Ch-C1 Training Shift Tray Lift Mechanism Tray Lift  A feeler connected to the paper Motor height sensors touches the top of the paper stack on the shift tray. This tells the machine when to move the tray down to make room for more outputs.
Page 566 Ch-C1 Training Shift Tray Full Detection  There are 5 sensors at the rear of the machine.  The machine uses the readings from these sensors to detect how many outputs are stacked in the tray.  The machine monitors the following points.
Page 567 Ch-C1 Training Paper Exit Stacking Mechanism Paper Stack Holder HP Sensor Paper Stack Holder Paper Stack Pull-in Roller Holder Motor Pull-in Roller Motor HP Sensor Pull-in Roller  The paper stack holder and pull-in roller mechanisms make sure that paper is stacked properly on the tray. ...
Page 568 Ch-C1 Training Paper Exit Stacking Process - 1  At the start of a job, the paper stack holder moves Paper Stack Holder down. Slide 568 No additional notes...
Page 569 Ch-C1 Training Paper Exit Stacking Process - 2  While the first sheet is exiting the finisher, the Paper Stack pull-in roller moves down. Holder  Then, the paper stack holder moves up until an actuator on the rear paper stack holder interrupts the home position sensor.
Page 570 Ch-C1 Training Paper Exit Stacking Process - 3  When the first sheet is in the tray, the pull-in roller Paper Stack rotates to pull the trailing Holder edge of the sheet back against the back fence of the tray. Pull-in Roller Slide 570...
Page 571 Ch-C1 Training Paper Exit Stacking Process - 4  Then, the paper stack holder drops again to hold Paper Stack the trailing edge of the Holder paper.  The next sheet is now leaving the finisher.  Steps 3 and 4 repeat for each sheet of the job as it is fed out.
Page 572 Ch-C1 Training Paper Exit Stacking Process - 5  After the last sheet of the job, the pull-in roller is Paper Stack pulled up to its home Holder position (detected by the HP sensor).  At the same time, the paper stack holder is pulled up to its home position.
Page 573: Corner Stapling
Ch-C1 Training Corner Stapling Slide 573 No additional notes...
Page 574: General Layout
Ch-C1 Training General Layout Punch Unit Shift Tray Corner Stapler Pre-stack Area Slide 574 No additional notes...
Page 575 Ch-C1 Training Corner Stapling Components - 1 Positioning Roller Motor Positioning Roller Positioning Roller Lift Motor Stapler Motor Alignment Roller Stapler HP Sensor Stapler Slide 575 No additional notes...
Page 576 Ch-C1 Training Corner Stapling Upper Tray Components - 2 Exit Sensor Jogger Edge Guides Sensor Jogger Fence Motor Jogger Fences Edge Guide Motor Edge Guide Stapler Tray HP Sensor Paper Sensor Slide 576 No additional notes...
Page 577 Ch-C1 Training Corner Stapling Components - 3 Stack Feed-out Belt Stack Feed-out Stack Feed-out Pawl Motor Stack Feed-out HP Sensor Slide 577 No additional notes...
Page 578: Edge Guide
Ch-C1 Training Edge Guide Stapler Tray  This is a new mechanism.  This finisher has been made as compact as possible, and because of this, the stapler tray is a bit short, so paper will bend and the stack may even fall out of the stapler tray.
Page 579 Ch-C1 Training Edge Guide Upper Guide Edge Guide Edge Guide HP Sensor Edge Guide Motor  When a job starts, the upper guide lifts, and the edge guide motor moves the edge guide up and away from its home position (in the direction of the blue arrow). ...
Page 580: Stapler Movement
Ch-C1 Training Stapler Movement Stapler Motor Stapler HP Sensor Stapler  The stapler motor moves the stapler along the guide rod.  At the end of the job, the stapler returns to its home position. Slide 580 No additional notes...
Page 581 Ch-C1 Training Positioning Roller, Alignment Roller Positioning Positioning Roller Lift Roller Motor Motor Alignment Roller Positioning Roller  At the start of every job, the positioning roller lift motor drops the positioning roller.  The positioning roller motor rotates in reverse to drive the positioning and alignment rollers that feed the paper into the stapler.
Page 582 Ch-C1 Training Jogger Jogger Sensor Jogger Fence Motor Jogger Fences  The jogger fence motor moves the jogger fences against the side of the paper stack in the stapler tray, to make sure that the edges of the stack are tidy before stapling is done. ...
Page 583 Ch-C1 Training Stapling  The staple hammer motor inside the stapler drives the staple hammer, which pushes staples into the paper stack.  There are three stapling modes, as shown above. Slide 583 No additional notes...
Page 584 Ch-C1 Training Feed-out after Stapling Stack Feed-out Stack Feed-out Motor Pawl Bottom pawl moves Bottom here just before feed- Pawl  When stapling, the leading edge of the stack of paper is inside the stapler. In this condition, the stack feed-out pawl cannot reach the leading edge of the stapled paper.
Page 585: Booklet Stapling
Ch-C1 Training Booklet Stapling Slide 585 No additional notes...
Page 586 Ch-C1 Training General Layout Punch Unit Pre-stack Area Booklet Folder Booklet Tray Bottom Fence Booklet Stapler Slide 586 No additional notes...
Page 587 Ch-C1 Training Booklet Stapling Components - 1 Slide 587 A) Stack junction Gate HP Sensor B) Booklet Transport Motor C) Booklet Transport Roller Motor D) Booklet Upper Transport Path Paper Sensor E) Jogger Fence Motor F) Jogger Fence HP Sensor G) Bottom Fence Motor H) Bottom Fence HP Sensor I) Booklet Lower Transport Path Paper Sensor...
Page 588 Ch-C1 Training Booklet Stapling Components - 2 Side-to-side Folder Unit Side-to-side Folder HP Sensor Fold Plate HP Sensor Fold Plate Fold Motor Plate Slide 588 No additional notes...
Page 589 Ch-C1 Training Booklet Stapling Components - 3 Fold Rollers Fold Roller Fold Unit Fold Unit Motor Exit Roller Exit Sensor Slide 589 No additional notes...
Page 590 Ch-C1 Training Booklet Transport Unit - 1  When the first sheet of a Booklet Gate (Spring- Transport Unit loaded) booklet stapling job is fed towards the booklet stapler, the booklet transport unit moves up.  Then the booklet transport roller motor starts the booklet transport roller, to feed the paper over the gate...
Page 591 Ch-C1 Training Booklet Transport Unit - 2  After a page has been fed, Booklet Gate (Spring- Transport Roller loaded) the booklet transport roller unit moves up.  Then it moves down again, and the gate, which is now closed, jogs the trailing edge of the paper.
Page 592 Ch-C1 Training Jogger Jogger Fence Motor Jogger Sensor Jogger Fences  The jogger fence motor moves the jogger fences against the side of the paper stack in the stapler tray, to make sure that the edges of the stack are tidy before stapling is done. ...
Page 593 Ch-C1 Training Stapling Booklet Transport Roller  After all sheets have been fed and jogged at the sides and the leading/trailing edges, the booklet is stapled.  Then, the bottom plate Booklet moves the stapled booklet Staplers up so that the spine of the booklet is opposite the fold plate.
Page 594 Ch-C1 Training Folding Side-to-side  The fold plate pushes the Folder HP Sensor booklet between the fold rollers.  The side-to-side folder Fold Plate presses the spine of the booklet.  Both operations are driven by the fold plate motor. Side-to-side Folder Unit Fold...
Page 595 Ch-C1 Training Side-to-side Folder Unit Junction Junction Plate 1 Plate 2 Springs Fold Side-to-side Rollers Folder Unit  The side-to-side folder unit moves from side to side along the fold while the pressure unit inside the folding unit moves up-down. Slide 595 No additional notes...
Page 596 Ch-C1 Training Folding Process - 1  When folding starts, the fold plate [B] pushes the paper stack between the fold rollers, and the side-to-side folder unit [A] starts to move along the upper track [D] of the side-to-side folder unit. ...
Page 597 Ch-C1 Training Folding Process - 2  Because of the cam that drives the fold plate, the fold plate [C] keeps pushing the paper stack while the side-to-side folder unit [A] presses half of the stack.  When the HP sensor [B] has turned on 2 times (the cam of the side-to-side shift fold roller unit had rotated 2 times), the side-to- side folding is half finished.
Page 598 Ch-C1 Training Folding Process - 3  The side-to-side folder unit moves back to the upper track, and then drops to the lower track.  Then the rest of the side-to side fold is done while the fold plate returns to its home position, where the fold plate HP sensor [B] detects the actuator on the fold plate.
Page 599 Ch-C1 Training Side-to-side Folder Mechanism - 1 While sliding from the upper path toward the lower track, the side-to-side folder unit [C] pushes junction plate 1 [B] out and moves to the center of the paper stack. As the side-to-side folder unit moves to the lower track [C], the upper roller of the side-to-side folder unit is pushed down.
Page 600 Ch-C1 Training Side-to-side Folder Mechanism - 2 5. The fold plate motor drives in reverse in order to move the side- to-side folder unit [C] to the rear (left side in the diagram) without applying pressure to the paper. Then the side-to-side folder unit [C] pushes junction gate 2 [B] out and comes down to the lower track again.
Page 601 Ch-C1 Training Side-to-side Folding Process - 1 1. Ready to Begin 2. The side-to-side folder starts moving 3. The folder unit drops to the lower 4. The rollers are now pressing the track, and the rollers start to move paper while the folder unit continues against the stack of paper.
Page 602 Ch-C1 Training Side-to-side Folding Process - 2 5. The folder unit continues to press 6. The folder unit has reached the the spine of the booklet. front side of the machine, and the rollers are away from the paper. 7. The folder unit starts to move back. 8.
Page 603 Ch-C1 Training Side-to-side Folding Process - 3 9. The rollers are now pressing the 10. The folder unit continues to press paper while the folder unit continues the spine of the booklet. to move across. 11. Finished Slide 603 No additional notes...
Page 604 Ch-C1 Training Forming the Fold  When a roller presses the folded stack of paper, a crease is made in the paper.  When the side-to-side folder rollers press from above and below, creases are made on both the upper and lower sides of the spine. ...
Page 605 Ch-C1 Training Comparison with Previous Folders  With this new folder, the Previous spine of the booklet is Folders more square. This Folder Slide 605 No additional notes...
Page 606 Ch-C1 Training Roller Alignment Adjustment - 1  Adjust this if the printed image is being damaged by the folding process.  With the factory default, the upper and lower rollers of the multi-folding unit are not aligned vertically.  If you want to increase the folding strength, keep the default setting of 3 ...
Page 607 Ch-C1 Training Roller Alignment Adjustment - 2  Adjust the position of the flat fold lower roller [A] to adjust the difference in alignment between the upper and lower rollers of the flat fold booklet unit.  With the factory default, there is a 3mm difference [D] between the upper and lower rollers.
Page 608 Ch-C1 Training Roller Alignment Adjustment - 3  Because the folding strength is strong, toner may not stick well to the fold line of the booklet. If this happens, set the difference in alignment between the upper and lower rollers to 0 mm to reduce this symptom.
Page 609 Ch-C1 Training Folding Speed Adjustment  This adjustment changes the thickness of the booklet spine by reducing the speed of the side- to-side folding unit.  Reduce the speed to make the spine thinner.  However, slowing the speed reduces the machine’s productivity.
Page 610 Ch-C1 Training Punch Unit Replacement  When you need to replace the parts of the punch unit, replace the whole unit.  Do not disassemble the punch unit. This unit is precisely adjusted in the factory.  The punch unit is already adjusted in the factory, so you don’t need to adjust it.
Page 611: Main Board Replacement
Ch-C1 Training Main Board Replacement  This board has two blocks of dip switches.  Change the settings of dip switch [A] on the new main board to match the settings on the old main board.  Make sure the switches of dip switch [B] on the new main board are all OFF.
Page 612 Ch-C1 Training Color Controller E-42B/E-22B Service Training E-42B (D728) E-22B (D729) Slide 612 No additional notes...
Page 613 Ch-C1 Training Summary  Introduction  Installation  What is new at installation  Installing Options (New procedure)  Hardware and Software Maintenance  Backup and Restore  Important Notes (Maintenance) Slide 613 No additional notes...
Page 614 Ch-C1 Training Introduction (1) Controller Type Model CH-C1 Model CH-C1 Manufactured and shipped Model Name Pro Model Office Model from…. Color Controller Server Type EFI (USA) E-42B Color Controller Embedded Ricoh E-22B Type Electronics Inc (USA) Slide 614 No additional notes...
Page 615 Ch-C1 Training Introduction (2) Controller Type Platform Similar to… Model Name Color Controller Server Type FS100 Pro Windows 7 Hardware: E-42B E-42 Software: E-42 Color Controller Embedded FS100 Linux Hardware: E-22B Type E-5300/3300 Software: E-42/E-42B Slide 615 No additional notes...
Page 616: Installation
Ch-C1 Training Installation (1)  Unpack the E-42B/E-22B  Check Items  Install Gigabit Ethernet PCB (back side of the copier)  Connect the Interface Cable on both of the Gigabit Ethernet connectors.  Attach the Protector Plates. (E-22B only) ...
Page 617 Ch-C1 Training Installation (2)  Turn on the copier.  Change SP modes and reboot the copier.  SP-5193-001: “1” (External Controller = EFI)  SP-5895-001: “1” (Disable GW+ Printer)  SP-5895-002 (Optional) : “1” (Disable GW Scanner)  Select language and region and reboot the copier. ...
Page 618 Ch-C1 Training New Procedure at Installation (1)  E-42B as a PP Server product: At the initial setup, you can start from language selection. Previous Server type models procedure: English system was pre-installed and for other languages, installation starting with DVD was required. Media Package in the carton box: –...
Page 619 Ch-C1 Training New Procedure at Installation (2) Fiery Setup Wizard (1) 3 interfaces for configuring Fiery settings. LCD Setup “Configure” Fiery Setup Wizard (WebTools/CWS) (New!) Note: Available only when initial setup is not yet done. Slide 619 No additional notes...
Page 620 Ch-C1 Training New Procedure at Installation (3)  Fiery Setup Wizard (2) Slide 620 No additional notes...
Page 621 Ch-C1 Training New Procedure at Installation (4)  Fiery Setup Wizard (3) Warning message for security If you select “Continue”, a log in box will appear.. Slide 621 No additional notes...
Page 622 Ch-C1 Training New Procedure at Installation (5)  Fiery Setup Wizard (4) Slide 622 No additional notes...
Page 623 Ch-C1 Training New Procedure at Installation (6)  Fiery Setup Wizard (5) Slide 623 No additional notes...
Page 624 Ch-C1 Training New Procedure at Installation (7)  Fiery Setup Wizard (6) Slide 624 No additional notes...
Page 625 Ch-C1 Training New Procedure at Installation (8)  Fiery Setup Wizard (7) Slide 625 No additional notes...
Page 626 Ch-C1 Training New Procedure at Installation (9)  Fiery Setup Wizard (8) Example: Office & Workgroup Example: Production Slide 626 No additional notes...
Page 627 Ch-C1 Training New Procedure at Installation (10)  Fiery Setup Wizard (9) Maximize the scanning and security of your printer while Office & Workgroup controlling user access. Optimize the advanced proofing capabilities, superior image Graphic Arts & quality, rendering styles, and expert calibration settings of your Proofing printer.
Page 628 Ch-C1 Training New Procedure at Installation (11)  Fiery Setup Wizard (10) For details, please learn from EFI at FS100 Training course. Slide 628 No additional notes...
Page 629 Ch-C1 Training Installing Options (New Procedure) Category Option Name New Procedure for Procedures activation with Previous models Server Auto Trapping (E-22B) Software Licensing One-Time Option Dongle Spot On (E-22B) - Required items and environment - Hot Folders (E-22B)  License Code (Printed) for EFI Graphic Arts Basic Plus each optional product.
Page 630 Ch-C1 Training Installing Options (New Procedure) Case 1: Online Environment While WebTools/CWS on a PC is accessing a controller at the customer site over the network, internet access is also possible. Customer Site’s Network WebTools/ Command Workstation installed PC EFI Activation Interne Server Slide 630...
Page 631 Ch-C1 Training Installing Options (New Procedure)  Case 1: Online Environment (Single Step) License Code No. Controller WebTools / Request File Command Work (with Controller Station Info Embedded) Activated! Proceeds automatically when entering the license License File code. EFI Activation Server Internet Slide 631 No additional notes...
Page 632 Ch-C1 Training Installing Options (New Procedure) Case 2: Offline Environment While WebTools/CWS on a PC is accessing a controller at the customer site over the network, internet access is NOT possible. Customer Site’s Network WebTools/ Command Workstation installed PC WebTools/ Command Interne EFI Activation...
Page 633 Ch-C1 Training Installing Options (New Procedure)  Case 2: Offline Environment (3 Steps Required) License Code No. Controller Create Request File and Save WebTools / Request File Command Work (with Controller Station Send Request File and Info Embedded) Get License File Store License File and Activated! Activate the Option...
Page 634 Ch-C1 Training Installing Options (New procedure) Activation Procedure - From PC connecting to internet - 1. When enabling options from WebTools, click “Manage” in the Installed Options section on the Home Tab. If you use Command WorkStation, click “Manage” in the Options/Packages section on the General Tab in the Device Center.
Page 635 Ch-C1 Training Installing Options (New procedure) Activation Procedure - manual process - 1. When the computer is not connected to the internet, after 2. After moving the file that you have saved to a computer that entering the licensing code and commanding activation, an has internet access, go to licensing.efi.com and upload the error message will appear.
Page 636 Ch-C1 Training Installing Options (New procedure) Activation Procedure - manual process - 4. Select the “License File” and click “Activate”. Then, 3. After saving the file, please copy the “License File to the PC activation is complete. that is connected to the EFI Fiery Controller, and continue the procedure to generate a License and click “Yes.”...
Page 637 Ch-C1 Training Hardware and Software Maintenance • Preventive Maintenance： No regular maintenance （But, please clean if you observe dust inside the controller box.） • System Software problems: Please try in the following order: 1. Apply patches and update the system with the latest version. 2.
Page 638: Backup And Restore
Ch-C1 Training Backup and Restore Information: Backup and Restore captures more controller settings, resources and workflow settings than before. Slide 638 No additional notes...
Page 639 Ch-C1 Training Important Notes (Maintenance) E-22B (Motherboard replacement) At motherboard replacement, make sure to move the keychip from old (defective) board to new (replaced) board. E-42B (Motherboard/HDD replacement) When you replace the motherboard, make sure you follow the procedure as written in the service manual (using the one-time dongle and Service CD tools).
Page 640 Ch-C1 Training Slide 640 The End...

This manual is also suitable for:

D135 D136 D137 D138Ch-c1 officeCh-c1 pro

Ricoh Ch-C1 Series Service Training

Quick Links

Related Manuals for Ricoh Ch-C1 Series

Summary of Contents for Ricoh Ch-C1 Series

This manual is also suitable for:

Table of Contents
