Installation instructions

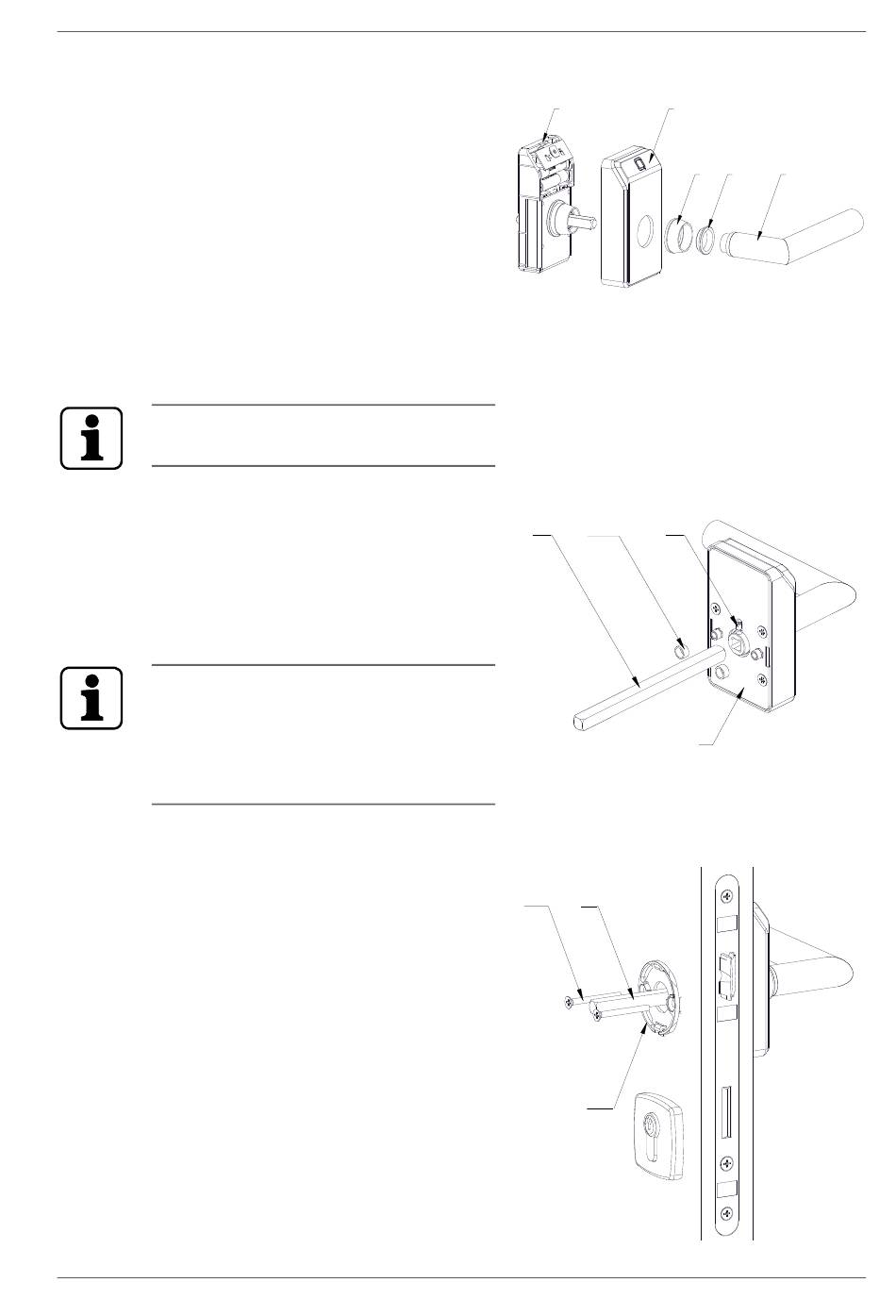

Fit the housing and handle
3. Push the housing (2) over the
mechatronic unit (1).
4. Position the metal ring (3) and
the guide ring (4) on the lever
handle bearing of the
mechatronic unit (1).
5. Fit the lever handle (5) onto the
square spindle of the
mechatronic unit (1).
Lever handle (5) must engage audibly
when fitting!
Inserting the spindle
6. Insert the spindle (8) into the
square of the mechatronic unit
(1) and secure with a fastening
screw (9).
If there are drill holes already in the
door that are larger than Ø7.2 mm, the
centring ring (15) provided must be
attached. This prevents movement of
the actuator in the door.
4.4

Installing the actuator in the door

Inserting the actuator into the door
1. Position the actuator with the
spindle (8) through the lock hub
in the door.
Fit the internal rosette
2. Fit the optional internal rosette
(10) with plastic attachment
downwards on the inside of the
door and secure with fixing
screws (11).
Kaba c-lever compact
8
11
k2evo703en-2011-05
1 2
3
9
15
1
8
10
Installation
4 5
14
