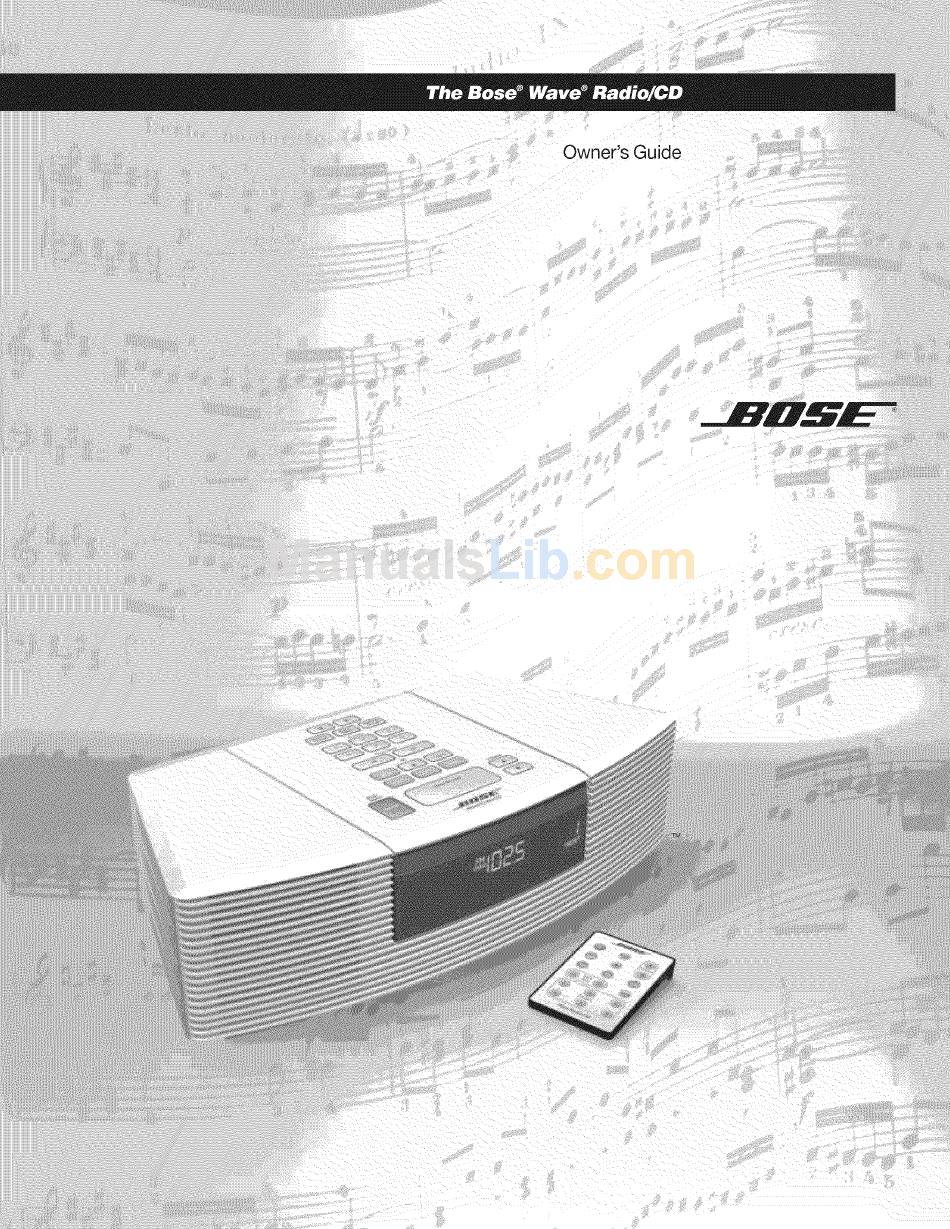

- Page 1 Owner's Guide...
- Page 2 ,& WARNING: to rain or moisture. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. These CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
-
Page 3: Table Of Contents
Customizing the display ... Controlling the system ... Using the radio ... Reading the radio display ... Using the CD player ... Reading the CD display ... Setting the alarms ... Reading the alarm setup displays ... Using the alarms ... -
Page 4: Before You Begin
Thank you for purchasing the Bose ®Wave®Radio/CD. Fourteen years of research by Bose Corporation bring you the benefits of award-winning patented acoustic waveguide speaker technology. Using this technology, a tube efficiently transfers energy from a small loudspeaker to the outside air over a whole range of bass notes. -
Page 5: Unpacking The Carton
Carefully unpack your system. Save all packing materials for possible future use. The original packing materials provide the safest way to transport your Wave®Radio/CD. If any part of the product appears damaged, do not attempt to use it. Notify Bose®Product Support immedi- ately (see phone numbers on the inside back cover). -
Page 6: Installing The Battery
Installing the battery The 9-volt battery maintains clock and alarm settings and operates the Wave ®Radio/CD's backup alarm system for up to 24 hours, during a power loss or while the system is tempo- rarily unplugged. Operating without this battery leaves the memory unprotected, but will not harm the product. -
Page 7: Connecting The Power Cord
Connecting the power 1. Unwind the power cord completely to ensure the best FM reception. The FM antenna is built into the power cord. 2. Plug the power cord into an electric outlet (Figure 3). The display panel lights and the time display begins flashing. -
Page 8: Setting Up The Remote Control
Setting up the remote WARNING: chemical bum ff mishandled. Do not recharge, disassemble, heat above 212°F (100°C), or indnerate. Dispose of used battery prompdy Rep/ace only with a battery of the correct type and model number. Your remote control may be one of two types (Figure 4A or 4B). Each is identified by the way the battery compartment unlocks to install or replace the battery. - Page 9 Note: Use only a DuracelL Eveready, Maxell, or Toshiba CR2032 or DL2032 lithium battery (available at electronics stores). If you have difficulty finding a replacement battery, contact Bose_ Product Support (see phone numbers on the inside back cover). 3. Keeping the remote control face down, insert the new battery into the compartment with the + symbol facing up.
-
Page 10: Connecting Other Components As An Option
R (right) and L (left) AUX IN jacks. To play your radio or CD player through external speakers, connect powered speakers with an independent volume control to the system's R (right) and L (left) LINE OUT jacks. Audio cables for these connections are available at electronics stores. - Page 11 (mono) audio output jack. You may need a special adapter (SuC h as a miniplug Stereo audio Cable) fora TV With a headphone outlet. Bose®Lifestyle ® Steieo cable With male4o,male RCA music system ® plugs Powered speakers Use the audio input...
-
Page 12: Using The Remote Control
You can use the remote control to operate the most frequently used functions of the radio, CD player, and alarms. Aim the remote control at the display of your Wave Radio/CD. Use the remote buttons in the same way you use the system control panel. -
Page 13: Using The Wave Radio/Cd Control Panel
Stop Alarm Wave Rao_o/CD Turns system on and sets sleep time, snoozes (delays) the alarm of the radio, CD player, and special the CD player). For details, panel help you locate this Sets the time Alarm 2 on/off Selects CD random/repeat... -
Page 14: Reading The Wave Radio/Cd Display
Reading Wave Radio/CD Lights when Alarm 1 is Figure 9 activated, flashes while The WaveRadio/CD display setting Alarm 1, and when Indicates the Alarm 1 or 2 status in setup mode, shows nap timer is on Lights when Alarm 2 is activated, flashes while setting Alarm 2, and when display... -
Page 15: Setting The Time
Setting the time Function To set the clock - Hold down either Time <1 or _ button or press the same one twice. The time display changes slowly at first, then faster. Release the clock set button to stop. Customizing the display Function To set AM/PM (12 hour) or Military... -
Page 16: Controlling The System
Controlling the system Function To turn on/off - Press On/Off once to turn on or off. The system turns on to the last source played. To select a source - Press FM orAM, CD, orAUX. To listen to a component connected to AUX, be sure to turn on the component. Pressing AUX does not turn on the component. -
Page 17: Using The Radio
Using the radio Function To turn the radio on/off - Press On/Off once to turn on or off. The system turns on to the last source played. Or, press FM or AM or any Preset to turn the radio on. To seek a station - Press Track/Tune <_ or l>... -
Page 18: Using The Cd Player
Using the CD player Lift the CD door (as shown). Place the CD, label-side up, on the spindle in the CD well. Gently lower the door more than halfway, until it begins to close by itself. Or continue to close it manually if you prefer. -
Page 19: Reading The Cd Display
On/Off. To use the CD hold feature - In CD play mode, if you select another source, the CD player holds your place for 10 minutes so you can switch back to CD where you left off. To program a CD - See "Quick Reference to Special Functions" on page 28. -
Page 20: Setting The Alarms
Setting the alarms Note: You can set alarms with the Wave Radio/CD on or off Function To enter alarm setup mode - Press and release Alarm Setup. The system is now in alarm setup mode. ALARM 1 flashes for 10 seconds. To select which alarm to set - While ALARM 1 is flashing, set alarm time, volume, and alarm... -
Page 21: Using The Alarms
Using the alarms Function To turn Alarm I or Alarm 2 on/off press Alarm 1 to activate this alarm; ALARM 1 lights on the display. Press again to deactivate that alarm. Press Alarm 2 to activate this alarm; ALARM 2 lights on the display. Press again to deactivate that alarm. -
Page 22: Taking Care Of Your Wave Radio/Cd
Taking care of your Wave Radio/CD The only necessary maintenance is cleaning and periodic battery replacement. Handling Handle discs by their edges to prevent fingerprints and scratches. To remove stains or fingerprints from the surface of a disc, use a soft, lint-free, dry cloth. -
Page 23: Troubleshooting
Warranty period The Bose ®Wave Radio/CD is covered by a limited 1-year transferable warranty. Details of the warranty are provided on the warranty card that came with your Wave Radio/CD. Please fill out the information section on the card and mail it to Bose. -
Page 24: Index
CD 4, 5, 7, 10-14, 16, 18-23, 28 CD changer CD door 6,18 CD hold 19 CD Mode CD player 4, 10, 12, 13, 18, 19, 28 CD programming CD Stop 18, 20 CD time 15, 23, 28 cleaning clock... - Page 25 pause 14, 18, 19, 23, 28 play 12, 13, 14, 18, 19, 23, 28 playing time 18, 19 portable tape player 11 power cord 7, 23 power failure 6, 21,22 power rating 22 powered speakers Pr01 19, 28 PRESET indicator preset number 14, 17 preset station...
-
Page 28: Quick Reference To Special Functions
To program 1. Place the selected disc in the CD player. 2. Press CD Stop m. 3. Hold down Alarm Setup and press CD Stop m. The display shows Pr01 to indicate programming mode is ready for your first selection. - Page 29 & Canada Sales Bose Corporation, The Mountain Framingham, MA 01701-9168 1-800-637-8781 USA & Canada Service Bose Corporation, The Mountain Framingham, MA 01701-9168 1-800-637-8781 or 508-879-7330, x63055 European Office Bose B.V., Nijverheidstraat 8 1135 GE Edam, Nedefland TEL 0299-390111 FAX 0299-390114...
