USER GUIDE AND SPECIFICATIONS

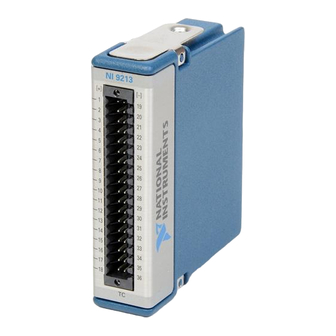

NI USB-9213
16-Channel Thermocouple Input Module
Introduction
This user guide describes how to use the National Instruments USB-9213
and lists the device specifications.

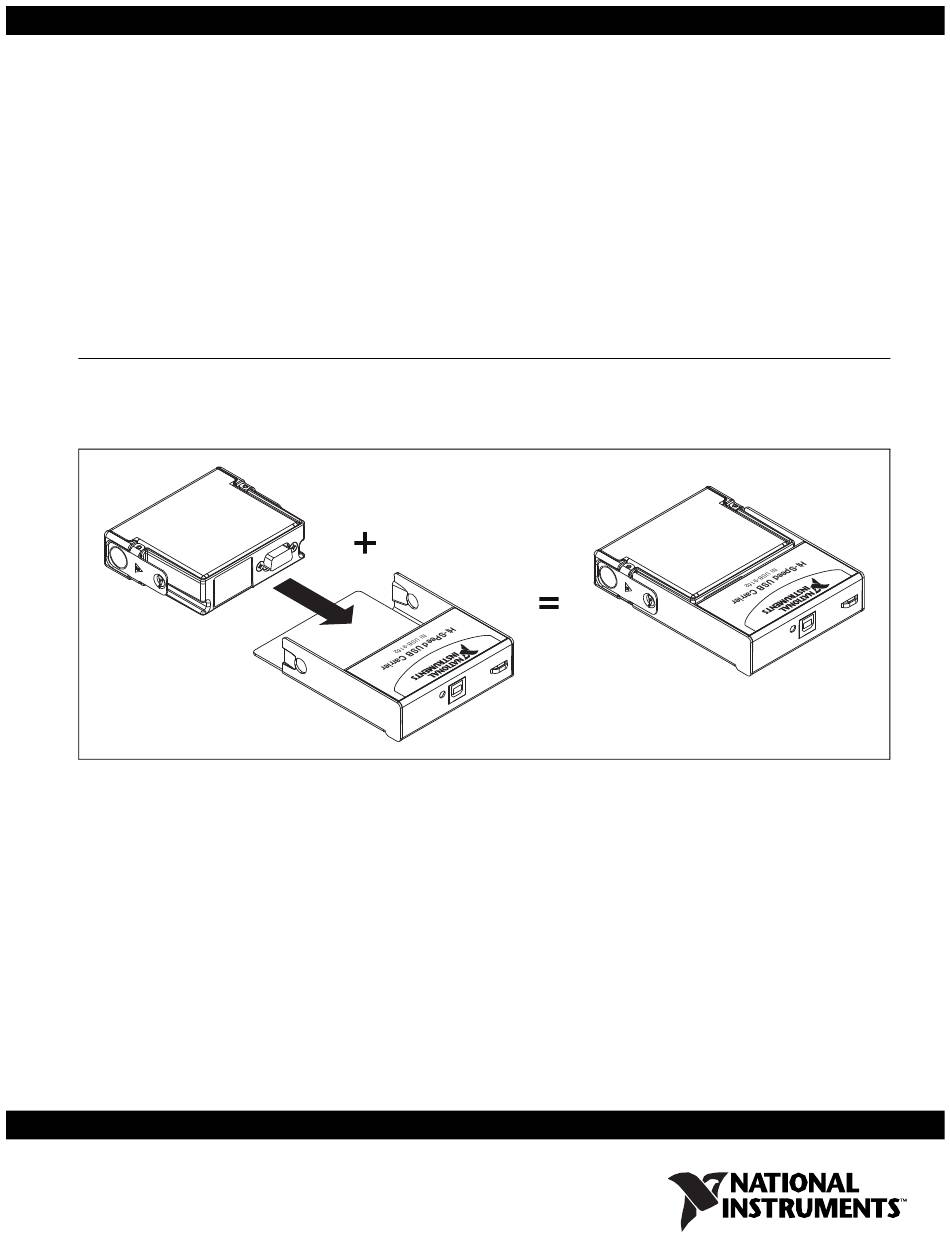

The NI USB-9213 consists of two components: an NI 9213 module and an
NI USB-9162 carrier, as shown in Figure 1.
NI 9213
NI USB-9162
Figure 1. NI USB-9213 Components
NI USB-9213
Advertisement
Table of Contents
Related Manuals for National Instruments USB-9213
Summary of Contents for National Instruments USB-9213
- Page 1 This user guide describes how to use the National Instruments USB-9213 and lists the device specifications. Introduction The NI USB-9213 consists of two components: an NI 9213 module and an NI USB-9162 carrier, as shown in Figure 1. NI 9213...
-
Page 2: Safety Guidelines For Hazardous Voltages
(0.998 in.) Figure 2. NI USB-9213 Device Dimensions in Millimeters (Inches) Safety Guidelines Operate the NI USB-9213 only as described in this user guide. Hot Surface This icon denotes that the component may be hot. Touching this component may result in bodily injury. -
Page 3: Related Documentation
The following document location references assume you have NI-DAQmx 9.0 or later, and where applicable, version 8.2.1 or later of the NI application software. © National Instruments Corporation NI USB-9213 User Guide and Specifications... - Page 4 LV_Getting_Started.pdf control application. LabVIEW Help—provides Help»Search the LabVIEW information about LabVIEW Help programming concepts, step-by-step instructions for using LabVIEW, and reference information about LabVIEW VIs, functions, palettes, menus, and tools. NI USB-9213 User Guide and Specifications ni.com...
- Page 5 NI-DAQmx API overviews and function reference. Measurement Studio/ Microsoft Visual Studio .NET Measurement Studio» Microsoft Visual Studio .NET Help/NI Measurement Studio NI Measurement Studio Help—contains NI-DAQmx Help methods and properties. © National Instruments Corporation NI USB-9213 User Guide and Specifications...
- Page 6 With the Microsoft .NET Framework version 1.1 or later, you can use NI-DAQmx to create applications using Visual C# and Visual Basic .NET without Measurement Studio. You need Microsoft Visual Studio .NET 2003 or Microsoft Visual Studio 2005 for the API documentation to be installed. NI USB-9213 User Guide and Specifications ni.com...
-
Page 7: Installing The Software
For additional support, refer to ni.com/support zone.ni.com Installing the Software Software support for the NI USB-9213 for Windows Vista/XP is provided by NI-DAQmx. The DAQ Getting Started guides, which you can download , offer NI-DAQmx users step-by-step instructions for ni.com/manuals installing software and hardware, configuring channels and tasks, and getting started developing an application. - Page 8 Mounting the NI USB-9213 to a Panel Threaded inserts are located in the NI USB-9162 for mounting it to a panel. Mount the NI USB-9162 before inserting the NI 9213. Refer to Figure 4 for mounting dimensions. 85.7 mm (3.37 in.) 72.2 mm...
-
Page 9: Led Indicator
Figure 6. Locking Module into Place Connecting the NI USB-9213 to a Computer Plug one end of the USB cable into the NI USB-9213 and the other end into an available USB port on the computer. Refer to the NI-DAQmx for USB Devices Getting Started Guide that shipped with your device, and is also accessible from Start»All Programs»National Instruments»NI-DAQ,... -
Page 10: Emc Compliance
TC15– Figure 7. NI USB-9213 Terminal Assignments You can connect thermocouple input signals to the NI USB-9213. Connect the positive lead of the thermocouple to the TC+ terminal and the negative lead of the thermocouple to the TC– terminal. If you are unsure which of the thermocouple leads is positive and which is negative, check the thermocouple documentation or the thermocouple wire spool. - Page 11 The inner shield is not necessary for EMC compliance. Outer Shield Inner Shield Thermocouple TC– NI 9213 USB-9162 Figure 8. Connecting a Shielded Thermocouple Input Signal to the NI USB-9213 © National Instruments Corporation NI USB-9213 User Guide and Specifications...
-
Page 12: Wiring For High-Vibration Applications
Refer to Figure 3 for an illustration of the NI 9940 connector backshell. NI USB-9213 Circuitry ach channel of the NI USB-9213 passes through a differential filter and then is multiplexed and sampled by a 24-bit analog-to-digital converter (ADC). Each channel also has an open thermocouple detection (OTD) circuit, which consists of a current source between the TC+ and TC–... - Page 13 Current Multiplexer USB-9213 Figure 10. Input Circuitry for One Channel of the NI USB-9213 The channels share a common ground, COM, that is isolated from other modules in the system. The NI USB-9213 common-mode range is the maximum voltage between any channel and COM. If COM is not connected, then the common-mode voltage range is the maximum voltage between any two channels.
-
Page 14: Cold-Junction Temperature Measurement Accuracy
Accuracy Considerations section of the Specifications for the errors for each thermocouple type when connected to the NI USB-9213. The errors do not account for the accuracy of the thermocouple itself. For the best accuracy results, keep temperature gradients across NI USB-9213 terminals to a minimum and enable the autozero channel. -
Page 15: Using The Autozero Channel
Using the Autozero Channel The NI USB-9213 has an internal autozero channel to compensate for the offset error. The NI USB-9213 specifications all assume the autozero channel is on for every sample, however, you can choose not to use the autozero channel in software. - Page 16 High-resolution mode......14.4 Hz High-speed mode......78 Hz High-resolution noise rejection (at 50 and 60 Hz) ........60 dB Overvoltage protection ......±30 V between any two inputs Differential input impedance ....78 MΩ Input current ...........50 nA NI USB-9213 User Guide and Specifications ni.com...
-
Page 17: Temperature Measurement Accuracy
Measurement sensitivity represents the smallest change in temperature that a sensor can detect. It is a function of noise. The values assume the full measurement range of the standard thermocouple sensor according to ASTM E230-87. © National Instruments Corporation NI USB-9213 User Guide and Specifications... - Page 18 Figures 11, 12, 13, 14, and 15 show the errors for each thermocouple type when connected to the NI USB-9213 with the autozero channel on. The figures display the maximum errors over a full temperature range and typical errors at room temperature. The figures account for gain errors, offset errors, differential and integral nonlinearity, quantization errors, noise errors, 50 Ω...
- Page 19 Max (High speed), 0 to 60 ˚ C Typ (High speed), room temp Max (High res), 0 to 60 ˚ C Typ (High res), room temp Figure 14. Thermocouple Type B Errors © National Instruments Corporation NI USB-9213 User Guide and Specifications...
-
Page 20: Power Requirements
Weight ............Approx. 260 g (9.2 oz) Safety Standards This product meets the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use: • IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1 NI USB-9213 User Guide and Specifications ni.com... -
Page 21: Hazardous Locations
Hazardous Locations This device is not certified for use in hazardous locations. Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Operating temperature (IEC 60068-2-1, IEC 60068-2-2)... –0 to 60 °C Storage temperature (IEC 60068-2-1, IEC 60068-2-2)... -
Page 22: Online Product Certification
Waste Electrical and Electronic Equipment (WEEE) EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit ni.com/environment/weee National Instruments... -
