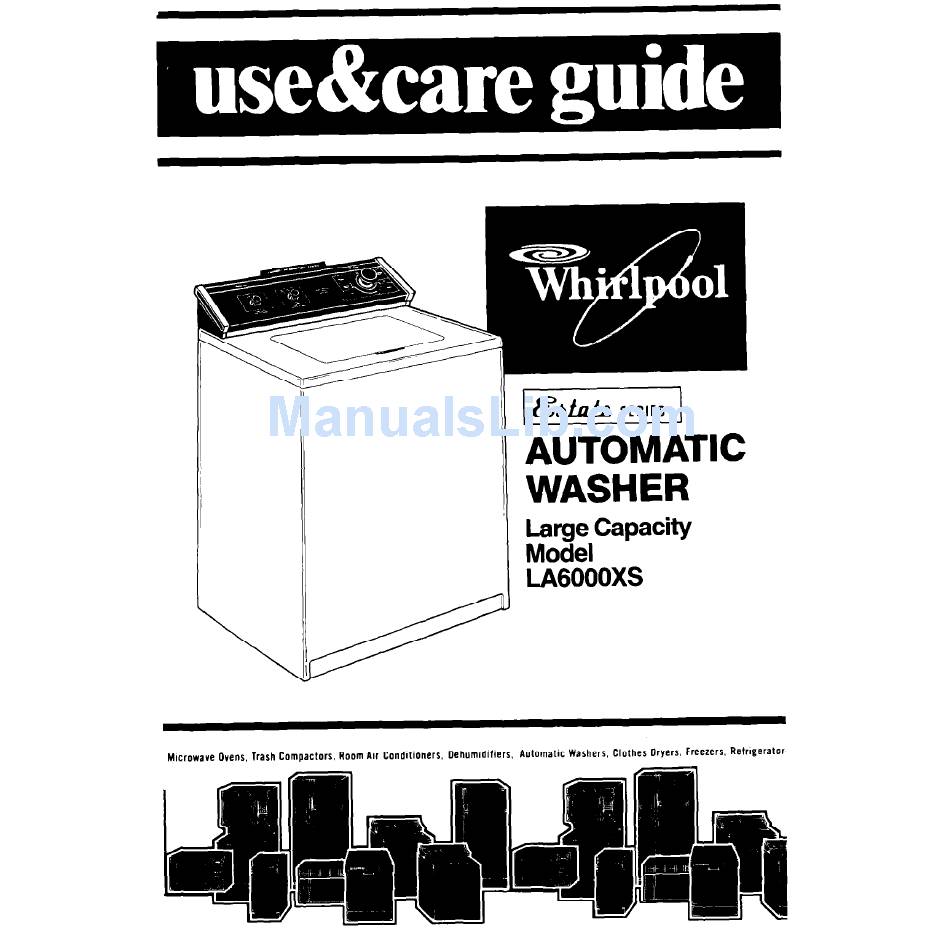

I Contents Page PARTS AND FEATURES IMPORTANT SAFETY INSTRUCTIONS.. OPERATING INSTRUCTIONS.. Starting Your Washer What Happens in Each Cycle OTHER OPERATING INSTRUCTIONS.. ~1987 Whirlpool Parts and features LAUNDRY CYCLE LOAD SIZE INFORMATION CONTROL SELECTOR CENTER -KNOB I’ Copy your Model and Serial Numbers here...
Page 3
Additional Safety Instructions ALWAYS store detergent, laundry aids other materials in a cool, place where children can’t reach them-in a locked cabinet if possible. ALWAYS read and follow instructions on packages of detergent and laun- dry aids - especially warnings precautions.
Operating instructions Starting Your Washer Be sure to measure and add detergent, a sorted load in the washer . Select a LOAD SIZE Turn the knob to point to a setting that describes the size of load you want to wash. The water level can be set for SMALL (a few items] or LARGE (a full load).
Page 5
Start the washer Push in the Control Knob and turn it to the right. It must be pushed and turned only clockwise. Start the washer by pulling out the Control Knob. The washer will fill to the level you set with wash water of the selected temper- ature.
What Happens in Each Cycle* Each cycle has been designed for different dial in each cycle are the minutes of WASH agitation When the Cycle Control Knob is set to a number before aaitation and timina starts. After aaitation until it po:nts to OFF and thgcycle ends.
Page 7
with the rinsing PARTIAL RINSE DRAIN High (Pause) Speed...
Page 8
SHORT Cycle Use for delicate items that need a short wash and spin time. Wash nylon hose or panty hose in a net laundry bag. Alndlcates the machine pauslng for a brief soak period.
Other operating instructions For a rinse and spin You may need an extra rinse and spin for heavily soiled loads which need more detergent. (Extra detergent can require an extra rinse.) 1. Push Control Knob in. 2. Turn clockwise to any on the dial.
Caring for your washer WHEN NOT WASHING, keep both water faucets turned off, this takes the pressure off the water inlet valve and hoses. REMOVE SHARP OBJECTS such as pins, buckles, etc., from clothes before washing. Close metal zippers. AFTER WASHING, use a soff dry cloth to wipe the outside and inside dry.
Winterizing Because some water stays in the washer, freezing can cause a lot of damage. If your washer stored or moved during the cold weather... 1. Shut off both water 2. Put a quart of R.V faucets. Disconnect or automobile and drain water antifreeze inlet hoses.
If you need service or we suggest you follow Before calling for assistance... Performance problems often result from little things you can find and fix yourself without tools of any kind. If your washer does not fill: Is the power supply cord plugged...
Page 14
FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications...
God or use of products not approved E. Any labor costs during the limited WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE- QUENTIAL DAMAGES. Some states do not allow incidental or consequential damages not apply to you.This...
