Software Version Display - Generac Power Systems PowerManager PM-GC Manual

Each screen has some fixed buttons which allow
either access to help text for that screen (context sen-
sitive help) (Figure 2), or return to the main menu
(Figure 3).

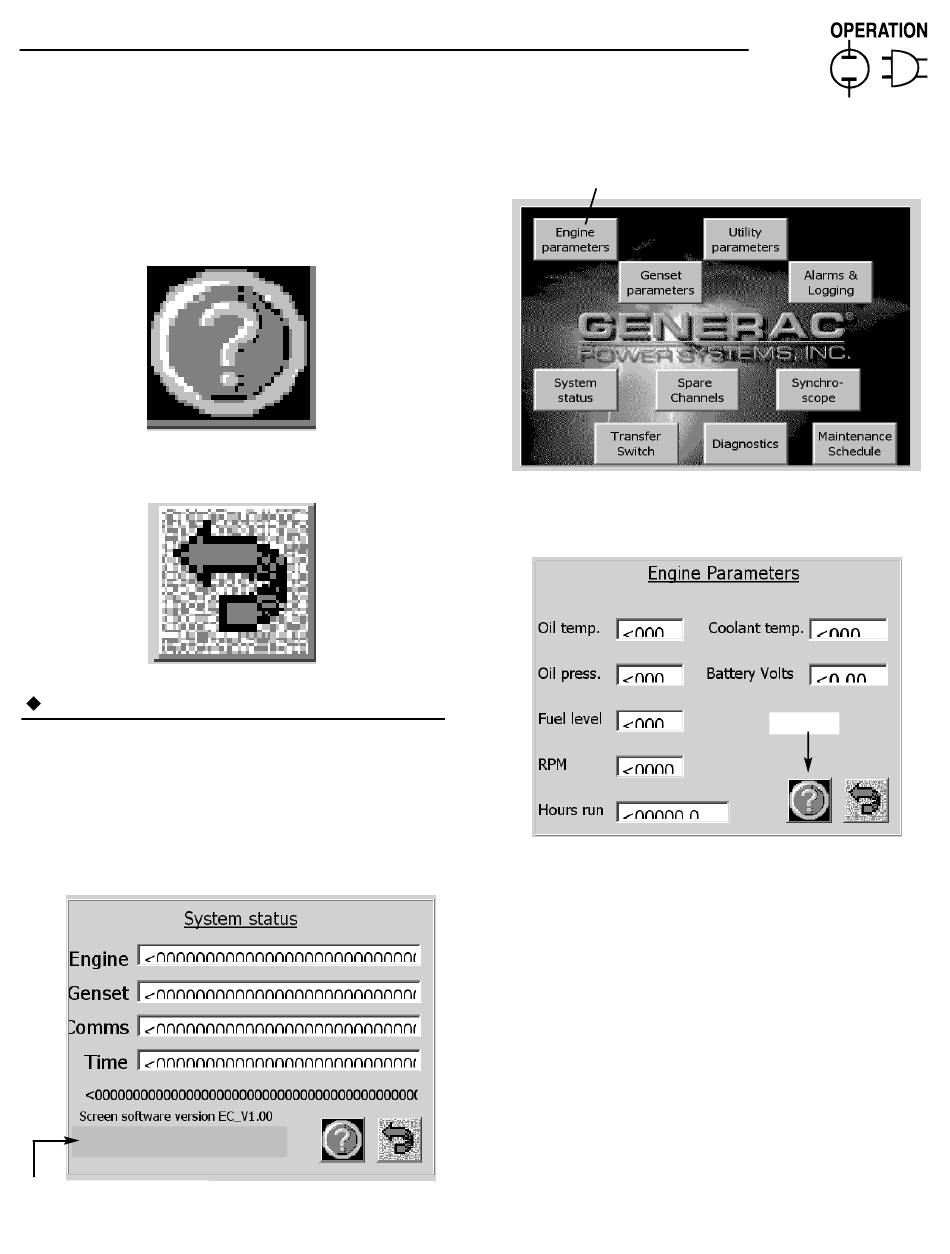

Figure 2 — Help Key
Figure 3 — Return to Main Menu Key

3.2.7 SOFTWARE VERSION DISPLAY

The software version number for the PM-GC, and the
version number for the display software, are located
on the status page which is accessed via the "SYS-
TEM STATUS" touch button. This should always be
referred to when requesting help or service from
Generac and it's dealers.
Figure 4 — System Status Screen
PM-PC software version v1.00
Software Version Numbers
Section 3 — Operation
Figure 5 — Typical Menu Screen
Touch here for engine parameters. (Also see Figure 6.)
Figure 6 — Typical Parameter Screen - Engine
Prameters
• ENGINE PARAMETERS: Temperatures, pressures,
rpm, etc.
• GENERATOR PARAMETERS: Voltages, frequency,
power, etc.
• UTILITY PARAMETERS: Voltages, frequency,
power, etc.
• CURRENT ALARMS: Displays any current alarms/
warnings
• SYSTEM STATUS: Displays what the system is
currently doing
• SPARE CHANNELS: Shows the measurements
taken on some spare channels
• SYNCHROSCOPE: Shows the synchroscope (active
in PM-PC only)
• TRANSFER SWITCH: A mimic diagram of the
LOCAL contactor (not the main transfer switch,
active in PM-PC only)
• DIAGNOSTICS: Diagnostic options are displayed
here.
