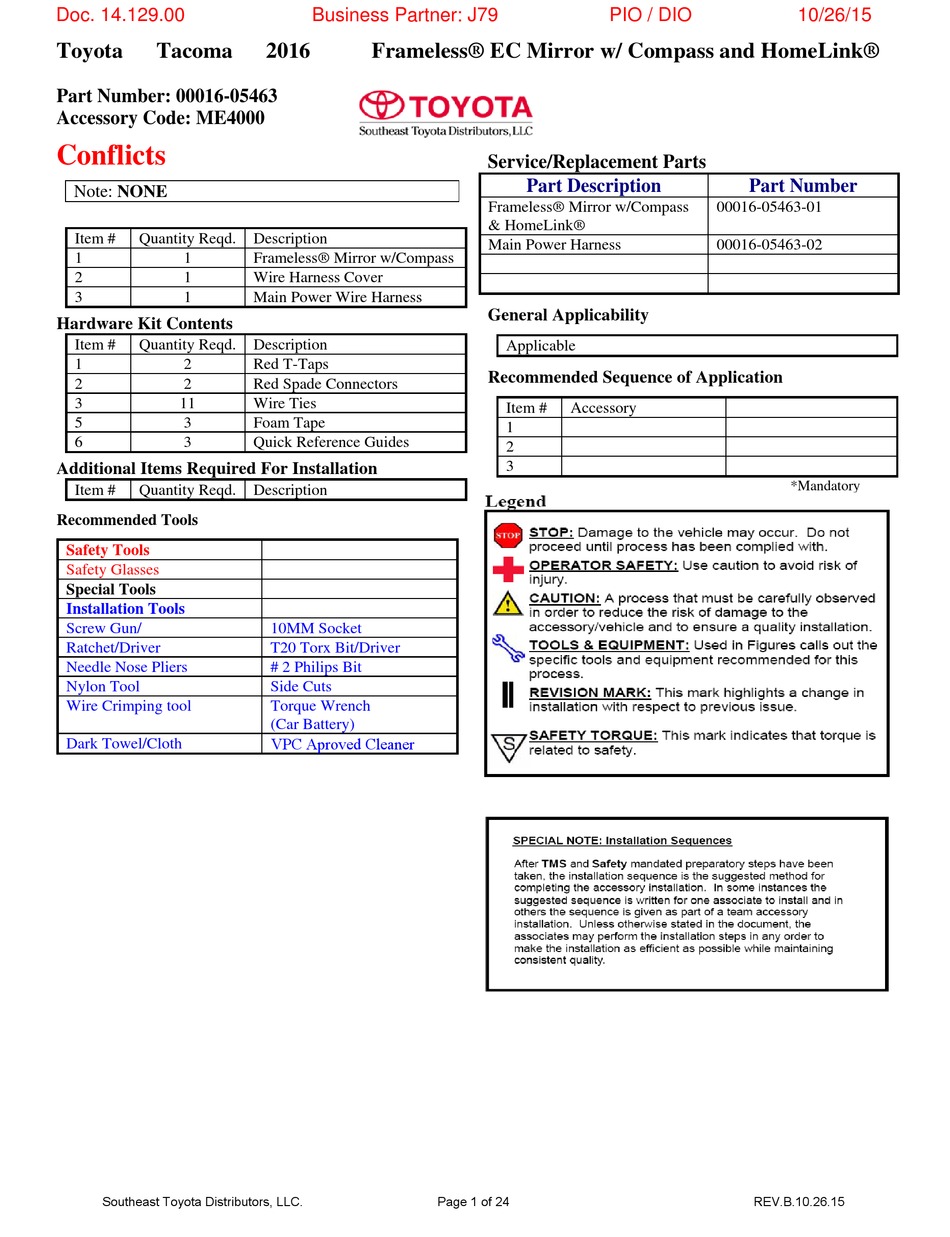

Doc. 14.129.00
Toyota
Tacoma
Part Number: 00016-05463
Accessory Code: ME4000
Conflicts
Note: NONE
Item #
Quantity Reqd.
1
1
2
1
3
1
Hardware Kit Contents
Item #
Quantity Reqd.
1
2
2
2
3
11
5
3
6
3
Additional Items Required For Installation
Item #
Quantity Reqd.
Recommended Tools
Safety Tools
Safety Glasses
Special Tools
Installation Tools
Screw Gun/
Ratchet/Driver
Needle Nose Pliers
Nylon Tool
Wire Crimping tool
Dark Towel/Cloth
Southeast Toyota Distributors, LLC.
Business Partner: J79
2016
Frameless® EC Mirror w/ Compass and HomeLink®
Description
Frameless® Mirror w/Compass
Wire Harness Cover
Main Power Wire Harness
Description
Red T-Taps
Red Spade Connectors
Wire Ties
Foam Tape
Quick Reference Guides
Description
10MM Socket
T20 Torx Bit/Driver
# 2 Philips Bit
Side Cuts
Torque Wrench
(Car Battery)
VPC Aproved Cleaner
PIO / DIO
Service/Replacement Parts
Part Description
Frameless® Mirror w/Compass
& HomeLink®
Main Power Harness
General Applicability
Applicable
Recommended Sequence of Application
Item #
Accessory
1
2
3
Page 1 of 24
10/26/15
Part Number
00016-05463-01
00016-05463-02
*Mandatory
REV.B.10.26.15
Advertisement
Related Manuals for Toyota Frameless Mirror w/Compass & HomeLink
Summary of Contents for Toyota Frameless Mirror w/Compass & HomeLink
- Page 1 Screw Gun/ 10MM Socket Ratchet/Driver T20 Torx Bit/Driver Needle Nose Pliers # 2 Philips Bit Nylon Tool Side Cuts Wire Crimping tool Torque Wrench (Car Battery) VPC Aproved Cleaner Dark Towel/Cloth Southeast Toyota Distributors, LLC. Page 1 of 24 REV.B.10.26.15...
- Page 2 Isolate the cable with protection in place. See Figure 1. Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system. Figure 1 Southeast Toyota Distributors, LLC. Page 2 of 24 REV.B.10.26.15...
- Page 3 Remove the visor holder. See Figure 2. Figure 2 3. Using a nylon tool, disengage the 4 clips. Disconnect the connector. Remove map light assembly. See figure 3. Figure 3 Southeast Toyota Distributors, LLC. Page 3 of 24 REV.B.10.26.15...
- Page 4 4a and 4b. Text in Illustration Protective Tape Figure 4a Figure 4b 5. Disengage the clip and 2 guides to remove the front pillar garnish LH. See Figure 5. Figure 5 Southeast Toyota Distributors, LLC. Page 4 of 24 REV.B.10.26.15...
- Page 5 6. Figure 6 7. Remove the clip. Disengage the 2 clips and guide to remove the cowl side trim board LH. See figure 7a and 7b. Figure 7b Figure 7a Southeast Toyota Distributors, LLC. Page 5 of 24 REV.B.10.26.15...
- Page 6 Remove the inner rear view mirror cover. Disconnect the connector. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror assembly. See figure 9a and 9b. Figure 9a Figure 9b Southeast Toyota Distributors, LLC. Page 6 of 24 REV.B.10.26.15...
- Page 7 Figure 10 11. Using side cuts, trim the two power wires back 12 inches from the end of the spade connectors. DO NOT trim the ground wire. See figure 11. Figure 11 Southeast Toyota Distributors, LLC. Page 7 of 24 REV.B.10.26.15...
- Page 8 13a and 13b. Do not use power tools to tighten screw. Hands tighten only. Note: Remove fingerprints, smudges, dirt, etc. from mirror and windshield with glass cleaner. Figure 13a Figure 13b Southeast Toyota Distributors, LLC. Page 8 of 24 REV.B.10.26.15...
- Page 9 Seat the bottom of the cover securely to base of the mirror. Extend the top of the cover fully into headliner. See figure 15a and 15b. Figure 15b Figure 15a Southeast Toyota Distributors, LLC. Page 9 of 24 REV.B.10.26.15...
- Page 10 See figure 16. Figure 16 17. Secure the harness to the front center of the headliner with one (1) piece of foam tape. See figure 17. Figure 17 Southeast Toyota Distributors, LLC. Page 10 of 24 REV.B.10.26.15...
- Page 11 Wire tie the harness to the vehicle harness as shown. See figure Sunroof Models: DO NOT wire tie harness to factory drain tube. Figure 19 Southeast Toyota Distributors, LLC. Page 11 of 24 REV.B.10.26.15...
- Page 12 Tacoma Toyota Frameless® EC Mirror w/ Compass & HomeLink® 20. Route the mirror harness down to the LH kick panel. Follow the factory harness. See figure 20. Figure 20 Southeast Toyota Distributors, LLC. Page 12 of 24 REV.B.10.26.15...
- Page 13 Pin 8 grey wire in white connector IC3. See figure 21a and figure 21b. T-Tap the main power harness power wires to Pin 8 grey wire in white connector IC3. Figure 21b Figure 21b Figure 21a Southeast Toyota Distributors, LLC. Page 13 of 24 REV.B.10.26.15...
- Page 14 IA. See figure 22a and 22b. Figure 22a Figure 22b 23. Using wire ties, surcure the mirror main power harness wires to the vehicle harness as shown. See figure 23. Wire Tie Figure 23 Southeast Toyota Distributors, LLC. Page 14 of 24 REV.B.10.26.15...
- Page 15 <A>. See figure 25. Figure 25 26. Engage the guide and 2 clips to install the cowl side trim board LH. Install the clip. See figure 26a and 26b. Figure 26b Figure 26a Southeast Toyota Distributors, LLC. Page 15 of 24 REV.B.10.26.15...
- Page 16 28. Engage the 2 guides and clip to install the front pillar garnish LH. Install the bolt. Engage the 3 claws to close the cover. See figure 28a and 28b. Figure 28a Figure 28b Southeast Toyota Distributors, LLC. Page 16 of 24 REV.B.10.26.15...
- Page 17 29. Engage the 2 claws to install the visor holder LH. See figure 29. Figure 29 30. Connect the connector. Engage the 4 clips and install the map light assembly. See figure 30. Figure 30 Southeast Toyota Distributors, LLC. Page 17 of 24 REV.B.10.26.15...
- Page 18 Toyota Frameless® EC Mirror w/ Compass & HomeLink® 31. Place owner’s cards in the glove box. See figure 31. Figure 31 32. Connect the negative battery cable. Torque: 48in.*lbf Figure 32 Southeast Toyota Distributors, LLC. Page 18 of 24 REV.B.10.26.15...
- Page 19 NOTE: Correct compass zone must be selected prior to compass calibration to ensure accurate calibration. If the vehicle is driven in a new zone, repeat zone selection procedure. Figure 33 Southeast Toyota Distributors, LLC. Page 19 of 24 REV.B.10.26.15...
- Page 20 HomeLink icon will appear in mirror. Press button again to stop the icon from flashing. Overhead Console: Check dome light. Verify the dome light functions properly. Check the Sunroof if applicable. Verify the sunroof functions properly. Southeast Toyota Distributors, LLC. Page 20 of 24 REV.B.10.26.15...
- Page 21 Frameless® EC Mirror w/Compass and HomeLink® SET P/N 00016- SET P/N 00016-05463-01 IMH1 Using the ring eyelet connect the main power harness ground wire to factory ground location IA. IA Southeast Toyota Distributors, LLC. Page 21 of 24 REV.B.10.26.15...
- Page 22 Pin 3 to ground Approx. 12 VDC with switch in ON position Approx. 0 VDC with switch in OFF position Wire Color Circuit Black w/White Trace Ignition Black Ground Black Battery Southeast Toyota Distributors, LLC. Page 22 of 24 REV.B.10.26.15...
- Page 23 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Vehicle Connector IC3 Circuit Southeast Toyota Distributors, LLC. Page 23 of 24 REV.B.10.26.15...
- Page 24 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Vehicle Ground Circuit IA Southeast Toyota Distributors, LLC. Page 24 of 24 REV.B.10.26.15...
