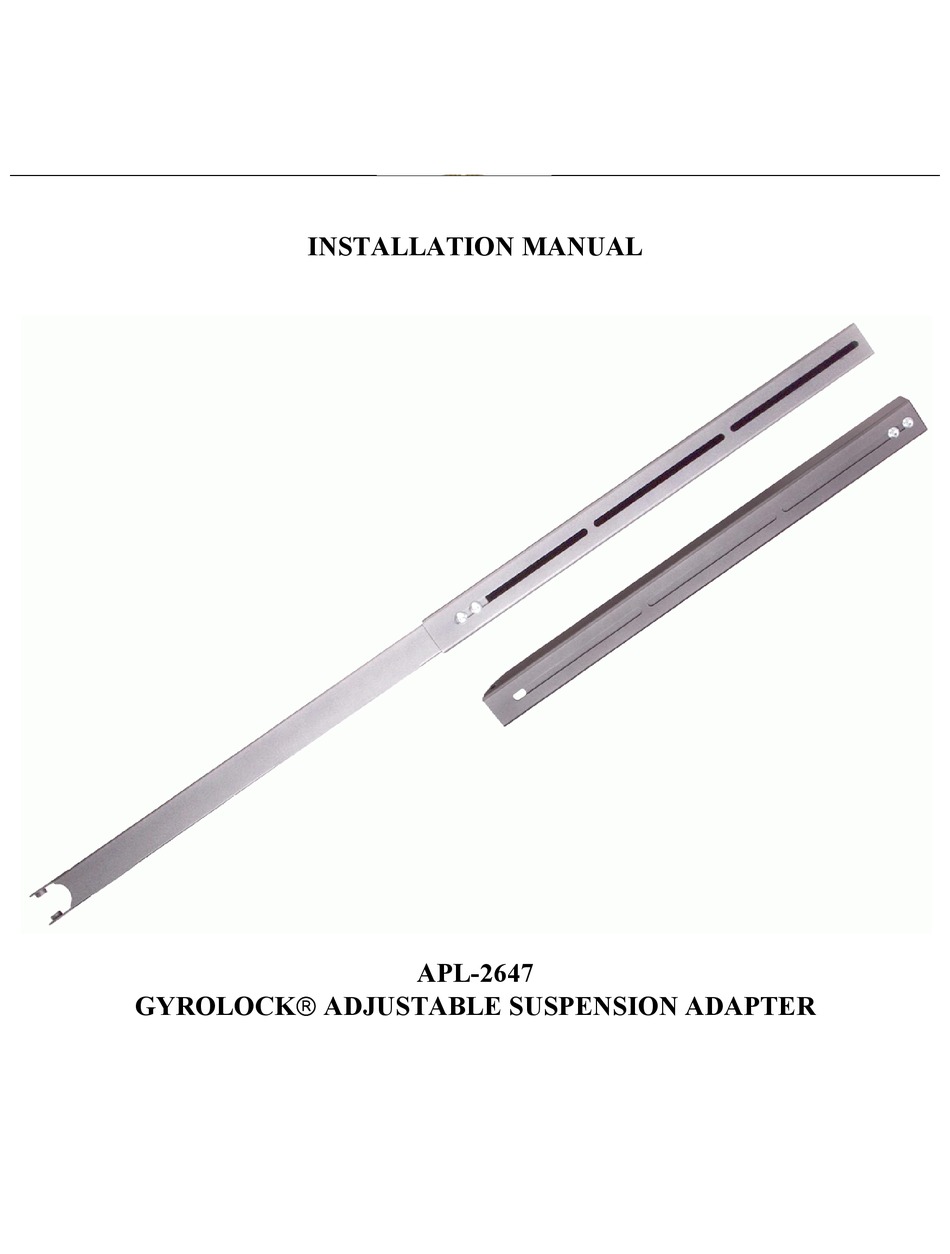

- Page 1 INSTALLATION MANUAL APL-2647 GYROLOCK ADJUSTABLE SUSPENSION ADAPTER...
-
Page 2: Table Of Contents
APL-2647 Suspension Adapter Table of Contents Warning Statements ..............................4 Parts List ................................. 5 Installation Tools ..............................5 Ceiling and Wall Installation ..........................6 Upper Plate Installation............................8 Bracket Installation ..............................9 Troubleshooting Procedures ..........................11 Technical Specifications ............................12... -
Page 3: Warning Statements
APL-2647 Suspension Adapter Warning Statements WARNING: DO NOT REMOVE THE SCREWS COMPLETELY FROM THE EXTENSION WHEN MAKING A HEIGHT ADJUSTMENT WHILE THE CEILING PLATE IS SECURED TO THE CEILING OR THE WALL. LOOSEN, ADJUST, AND THEN RE-TIGHTEN THE SCREWS. FAILURE TO DO SO COULD RESULT IN PERSONAL INJURY AND/OR DAMAGE TO THE PROJECTOR. -
Page 4: Parts List
APL-2647 Suspension Adapter Parts List NOTE: This mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact us (800-888-6024). -
Page 5: Ceiling And Wall Installation
APL-2647 Suspension Adapter Ceiling and Wall Installation WARNING: THE WALL OR CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE PROJECTOR. IF NOT, THE WALL OR CEILING WILL HAVE TO BE REINFORCED. PROPER INSTALLATION PROCEDURES BY A QUALIFIED TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. - Page 6 APL-2647 Suspension Adapter Replace the original extension with the APL-2647. Mount the APL-2647 the same way that the middle extension was removed (Figure 2). CEILING PLATE M8 HEX HEAD SCREW FLAT WASHER STAR WASHER M8 HEX HEAD SCREW FLAT WASHER...
-
Page 7: Upper Plate Installation
APL-2647 Suspension Adapter Upper Plate Installation Single Stud Locate the center of the single wooden stud that will be used for the installation. Secure the upper plate to the single stud by using the three #14 wood screws that are supplied with the PBL Series mount (mount these screws using the three holes that are directly in the middle of the upper plate). -
Page 8: Bracket Installation
APL-2647 Suspension Adapter SINGLE WOOD STUD CEILING STRUCTURE SOLID STRUCTURE CEILING PLATE CEILING (3) #14 X 2" WOOD SCREWS CEILING PLATE APL-2647 SUITABLE HARDWARE EXTENSION (COMMERCIALLY AVAILABLE) APL-2647 EXTENSION Figure 4. Stud Installation Bracket Installation Raise the projector with the mounting bracket attached. - Page 9 APL-2647 Suspension Adapter For greater height adjustability, or changing the extension support, remove the bell housing. Loosen the screws to make you height adjustment, or chose the lower slot Secure the height adjustments with two M8 head screws. CAUTION: For fine height adjustments, hold the projector before loosening the and making the needed adjustments.
-
Page 10: Troubleshooting Procedures
APL-2647 Suspension Adapter Troubleshooting Procedures QUESTION: My projector mount must be set at an angle to be viewed properly on the wall, but the projector will not hold at this position. Why is this? ANSWER: The angle adjustments are not tight; they must be tightened. -
Page 11: Technical Specifications
APL-2647 Suspension Adapter Technical Specifications Figure 8 Technical Dimensions Page 12 Installation Manual...
