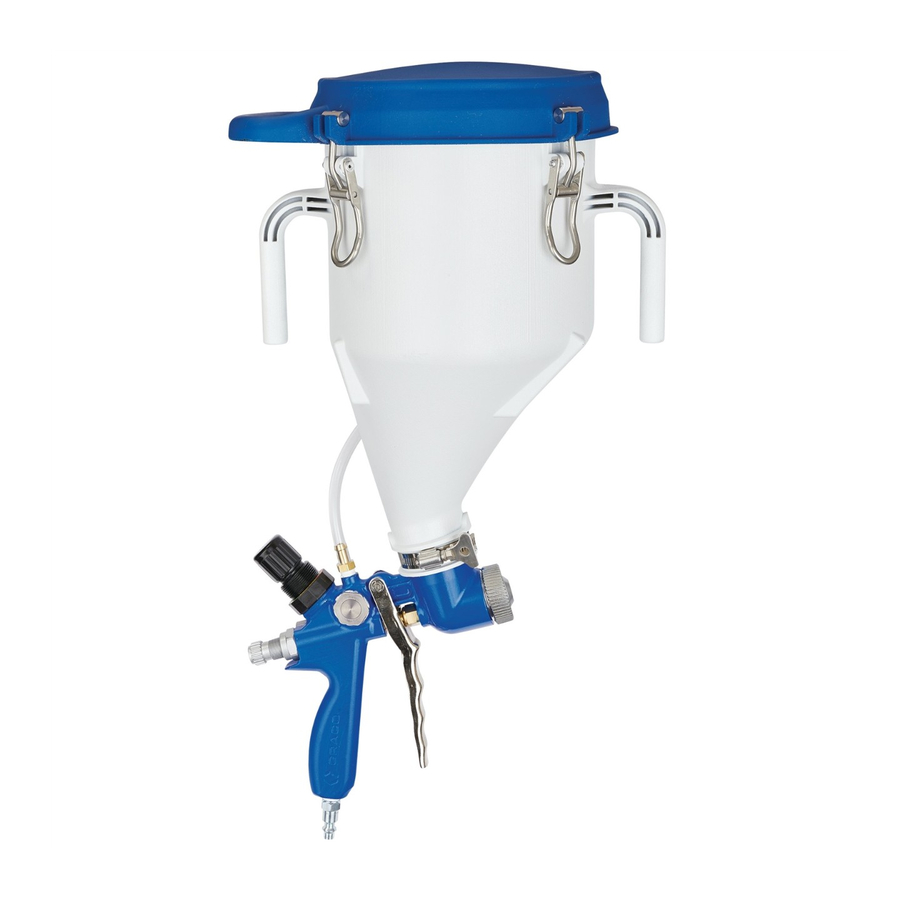

Graco 25D496 Quick Start Manual

Quick Start Guide
For spray application of water-based architectural and texture coatings.
Recommended gun settings for different patterns can be found on page 19 of the Operation manual.
Read Operation manual 3A5725 for complete instructions and warnings.
This guide is not a substitute for reading and understanding all operation manuals and warning labels supplied
with the equipment. It is important that you read and understand all warnings and instructions before operating
this equipment.
Follow the pressure relief procedure and wear protective equipment including but not limited to protective eye wear.
RUPTURE HAZARD: Over-pressurizing the hopper can result in rupture. To avoid injury, only pressurize hopper
by connecting air supply tube to barbs on hopper and gun.
FAILURE TO FOLLOW ALL WARNINGS CAN RESULT IN SERIOUS INJURY, AMPUTATION OR DEATH.

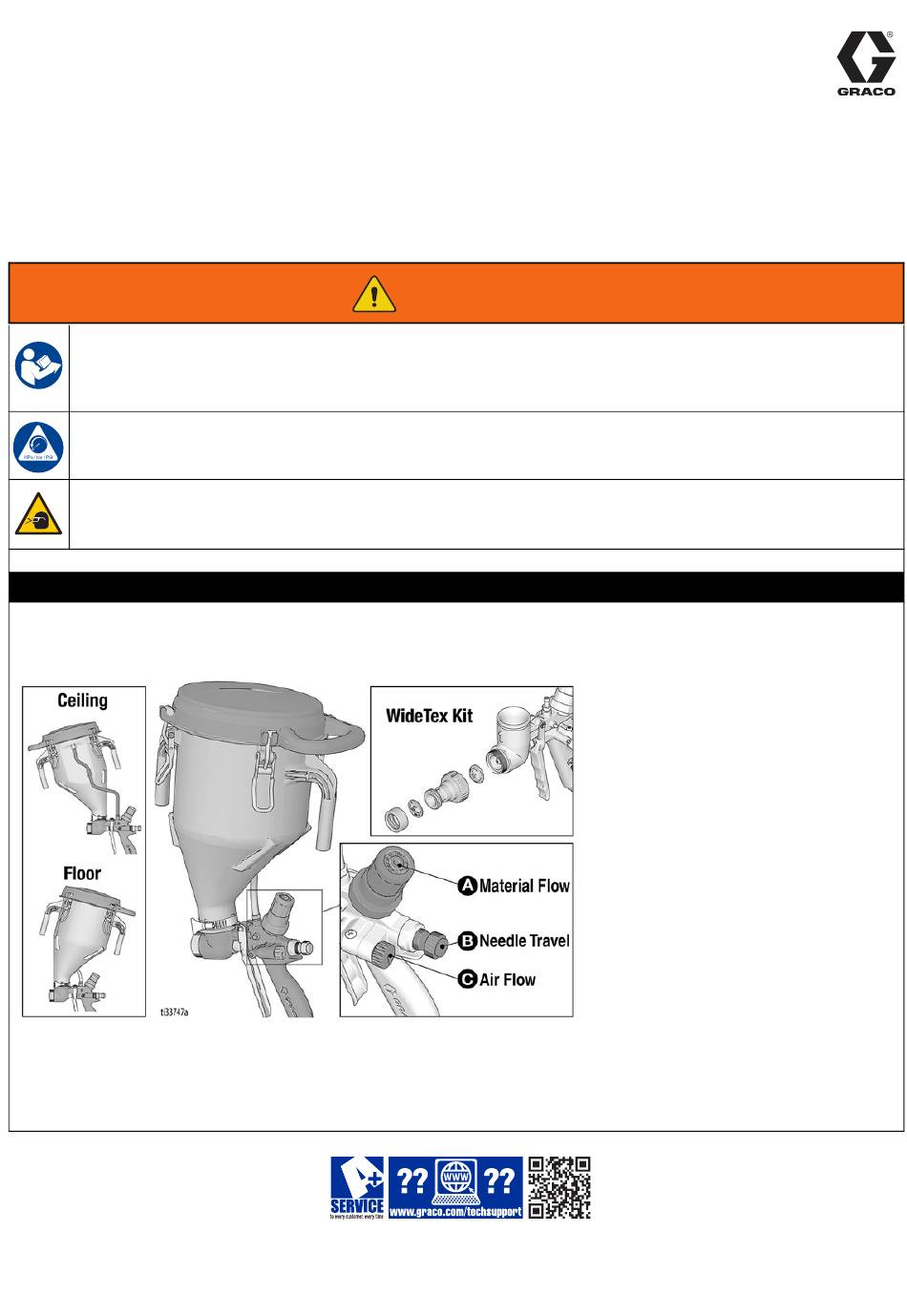

COMPONENT IDENTIFICATION - 25D496
for Pressurized Hopper Gun
WARNING
A. Material Flow Regulator: Pressurizes
the material hopper and adjusts material
flow. Turn counterclockwise to decrease
flow; turn clockwise to increase flow. Push
down to lock; pull up to unlock.
B. Needle Travel Adjustment Knob:
Adjusts the positions of the gun needle in
relation to the spray tip. Turn clockwise to
limit needle travel and reduce material
flow; turn counterclockwise to increase
needle travel and increase flow.
C. Air Flow Valve: Adjusts the amount of
atomizing air that is sent to the spray tip to
control the spray pattern. Turn clockwise to
decrease air flow; turn counterclockwise to
increase air flow.
