Land Pride 380-166A Installation Instructions

Third Function Valve Kit #380-166A
Installation Instructions
For MX4800, MX5200, & MX5800 Kubota Tractors With LA1065 Loader
and For MX4700 & MX5100 Kubota Tractors With LA844 Loader
37243
1
Figure 1
Notes
For color photos, visit
https://dealers.landpride.com/en/12036/dealer-training
and look for "Third Function Valves."
1. This manual is written with the assumption that the
tractor is not supplied with rear remotes or backhoe.
2. This valve kit is designed to operate hydraulic
cylinders.
3. For further assistance write to:
Land Pride Service Department
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address: lpservicedept@landpride.com
Assembly Instructions
Initial Preparations
1. Park tractor on a flat surface, place gear shift lever in
park, turn off engine, and remove ignition key.
Valve Assembly

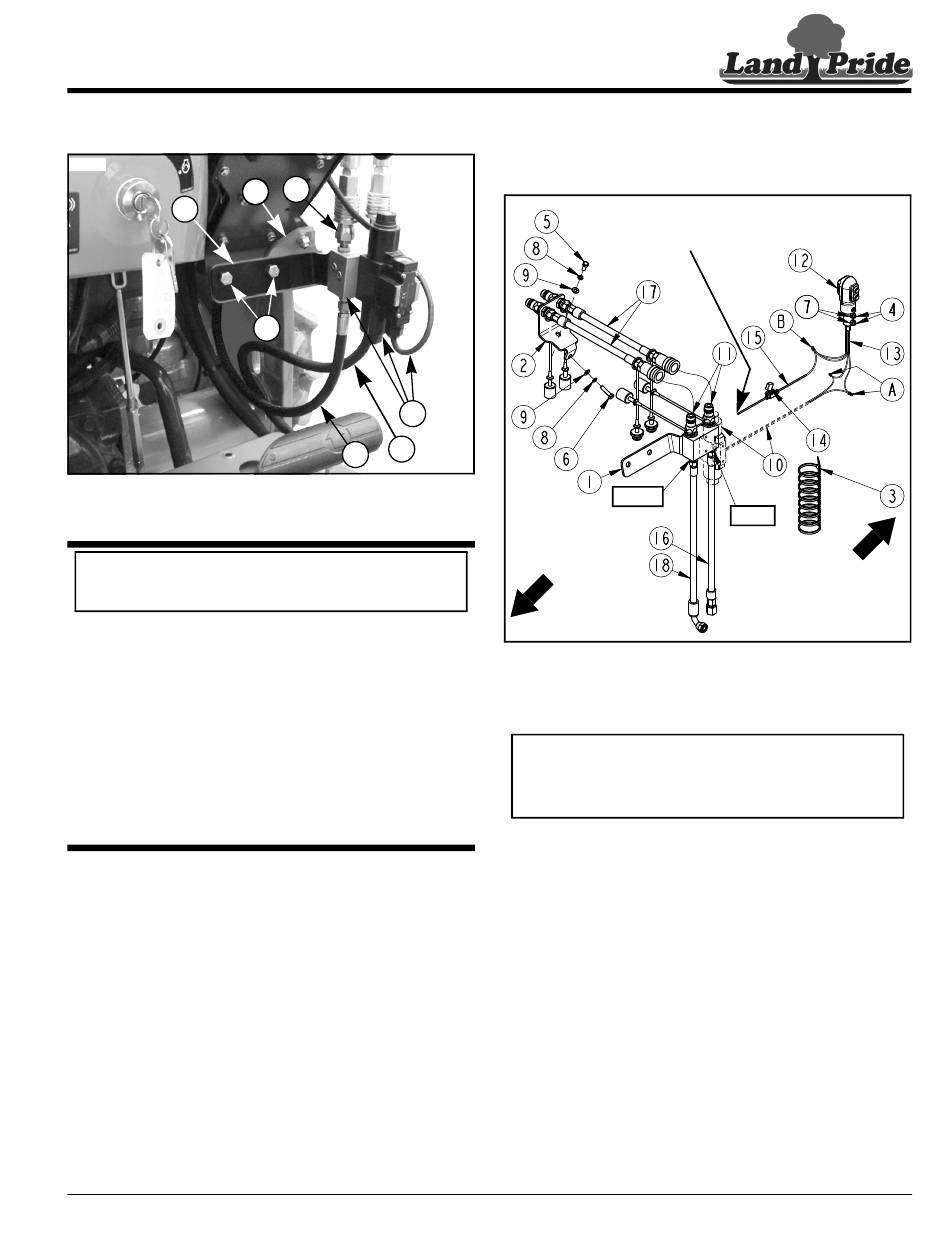

Refer to Figure 1 & Figure 2:
1. Remove lower hardware "G" used to mount tractor's
loader control valve assembly.
2. Bolt Land Pride's third function valve assembly in
place by positioning mount bracket (#1) against
tractor's loader valve mounting bracket "F".
3. Reinstall hardware "G" removed in step 1 to secure
Land Pride's third function valve as shown. Tighten
hardware to the correct torque.
4. Route hydraulic hose (#16) up towards tractor's
loader control valve assembly.
© Copyright 2016 Printed 5/3/19
11
F
G
10
16
18
5. Route hydraulic hose (#18) down and back towards
the hydraulic outlet block.
Attach to positive (+) post
on tractor battery
P-Port
Left-Hand
Side
Figure 2
Connect Hydraulic Hoses to Power
Beyond Ports (Without Backhoe)
IMPORTANT: Land Pride recommends that your
dealer connect hydraulic hoses (#16 & #18) to your
tractor's power beyond ports. Improper hook-up
could cause damage to your tractor or valve.
1. Locate and remove hydraulic hose that connects
power beyond port of tractor's loader valve assembly
to outlet block under the tractor platform.
Refer to Figure 2:
2. Connect hydraulic hose (#18) from "P" port of
third function valve (#10) to fitting in outlet block
where hydraulic hose was removed in step (#1)
3. Connect hydraulic hose (#16) from "T" port of third
function valve (#10) to the fitting in the power beyond
port of loader valve where hydraulic hose was
removed in step #1 above.
4. Secure hoses (#16 & #18) to tractor as needed with
cable ties (#3).
5. Check tractor hydraulic fluid level. If low, add
recommended hydraulic fluid. Refer to your tractor
Operator's Manual for recommended hydraulic fluid
and procedure for checking hydraulic fluid level.
380-167M
37244
T-Port
Right-Hand
Side
