Land Pride 380-152A Installation Instructions

Third Function Valve Kit #380-152A
Installation Instructions
For L2501, L3301 & L3901 Kubota Tractors with LA525 Loader
For L3200 & L3800 Kubota Tractors with LA524 Loader
For L4600 Kubota Tractor with LA764 Loader
For L4701 Kubota Tractor with LA765 Loader
37117
9
11
10
12 13
Figure 1
Notes
For color photos, visit
https://dealers.landpride.com/en/12036/dealer-training
and look for "Third Function Valves."
1. This manual is written with the assumption that the
tractor is not supplied with rear remotes or backhoe.
2. This valve kit is designed to operate hydraulic
cylinders.
3. For further assistance write to:
Land Pride Service Department
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address: lpservicedept@landpride.com
Assembly Instructions
Initial Preparations
1. Park tractor on a flat surface, place gear shift lever in
park, turn off engine, and remove ignition key.
Valve Assembly

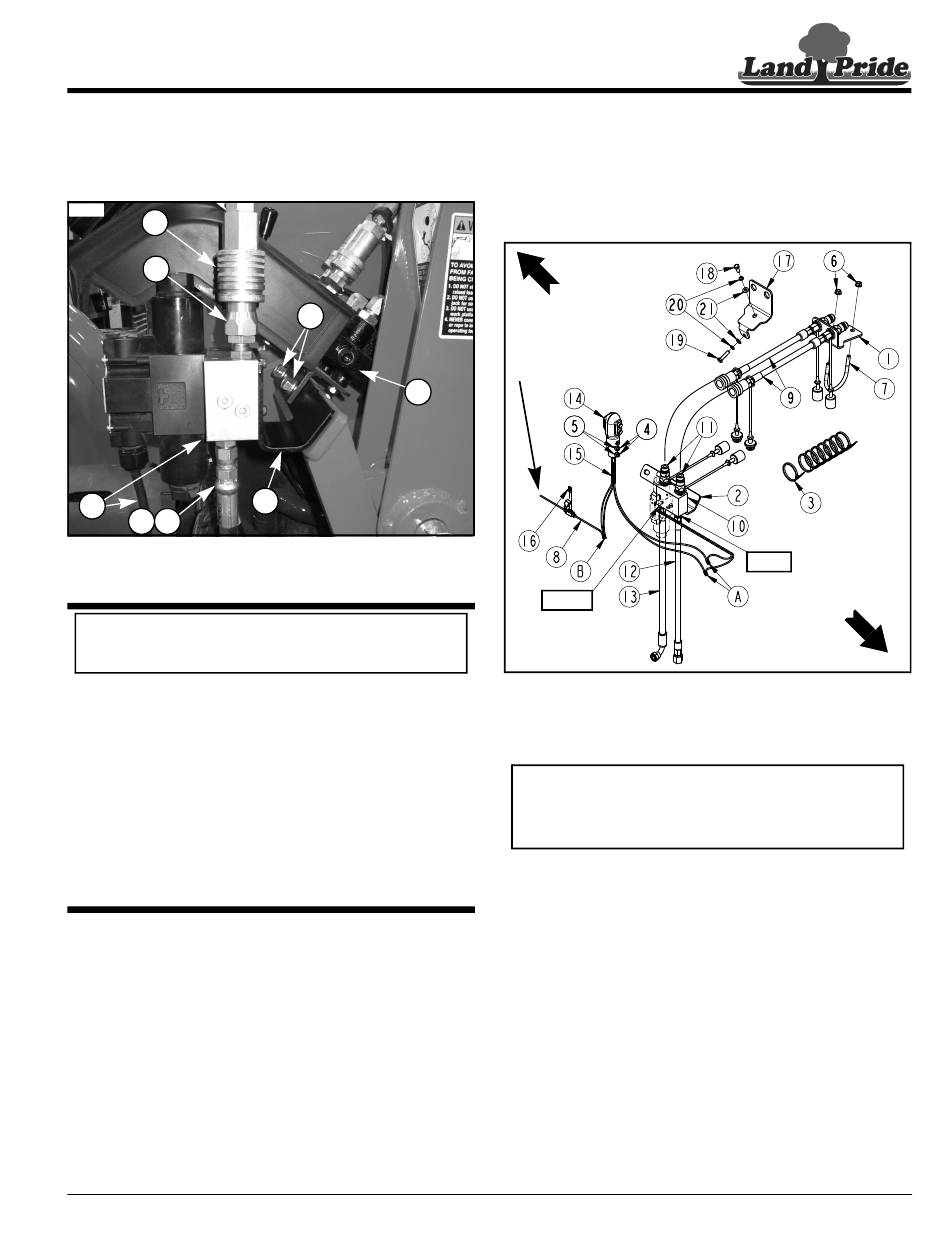

Refer to Figure 1 & Figure 2:
1. Remove hardware "A" used to mount the tractor's
loader control valve assembly "B" .
2. Bolt Land Pride's third function valve assembly in
place by positioning mount bracket (#2) under the
tractor's loader control valve assembly "B" .
3. Reinstall hardware "A" removed in step 1 to secure
Land Pride's third function valve as shown.
Printed 5/3/19
© Copyright 2016
A
B
2
4. Route hydraulic hoses (#12 & #13) under the tractor's
platform and back towards the rear of the tractor.
Left-Hand
Side
Attach to positive
(+) post on the
tractor battery
P-Port
37118
Figure 2
Connect Hydraulic Hoses to Power
Beyond Ports
IMPORTANT: Land Pride recommends that your
dealer connects hydraulic hoses (#12 & #13) to your
tractor's power beyond ports. Improper hook-up
could cause damage to your tractor or valve.
1. Locate and remove hydraulic hose that connects
power beyond port of tractor's loader valve assembly
to outlet block under the tractor platform.
Refer to Figure 2:
2. Connect hydraulic hose (#13) from "P" port of
third function valve (#10) to fitting in outlet block
where hydraulic hose was removed in step (#1)
3. Connect hydraulic hose (#12) from "T" port of third
function valve (#10) to the fitting in the power beyond
port of loader valve where hydraulic hose was
removed in step #1 above.
4. Secure hoses (#12 & #13) to tractor as needed with
cable ties (#3).
5. Check tractor hydraulic fluid level. If low, add
recommended hydraulic fluid. Refer to your tractor
Operator's Manual for recommended hydraulic fluid
and procedure for checking hydraulic fluid level.
380-153M
T-Port
Right-
Hand Side
1
