- Page 1 COOKTOP PARTS 30" ELECTRIC DROP−IN RANGE For Models:RS696PXGB14, RS696PXGQ14 SELF CLEANING (Black) (Designer White) OVEN 3−05 Litho in U.S.A. (cre) Part No. 8186251...

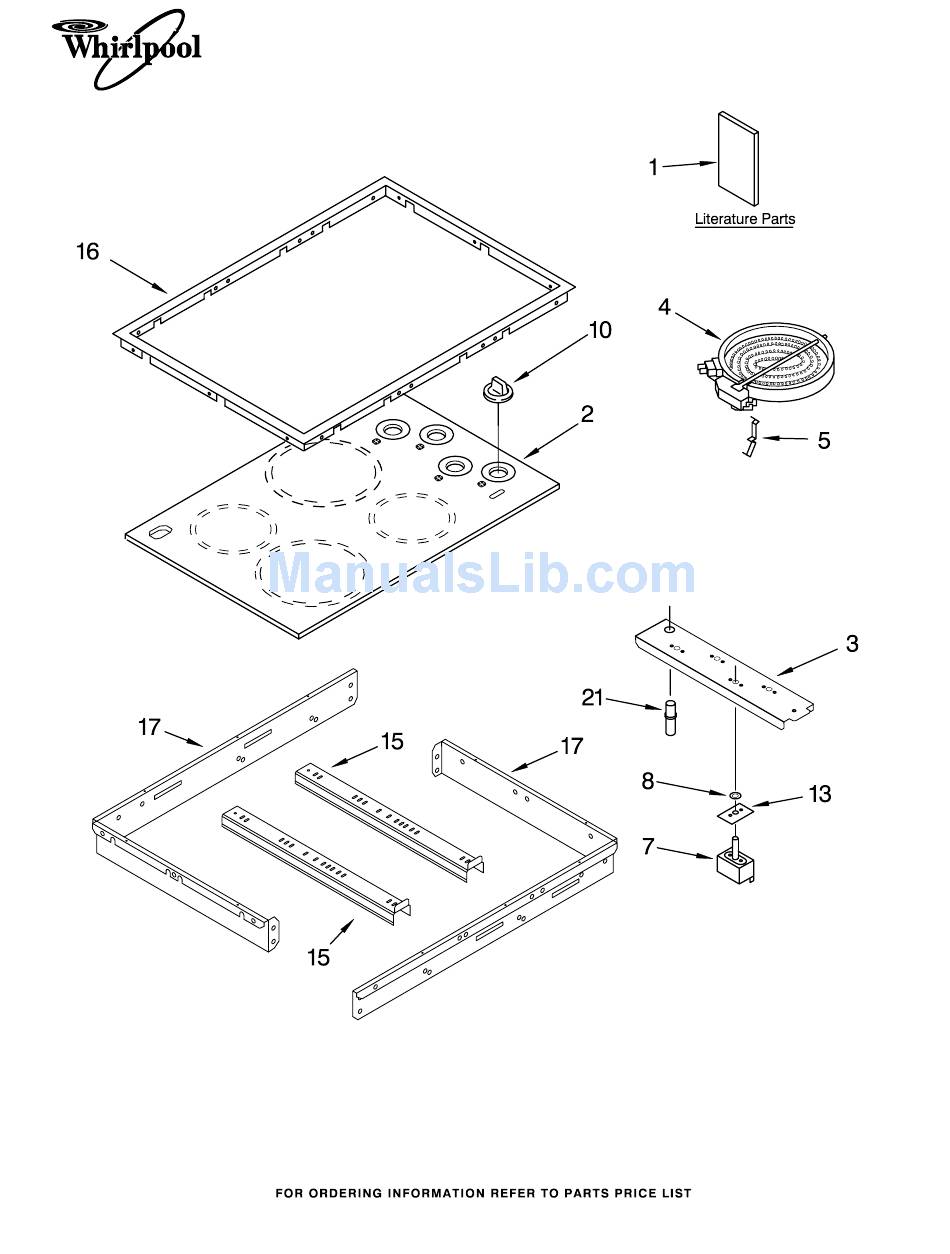

- Page 2 COOKTOP PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION Literature Parts 8300770 Installation Instructions 8300666 Use & Care Guide 9760536 Tech Sheet 3191638 Safe Cooking Tips Cooktop, Glass 3191843 Black 3191189 White 3191310 Bracket, Switch Mounting Element, Surface 8523698 1200W RF−LR...
-
Page 3: Oven Parts
OVEN PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) 8186251... - Page 4 4448520 Bumper, Door 9760535 Thermosatat (TOD) SPST 98c−74c 9760503 Bracket 4455865 Top Chassis 4449809 Screw 4452158 Tube, Vent 3196176 Screw OVEN PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION 4452165 Lens, Light 4452368 Oven Light Assy 4452166 Bulb, Light...
-
Page 5: Control Panel Parts
8186251 CONTROL PANEL PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION Control Panel Assy. W/Membrane Switch 4456312 Black Model 4456311 White Model 4449745 Screw 3400832 Screw 4451034 Gasket, Control Panel 8301919 Assy, Control 4449745 Screw... -
Page 6: Oven Door Parts
8300572 L.Side 4449743 Screw 4449259 Glass, Inner 4451722 Insulation, Door 9759225 Glass, Inner Door Handle 4448854 Black Model 4448855 White Model OVEN DOOR PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION 4450813 Bracket, Handle 4451040 Screw Assy, Door Glass... - Page 7 Part DESCRIPTION 4451759 Vent, Exhaust 4449040 Screw 4455178 Elbow, Vent−Top 4455334 Blower 4451758 Block, Foam 4455177 Elbow, Vent−Bottom 8186251 TOP VENTING PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION 4449868 Block, Terminal 3400080 Screw 4448549 Vent, (Control Panel) 4450038 Screw Side, Control Compt.
- Page 8 INTERNAL OVEN PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION 4456103 Element, Broil 4449154 Screw 4457277 Grill, Broiler 4457276 Pan, Broiler 4448717 Rack, Oven 9759322 Pad, Rack 4452153 Element, Bake 4449154 Screw 8186251...
-
Page 9: Optional Parts
350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8186251 OPTIONAL PARTS For Models:RS696PXGB14, RS696PXGQ14 (Black) (Designer White) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
