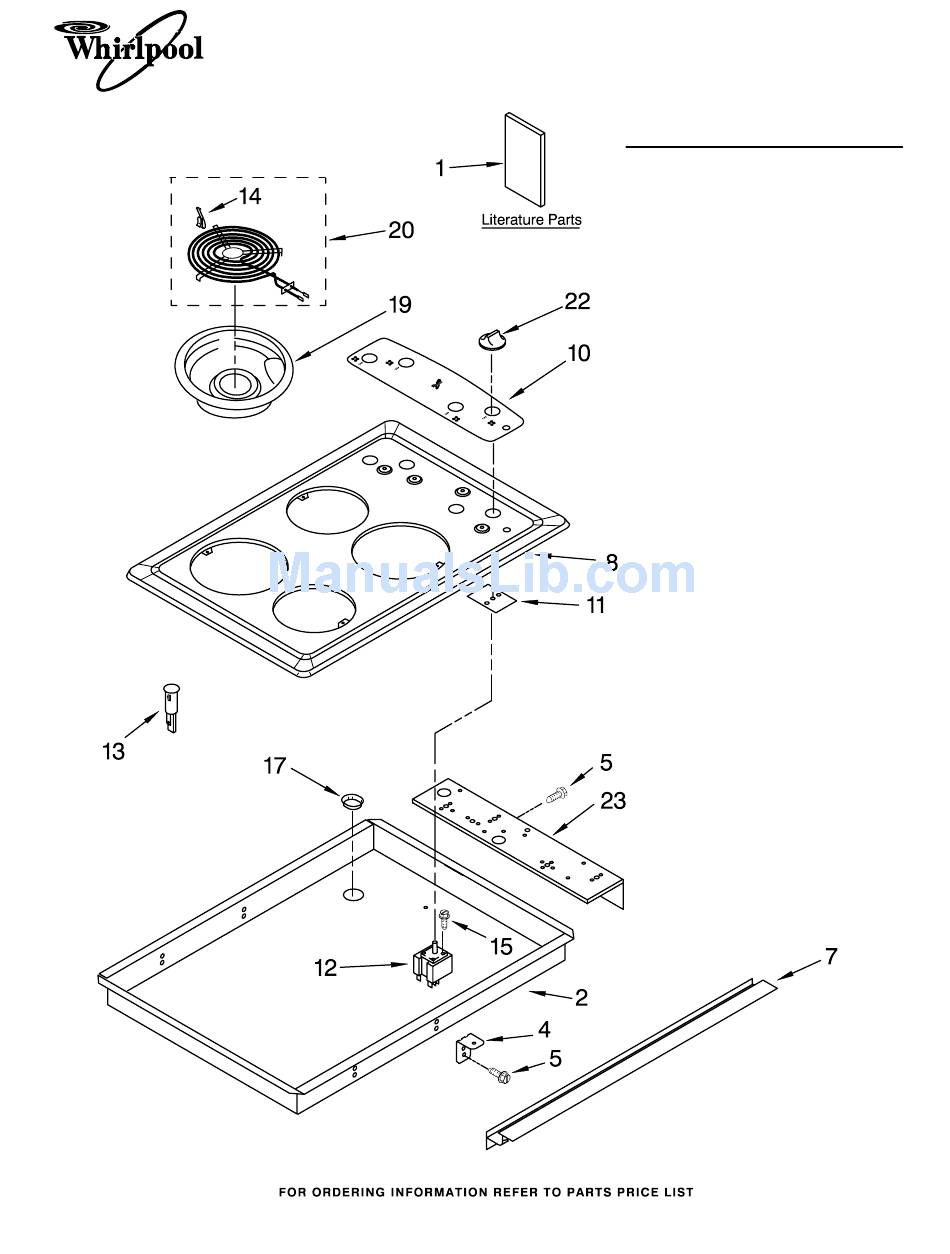

COOKTOP PARTS
For Models:RS610PXGW10,RS610PXGV10
(White)
1
(Black on Biscuit)
Illus.
No.
1
LIT8300649 Installation
LIT8300666 Use & Care Guide
LIT8302071 Tech Sheet
LIT3191638 Safe Cooking Tips
2
3192459 Burner Box
4
3192575 Bracket, Mounting
5
3196537 Screw, 8−18 x 3/8
7
3192102 Trim, Extension
8
3191168 White
8284709 Biscuit
10
3191228 Panel, Control
11
3183956 Seal, Switch (4)
12
3191471 Use W/ 6" Surface
3191472 Use W/ 8" Surface
13
4456181 Light, Indicator
14
3195917 Clip, Element
15
3400855 Screw, 8−32 x 1/4
17
4448444 Grommet
19
3195208 6" (2)
3195209 8" (2)
20
8053265 6" LF−RR
8053267 8" RF−LR
22
3196231 Knob, Control (4)
23
3192330 Bracket, Switch
30" DROP−IN
ELECTRIC
STANDARD CLEAN
OVEN
Part
No.
DESCRIPTION
Literature Parts
Instructions
Cooktop
Switch, Infinite
(Blue Shaft)
(Silver Shaft)
Drip Bowl
Element, Coil
Mounting
Part No. 8186116
