11−02 Litho in U.S.A. (RS)

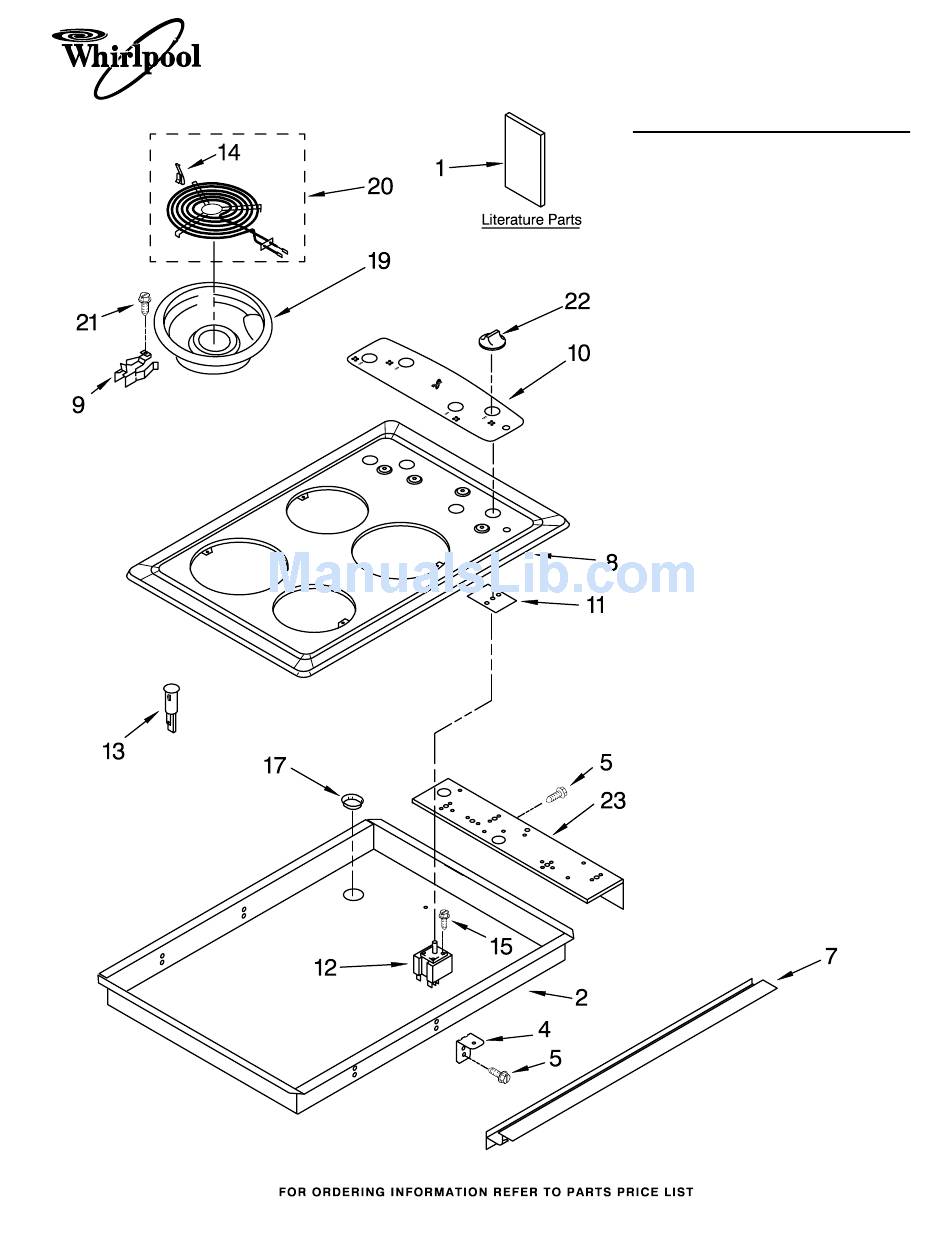

COOKTOP PARTS
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White)
(Almond) (Black on Biscuit)
Illus.
No.
1
2
4
5
7
8
9
10
11
12
13
14
15
17
19
20
21
22
23
1
30" DROP−IN
ELECTRIC
STANDARD CLEAN
OVEN
Part
No.
DESCRIPTION
Literature Parts
LIT3191799 Installation
Instructions
LIT3191537 Use & Care Guide
LIT3192846 Tech Sheet
LIT3191638 Safe Cooking Tips
3192459 Burner Box
3192575 Bracket, Mounting
3196537 Screw, 8−18 x 3/8
3192102 Trim, Extension
Cooktop
3191168 White
3191169 Almond
8284709 Biscuit
3195210 Clip, Receptacle
3191228 Panel, Control
3183956 Seal, Switch (4)
Switch, Infinite
3191471 Use W/ 6" Surface
(Blue Shaft)
3191472 Use W/ 8" Surface
(Silver Shaft)
3191491 Light, Indicator
3195917 Clip, Element
3400855 Screw, 8−32 x 1/4
4448444 Grommet
Drip Bowl
3195208 6" (2)
3195209 8" (2)
Element, Coil
8053265 6" LF−RR
8053267 8" RF−LR
3400843 Screw, 8−18 x 3/8
3196231 Knob, Control (4)
3192330 Bracket, Switch
Mounting
Part No. 8185618
