Panasonic DMP-BD10PP Service Manual

Bd/dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DMP-BD10PP
Vol. 1
Colour
(K).......................Black Type
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO.DSD0608009CE
B35
BD/DVD Player

Advertisement

Table of Contents
loading

Related Manuals for Panasonic DMP-BD10PP

Summary of Contents for Panasonic DMP-BD10PP

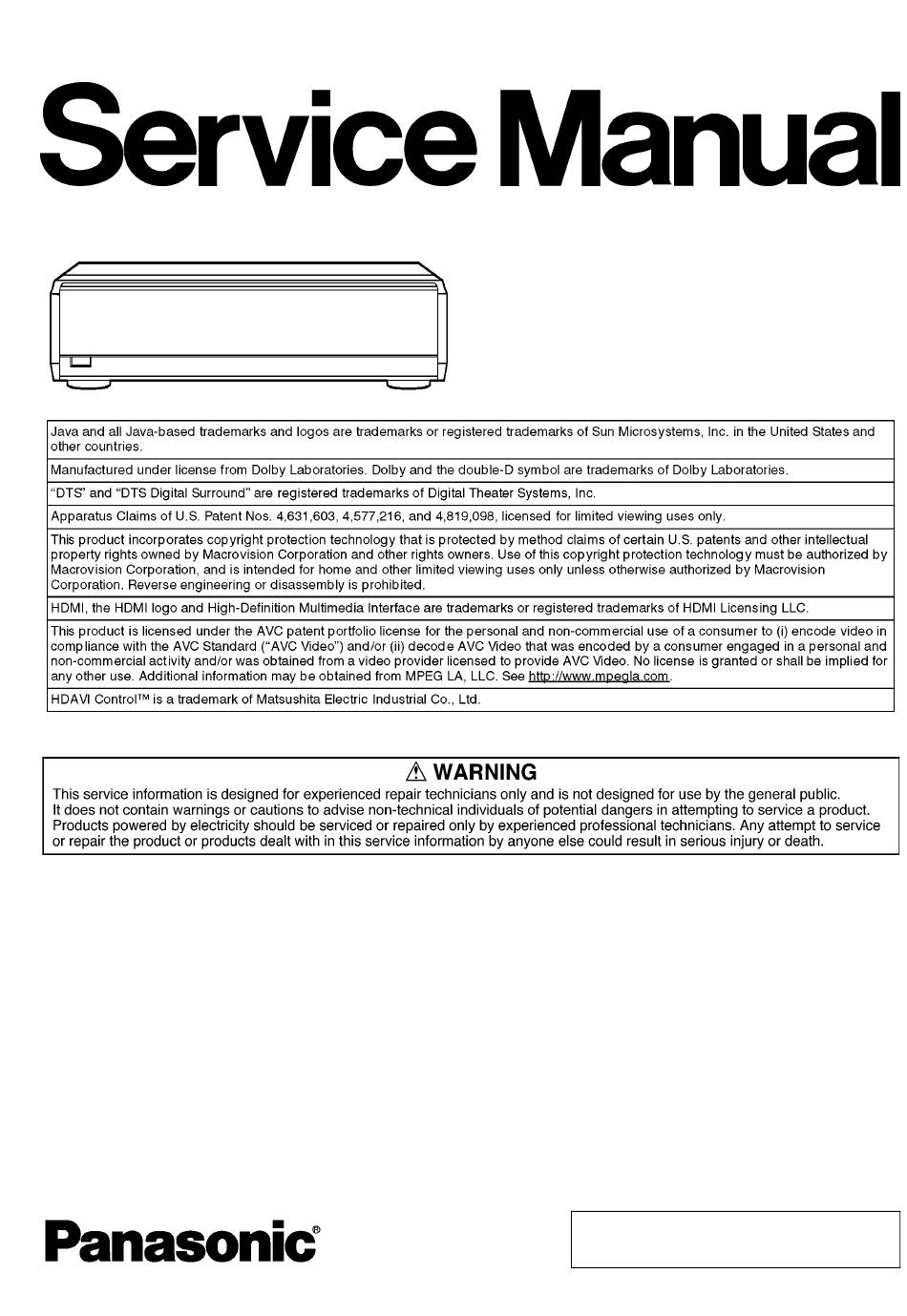

  • Page 1 ORDER NO.DSD0608009CE BD/DVD Player DMP-BD10PP Vol. 1 Colour (K).......Black Type © 2006 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.
