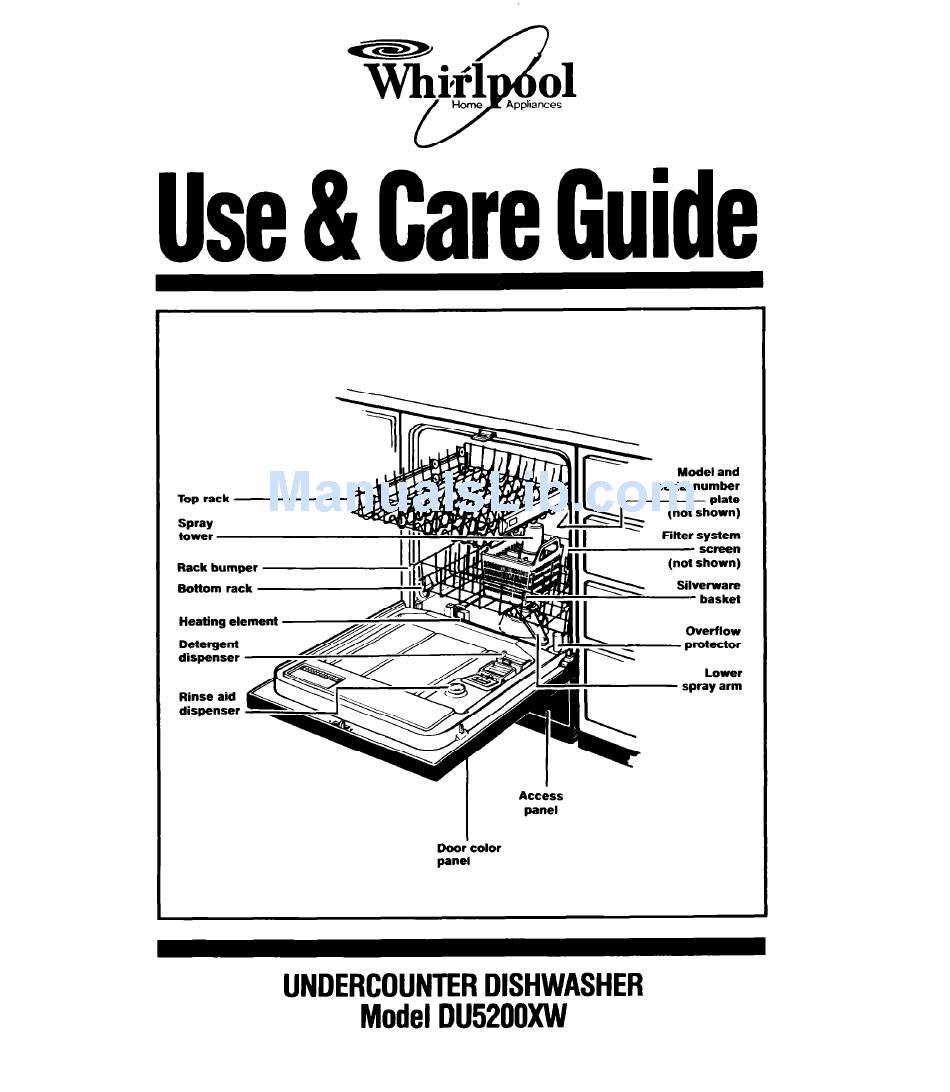

- Page 1 ?Litil Use & Czk Guide Top rack - Spray tower Rack bumper Bottom rack - Heating element Detergent dispenser Rinse aid dispenser UNDERCOUNTER Model DU5200XW Appliances Lpd/ serial Access panel Doormcolor panel DISHWASHER Model number screen (not shown) Silverware Lower...
-
Page 2: Table Of Contents
Special tips Common Dishwashing Problems If You Need Service Or Assistance Whirlpool Dishwasher Warranty 01989 Whirlpool Corporation Thank you for buying a Whirlpool appliance. Please complete and mail the Owner tration Card provided with this product. Then complete the form below. Have this informa- tion ready if you need service or call with a question. -
Page 3: Important Safety Instructions
Important Safety Instructions To reduce the risk of fire, electrical dishwasher, Read all instructions before using the dishwasher. Properly connect to electricity and water. DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instruc- tions for details. Be sure your dishwasher is installed on a level floor that will hold the weight, and in an area suitable for its size and use. -
Page 4: Starting Your Dishwasher
Operating Instructions Continued Starting your dishwasher 1. Select a drying option. (Use AIR DRY for Rinse 8 Hold Cycle.) 2. Turn Cycle Control Knob clockwise to point to a desired cycle. You will feel a definite stop at each cycle mark. The dishwasher will automati- cally start that cycle. -
Page 5: What Happens In Each Cycle
What happens in each cycle Pots & Pans Cycle Normal Wash Cycle Maximum cleaning for cooked-on or baked-on A double wash for moderate to heavily soiled foods. Cycle time* is about 89 minutes. loads. (The Energy Guide Label is based on this cycle.) Cycle time* is about 81 minutes. -
Page 6: What Happens In Each Option
Operating Instructions Continued Light Wash Cycle For light to moderately soiled loads. Cycle time* is about 69 minutes. Rinse *Cycle time includes heated dry time. What happens in each option Heat Dry Option If the Heat Dry Option is selected, air in the dish- washer is heated during the “dry”... -
Page 7: Proper Loading
Proper Loading Cup and glass load Mixed load Preparation for loading It is not necessary to rinse dishes before putting them into the dishwasher. Just remove large pieces and quantities of food and bones. The filtering system helps keep food parti- cles out of the wash water. - Page 8 Proper Loading Continued Bottom rack loading Items with cooked-on or dried-on food should be loaded in the bottom rack, with soiled surfaces facing inward to the spray. Mixed load Make sure pot handles and other items do not stop rotation of the lower spray arm. Spray arm must move freely.
-
Page 9: Adding Detergent And Rinse Aid
Adding Detergent And Rinse Aid See phosphorus content on product labels. Cover Cover Latch Use covered section Light Wash Cycle ‘:-7 Use both sections Pots & Pans Cycle Normal Wash Cycle What kind of detergent to use Use automatic dishwasher Other detergents are too mild and much too sudsy to work in the dishwasher. - Page 10 Adding Detergent And Rinse Aid Continued Fill Rinse aid dispenser A rinse aid helps keep water from forming droplets and drying as spots. Keep the dispenser filled with a rinse aid such as Jet-Dry? A small amount is released automatically during the final rinse of each cycle.
-
Page 11: For Best Results
For Best Results Hot water is a must For best cleaning and drying results, water should be at least 140°F (60%). 1. Turn on hot water faucet nearest the dishwasher. Let water run until it is as hot as possible. 2. - Page 12 For Best Results Continued Energy saving tips You can help save energy if you: 1. Wash full loads. Running a half-filled dish- washer uses the same amount of electricity and hot water as a fully loaded machine. 2. Use the Light Wash Cycle for moderately soiled loads.
-
Page 13: Common Dishwashing Problems
Common Dishwashing Problems Spotting and filming Hard water Fill detergent dispensers to capacity. Use dishwasher detergent with highest available phosphorus content. May be necessary to install water softener. To remove spots and film, try a vinegar rinse... 1. Wash and rinse load as usual. Use Air Dry Option. - Page 14 Common Dishwashing Problems Continued Dishes not washing clean Water is not hot enough Water temperature should be at least 140°F (60°C). Set water heater thermostat to a higher setting. Run water at sink until hot before starting. Improper loading Make sure dishes and glassware are loaded so spray reaches all surfaces and items drain properly.
-
Page 15: If You Need Service Or Assistance
Whirlpool appliance. To locate FSP replacement parts in your area, refer to Step 3 above or call the Whirlpool COOL- LINE service assistance number in Step 2. *If you must call or write, please provide: model number, serial number, date of purchase, and a complete description of the problem. -
Page 16: Whirlpool Dishwasher Warranty
C. Pick up and delivery. This product is designed to be repaired in the home. D. Damage to dishwasher caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. E. Any labor costs during limited warranties.
