Use and Care Manual
For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9
3−07 Litho in U.S.A. (ebk)

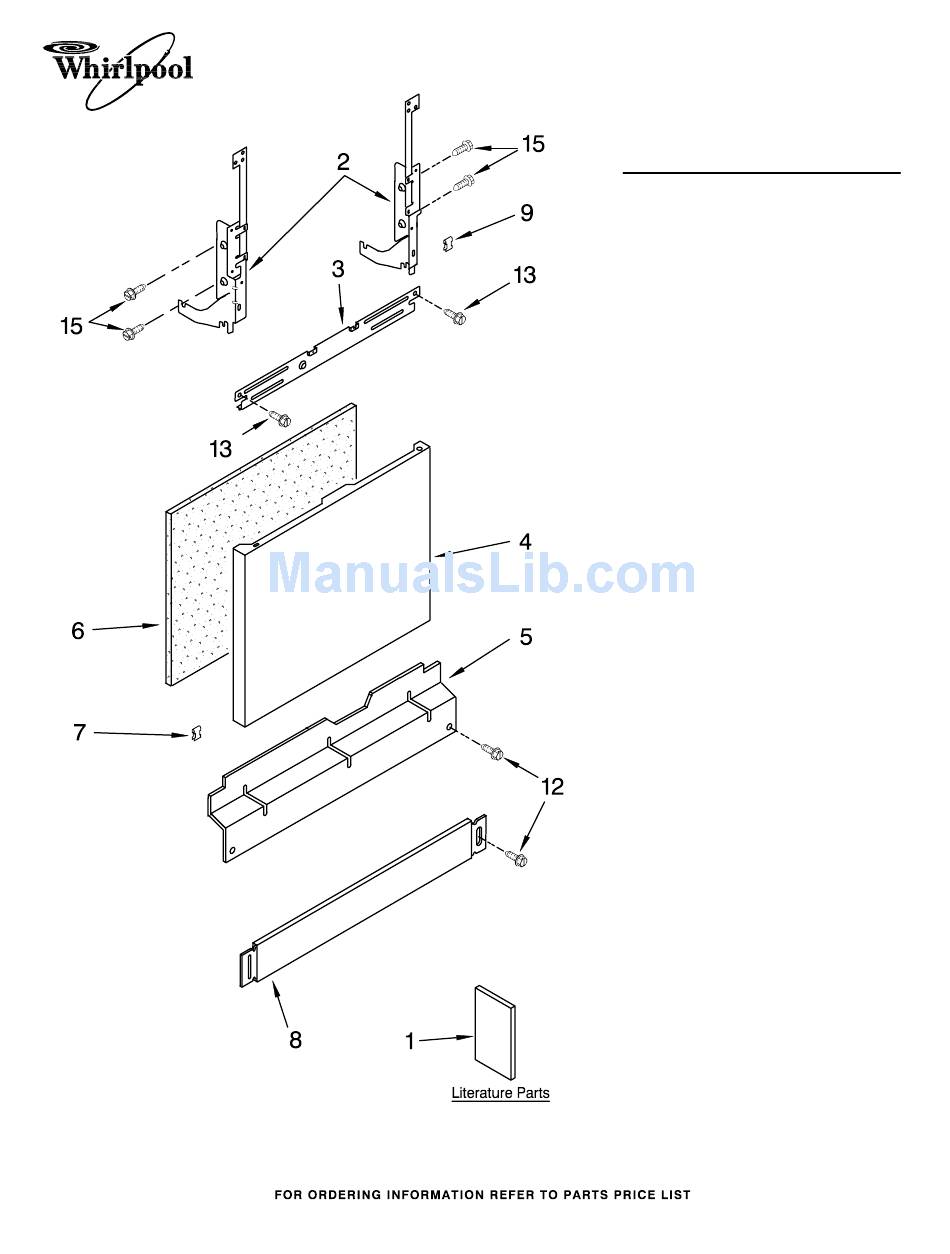

DOOR AND PANEL PARTS
(Black)
(White)
(Biscuit)
Illus.
No.
1
2
3
4
5
6
7
8
9
12
13
15
1
UNDERCOUNTER
DISHWASHER
(Stainless)
Part
No.
DESCRIPTION
Literature Parts
8575348 Instructions,
Installation
W10066180 Energy Guide
W10073760 Guide, Use & Care
W10082651 Tech Sheet
Arm, Hinge
8534858 Left
8534857 Right
8268983 Stiffener,
Door
Panel Front
(Includes #7)
W10073200 Black
W10073210 White
W10073220 Biscuit
8269845 Stainless
Access Panel
8573255 Black
8573256 White
8573257 Biscuit
8268580 Insulation, Door
8269016 Clip, Ground
Toe Panel
(Includes Clip)
8573286 Black
8573287 White
8573288 Biscuit
8269740 Clip, Grounding
Screw
302868 Black
3400836 White
3400865 Biscuit
343641 Screw
489470 Screw
Part No. 8194602 Rev. A
Advertisement
Related Manuals for Whirlpool DU1100XTPB9
Summary of Contents for Whirlpool DU1100XTPB9
- Page 1 DOOR AND PANEL PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 3−07 Litho in U.S.A. (ebk) (Black) (White) (Biscuit) UNDERCOUNTER DISHWASHER (Stainless) Illus. Part DESCRIPTION Literature Parts 8575348 Instructions, Installation W10066180 Energy Guide W10073760 Guide, Use & Care W10082651 Tech Sheet...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) Illus. Part DESCRIPTION Console Asm. (Includes Active Overlay & Insert) W10102456 Black W10102457 White W10102458 Biscuit 8546546 Clip, BI−Metal 4 W10056090 Cover Control Shield Assembly 8524471 Actuator, Latch 661663 BI−Metal... - Page 3 DOOR AND LATCH PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 Illus. Part DESCRIPTION 3369051 Screw, Door 8269311 Inner Door (Also Order Item 6) 8542603 Vent Assembly (Also Order Item 6) 8194602 (Black) (White) (Biscuit) Illus. Part DESCRIPTION 8269259 Gasket, Vent...
- Page 4 LOWER WASHARM PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) Illus. Part DESCRIPTION 8268333 Wash Arm Assembly 8268317 Cap, Internal 8268340 Seal, Sprayarm 8268342 Hub, Lower (Biscuit) (Stainless) Rear Feed (Also Order Item 3) Sprayarm (Also Order Item 3)
-
Page 5: Heater Parts
For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 8194602 HEATER PARTS (Black) (White) (Biscuit) Illus. Part DESCRIPTION 8563007 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 8269262 Bracket, Heater Support NOTE: If heater element is removed, it must be replaced. - Page 6 FILL AND OVERFILL PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) (Biscuit) (Stainless) Illus. Part 1 W10070120 Wire, Jumper 2 W10041920 Hose, Inlet 3 W10041900 Water Inlet 8531323 Gasket 8531326 Nut, Inlet 371505 Clamp, Hose 8563405 Fill Valve 304392 Screw...
- Page 7 TUB AND FRAME PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) (Biscuit) (Stainless) 8194602...
- Page 8 TUB AND FRAME PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) Illus. Part DESCRIPTION 1 W10008370 Tub Assembly 8573061 Strain Relief 8268888 Door Seal 8531022 Drain Loop 8533836 Screw (8) 3367670 Screw 8269145 Bracket, Undercounter 8269831 Wheel Leg 8524584 Leveler, Leg...
- Page 9 PUMP AND MOTOR PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) (Biscuit) (Stainless) 8194602...
- Page 10 PUMP AND MOTOR PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) Illus. Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield, Motor 3400069 Screw 8572618 Sump With Seal 8268375 Check Valve, Sump 8268383 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 8534942 Motor Assembly...
- Page 11 UPPER RACK AND TRACK PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) (Biscuit) (Stainless) 8194602...
- Page 12 UPPER RACK AND TRACK PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) Illus. Part DESCRIPTION 8539214 Dishrack, Upper 8268655 Mount, Wheel 3385089 Track, Rack 8565920 Stop Track (Biscuit) (Stainless) 8194602...
- Page 13 UPPER WASH AND RINSE PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 8194602 (Black) (White) (Biscuit) Illus. Part DESCRIPTION 8558968 Feed Tube Assembly (Also Includes Items 3 & 9) 8533889 Screw 8557720 Spinner, 3rd Level Wash 3400919 Cover, Screw 8268321 Mount...
- Page 14 LOWER RACK PARTS For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 (Black) (White) Illus. Part DESCRIPTION 8539259 Lower Rack 8535075 Silverware Basket 8268645 Wheel & Transport 8539118 Latch Assembly 8535077 Door, Silverware 8535078 Lid, Silverware 8269308 Clip, Silverware (Biscuit) (Stainless) Assembly (Includes Item 3)
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: DU1100XTPB9, DU1100XTPQ9, DU1100XTPT9, DU1100XTPS9 Illus. Part DESCRIPTION ACCESSORIES Side Panel Kits 8171656 White 8171657 Black 8171658 Biscuit 8171659 Stainless Steel Custom Panel & Trim Kit 4396199 Black 4396200 White 4396201 Biscuit Moisture Barrier Kit...
