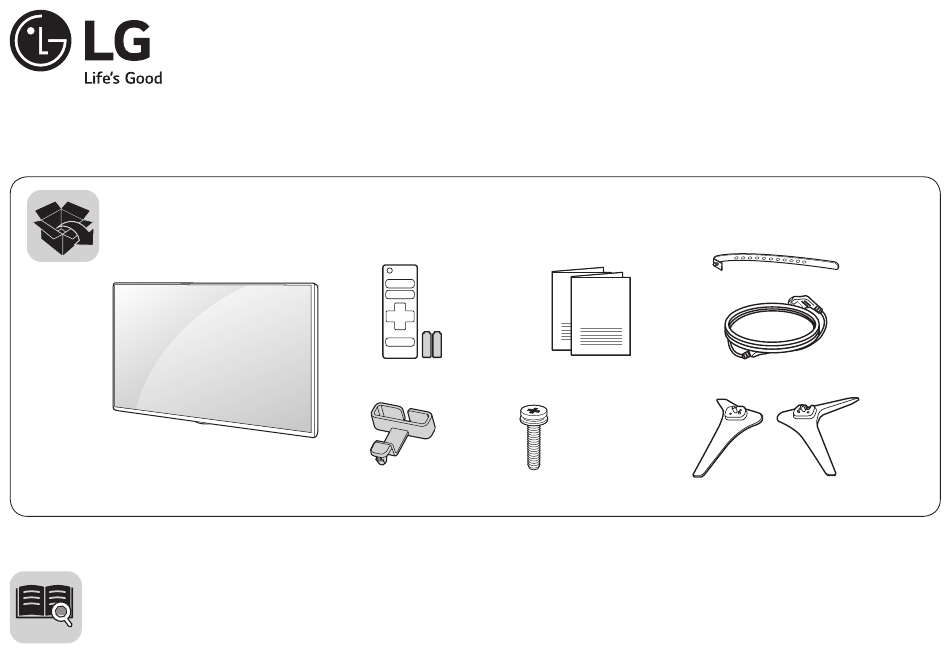

Page 1
LED TV ENGLISH Easy Setup Guide 55LV540H Please read this manual carefully before operating your set and retain it for future reference. ESPAÑOL Guía Rápida de Configuración Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
Page 2
ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas.
Page 6
: mm : kg 55LV540H-SB 1,241 1 241 63.0 63,0 16.6 16,6 16.34 16,34 1.25 A / 125 W 1,25 A / 125 W AC 100 - 240 V ~ 50 / 60 Hz...
Page 10
Warning! Important Safety • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with instructions the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Read these instructions.
Page 11
• Use only an authorized AC adapter and power lightning rods, or gas pipes. cord approved by LG Electronics. Otherwise, this • As long as this unit is connected to the AC wall may result in fire, electric shock, malfunction, or outlet, it is not disconnected from the AC power product deformation.
Page 12
Preparing • DISCONNECTING THE DEVICE FROM THE MAIN POWER The power plug is the disconnecting device. In case of an emergency, the power plug • Image shown may differ from your TV. must remain readily accessible. • Your TV’s OSD (On Screen Display) may differ •...
Lifting and Moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not place the product on the floor with its front facing down without padding. When moving or lifting the TV, read the following Failure to do so may result in damage to the to prevent the TV from being scratched or screen.
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. • The Kensington security system is optional. You When you do not use LG’s wall mount bracket,...
VESA standard. Standard dimensions for the wall mount kits are described in the following table. 32LV340C 49LV300C Model 43LV340C 49LV540H 43LV540H 55LV540H VESA (A x B) 200 x 200 300 x 300 Standard screw Connections (Notifications) Number of screws Wall mount bracket LSW240B...
Connecting to an Antenna or Cable polarities of the batteries may cause the battery to burst or leak, resulting in fire, personal injury, Connect an antenna, cable, or cable box to watch or ambient pollution. To remove the batteries, TV while referring to the following. The illustrations perform the installation actions in reverse.
Page 17
Changes the picture mode. Shows information on the current program. Changes the sound mode. (Power) Turns the TV on or off. Accesses the setting menu. Adjusts the Energy Saving settings. Accesses the quick menu. Selects an AV mode. Navigation button (up / down / left / right) Scrolls through menus or options.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG Electronics.
1280 x 1024 * 63.98 60.02 1920 x 1080 * 67.50 60.00 * FHD : 49LV300C, 43LV340C, 43/49/55LV540H Specifications HDMI (DTV) supported mode Product specifications may be changed without Horizontal Vertical Resolution prior notice due to upgrade of product functions.
Page 21
66.58 59.93 1920 x 1080 * [Photo size] 67.50 60.00 .png Minimum: 64 x 64, * FHD : 43LV340C, 43/49/55LV540H Maximum: Interlace : 1,200 x 800, Component port connecting Non-Interlace : 9,600 x 6,400 information [Photo size] .bmp Minimum: 64 x 64,...
Regulatory Supported Video Formats Extension Codec MPEG-2, MPEG-4 Part2, XViD, WARNING! Video H.264/AVC VC1(WMV3, WVC1), MP43 Never place a television set in an unstable .asf, .wmv WMA Standard WMA9(Pro), location. A television set may fall, causing serious Audio MP3, AAC, AC3, 3D WMV personal injury or death.
Page 23
Key Codes • This feature is not available for all models. Code Code (Hexa) Function Note Function Note (Hexa) (Power) R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button (Back) 10 - 19 Number Key 0 - 9...
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is RS-232C IN not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
Page 25
Set ID For Set ID number, see “Real Data Mapping”. 1 Press to access the main menus. 2 Press the Navigation buttons to scroll to OPTION and press 3 Press the Navigation buttons to scroll to Set ID and press 4 Scroll left or right to select a set ID number and select Close.
Page 26
Communication Parameters Baud rate : 9600 bps (UART) Stop bit : 1 bit Data length : 8 bits Communication code : ASCII code Parity : None Use a crossed (reverse) cable. Command reference list (Depending upon model) DATA DATA COMMAND1 COMMAND2 COMMAND1 COMMAND2 (Hexadecimal) (Hexadecimal)
Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
Page 28
• Commands may work differently depending upon model and signal. [c][ ][Set ID][ ][OK/NG][Data][x] • Using the PC input, you select either 16:9 or 4:3 01. Power (Command: k a) screen aspect ratio. • To control Power *On or Off of the set. •...
Page 29
06. Contrast (Command: k g) 10. Sharpness (Command: k k) • To adjust screen contrast. You can also adjust • To adjust the screen sharpness. You can also contrast in the PICTURE menu. adjust sharpness in the PICTURE menu. Transmission Transmission [k][g][ ][Set ID][ ][Data][Cr] [k][k][ ][Set ID][ ][Data][Cr]...
Page 30
14. Bass (Command: k s) • To adjust Bass. You can also adjust in the AUDIO [v][ ][Set ID][ ][OK/NG][Data][x] menu. * It depends upon model, and can adjust when Transmission sound mode is EQ adjustable value. [k][s][ ][Set ID][ ][Data][Cr] 18.
Page 31
* Tune Command Examples: * Digital Antenna/Cable 1. Tune to the Analog antenna (PAL) Channel 10. Data 00 : xx (Don’t care) Set ID = All = 00 [Data 01][Data 02]: Major Channel Number Data 00 & 01 = Channel Data is 10 = 00 0a Data 01 : High byte Channel Data Data 02 = Analog Antenna TV = 00 Data 02 : Low byte Channel Data...
Page 32
* For Japan Model 23. Input select (Command: x b) (Main Picture Input) • To tune channel to following physical/major/ minor number. • To select input source for main picture. Transmission Transmission [m][a][ ][0][ ][Data00][ ][Data01][ ][Data02][ ] [x][b][ ][Set ID][ ][Data][Cr] [Data03][ ][Data04][ ][Data05][Cr] Data 00 : DTV 10 : ATV...
Page 36
The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service. MODEL SERIAL...
Page 37
MANUAL DEL USUARIO Seguridad y Consultas TELEVISOR LED* * Los televisores con LED de LG tienen pantallas LCD con luces de fondo LED. Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas. 32LV340C...
Page 38
¡Advertencia! Instrucciones de • Use únicamente los accesorios recomendados por el fabricante. Seguridad Importantes • Use el producto únicamente en mesas portátiles, pies, trípodes, soportes o mesas indicados por el fabricante o provistos con el aparato. Al emplear Lea estas instrucciones. Conserve estas instrucciones. una mesa portátil, tenga cuidado al moverla con el Preste atención a las advertencias.
Page 39
• No intente modificar este producto de ninguna • Utilice sólo un adaptador de ca y el cable de manera sin autorización previa por escrito de LG alimentación autorizado por LG Electronics. Electronics. Cualquier tipo de modificación sin No hacerlo podría provocar un incendio, una...
Page 40
Preparación • DESCONEXIÓN DEL DISPOSITIVO DE LA ALIMENTACIÓN PRINCIPAL El enchufe de alimentación se desconecta del dispositivo. En • La imagen puede ser diferente a la de su caso de una emergencia, el enchufe debe estar televisor. siempre accesible. • El OSD (On Screen Display, Despliegue En la •...
Levantar y trasladar el televisor • No toque la pantalla. De lo contrario, podría dañarla. • No coloque el producto en el piso con la parte frontal hacia abajo sin una Si desea levantar o trasladar el televisor, lea las almohadilla.
Recomendamos que use un soporte de • El sistema de seguridad Kensington es opcional. pared de marca LG. El soporte de pared LG hace Puede solicitar otros accesorios a través de su que sea fácil ajustar o conectar los cables. Cuando distribuidor local.
Page 43
Conexiones (Notificaciones) 32LV340C 49LV300C Modelo 43LV340C 49LV540H 43LV540H 55LV540H VESA (A x B) 200 x 200 300 x 300 Se pueden conectar dispositivos externos al TV. Los dispositivos externos compatibles son: Receptores Tornillo estándar de HD, reproductores de DVD, VCR, sistemas de...
Conexión de una antena o un cable compartimiento. A continuación, cierre la tapa. Introducir las baterías sin hacer coincidir su Para ver televisión, conecte una antena, un cable o polaridad puede causar filtraciones o quemar una caja de cable. Las ilustraciones pueden diferir la batería, lo que podría provocar un incendio, de los elementos reales y el cable RF es opcional.
Page 45
Cambia el modo de la imagen. Muestra información del programa actual. Cambia el modo de audio. Permite acceder al menú de configuración. (Encendido) Enciende o apaga el televisor. Permite acceder al menú rápido. Ajusta el brillo de la pantalla Botones de navegación (hacia arriba/abajo/ para reducir el consumo de energía.
LG Electronics también le proporcionará el código fuente abierto en un CD-ROM con un cargo que cubra el costo de realizar tal distribución (como el costo de los medios, el envío y el manejo) con...
Page 47
Licencias Las licencias admitidas pueden variar según el modelo. Para obtener más información sobre las licencias, visite www.lg.com. (Según el modelo) Fabricado con la autorización de Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio y el símbolo de doble D son marcas comerciales de Dolby Laboratories.
LG Electronics. Si es necesario, deformación térmica. consulte a LG Electronics y actualice el software - Zumbidos en el circuito eléctrico o el panel Se con las nuevas versiones de acuerdo con las trata de un ruido de bajo nivel, generado por instrucciones proporcionadas por LG Electronics.
Page 49
1 920 x 1 080 * 67,50 60,00 66,58 59,93 1 920 x 1 080 * 67,50 60,00 * FHD : 49LV300C, 43LV340C, 43/49/55LV540H * FHD : 43LV340C, 43/49/55LV540H Modo HDMI (DTV) admitido Información de conexión de puerto Frecuencia Frecuencia componente Resolución...
Page 50
Archivo de foto disponible Archivo de video disponible Archivo Extensión Códec Formato Resolución Formato MPEG-2, MPEG-4 Parte2, XViD, [Tipo de archivo disponible] Video H.264/AVC VC1(WMV3, WVC1), SOF0: Secuencial base MP43 .asf, .wmv SOF1: Secuencial extendido WMA Estándar WMA9(Pro), SOF2: Progresivo Audio MP3, AAC, AC3, 3D WMV .jpeg,...
Page 51
Regulación ADVERTENCIA! Nunca coloque una televisión en un lugar inestable. Se puede caer y provocar lesiones graves o la muerte. Puede evitar muchas lesiones, especialmente en niños, con tan solo tomar simples precauciones, como: • Usar los gabinetes o soportes recomendados por el fabricante de la televisión.
Page 52
CÓDIGOS de tecla • Esta función no está disponible en todos los modelos. Código Código Función Nota Función Nota (Hexa) (Hexa) (Encendido) Botón RC Botón RC Botón RC Botón RC Botón RC Botón RC Botón RC Botón RC Botón RC Botón RC (Atrás) 10 - 19...
(TV) (PC) • LGTV admite el uso de un USB a convertidor de serie basado en chip PL2303 (ID de proveedor: 0x0557, ID de RS-232C IN producto: 0x2 008) que LG no fabrica ni incluye. (CONTROL & SERVICE) (PC) (TV) •...
Page 54
ID del televisor Para establecer el número de ID, consulte "Asignación de datos reales". 1 Presione para acceder a los menús principales. 2 Presione los botones de navegación para desplazarse hasta OPCIÓN y luego presione 3 Presione los botones de navegación para desplazarse hasta ID del Televisor y luego presione 4 Desplácese hacia la izquierda o hacia la derecha para establecer un número de ID y seleccione Cerrar.
Page 55
Parámetros de comunicación Velocidad en baudios : 9 600 bps (UART) Bit de parada : 1 bit Longitud de datos : 8 bits Código de comunicación : Código ASCII Paridad : Ninguna Use un cable cruzado (reversa). Lista de referencia de comandos (Según el modelo) Datos Datos...
Page 56
Protocolo de Transmisión/Recepción Transmisión [Comando1][Comando2][ ][ID del televisor][ ][Dato][Cr] [Comando 1]: Primer comando para controlar la TV. (j, k, m o x) [Comando 2]: Segundo comando para controlar la TV. [ID del Puede ajustar [ID del televisor] para elegir el número de ID del monitor que desea televisor]: en el menú...
Page 57
• Según el modelo y la señal, los comandos podrán funcionar de un modo diferente. [c][ ][ID del televisor][ ][OK/NG][Dato][x] • Usando la entrada de PC, seleccione la relación de 01. Potencia (Comando: k a) aspecto de la pantalla de 16:9 o 4:3. •...
Page 58
05. Volume Control (Control de volumen) 10. Nitidez (Comando: k k) (Comando: k f) • Para ajustar la nitidez de la pantalla. También • Para ajustar el volumen. También puede ajustar el puede ajustar la nitidez en el menú IMAGEN. volumen con los botones de volumen en el control Transmisión remoto.
Page 59
14. Graves (Comando: k s) • Para ajustar los bajos. También puede ajustarlos en [v][ ][ID del televisor][ ][OK/NG][Dato][x] el menú AUDIO. * Depende del modelo y se puede ajustar cuando Transmisión el modo de audio es el valor ajustable del EQ (ecualizador).
Page 60
* Ejemplos de comandos de sintonización: * Digital terrestre/Cable 1. Sintonizar el canal terrestre análogico (PAL) 10. Datos 00 : xx (no importa) ID del televisor = Todo = 00 [Dato 01][Dato 02]: Número de canal mayor Datos 00 & 01 = Datos de canal es 10 = 00 0a Datos 01 : Datos de canal de bytes altos Datos 02 = TV Antena analógica = 00...
Page 61
[m][a][ ][0][ ][Dato00][ ][Dato01][ ][Dato02][ ] 23. Input select (Selección de entrada) (Comando: x b) (Entrada de la imagen principal) [Dato03][ ][Dato04][ ][Dato05][Cr] • Para seleccionar la fuente de entrada para la imagen principal. 20. Canal (Programa) Agregar/Borrar (Saltar) Transmisión (Comando: m b) [x][b][ ][ID del televisor][ ][Dato][Cr] •...
Page 64
Los números de modelo y de serie del televisor se encuentran ubicados en la parte posterior del aparato. Regístrelos en el siguiente espacio por si alguna vez necesita recurrir al servicio técnico. MODELO SERIE...
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
Page 71
EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
Page 72
EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
Page 73
EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
Page 74
EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
Page 75
11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
Page 76
EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
MANUAL DEL USUARIO CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS Lea atentamente este manual antes de poner en funcionamiento el equipo y consérvelo para futuras consultas. www.lg.com...
Page 79
CÓDIGOS DE TECLA CÓDIGOS De teCla • Esta función no está disponible en todos los modelos. Código Código Función Nota Función Nota (Hexa) (Hexa) CH +, PR + Botón RC Lista Botón RC CH -, PR - Botón RC Salir Botón RC Volumen + Botón RC...
Page 80
(TV) (PC) • LGTV admite el uso de un USB a convertidor de serie basado en chip PL2303 (ID de proveedor: 0x0557, RS-232C IN ID de producto: 0x2008) que LG no fabrica ni incluye. (CONTROL & SERVICE) (PC) (TV) •...
Page 81
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS (TV) (PC) (TV) (PC) Tipo de adaptador telefónico RS-232C IN RS-232C IN • Para realizar la conexión entre la PC y la TV, que se especifica en el manual, debe comprar el cable de (CONTROL &...
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS Parámetros de comunicación • Velocidad en baudios : 9600 bps (UART) • Bit de parada: 1 bit • Longitud de datos: 8 bits • Código de comunicación: código ASCII • Paridad: Ninguna • Use un cable cruzado (reversa). lista de referencia de comandos (según el modelo) Datos...
Page 83
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS Protocolo de transmisión/Recepción transmisión [Comando1][Comando2][ ][ID del televisor][ ][Dato][Cr] [Comando 1] : Primer comando para controlar la TV. (j, k, m o x) [Comando 2] : Segundo comando para controlar la TV. [ID del televisor] : Puede ajustar [ID del televisor] para elegir el número de ID del monitor que desea en el menú...
Page 84
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS * Según el modelo y la señal, los comandos podrán funcionar de un modo diferente. 01. Potencia (Comando: k a) 03. Screen Mute (Silencio de pantalla) (Comando: k d) ► Para controlar el encendido o apagado del dispositivo.
Page 85
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS 07. Brillo (Comando: k h) 12. Remote control lock mode (Modo de bloqueo del control remoto) (Comando: k m) ► Para ajustar el brillo de la pantalla. También puede ajustar el brillo en el menú ►...
Page 86
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS 16. Color Temperature (Temperatura de color) Datos (Comando: x u) 00: apagado 01: mínimo ► Para ajustar la temperatura de color. También 02: medio puede ajustar Color Temperature (Temperatura 03: máximo de color) en el menú IMAGEN. 04: Automático (para TV LCD/TV LED)/ Transmisión [x][u][ ][ID del televisor][ ][Dato] Intelligent sensor (Sensor inteligente) (para...
Page 87
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS ID del televisor = Todo = 00 - 0b : Cable DTV Plus – usar número de canal físico Datos 00 & 01 = Datos de canal es 1000 = 03 E8 Datos 02 = Satélite de TV digital = 40 - 2b : Cable DTV Plus –...
Page 88
11 11 CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS - 09: CS2 (satélite de comunicación 2) • Para TV plasma ► Para controlar la luz del panel * Ejemplos de comandos de sintonización: 1 Sintonizar el canal Antena digital (ISDB-T) 17-1. Transmisión [m][g][ ][ID del televisor][ ][Dato] ID del televisor = Todo = 00 [Cr]...
Page 89
CONFIGURACIÓN DE DISPOSITIVOS DE CONTROL EXTERNOS * Si [Dato 00] es 01 (3D apagado) o 02 (3D a * Si la condición de la conversión no se cumple, el 2D), [Dato 01], [Dato 02] y [Dato 03] no son comando se trata como NG. relevantes.
