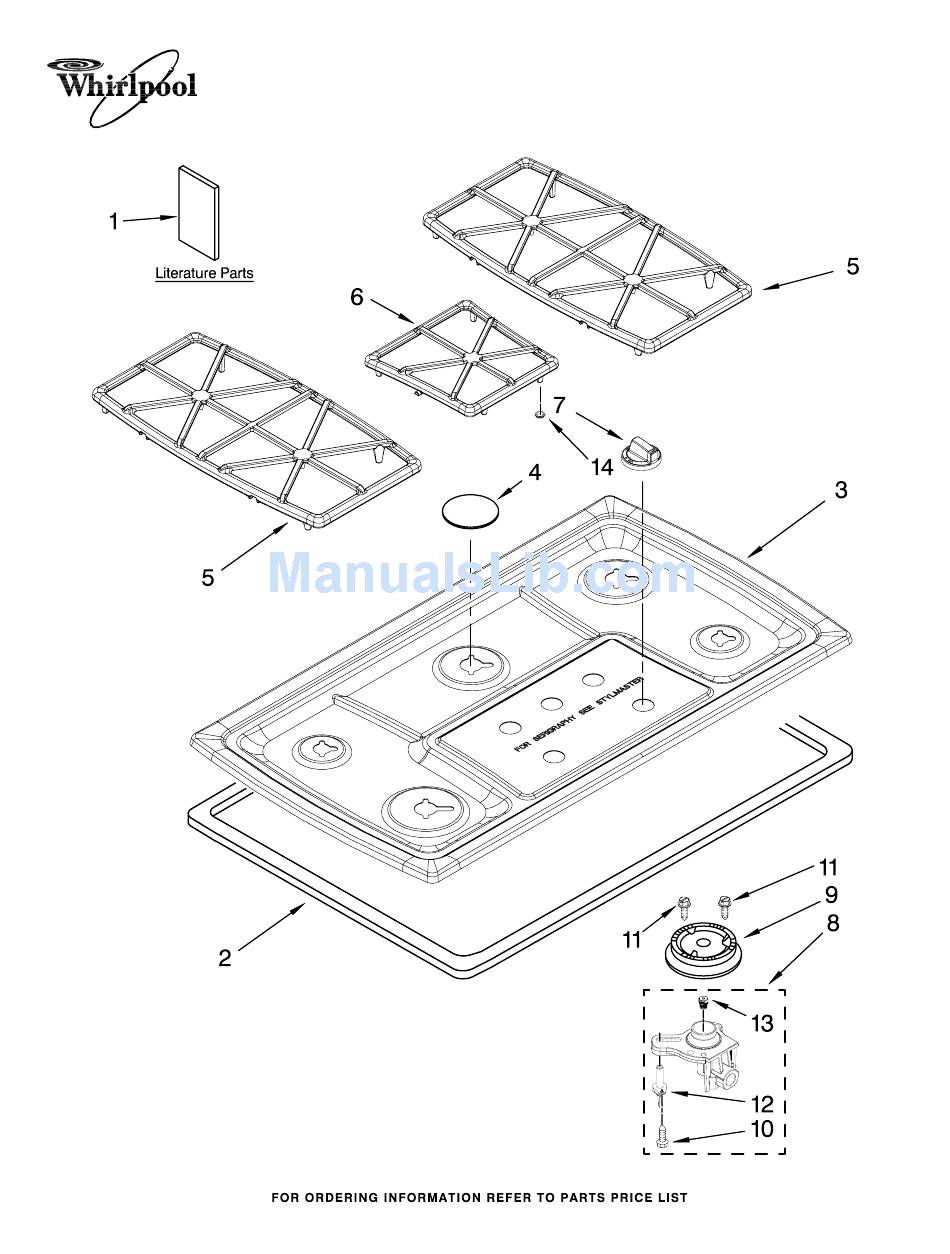

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: GLS3675VS00 (Stainless) 36" GAS COOKTOP 7−10 Litho in U.S.A. (amd) Part No. W10168659 Rev. A...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: GLS3675VS00 Illus. Part W10131955 Installation 8304571 Undercounter 8286994 Use & Care Guide 3192099 Wiring Diagram 3191638 English 9759133 French 9760279 Seal, Foam 3 W10140188 Cooktop 8286153CB LR & RF 8286154CB CTR 8286155CB RR...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: GLS3675VS00 (Stainless) W10168659...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Models: GLS3675VS00 Illus. 8285796 Rail, Burner 8285751 Pipe, Manifold 8286559 White (2) 4456817 Black 8286560 Yellow 8286561 Orange 3191387 Seal, Shaft 5 W10131956 Regulator 8285791 Rail, Center 8523704 Bolt, Gas Valve 3400843 Screw...
-
Page 5: Optional Parts
W10168659 OPTIONAL PARTS For Models: GLS3675VS00 (Stainless) Illus. Part DESCRIPTION Following Parts Not Illustrated 9763116 Cord, Power 3177991 Screw Miscellaneous 8286320 Spud Kit WIRING HARNESS PARTS 4456626 Harness, Ignitor 15" (2) 8285402 Wire, Ground 4456627 Harness, Ignitor 28" (2)
