LG LFX25971 Series Service Instructions
Affecting energy usage issues on 2008 models with indoor icemakers
Hide thumbs
Also See for LFX25971 Series:
- User's manual & installation instructions (88 pages) ,
- User manual (1 page) ,
- Guía para el uso e instrucciones de instalación (49 pages)
Advertisement
Quick Links
Service Instructions
affecting energy usage issues
on 2008 models with Indoor Icemakers
Model: LFX25971xx,
LFX21971xx,
LFX23961xx,
LMX25981xx,
LMX21981xx,
LFX25980ST /1
LFX21980ST /1

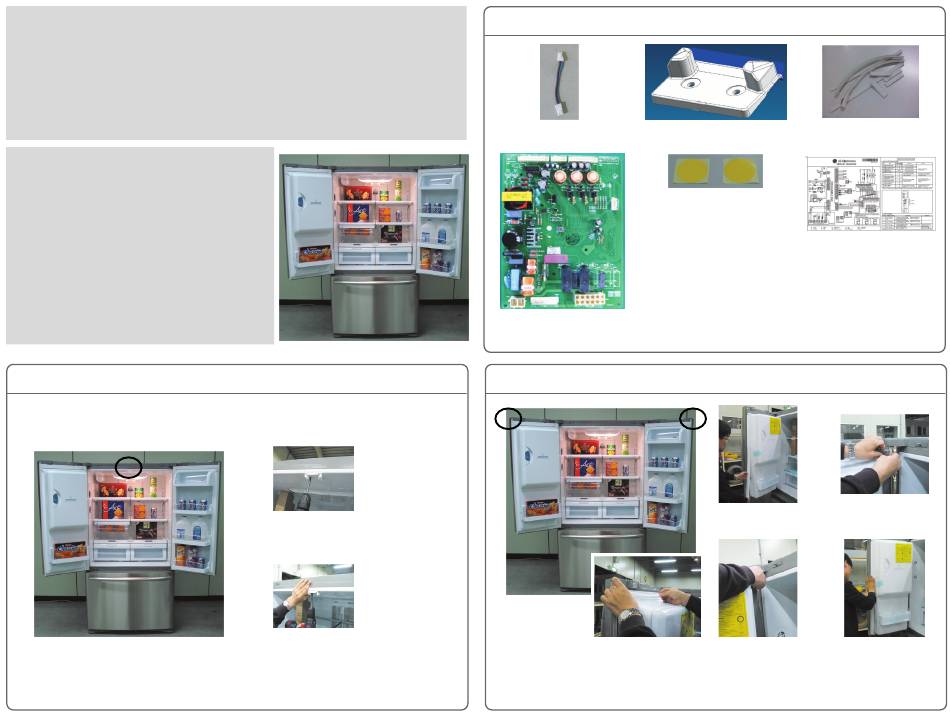

Step 1 : Holder, Door
(Excluding LFX23961xx)
1. Remove the door holder (2 screws).
2. Install the new door holder.
Kit Contents
Harness Adapter (1Ea)
Holder, Door (1Ea)
Yellow sticker (2Ea)
PCB Assembly, Main P/N List
LFX25971xx, LFX21971xx
LFX23961xx
LFX25980ST /1, LFX21980ST /1
PCB Assembly, Main (1Ea)
LMX25981xx, LMX21981xx
Step 2-1 : Door Gasket
3. Attach new foam
gasket strips.
Perform this process on both refrigerator doors.
See the next page for a more detailed view.
Gasket, Foam
(Long 6Ea, Short 6Ea)
Label, Circuit (1Ea)
: EBR41956414
: EBR41956102
: EBR34917107
: EBR41956413
(Excluding LFX23961xx)
1. Remove the door
2. Remove the door
frame cover.
gasket.
4. Reinstall the
5. Reinstall the door
door gasket.
frame cover.
