Weslo WLTL21191 User Manual

Heart rate sensor

Hide thumbs

Table Of Contents

Model No. WLTL21191

Serial No.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satis-

faction through direct assistance

from our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

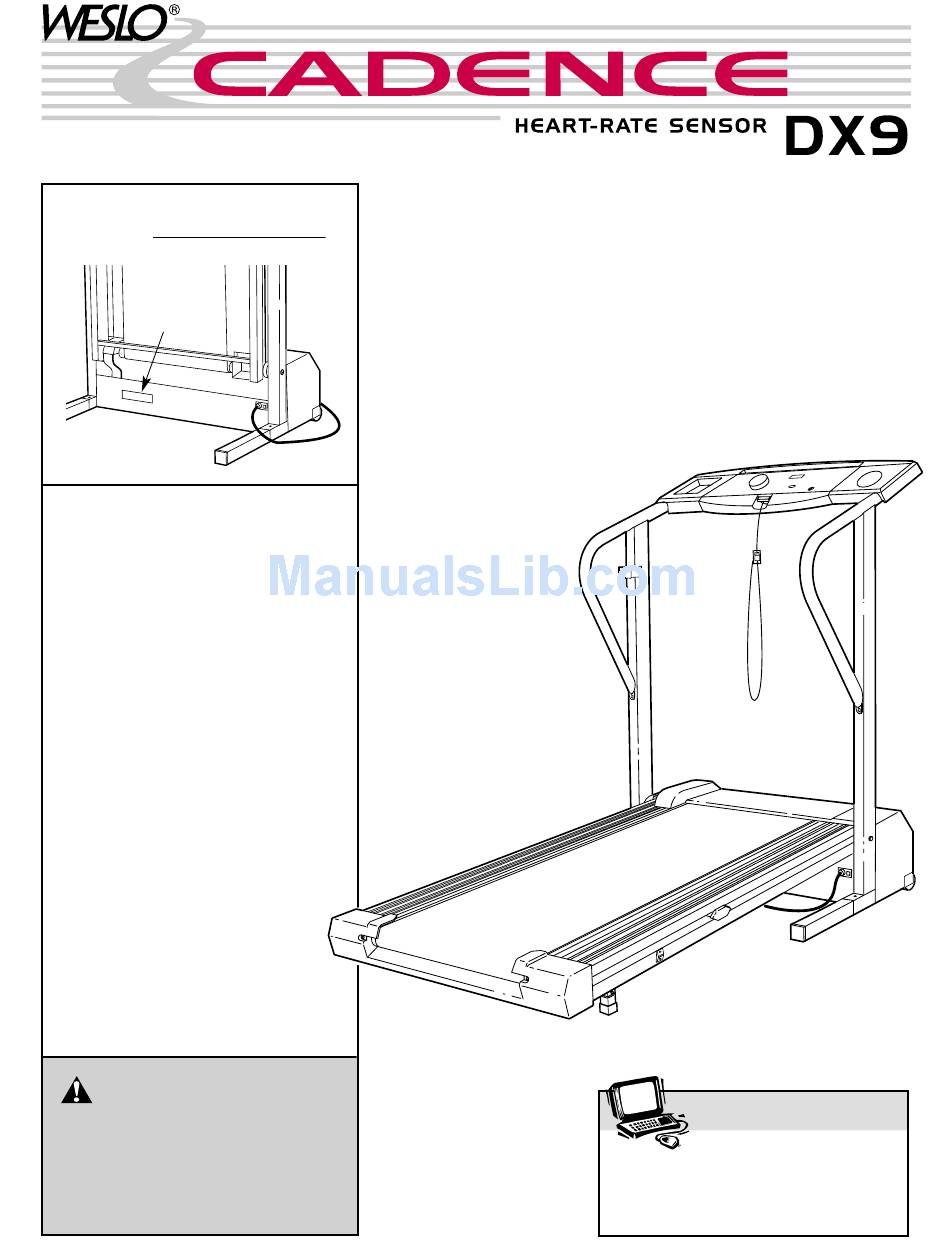

USER'S MANUAL

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

Table of Contents

Summary of Contents for Weslo WLTL21191

Page 1 Model No. WLTL21191 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satis- faction through direct assistance from our factory.
Page 2: Table Of Contents
450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. To purchase a surge suppressor, see your local WESLO dealer or call 1-800-999- 3756 and order part number 146148. sor away from heated surfaces.
Page 3 14. Never start the treadmill while you are stand- ing on the walking belt. Always hold the handrails while using the treadmill. 15. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed. 16.
Page 4: Before You Begin
The model number of the treadmill is WLTL21191. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location).
Page 5: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
Page 6: Left Handrail And The Left Upright. Do Not Tighten The
3. Cut the indicated plastic tie off the Left Handrail (2). Position the Left Handrail (2) on the left Upright (14). Loosely thread a Handrail Bolt (15) with a Handrail Washer (16) into the lower end of the Left Handrail and the left Upright.
Page 7: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call toll-free 1-800-999-3756 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS).
Page 8 DIAGRAM OF THE CONSOLE Clip CAUTION: console, read the following precautions. • Do not stand on the walking belt when turning on the power. • Always wear the clip (see the drawing above) while operating the treadmill. When the key is removed from the console, the walking belt will stop.
Page 9 Reset the console and start the walking belt. Turn the speed control to the RESET position. Note: Each time the walking belt is stopped, the speed control must be turned to the RESET position be- fore the walking belt can be restarted. Next, slowly turn the speed control until the walk- ing belt begins to move at slow speed.
Page 10: How To Fold And Move The Treadmill
HOW TO CHANGE THE INCLINE OF THE TREADMILL To vary the intensity of your exercise, the incline of the treadmill can be changed. There are three incline lev- els. Before changing the incline, remove the key and unplug the power cord. Next, fold the treadmill to the storage position (see HOW TO FOLD THE TREADMILL FOR STORAGE below).
Page 11 HOW TO MOVE THE TREADMILL Before moving the treadmill, convert the treadmill to the stor- age position as described above. Make sure that the stor- age latch is closed fully over the catch. 1. Hold the handrails and place one foot on the base as shown.
Page 12: Maintenance And Trouble-Shooting
MAINTENANCE AND TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a.
Page 13 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES WARNING: or any exercise program, consult your physi- cian. This is especially important for individu- als over the age of 35 or individuals with pre- existing health problems. The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings.
Page 15 EXERCISE FREQUENCY To maintain or improve your condition, complete three workouts each week, with at least one day of rest be- SUGGESTED STRETCHES The correct form for several basic stretches is shown in the draw- ings at the right. Move slowly as you stretch—never bounce. 1.
Page 16: Ordering Replacement Parts
If possible, place the treadmill near your telephone for easy reference when calling. WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.
Page 17 REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL. Save this page for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.
Page 18 PART LIST—Model No. WLTL21191 Key No. Qty. Description Key/Clip Left Handrail Cage Nut Extension Leg Assembly Rear Isolator Screw Console Base Speed Control Knob Speed Potentiometer Console Plug Isolator Spacer Console Assembly Storage Latch Screw Upright Handrail Bolt Handrail Washer/Roller Washer...
Page 19 EXPLODED DRAWING—Model No. WLTL21191 R0501A...

This manual is also suitable for:
